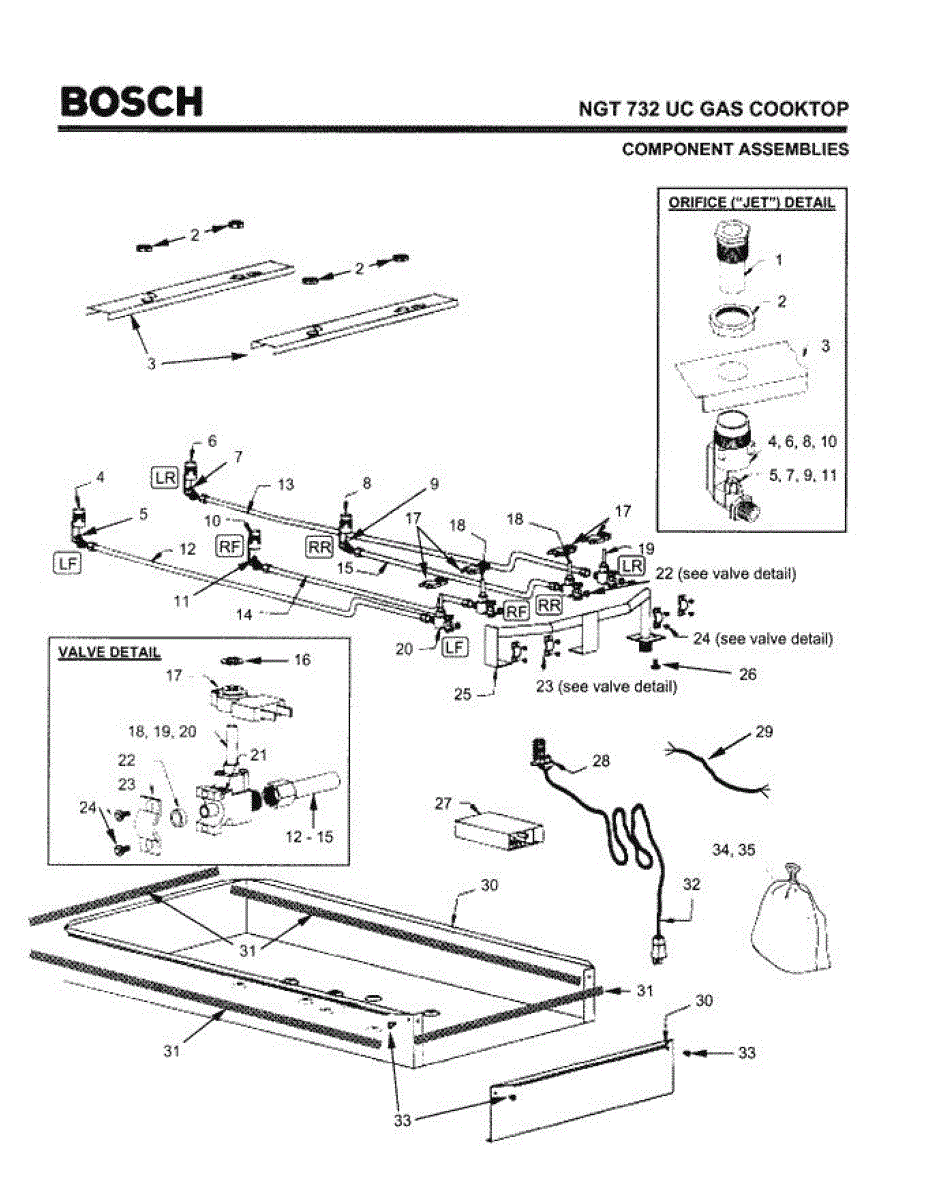

Parts for Bosch NGT732 UC (FD 8202 -): 02 - Component Assemblies Parts

Supplies air to the burner for proper gas combustion. Replace if cracked, seized, or corroded from heat exposure. Installs between valve and burner.

Used to hold down the jet holder assembly.

Mounting bracket that secures double burner assemblies to your gas cooktop frame. Replace if cracked, bent, or missing to properly support burner units.

Secures the burner orifice in position to deliver the correct gas jet size for your 12,500 BTU natural gas burner. Replace if cracked, broken, or missing.

The Jet Holder with Nut is an OEM part for Bosch ranges and cooktops. It holds precisely machined jets that control gas flow from each burner valve.

Causes may be wear and deterioration from prolonged heating exposure. Physical impacts or damage accumulation over time could also compromise the jet holder.

Symptoms of a bad jet holder can include:

• Inability to adjust or maintain proper flame stability and heat output
• Irregular or uneven flame patterns between surface burners
• Potential gas leaks observed at jet connections

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Jet holder assembly routes gas through the orifice to the burner. Replace if cracked, corroded, or stripped threads prevent secure installation.

Jet holder assembly secures the orifice that meters gas flow to your cooktop burner. Replace if cracked, stripped threads, or missing nut components.

Gas supply tube for cooktops. Connects gas source to burner assembly. Replace if cracked, kinked, damaged, or leaking to restore safe gas flow.

Replacement gas tubing assembly that routes fuel between the valve and burner manifold. Needed when original tubing is damaged, cracked, or leaking.

Gas tube for cooktop burner assembly. Connects gas supply to burner components. Replace if cracked, damaged, or leaking. Essential structural part.

Secures 6mm shafts and spindles on cooktop burners and controls. Replace if parts slip or wobble during use. Confirm 6mm shaft size before ordering.

Burner won't spark or ignite? This spark switch signals the ignition module to light gas burners. Common DIY repair with basic tools, 15-30 minutes.

Gas burners won't ignite or spark continuously? This spark module generates the high-voltage spark needed to light burners. DIY repair in 30-60 minutes.

Cooktop won't power on or has intermittent electrical issues? This terminal block with strain relief connects power supply wiring to your appliance.

If your cooktop burners won't ignite or spark continuously, the high voltage wire harness may be damaged. This ignitor wiring repair takes 30-45 minutes.

A dishwasher rough-in box that provides a protected mounting pocket for the water and drain connections, plus a sidewall for secure installation. Keeps plumbing connections accessible and contained behind the cabinet face. What it does

• Houses and secures water supply and drain fittings for a dishwasher during installation.
• Protects plumbing connections from cabinet damage and helps prevent movement or strain on hoses.
• Allows access to service supply/drain lines without removing cabinetry.
• Can reduce the risk of leaks reaching adjacent cabinetry by containing connections.

• One rough-in box with sidewall

• Intended for in-cabinet installation during dishwasher rough-in; confirm fit before final cabinet cutout.
• Turn off water supply and power to the appliance circuit before installing or servicing plumbing connections.
• Use appropriate fasteners and sealants per local code; avoid overtightening plumbing fittings.

Foam seal tape creates a tight seal between your cooktop and countertop to contain spills and provide heat isolation. Replace when adhesive weakens.

Replacement power cord for gas cooktops. Connects your cooktop to the electrical outlet. Replace if cord is frayed, damaged, or missing for safe operation.
