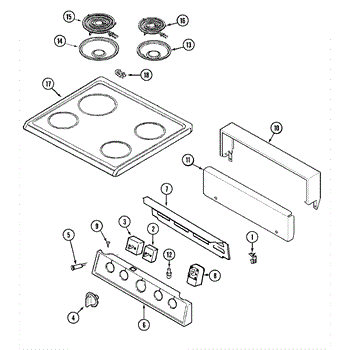

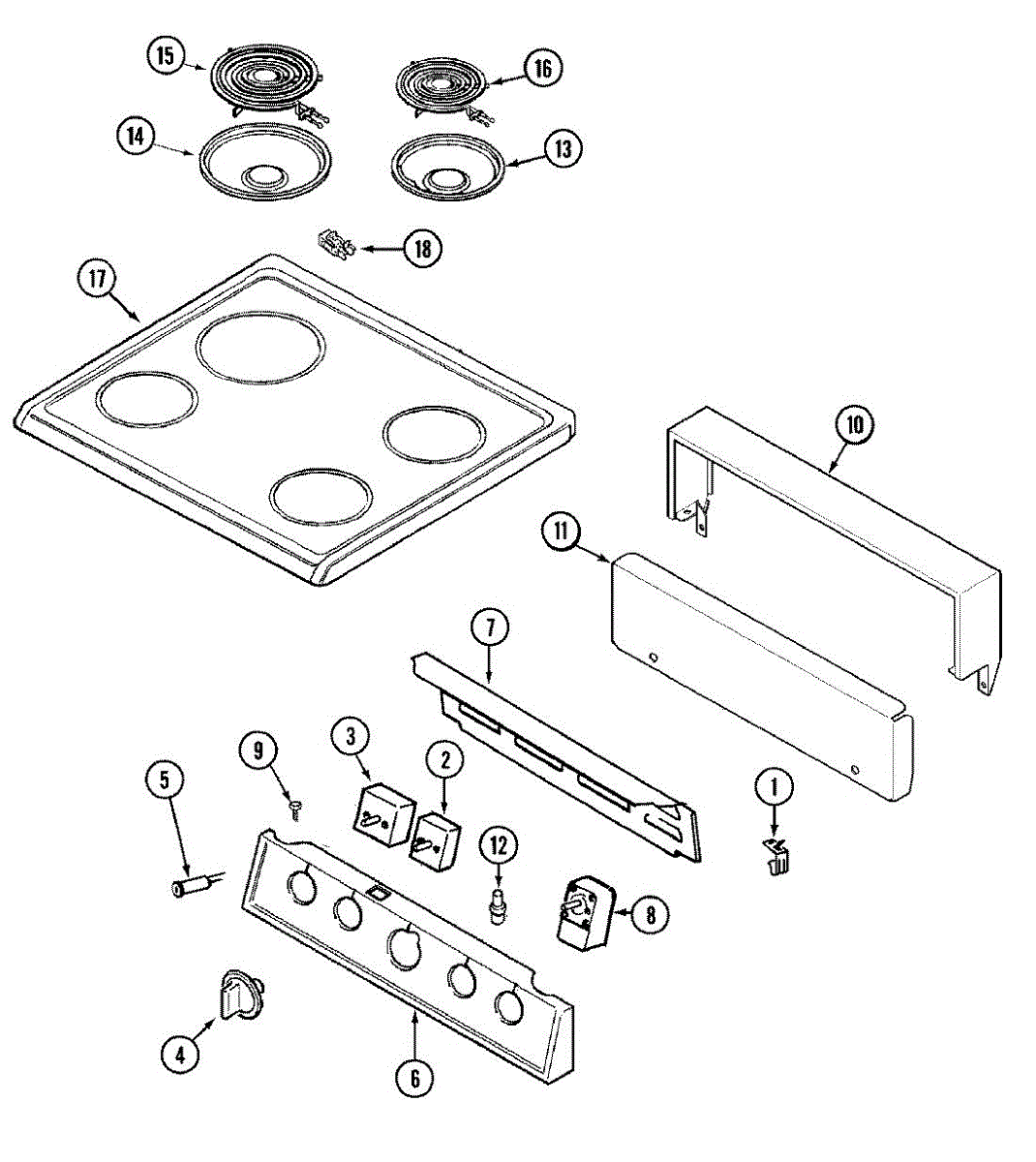

Parts for Crosley CE1500PAW: 02 - Control Panel / Top Assembly Parts

This mounting clip secures a thermostat, temperature sensor, or capillary bulb in the correct position so it can sense temperature accurately and control the appliance. Replacing a damaged or missing clip helps prevent loose components and erratic readings. What it does:

• Holds the thermostat or sensor firmly against its mounting surface for proper thermal contact
• Helps maintain stable, accurate temperature regulation
• Replaces a bent, broken, or missing clip that won't hold securely
• Common symptoms include a dangling sensor/bulb, rattling, or inconsistent temperature response

• 1 clip

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely before service
• Access the thermostat/sensor area and note original orientation and routing
• Move the component into the new clip and secure it at the original mounting location
• Avoid kinking a capillary tube or damaging sensor leads; the clip is fully seated

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

Infinite switch that controls the top surface burner's heat range, restoring adjustable temperature settings and proper burner response. Replace a failed switch when a surface element won't heat or loses variable control. What it does:

• Regulates power to a surface element so you can select low-to-high heat; failure can cause no heat or only high heat.
• Provides stepped/infinite heat selection for smooth temperature changes; intermittent or erratic heating often indicates switch wear.
• Completes the circuit between the control knob and the burner element; an unresponsive or cycling burner can point to a bad switch.
• Physical symptoms may include a loose knob, inability to hold selected settings, or a surface element that won't turn on.

• Disconnect power at the breaker before servicing and work only on a cool cooktop.
• Access may require removing the element or lifting the cooktop.
• Match and secure wire terminals exactly; do not bend or force terminals. Confirm all connections are correct before restoring power.

Infinite switch (6") replaces the rotary control that regulates power to an electric cooktop or range surface element, restoring adjustable heat control so burners respond correctly when you change the knob. What it does:

• Regulates variable power to a surface heating element, allowing smooth, stepped heat adjustments.
• Replaces a failed or worn control that causes a burner to not heat or only heat on certain settings.
• Can correct symptoms like no heat, burner stuck on one setting, or inconsistent element behavior.
• Operates as the user-facing control behind the range knob for manual temperature selection.

• Disconnect electrical power at the breaker before servicing to prevent shock.
• Access is usually from the back or front control panel; remove knobs and any backguard per your service manual.
• The replacement switch matches the old part's shaft length and terminal layout before installation.

This part has been discontinued and is no longer available

This part has been discontinued by the manufacturer and is no longer available.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

The Stove Top Drip Pan is an OEM replacement part for Whirlpool gas and electric ranges. It is located underneath the stove burners and grates to catch and contain grease drippings and spills. Over time, grease and cooking residue buildup can cause drip pans to crack, warp or corrode.

Symptoms of a bad stove top drip pan include:

• Grease spillovers outside of the drip pan area
• Flames or heating elements obstructed by built-up debris
• Warping or cracking of the pan surface
• Difficulty removing or cleaning the drip pan

Causes can be normal wear from heat and long-term grease exposure. Accidental damage during cleaning is also possible.

 This OEM part is also compatible with Maytag, Jenn-Air, Amana and some Kenmore models.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

This 8-inch surface burner element delivers heat on an electric cooktop or range. Replacing a worn or open element restores even heating on the burner zone and reliable response to temperature settings.

• Heats the 8-inch cooking zone when the surface control is turned on
• Helps maintain consistent pan temperature for boiling, simmering, and frying
• Common symptoms: burner won't heat, heats unevenly or intermittently, visible blistering/breaks in the coil, or scorch marks at the terminals
• Replacing a damaged element can prevent further damage to the receptacle/terminal block

• Disconnect power at the breaker and allow the unit to cool completely
• Handle the element by the bracket; avoid bending the coil
• For plug-in setups, pull the old element straight out and firmly seat the new one; for wired connections, move wires one at a time to the matching terminals and secure properly
• Inspect the receptacle/terminal block and wiring; replace if burnt or loose before restoring power

This 6-inch surface coil element restores reliable heat to one burner on your electric range. Replace a burned-out or damaged coil to bring back consistent, even heating for everyday cooking.

• Provides cooking heat for a 6-inch burner position on electric ranges/cooktops
• Helps resolve a burner that won't heat or heats intermittently
• Addresses uneven heating or visible hot spots on the coil
• Replaces elements with visible breaks, blistering, or burned terminals

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• For plug-in coil models: lift the element, pull straight out of the receptacle, and remove from the support/drip pan
• Align the new element's terminals with the receptacle, push firmly until fully seated, and set into the support
• Inspect the receptacle and wiring for heat damage and replace any compromised components before use

The Terminal Block Kit is an OEM part for Whirlpool cooktops. It is a crucial component that provides a secure connection point for electrical wires and cables within the appliance's control system.

Symptoms of a faulty terminal block kit:

• Intermittent power supply or electrical issues
• Burnt or melted wires or connectors
• Appliance not receiving or responding to electrical signals correctly
• Visible damage or corrosion on the terminal block

Causes of a bad terminal block kit include excessive heat exposure, loose connections, moisture or water damage, or simply wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.
