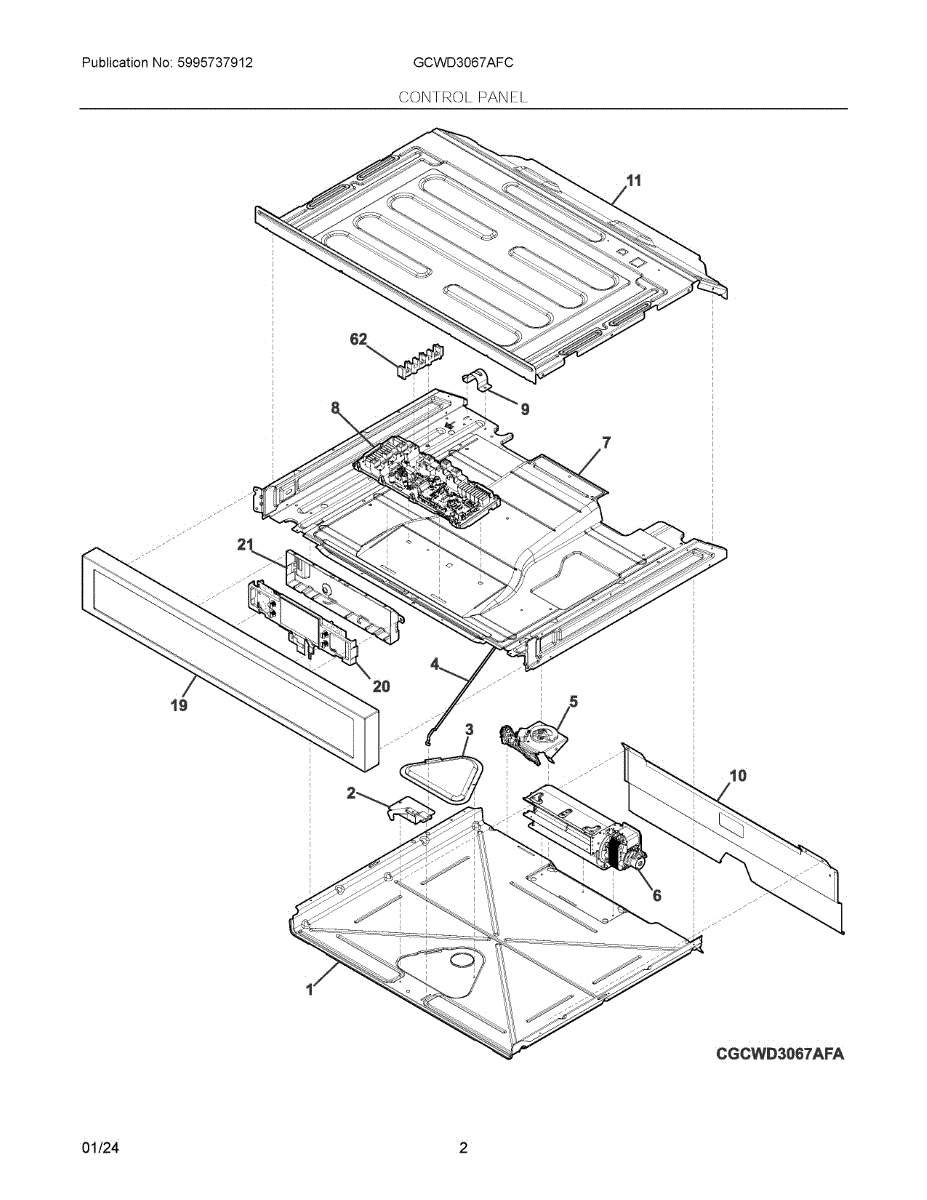

Parts for Electrolux GCWD3067AFC: 02 - Control Panel Parts

This electronic user interface control board replaces the front-panel control assembly to restore normal touchpad and display operation. It provides the appliance's main controls so cycles, settings and feedback display correctly. What it does:

• Acts as the appliance's user interface, sending commands to the main control and showing status on the display
• Restores response when touchpads or buttons are unresponsive or intermittently working
• Fixes errors or blank/garbled displays caused by a failed front control assembly
• Helps resolve erratic cycle behavior when the UI is not properly communicating with the system

• Disconnect power to the appliance before attempting any service
• Handle the board by its edges and avoid static discharge; use proper ESD protection if available
• Verify the part number on your existing control board matches before installing

This terminal block provides the appliance's main wiring connection point, securely joining the incoming power leads to the unit's internal wiring for reliable electrical contact. It restores a solid, safe power feed when the original connector is damaged or worn. What it does

• Holds and secures incoming power conductors to the appliance wiring harness
• Provides firm electrical contact to prevent intermittent power or arcing
• Commonly replaced for loose, melted, or burned terminals or after a short or power-fault
• Helps restore normal power delivery when appliance will not power on due to a failed connection

• One terminal block assembly

• Always disconnect house power at the breaker or unplug the appliance before servicing
• Match wire positions to the appliance wiring diagram and tighten terminals firmly
• Inspect surrounding wiring and strain relief for heat or damage; replace any compromised components

This wiring harness supplies electrical connections between components, restoring power and signals for the affected circuit. It replaces a damaged or worn harness to help eliminate intermittent power or connection failures. What it does

• Carries power and signal between appliance components so controls and motors can operate
• Restores secure plug-and-socket connections when original wires or terminals are frayed or broken
• Helps address symptoms such as intermittent operation, blown fuses, or components not receiving power
• Matches OEM connector ends and wire routing to fit into the factory harness path

• Disconnect power (unplug appliance or shut off breaker) before beginning any repair
• Compare new harness to the old one to ensure connectors and wire lengths match before installation
• Route harness along the original path and secure with existing clips or ties to avoid heat and abrasion

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.
