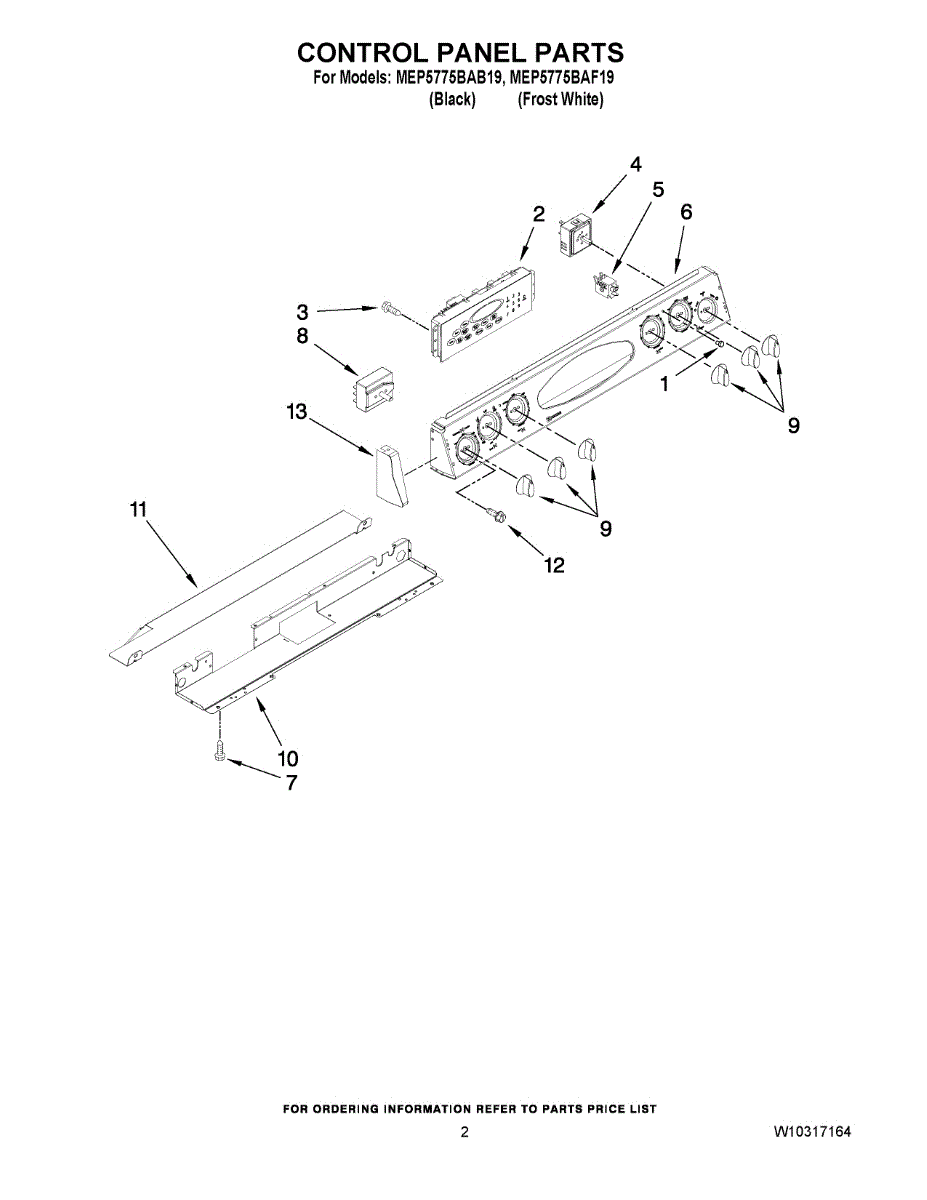

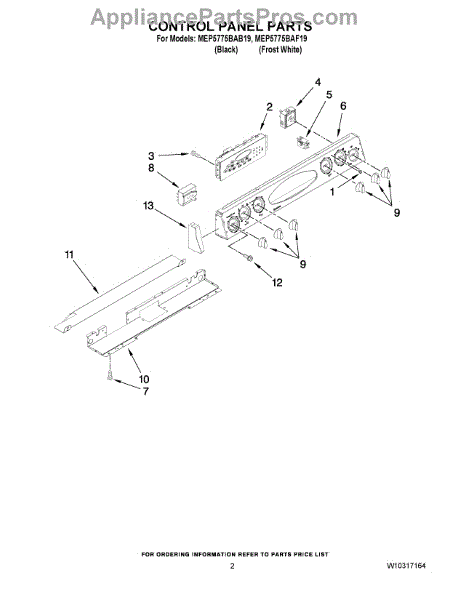

Parts for Maytag MEP5775BAB19: 02 - Control Panel Parts

This indicator light lens covers the pilot/indicator lamp opening on the appliance's control panel. It protects the assembly and diffuses the light so operating status is easy to see, restoring a clean, finished appearance when the original lens is damaged or missing.

• Covers and protects the indicator/pilot light opening in the panel
• Diffuses light for clearer visibility of the status indicator
• Helps keep dust, grease, and moisture out of the indicator assembly
• Common symptoms: lens cracked, missing, loose, or discolored; indicator light difficult to see

• Disconnect power to the appliance before servicing.
• Access the rear of the control panel/backguard to reach the lens area.
• Release the old lens from the panel opening and press the new lens in until fully seated; do not force brittle plastics.
• Reassemble panels, restore power, and verify the indicator is clearly visible.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This element switch (Warm) is the selector/control switch used for the dryer's warm heat setting, restoring correct temperature selection and cycle control for warm-dry cycles. It replaces a worn or failed warm-element switch to help return proper heating behavior. What it does:

• Selects/engages the dryer's warm heating element setting during warm cycles
• Restores proper temperature control when the warm setting fails to produce heat
• Can address symptoms like no heat on Warm, inconsistent warm temperatures, or warm cycles that run but don't heat
• Works as the user-facing switch component that connects to the dryer's internal control wiring

• Disconnect power to the appliance before starting any repair; follow lockout/tagout procedures for electric dryers
• Access may require removing dryer console or control panel—use appropriate hand tools
• Handle electrical connectors carefully; verify secure connections before reassembly

This infinite switch restores variable heat control for an electric cooktop surface burner, letting the knob regulate element temperature smoothly. Replace a faulty switch to regain consistent burner power and control. What it does:

• Regulates power to a cooktop surface heating element for variable heat settings
• Commonly fails when a burner won't heat, stays off, or won't reach/select set heat levels
• Can cause erratic heating or loss of click/response at certain knob settings
• Works with the burner control knob to step power through multiple heat ranges

• Disconnect power at the breaker before starting any repair to avoid shock
• May require removal of the cooktop or control panel and the control knob for access
• Match wiring connections and mounting orientation exactly; take a photo before disassembly
• Test function with power restored only after panels and controls are safely reassembled

This infinite surface element switch controls the heat output of a cooktop/range element. Replacing a worn switch restores smooth, reliable temperature adjustment for the designated Flex element, preventing issues like stuck-on-high heat, no heat, or erratic cycling.

• Regulates power to the surface element by cycling on and off at the selected setting
• Dedicated control for the unit's Flex element circuit
• Common failure symptoms: element won't heat, only heats on high, won't shut off, or heats inconsistently

• Disconnect power at the breaker before servicing to avoid electrical shock
• Pull the control knob straight off; access the switch from the control panel and note its orientation
• Label and transfer wires one at a time to matching terminals on the new switch
• Reassemble, restore power, and test all heat settings for proper operation

The Large Element Switch is an OEM part for Whirlpool ranges. It regulates the heat output of the large heating element on the cooktop, allowing users to adjust the cooking temperature as needed.

Causes of a bad switch can include wear and tear from regular use, electrical issues, or damage from high heat exposure over time.

Symptoms of a bad large element switch include:

• The large element not heating or staying on continuously
• Inconsistent or incorrect heat levels
• The switch not responding or feeling loose
• The element turning off unexpectedly during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This control panel is the oven/range user interface that lets you set cooking modes, temperature and timers while showing status information. Replacing a faulty panel restores reliable button response and clear display feedback. What it does:

• Provides touchpad/buttons and display for selecting oven/range functions and settings
• Sends user commands to the range control so cooking cycles start and stop as selected
• Failure symptoms include unresponsive buttons, blank or garbled display, or range not accepting settings
• May clear intermittent control errors and restore normal control operation when defective

• Disconnect power to the appliance before removing or installing the panel to avoid shock risk
• Handle the display/touchpad carefully to avoid scratching or bending fragile components
• Verify connectors are fully seated and routed away from heat sources before restoring power

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This selector switch controls cycle selection on compatible Whirlpool washers, restoring user control for choosing wash options. It replaces a worn or faulty rotary control so the machine will respond correctly when settings are changed. What it does:

• Selects wash cycles or options via a rotary input, sending the chosen setting to the washer's control system
• Replaces intermittent or non-responsive cycle changes caused by a broken or worn switch
• Helps resolve symptoms like the dial not turning, settings not registering, or inconsistent cycle selection

• Disconnect power and water before beginning any service
• Handle the switch and surrounding wiring carefully; avoid pulling on wires
• Basic panel access and hand tools are typically required

This replacement control knob restores a secure grip and clear pointer for smooth selection of settings on your appliance. It replaces a worn, cracked, or faded knob so controls are easier to read and turn. What it does

• Fits onto the control shaft to select heat or function settings.
• Provides a visible pointer for precise control position.
• Replaces knobs that spin, are loose, or have a broken mounting boss.
• Restores original look with a white body and chrome cap.

• Remove the old knob by firmly pulling straight off the control shaft; align and push the new knob onto the shaft until fully seated.
• Disconnect power to the appliance before working near live controls to avoid shock or injury.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points
