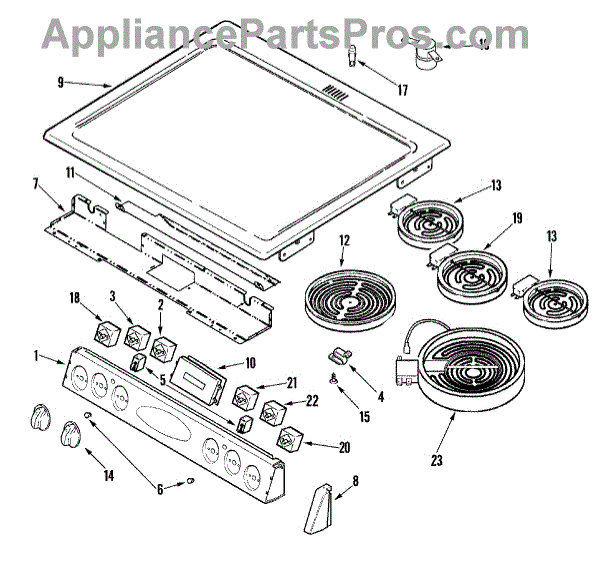

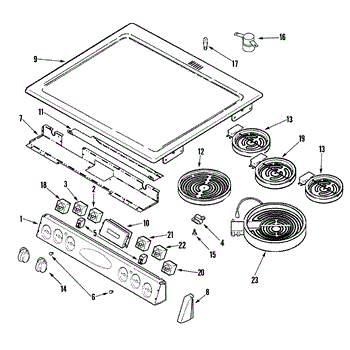

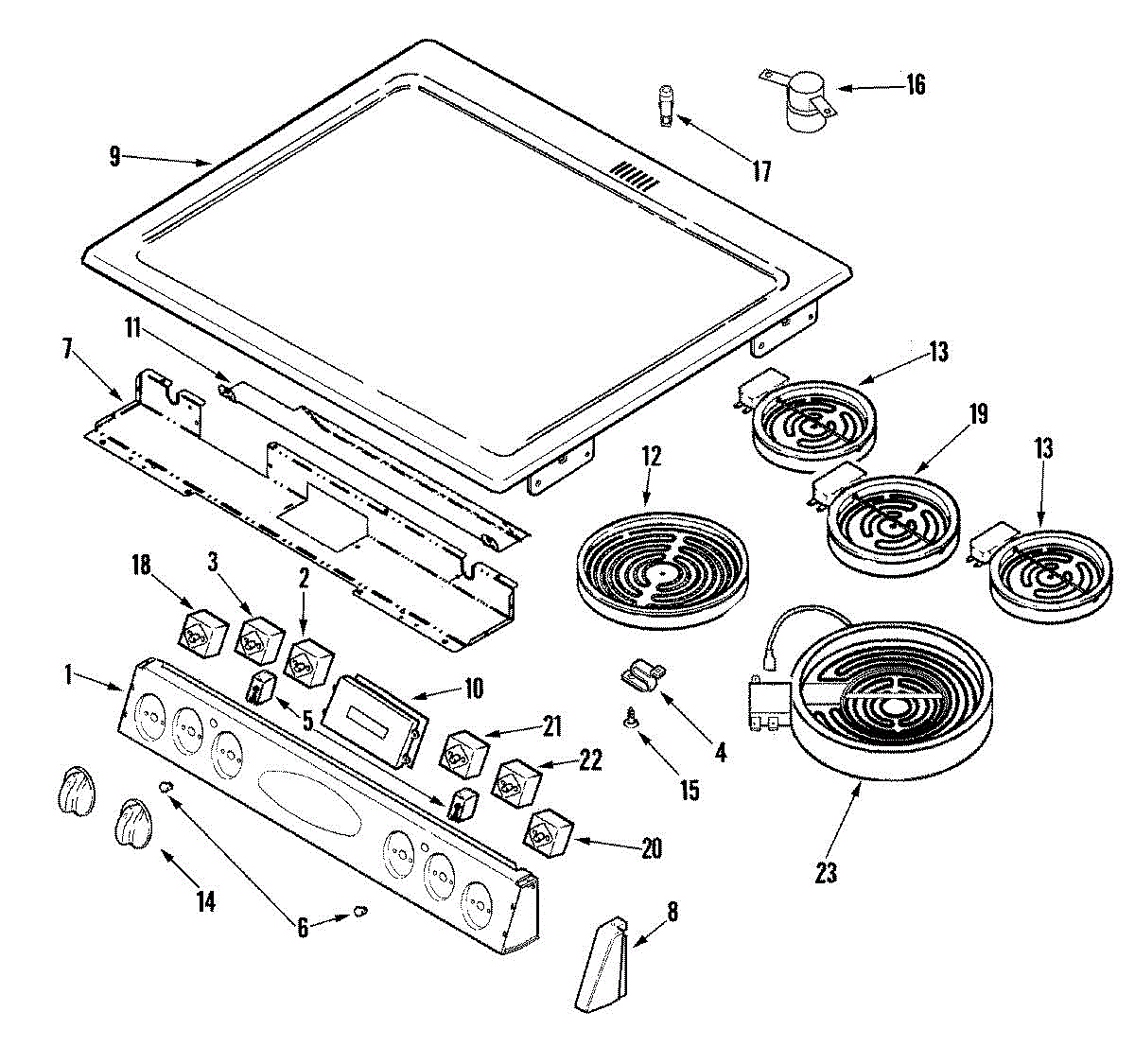

Parts for Maytag MEP5775BAF: 02 - Control Panel / Top Asy Parts

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

The Large Element Switch is an OEM part for Whirlpool ranges. It regulates the heat output of the large heating element on the cooktop, allowing users to adjust the cooking temperature as needed.

Causes of a bad switch can include wear and tear from regular use, electrical issues, or damage from high heat exposure over time.

Symptoms of a bad large element switch include:

• The large element not heating or staying on continuously
• Inconsistent or incorrect heat levels
• The switch not responding or feeling loose
• The element turning off unexpectedly during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This indicator light lens covers the pilot/indicator lamp opening on the appliance's control panel. It protects the assembly and diffuses the light so operating status is easy to see, restoring a clean, finished appearance when the original lens is damaged or missing.

• Covers and protects the indicator/pilot light opening in the panel
• Diffuses light for clearer visibility of the status indicator
• Helps keep dust, grease, and moisture out of the indicator assembly
• Common symptoms: lens cracked, missing, loose, or discolored; indicator light difficult to see

• Disconnect power to the appliance before servicing.
• Access the rear of the control panel/backguard to reach the lens area.
• Release the old lens from the panel opening and press the new lens in until fully seated; do not force brittle plastics.
• Reassemble panels, restore power, and verify the indicator is clearly visible.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

This replacement control knob restores a secure grip and clear pointer for smooth selection of settings on your appliance. It replaces a worn, cracked, or faded knob so controls are easier to read and turn. What it does

• Fits onto the control shaft to select heat or function settings.
• Provides a visible pointer for precise control position.
• Replaces knobs that spin, are loose, or have a broken mounting boss.
• Restores original look with a white body and chrome cap.

• Remove the old knob by firmly pulling straight off the control shaft; align and push the new knob onto the shaft until fully seated.
• Disconnect power to the appliance before working near live controls to avoid shock or injury.

This is a replacement screw used to secure panels and components on compatible Whirlpool appliances, sold as a pack to replace multiple fasteners at once. It provides a simple way to restore missing or worn screws and stop rattles or loose trim. What it does

• Fastens appliance panels, trim, brackets or internal components
• Restores proper fit where screws are missing or corroded
• Helps eliminate vibration noise and loose parts
• Matches OEM fit for the listed part number when used in the intended locations

• Use the correct screwdriver or nut driver to avoid stripping the head
• Keep screws organized and install only where the OEM diagram specifies
• Disconnect power and follow appliance safety procedures before servicing
• Wear safety glasses and avoid over-tightening to prevent damage

This element switch (Warm) is the selector/control switch used for the dryer's warm heat setting, restoring correct temperature selection and cycle control for warm-dry cycles. It replaces a worn or failed warm-element switch to help return proper heating behavior. What it does:

• Selects/engages the dryer's warm heating element setting during warm cycles
• Restores proper temperature control when the warm setting fails to produce heat
• Can address symptoms like no heat on Warm, inconsistent warm temperatures, or warm cycles that run but don't heat
• Works as the user-facing switch component that connects to the dryer's internal control wiring

• Disconnect power to the appliance before starting any repair; follow lockout/tagout procedures for electric dryers
• Access may require removing dryer console or control panel—use appropriate hand tools
• Handle electrical connectors carefully; verify secure connections before reassembly

This selector switch controls cycle selection on compatible Whirlpool washers, restoring user control for choosing wash options. It replaces a worn or faulty rotary control so the machine will respond correctly when settings are changed. What it does:

• Selects wash cycles or options via a rotary input, sending the chosen setting to the washer's control system
• Replaces intermittent or non-responsive cycle changes caused by a broken or worn switch
• Helps resolve symptoms like the dial not turning, settings not registering, or inconsistent cycle selection

• Disconnect power and water before beginning any service
• Handle the switch and surrounding wiring carefully; avoid pulling on wires
• Basic panel access and hand tools are typically required

This infinite surface element switch controls the heat output of a cooktop/range element. Replacing a worn switch restores smooth, reliable temperature adjustment for the designated Flex element, preventing issues like stuck-on-high heat, no heat, or erratic cycling.

• Regulates power to the surface element by cycling on and off at the selected setting
• Dedicated control for the unit's Flex element circuit
• Common failure symptoms: element won't heat, only heats on high, won't shut off, or heats inconsistently

• Disconnect power at the breaker before servicing to avoid electrical shock
• Pull the control knob straight off; access the switch from the control panel and note its orientation
• Label and transfer wires one at a time to matching terminals on the new switch
• Reassemble, restore power, and test all heat settings for proper operation

This infinite switch restores variable heat control for an electric cooktop surface burner, letting the knob regulate element temperature smoothly. Replace a faulty switch to regain consistent burner power and control. What it does:

• Regulates power to a cooktop surface heating element for variable heat settings
• Commonly fails when a burner won't heat, stays off, or won't reach/select set heat levels
• Can cause erratic heating or loss of click/response at certain knob settings
• Works with the burner control knob to step power through multiple heat ranges

• Disconnect power at the breaker before starting any repair to avoid shock
• May require removal of the cooktop or control panel and the control knob for access
• Match wiring connections and mounting orientation exactly; take a photo before disassembly
• Test function with power restored only after panels and controls are safely reassembled

This replacement surface element restores proper heating on an electric range or cooktop's top burner. When the original element is open, weak, or damaged, it helps the selected cooking zone reach temperature and heat more evenly.

• Converts electrical power into heat at the chosen surface zone for everyday cooking
• Replaces an element that is open, shorted, or physically damaged
• Common symptoms: surface burner won't heat, heats intermittently, heats very slowly, or shows uneven temperatures
• Works with existing controls to maintain set heat levels

• Disconnect power at the breaker or unplug the appliance; allow the cooktop to cool completely
• Access the element per your model's service procedure (often by lifting the top or accessing from beneath the cooktop)
• Transfer wires one at a time to the matching terminals; secure the element and any brackets as originally installed
• Inspect connectors/wiring for heat damage and address as needed before restoring power and testing
