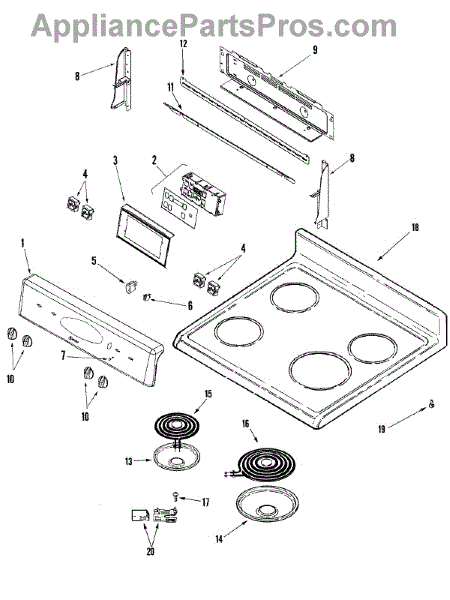

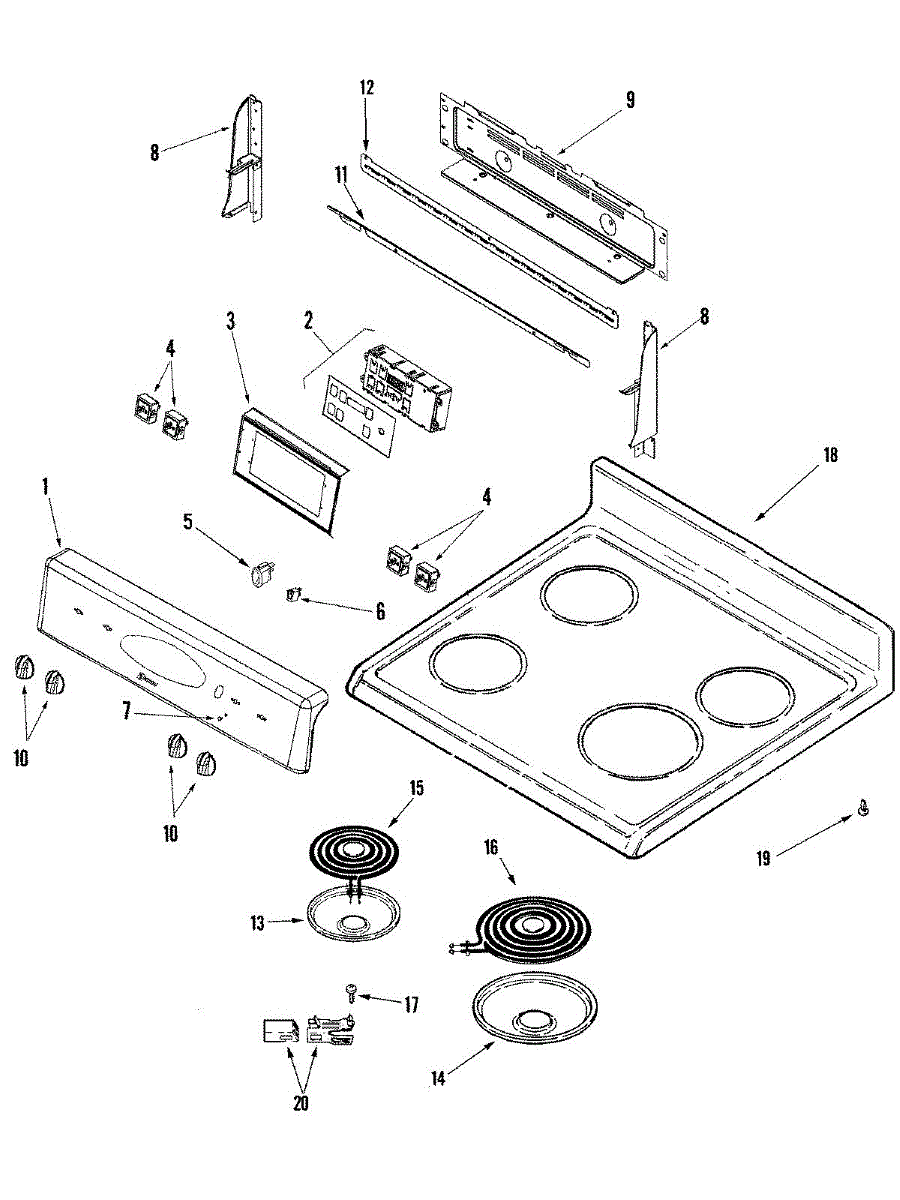

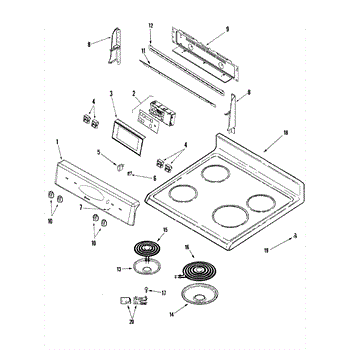

Parts for Maytag MER5552BAS: 02 - Control Panel / Top Assembly Parts

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This electronic control board is the command center for your oven/range. It interprets keypad inputs, switches bake/broil circuits, and regulates temperature via the sensor to restore responsive controls, accurate timing, and consistent heating when the original board fails.

• Receives user input and drives the clock/timer and display
• Controls power to bake and broil relays or igniters based on sensor feedback
• Regulates oven temperature and cycle timing
• Stores/displays fault codes to help diagnose issues
• Typical symptoms: no heat or intermittent heat, unresponsive controls or dead display, erratic temperatures, beeping or error codes

• Disconnect power at the breaker before servicing; verify no voltage is present
• Handle the new board with ESD care; avoid touching circuitry and components
• Move connectors one at a time to matching terminals; reuse existing mounting hardware and panel components as your model requires
• After reassembly, restore power, set the clock, and run a test preheat; for diagnostics or temperature calibration if needed

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the large element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This rocker switch is a direct-replacement control button that restores reliable on/off input for the appliance. It replaces a worn or broken front-panel switch so controls respond correctly during normal use. What it does:

• Replaces a failed rocker/control switch used to send on/off or selection signals to the appliance's control circuitry
• Restores consistent electrical contact when the original switch is cracked, stuck, or intermittently working
• Commonly used when push/panel buttons no longer activate functions or display response is erratic
• Simple, single-function mechanical switch — no programming or calibration required

• Disconnect power to the appliance before attempting any service to avoid shock or injury
• Access may require removal of the control panel; keep screws and fasteners organized for reassembly
• Verify switch orientation and wiring before final reassembly; match connectors to original terminals

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This indicator light lens covers the pilot/indicator lamp opening on the appliance's control panel. It protects the assembly and diffuses the light so operating status is easy to see, restoring a clean, finished appearance when the original lens is damaged or missing.

• Covers and protects the indicator/pilot light opening in the panel
• Diffuses light for clearer visibility of the status indicator
• Helps keep dust, grease, and moisture out of the indicator assembly
• Common symptoms: lens cracked, missing, loose, or discolored; indicator light difficult to see

• Disconnect power to the appliance before servicing.
• Access the rear of the control panel/backguard to reach the lens area.
• Release the old lens from the panel opening and press the new lens in until fully seated; do not force brittle plastics.
• Reassemble panels, restore power, and verify the indicator is clearly visible.

Note: Right hand side.

Note: Left hand side

Color: Black. For biscuit order 98008169. For white order WP98008544.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Drip Pan, identified as an OEM part for Whirlpool ranges, is designed to fit beneath the burner elements to collect spills, drips, and crumbs during cooking. This accessory helps keep the stovetop clean and reduces the risk of burn-on residues that can be difficult to remove and may cause smoke or odors during future cooking sessions.

Symptoms of a bad drip pan include:

• Persistent stains and residues that are hard to clean
• Rust or corrosion affecting the integrity of the pan
• Misfit that allows spills to bypass the pan

Causes of drip pan degradation often include exposure to high temperatures, acidic spills that can corrode the material, and physical impacts from heavy cookware.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The 8 Inch Drip Pan is an OEM part for Whirlpool ranges and stovetops, designed to catch spills and drips that occur during cooking. This part is essential for keeping your cooking surface clean and reducing the risk of spills burning onto the stovetop or into the oven.

Causes of a bad drip pan can include corrosion over time, accumulation of burnt food and grease making it difficult to clean, or warping due to excessive heat exposure.

Symptoms of a bad 8 Inch Drip Pan include:

• Rust or corrosion visible on the pan
• Difficulty fitting the pan under the burner
• Excessive staining or buildup of grease and burnt food that is difficult to clean

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

This 8-inch coil surface element restores reliable heating on the large burner of electric ranges and cooktops. Its 2350-watt design provides steady, even heat for boiling, frying, and everyday cooking.

• Converts electrical power into heat for the large cooktop position
• Common failure symptoms: no heat, uneven heating, only part of the coil glowing, visible breaks or blisters, or failed continuity
• Plug-in coil style for receptacle-type burner sockets
• If no heat persists after replacement, also inspect the element receptacle and the burner switch

• Disconnect power to the range/cooktop and allow the element to cool completely
• Lift the old element and pull straight out from the receptacle
• Align the new element's terminals with the receptacle, push in firmly until fully seated, and set it into the support/drip bowl
• Restore power and test the burner

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

For the complete terminal block kit order 12001676.
