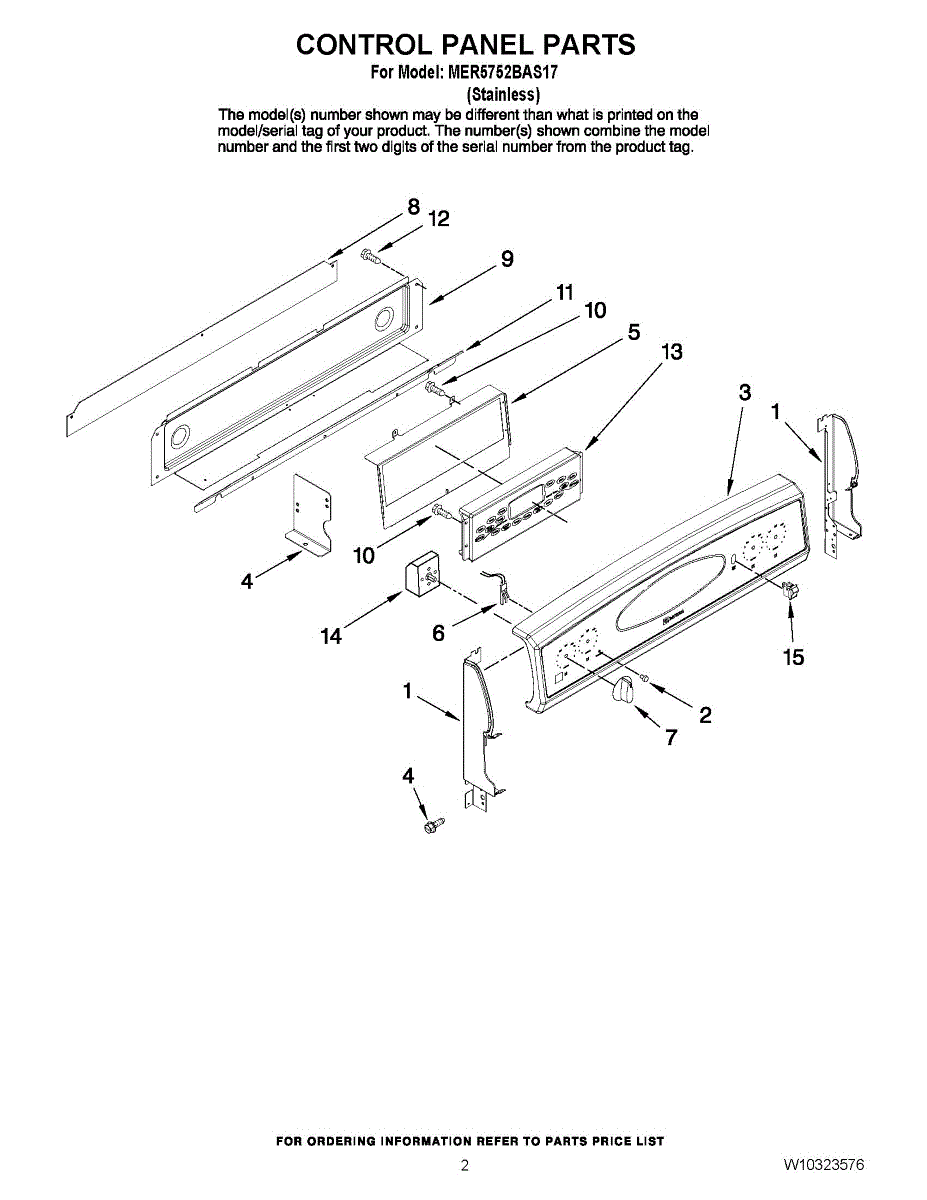

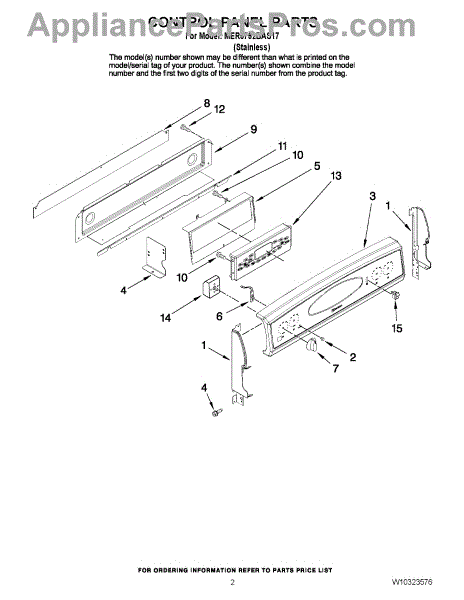

Parts for Maytag MER5752BAS17: 02 - Control Panel Parts

Note: Left hand side

Note: Right hand side.

This indicator light lens covers the pilot/indicator lamp opening on the appliance's control panel. It protects the assembly and diffuses the light so operating status is easy to see, restoring a clean, finished appearance when the original lens is damaged or missing.

• Covers and protects the indicator/pilot light opening in the panel
• Diffuses light for clearer visibility of the status indicator
• Helps keep dust, grease, and moisture out of the indicator assembly
• Common symptoms: lens cracked, missing, loose, or discolored; indicator light difficult to see

• Disconnect power to the appliance before servicing.
• Access the rear of the control panel/backguard to reach the lens area.
• Release the old lens from the panel opening and press the new lens in until fully seated; do not force brittle plastics.
• Reassemble panels, restore power, and verify the indicator is clearly visible.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

Color: Black. For biscuit order 98008169. For white order WP98008544.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This electronic control board is the command center for your oven/range. It interprets keypad inputs, switches bake/broil circuits, and regulates temperature via the sensor to restore responsive controls, accurate timing, and consistent heating when the original board fails.

• Receives user input and drives the clock/timer and display
• Controls power to bake and broil relays or igniters based on sensor feedback
• Regulates oven temperature and cycle timing
• Stores/displays fault codes to help diagnose issues
• Typical symptoms: no heat or intermittent heat, unresponsive controls or dead display, erratic temperatures, beeping or error codes

• Disconnect power at the breaker before servicing; verify no voltage is present
• Handle the new board with ESD care; avoid touching circuitry and components
• Move connectors one at a time to matching terminals; reuse existing mounting hardware and panel components as your model requires
• After reassembly, restore power, set the clock, and run a test preheat; for diagnostics or temperature calibration if needed

This infinite surface element switch controls the heat output of a cooktop/range element. Replacing a worn switch restores smooth, reliable temperature adjustment for the designated Flex element, preventing issues like stuck-on-high heat, no heat, or erratic cycling.

• Regulates power to the surface element by cycling on and off at the selected setting
• Dedicated control for the unit's Flex element circuit
• Common failure symptoms: element won't heat, only heats on high, won't shut off, or heats inconsistently

• Disconnect power at the breaker before servicing to avoid electrical shock
• Pull the control knob straight off; access the switch from the control panel and note its orientation
• Label and transfer wires one at a time to matching terminals on the new switch
• Reassemble, restore power, and test all heat settings for proper operation

The Switch, Infinite (RF) is an OEM replacement part for Whirlpool ranges. This switch controls the heat level of the right-front burner on the cooktop, providing the user with the ability to adjust the burner to the desired temperature setting. It works by regulating the electrical current sent to the burner.

Signs of a bad infinite switch include:

• The burner not heating or being stuck on high heat
• Difficulty adjusting the temperature setting
• The burner failing to turn on or off

Common causes of failure include wear from frequent use, electrical surges damaging the internal components, or physical damage from improper handling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This rocker switch is a direct-replacement control button that restores reliable on/off input for the appliance. It replaces a worn or broken front-panel switch so controls respond correctly during normal use. What it does:

• Replaces a failed rocker/control switch used to send on/off or selection signals to the appliance's control circuitry
• Restores consistent electrical contact when the original switch is cracked, stuck, or intermittently working
• Commonly used when push/panel buttons no longer activate functions or display response is erratic
• Simple, single-function mechanical switch — no programming or calibration required

• Disconnect power to the appliance before attempting any service to avoid shock or injury
• Access may require removal of the control panel; keep screws and fasteners organized for reassembly
• Verify switch orientation and wiring before final reassembly; match connectors to original terminals
