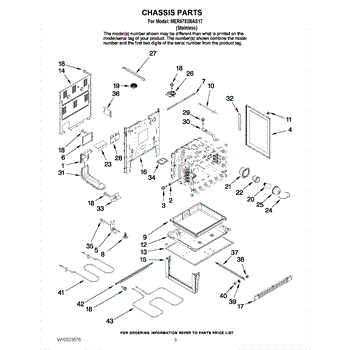

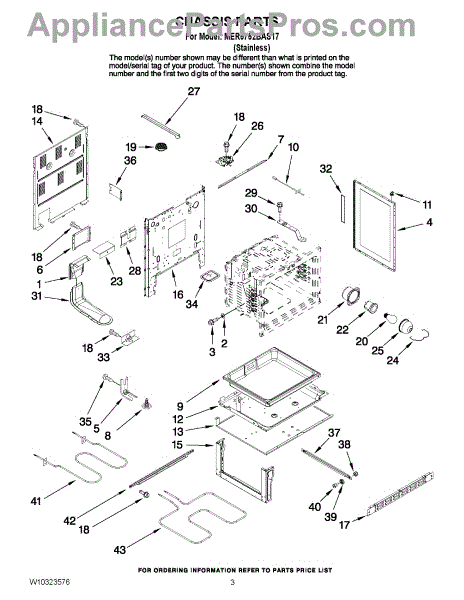

Parts for Maytag MER5752BAS17: 03 - Chassis Parts

This spacer secures and maintains proper spacing between adjacent appliance components to prevent rubbing and misalignment, helping restore smooth, stable operation after wear or replacement. What it does:

• Positions and cushions parts to prevent metal-on-metal contact and reduce noise or vibration
• Keeps components aligned for proper fit and function after panel or assembly reinstallation
• Helps maintain clearance for moving parts to avoid abrasion and premature wear
• Useful when replacing worn fasteners, clips, or assemblies that rely on precise spacing

• Disconnect power (unplug or switch off circuit breaker) before beginning any repair
• Handle small parts carefully and retain any associated fasteners; compare new part to old for orientation
• Use basic hand tools as required; avoid forcing parts into place to prevent damage

Size: No. 8

For screws order: WP7101P485-60.

The Leveling Leg is an OEM replacement part for Whirlpool ranges. These adjustable legs help balance and stabilize the range.

Causes of a bad leveling leg commonly involve wear over time, thread or weld failures from supporting heavy loads, as well as damage due to impact or drops during installation.

Symptoms of a faulty leveling leg include:

• Instability such as rocking motions felt while cooking
• Uneven heating
• Doors that do not close properly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Oven Temperature Sensor Kit is an OEM part for Whirlpool ovens. This sensor is essential for monitoring the oven's internal temperature, ensuring that it reaches and maintains the correct temperature for baking and cooking. The sensor is approximately 7 inches long.

Over time, the oven temperature sensor can fail due to repeated heating and cooling cycles, exposure to spills or grease, or electrical issues. When the sensor malfunctions, it can result in inaccurate temperature readings, affecting cooking performance and food quality.

Symptoms of a bad oven temperature sensor include:

• The oven not reaching the set temperature
• Food cooking unevenly or not fully
• The oven overheating or underheating
• Error codes related to temperature issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Left hand side

Right hand side

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Size: 10-24X5/16-NI

This glass turntable plate replaces a cracked or missing microwave turntable to restore stable, even rotation and safe food heating. Durable tempered glass resists heat and provides a smooth surface for cookware. What it does

• Provides the rotating surface for microwave cooking so food heats evenly
• Replaces chipped, cracked, or missing glass that can cause wobbling or uneven rotation
• Works with the turntable support/roller assembly to keep the plate centered and stable
• Helps prevent direct contact between cookware and the microwave cavity floor

• Disconnect power or unplug the microwave before servicing.
• Handle the glass with care; set the plate onto the roller support so the center hub aligns with the drive coupling.
• Do not use a cracked or damaged plate; replace immediately to avoid further damage or safety risks.

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

Size: 8-32

The Broil Element is an OEM component for Whirlpool ranges. It is a vital heating component located at the top of the oven cavity that provides intense radiant heat for broiling functions.

Symptoms of a bad Broil Element include:

• Inability to engage broil mode
• Poor or negligible heating from the broiler
• Tripped circuit breakers when trying to broil
• Visible cracks, breaks, or damage to the broil element

Causes of failure can include deterioration over many heating and cooling cycles. Metal fatigue from constant expansion and contraction eventually causes cracking or breakage.

This replacement broil element also fits Maytag, KitchenAid, Jenn-Air, Amana, and some Kenmore models.

The Bake Element is an OEM part for Whirlpool ovens, engineered to provide consistent and even heating for baking. This element is located at the bottom of the oven cavity and is essential for achieving the desired temperatures for cooking and baking. When electricity flows through the element, it heats up and glows red, radiating heat throughout the oven to cook food evenly. This component is crucial for the oven's functionality, affecting everything from baking pastries to roasting meats.

The primary cause of bake element failure is often wear and tear from regular use. Over time, the element can burn out or become damaged, which impacts its ability to heat properly. In some cases, spills and food residues can also contribute to its deterioration, affecting performance and potentially causing short circuits.

Symptoms of a failing Bake Element include:

• The oven not heating up properly or taking longer than usual to reach the set temperature
• Lack of visible red glow from the element when the oven is turned on, indicating it's not heating
• Uneven or insufficient cooking results, with food being undercooked or overly browned on one side
• Physical damage to the element, such as blistering, cracks, or breaks

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
