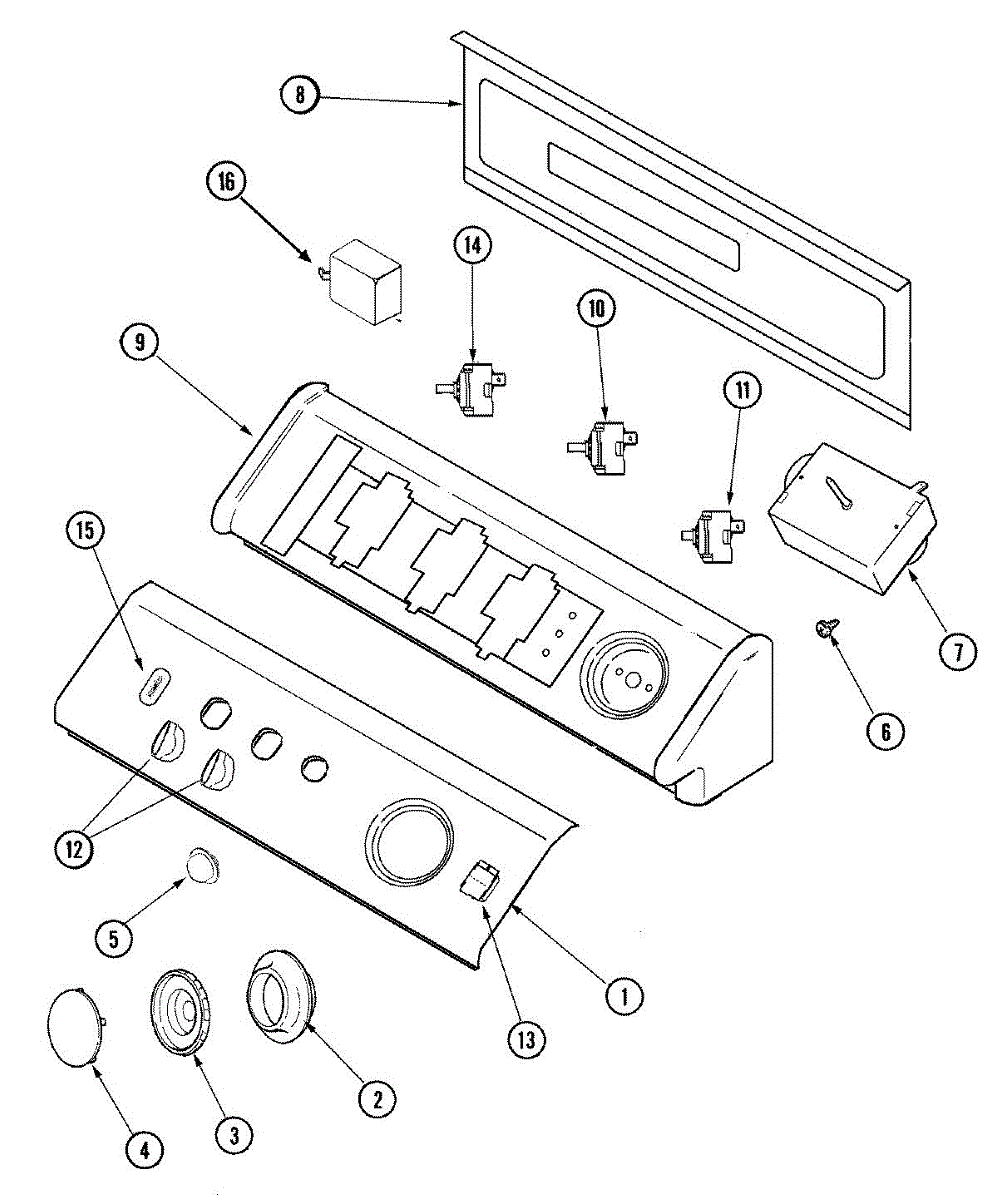

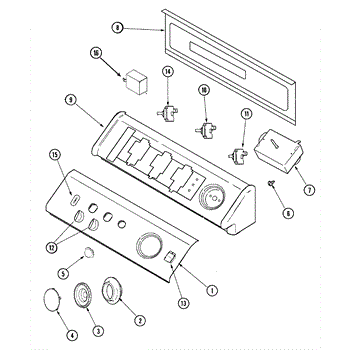

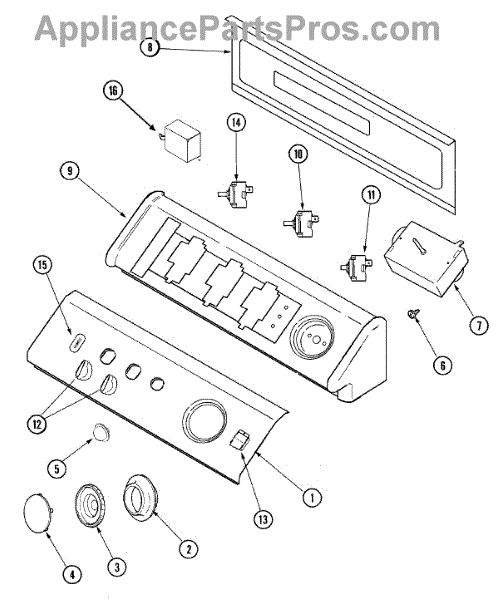

Parts for Maytag SDG5701AXW: 02 - Control Panel Parts

This is a genuine replacement mounting screw used to secure appliance components and panels. It restores proper fit and prevents movement that can cause noise or misalignment. What it does:

• Fastens panels, brackets, and small components in place
• Helps stop rattling or vibration caused by loose hardware
• Restores secure attachment after stripped or missing fasteners
• Matches OEM thread and head style for correct fit

• Use the correct driver to avoid stripping the head
• Tighten until snug; do not overtighten to prevent damage
• Disconnect power to the appliance before accessing internal components
• Replace matching screws in the area for consistent fit

Color: White. Measures about 3 inches in diameter.

The Timer Knob Insert is an OEM replacement part for Whirlpool dryers. This is a cap located on the timer knob on the control panel. Color: White. This is the timer knob cap only. For the complete assembly, you must also order the knob and skirt.

Causes of timer knob Insert failure can include cracked plastic from years of repeated turning motions. Wear on components also occurs due to extensive lifetime usage cycles.

Symptoms of a faulty timer knob insert include:

• Knob becomes loose, detached or inoperable for timings scrolling
• Cracks appear exposing internal timer parts

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This electronic timer controls dryer cycle selection and timing, restoring proper cycle advancement and user control. It replaces a failed or unresponsive timer to help your dryer start and run the selected cycles reliably. What it does

• Advances dryer cycles and manages timed and automatic cycle control.
• Provides the user interface signals for start/stop and cycle selection.
• Can correct symptoms like a dryer that won't advance through cycles, won't start reliably, or has an unresponsive cycle selector.
• Works with the dryer's control circuitry to coordinate motor and heater operation during selected cycles.

• Disconnect power to the dryer before any service to avoid shock risk.
• Verify wire connections and match terminal locations to the wiring diagram before removal.
• Handle the control carefully; avoid bending terminals or contaminants on connectors.

Screw: 8-16 x 3/8 inch.

Color: White.

This selector knob attaches to the control shaft so you can choose cycles and options on your appliance. Replace a cracked or stripped knob to restore smooth, accurate settings without forcing or damaging the control stem.

• Attaches to the control shaft to operate the cycle/timer or option switch
• Common symptoms: knob is cracked, stripped, loose, spins freely, falls off, or is missing
• Restores positive, accurate control feel when selecting settings

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying against the control panel
• Align the keyed/flat side and press the new knob on until fully seated
• If your original knob used a spring clip or insert, transfer it to the new knob before installation

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
