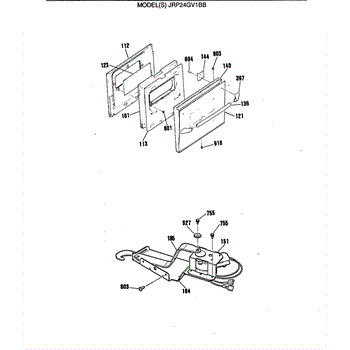

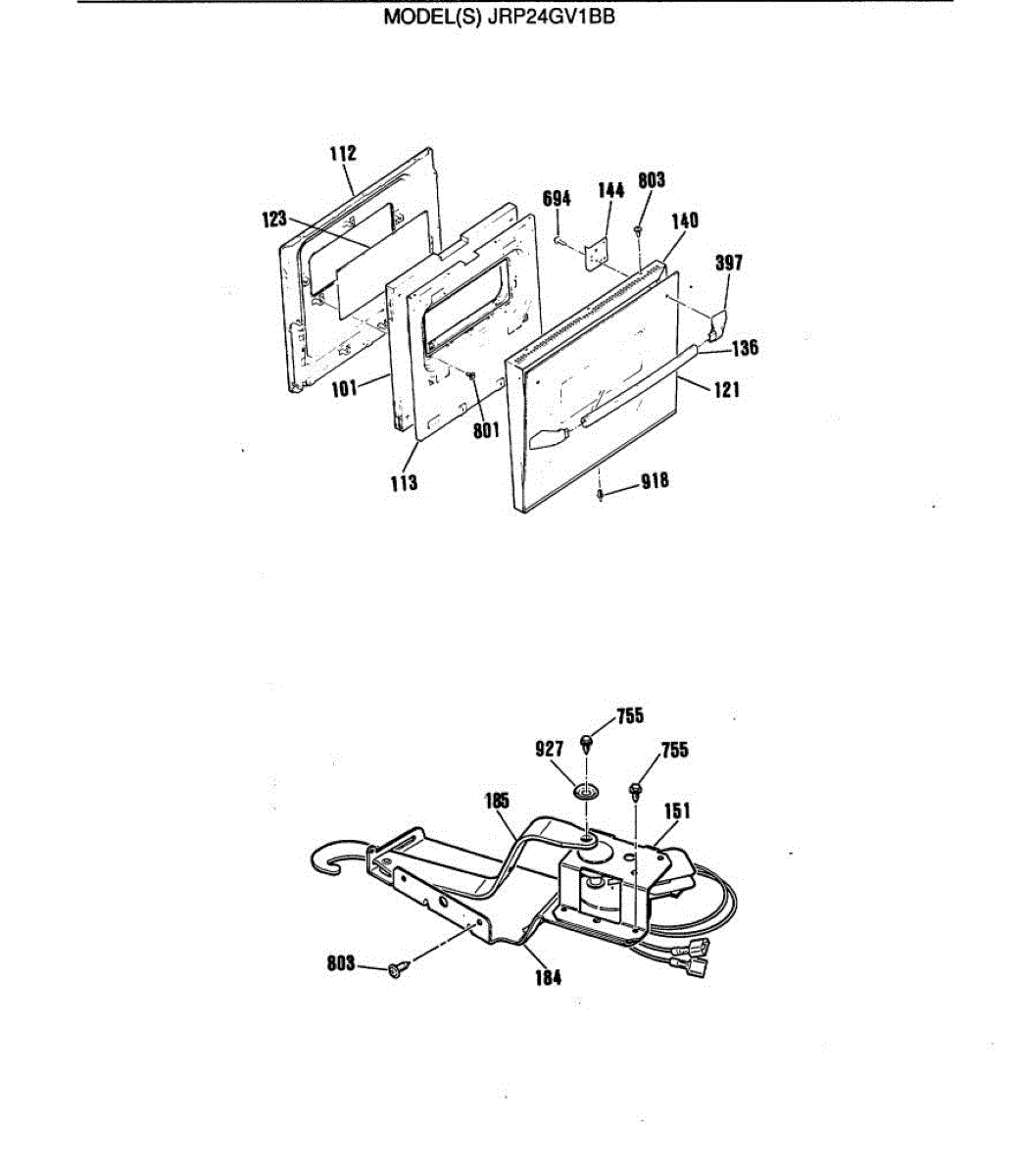

Parts for Ge JRP24GV1BB: 02 - Section2 Parts

Parts for Ge JRP24GV1BB: 02 - Section2 Parts

Location on Diagram
Part Description
Price & Availability
101
By: Ge
Part Number: WB35K5054

Replaces worn, damaged, or missing insulation inside your oven door. Installs between inner and outer door panels to maintain heat efficiency.

More
$26.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
112
By: Ge
Part Number: WB55K5023
$142.77

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
112
By: Ge
Part Number: WB55K5026
$103.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
113
By: Ge
Part Number: WB2K5159

Retainer cable for oven door insulation. Secures insulation in place along door panel. Replace if cable is broken, frayed, or missing from your oven door.

More
$35.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
121
Product photo
5.0 (7)
By: Ge
Part Number: WB57K5256

Outer glass panel for oven doors. Replaces cracked, shattered, or broken exterior panes. Restores a clean, safe door surface and protects insulation.

More
$93.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
123
Product photo
By: Ge
Part Number: WB36X779

Center glass panel for oven door. Installs between inner and outer door panels. Replace if cracked, broken, or heat-damaged for safety and visibility.

More
$94.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
136
Product photo
By: Ge
Part Number: WB15K5087
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

140
By: Ge
Part Number: WB56K5117
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

144
By: Ge
Part Number: WB2K5316
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

151
Product photo
4.5 (4)
By: Ge
Part Number: WB49T10020

Oven door won't lock for self-clean cycle? This door latch assembly secures the door during cleaning and reports lock status. Moderate DIY repair.

More
$158.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
184
By: Ge
Part Number: WB34K5228

Oven door won't close or latch stuck after self-clean cycle? This door lock plate secures the latch mechanism. Common DIY fix for stuck oven doors.

More
$74.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
185
Product photo
By: Ge
Part Number: WB15K5016

Replaces the latch arm that engages your oven door lock mechanism during self-clean cycles. Order a new lock lever if yours is broken or worn.

More
$37.43

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
397
Best Seller
Product photo
4.9 (123)
By: Ge
Part Number: WB7X7183

Color: Black
Each package includes one end cap. For the white version, order part number WB7K5319.

The Handle End Cap is an OEM part for GE ranges. This part plays a role in capping the ends of the range handle, allowing a seamless and aesthetically pleasing finish while also preventing injuries by covering potentially sharp edges.

Causes of a bad handle end cap include physical impact, frequent cleaning that leads to wear, or degradation due to exposure to kitchen grease and heat.

Symptoms of a bad hand end cap:

  • A loose or incomplete look of the range handle, affecting the overall design and functionality.
  • Exposed sharp edges that could pose a safety risk to users.
  • An unsecured handle, which may affect the ease of opening and closing the oven door.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

More
$17.10

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
694
Product photo
5.0 (3)
By: Ge
Part Number: WB1K5157

Hex washer head screw secures oven panels, brackets, and door handles. Replace missing, stripped, or damaged screws to eliminate looseness and rattling.

More
$9.88

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
755
Product photo
By: Ge
Part Number: WZ4X44D

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped or missing.

More
$51.35

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
801
Product photo
5.0 (6)
By: Ge
Part Number: WB1M1

ST10-16 X 7/16"

More
$9.48

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
803
Product photo
By: Ge
Part Number: WB1X1176
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

918
Product photo
5.0 (1)
By: Ge
Part Number: WB1K5071

Plastic push-in rivet fastener secures trim and panels on electric ranges and ovens. Replace if broken, missing, or worn to prevent loose rattling parts.

More
$4.81

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
927
Product photo
By: Ge
Part Number: WB1X119D

Includes 12 washers.

More
$13.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
