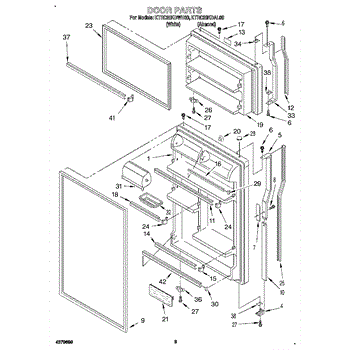

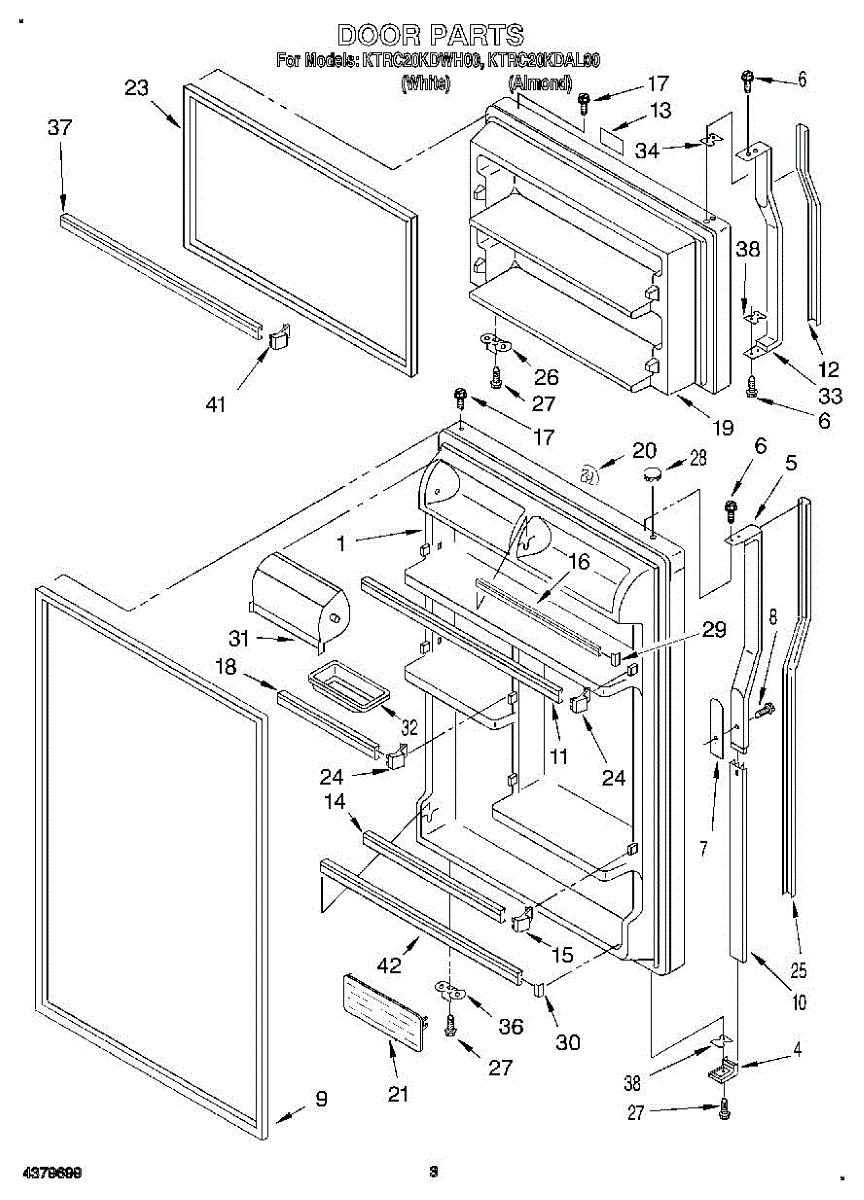

Parts for Kitchenaid KTRC20KDAL00: 02 - Door Parts

This sheet-metal screw secures appliance panels, brackets, and components to the cabinet. Replacing a missing or stripped fastener restores a tight, rattle-free fit and helps keep assemblies aligned for reliable operation.

• Fastens sheet-metal parts to the chassis or support brackets
• Replaces stripped, corroded, or lost screws to restore proper hold
• Helps reduce vibration and noise from loose panels
• Maintains alignment of covers, ducts, or trim

• Disconnect power to the appliance; shut off water or gas if applicable.
• Match this screw to the original location and length.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• If the original hole is damaged, repair or replace the mounting point before installing.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part may be longer than needed and may have to be cut to fit.

The Door Shelf Bar is an OEM part for Whirlpool refrigerators. This part goes on the door to hold condiments on the shelf. This does not include the endcaps.

Causes of malfunction involve cracks developing from weight stress on fasteners.

Symptoms of a problematic shelf bar include:

• Gaps noticeable between shelves and door
• Visible bowing or sagging on panels

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Note: In some cases, you may have to cut to fit.

This replacement screw secures panels, brackets, or trim within your appliance. Replacing a worn, stripped, or missing screw restores a tight, rattle-free fit so components stay aligned and operate as intended. What it does:

• Fastens components at the original factory locations specified for this part
• Replaces missing, damaged, or stripped screws to restore holding power
• Helps reduce vibration and rattling from loose parts
• Maintains proper alignment of panels, covers, brackets, and trim

• Disconnect power (and gas, if applicable) before servicing
• Match to the original screw and install in the same location and orientation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver or nut-driver; transfer any washers or spacers from the original hardware if present

This part may be longer than needed and may have to be cut to fit.

Color: White.

The Door Shelf is an OEM replacement part for Whirlpool refrigerators. It is responsible for providing additional storage space inside the refrigerator door. The shelf features an open design that allows smaller items like condiments and snacks to be easily accessed.

Causes of a bad door shelf can include cracks or breaks in the plastic material over time, detached or damaged mounting brackets, as well as normal wear and tear.

Symptoms of a bad door shelf include:

• Sagging or inability to securely hold contents
• Complete detachment from inside refrigerator door
• Cracks or holes that compromise the storage surface

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: white. Measures about 2-1/2 inches high by 5 inches deep.

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf End Cap is an OEM part for Whirlpool refrigerators. This part secures the door shelf bar in place, ensuring that items stored in the door bins are properly supported and contained. The end cap attaches to the ends of the door shelf bar, providing stability and a finished look.

Causes of a bad end cap can include wear and tear from frequent use, heavy loads in the door bins causing stress and fractures, and accidental impacts or mishandling leading to cracks or breaks.

Symptoms of a bad door shelf end cap include:

• The door shelf bar becoming loose or falling off
• Cracks or breaks in the end cap
• Door bins not staying in place
• Difficulty in securing the door shelf bar

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Shelf Trim Endcap is an OEM replacement part for Whirlpool refrigerators. This component fits on the end of the refrigerator shelf trim, providing a finished look and securing the trim in place. It helps to maintain the integrity and appearance of the refrigerator shelves, preventing items from sliding off and ensuring the shelves are securely held in place.

Causes of a bad shelf trim endcap can include regular wear and tear, physical impact from loading and unloading items, or exposure to temperature changes that can cause the plastic to become brittle.

Symptoms of a bad Shelf Trim Endcap include:

• The shelf trim being loose or not staying in place
• Items sliding off the shelf due to instability
• Visible cracks or breaks in the endcap
• Difficulty in securing the shelf trim properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: clear. It measures about 12 inches wide by 6-1/2 inches high.

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part may be longer than needed and may have to be cut to fit.

The Endcap is an OEM part for Whirlpool refrigerators. It serves as a component for the interior shelving system, providing support and stability to the shelves that hold food and beverages.

Causes of a bad endcap can include physical damage from overloading shelves, accidental breakage, or normal wear and tear over time. These scenarios can lead to the endcap becoming cracked, broken, or otherwise unable to properly support the shelf, potentially leading to the shelf collapsing or not being able to hold items securely.

Symptoms of a bad Endcap include:

• Shelves that sag or fail to stay level
• Difficulty in sliding shelves in or out
• Visible cracks or breaks in the endcap
• Loose or unstable shelves due to poor endcap support

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
