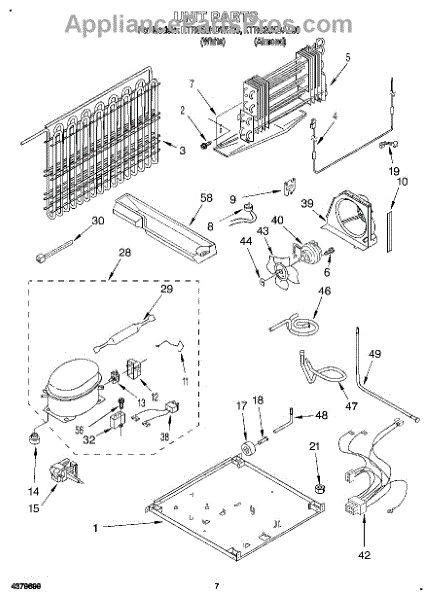

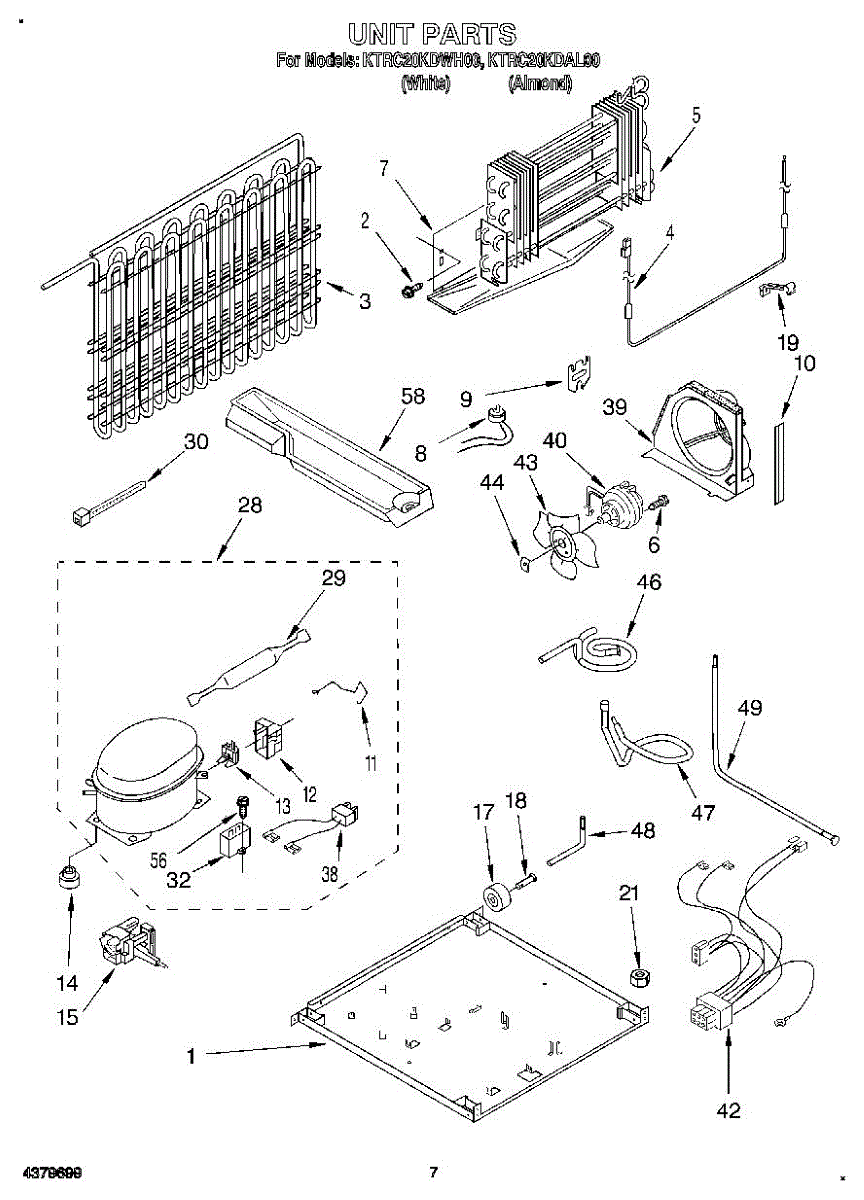

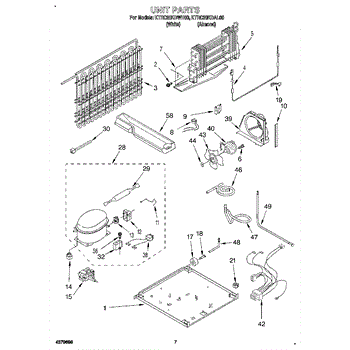

Parts for Kitchenaid KTRC20KDAL00: 04 - Unit Parts

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

The Defrost Heater is an OEM replacement part for Whirlpool French door refrigerators. It is an electric heating element strategically placed within the refrigerator compartment and freezer liners. This component aids in preventing excessive moisture buildup from condensation formed during normal operation.

Causes for heater failure include standard component degradation from prolonged use. Exposure to moisture accumulating over time can damage wiring insulation or short-circuit coil filaments as well.

Symptoms of an inadequate defrost heater involve:

• Frost buildup interfering with door seals and interior shelving
• Promotion of mold/mildew growth from sustained dampness
• Food spoilage risks due to the inability to regulate proper humidity

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Hex washer head screw for refrigerator panel and component fastening. Replace when screw is stripped, missing, or corroded to secure loose parts.

Fixes ice buildup on the back freezer wall and constant running. This defrost thermostat monitors temperature during defrost cycles. 20-minute repair.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

Fridge not cooling but lights work? This compressor overload stops overheating and prevents startup damage. DIY-friendly repair in about 1 hour.

Refrigerator not cooling or freezing? A faulty start relay prevents the compressor from running. This kit fixes humming compressors in about 20 minutes.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

If your refrigerator won't start or compressor clicks but doesn't run, the start relay may have failed. This part typically takes 15-30 minutes to replace.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

This kit is used to mount evaporator trays on compressors.

Refrigerator not cooling or making unusual noises? This compressor tubing kit repairs sealed system issues. Advanced repair requiring proper tools.

Refrigerator won't cool or compressor rattles? This sealed system compressor restores cooling. Professional installation required for refrigerant work.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

This wire assembly connects the capacitor to the appliance's motor or control, restoring a secure electrical path for reliable start/run operation. Replaces a damaged or worn harness to help resolve starting and intermittent power issues. What it does:

• Provides insulated wiring and terminals to link the capacitor to the motor or control
• Ensures a secure electrical connection for proper start/run signaling
• Can resolve symptoms such as failure to start, humming or intermittent motor starting
• Prevents shorts or arcing from frayed or damaged wiring when functioning correctly

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a dangerous charge — have the capacitor safely discharged before disconnecting wires
• Match connectors and routing to the original harness; secure wires away from moving parts and heat sources

Condenser fan motor mounting bracket assembly.

Refrigerator not cooling or making loud noise? A failing condenser fan motor prevents proper heat exchange. Typical DIY repair takes 30 minutes or less.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Process tube for refrigerator sealed system. Connects refrigerant lines in cooling system. Replace if damaged, cracked, or leaking during repairs.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/16 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
