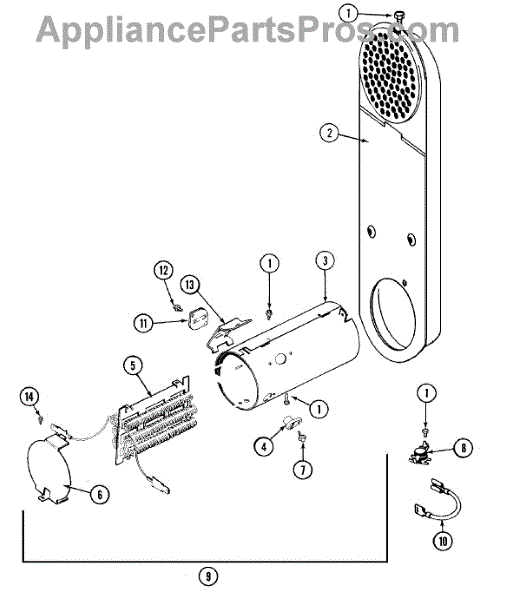

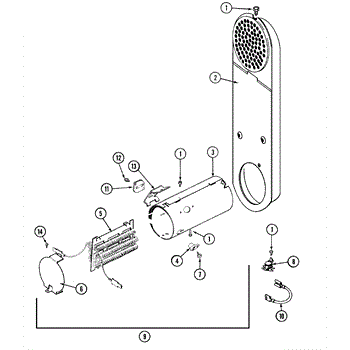

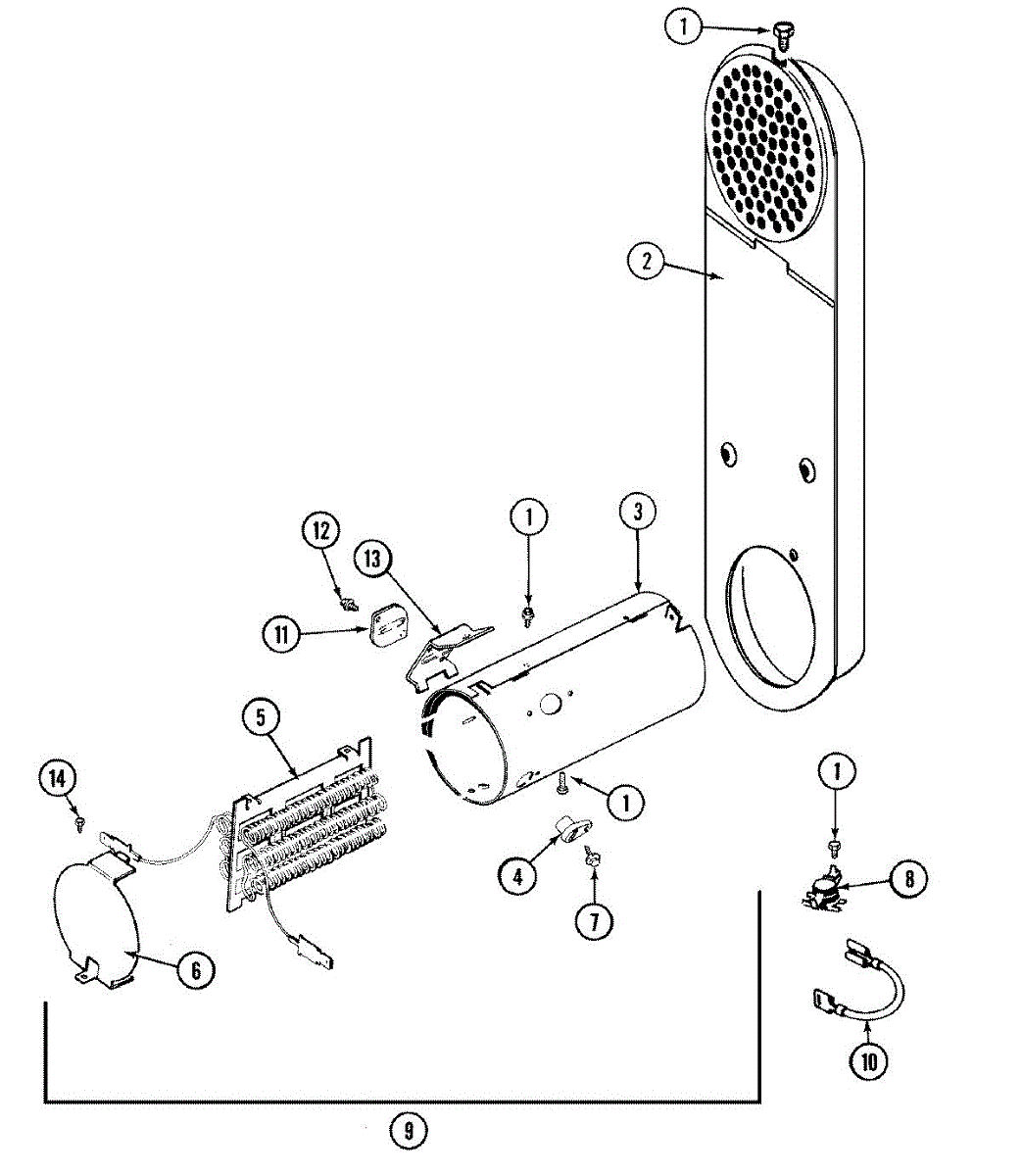

Parts for Maytag MDE4057AYQ: 02 - Heater Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Includes element, heater enclosure and ceramic insulators.

The Hi-Limit Thermostat is an OEM replacement part for Whirlpool gas dryers. As a safety device, it monitors internal drum temperatures during cycles to prevent overheating.  If the temperature rises to 200 degrees Fahrenheit, the heating element will cut off. It will resume operation once the temperature drops to 170 degrees Fahrenheit. Featuring two (2) male 1/4" terminals, this thermostat is designed for flush mount installation. Its electric dryer hi-limit thermostat is rated at L200-30F

Causes of a bad hi-limit thermostat can include exposure to excessive temperatures over an extended period. Failure to safely vent moist air outside may cause thermal expansion cutting off electrical control.

Symptoms of a bad hi-limit thermostat include:

• Inability to complete dryer cycles or premature shutoffs
• Flashing error codes or indicators related to heat
• Sudden lack of heat even when dryer functions normally
• Tripping of household circuit breakers during drying

This OEM part is also compatible with brands like Maytag, Amana, and Kenmore models. Replace yours to ensure thermal safety.

Includes element, thermal fuse, heat shield, heater enclosure and ceramic insulators.

This jumper wire connects two terminals in an appliance circuit to maintain proper electrical continuity. Replacing a burnt or damaged jumper restores reliable connections so switches, heating elements, and controls receive power as designed.

• Links designated terminals to complete the circuit per the unit's wiring diagram
• Restores continuity when the original jumper or connector is heat-damaged, corroded, or broken
• Visual indicators can include discoloration, melted insulation, or loose spade terminals at the old jumper

• Disconnect power at the breaker/fuse; turn off gas supply if applicable
• Reference the unit's wiring diagram; label/photograph existing connections
• Move one lead at a time; fully seat terminals and match orientation
• Do not use to bypass safety devices; replace any overheated mating connectors

The Thermal Fuse is an OEM part for Whirlpool dryers. This safety device protects the dryer from overheating by cutting off power if the dryer exceeds a certain temperature. It is crucial for maintaining safe operation and preventing potential fire hazards. This thermal fuse has 1/4-inch terminals and operates around 243 degrees F.

Causes of a bad thermal fuse include lint buildup causing overheating, blocked ventilation, or a malfunctioning thermostat. These issues can lead to the fuse blowing to prevent further damage or risk.

Symptoms of a bad thermal fuse include:

• Dryer not starting
• No heat in the dryer
• Dryer shutting off mid-cycle
• The dryer running but not heating

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Screw: 8-16 x 3/8 inch.
