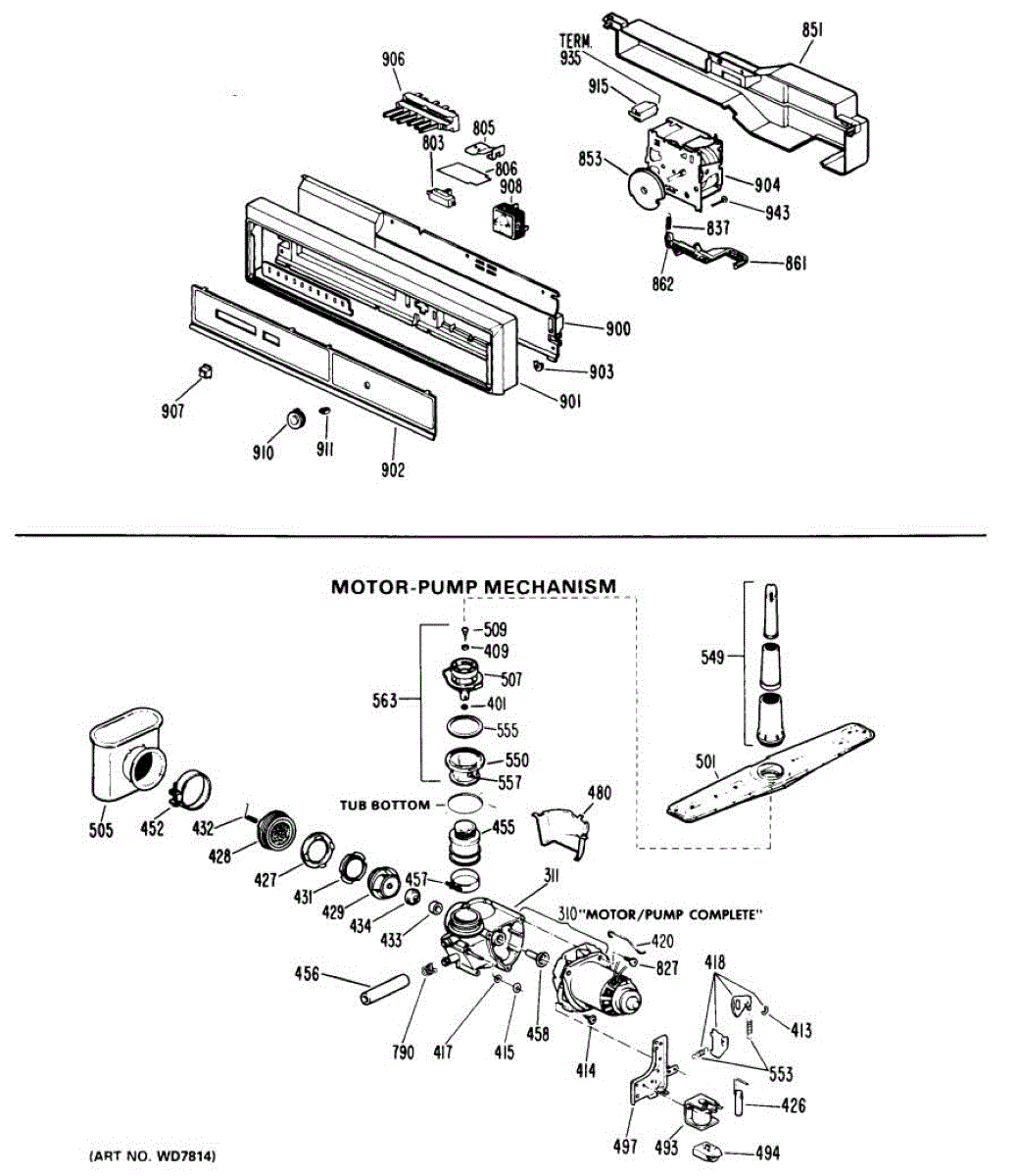

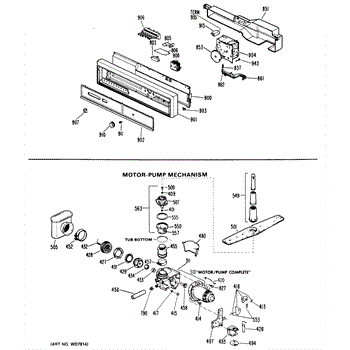

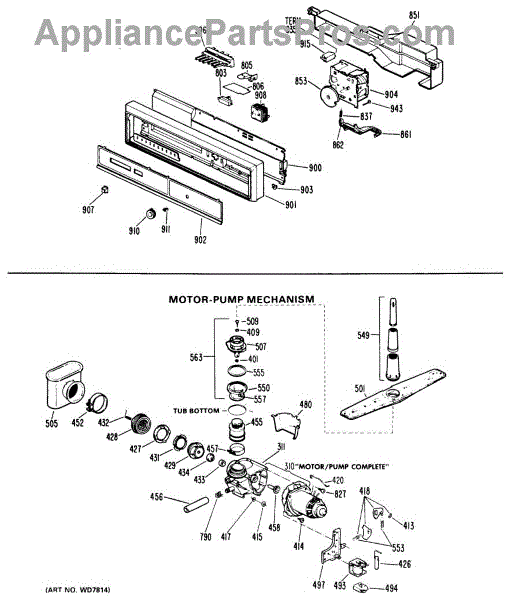

Parts for Ge HDA1000K03: 02 - Motor-Pump Mechanism Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dishwasher not draining or leaving water in the bottom? This pump and motor assembly circulates and drains water. 2-hour DIY repair with video guide.

C-clip retainers secure components in your dishwasher or range. Replace when clips are loose, broken, or missing to prevent rattling and parts shifting. Verify fit with your model number.

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped or missing.

The Push-On Nut is an OEM part for GE appliances. This small component is typically used to secure various fittings and fastenings within appliances, ensuring they are tightly held and do not loosen over time. Its push-on design allows for easy installation, making it a straightforward solution for maintaining the structural integrity of your appliance components.

Symptoms of a failing Push-On Nut include:

• Loose components within the appliance
• Parts that seem to detach or move unexpectedly
• Unusual noises due to parts rattling or shaking
• Difficulty in securing components during repairs or maintenance

Causes of a bad push-on nut can include metal fatigue leading to loss of elasticity, corrosion from exposure to moisture, or general wear from repeated removal and installation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dishwasher Shaft Seal is an OEM part for GE dishwashers. This seal is located around the motor shaft and prevents water from leaking out of the dishwasher tub where the motor shaft enters.Seal for pump drain valve shaft. Instruction sheet included. Push-on nut may have to be cut off, order WR2X7054.

Over time, regular use can cause the seal to deteriorate, or debris and mineral deposits can lead to damage. A compromised shaft seal can result in water leaks, potentially causing damage to your kitchen floor and dishwasher components.

Symptoms of a bad dishwasher shaft seal include:

• Water leaking from the bottom of the dishwasher
• Puddles or water damage around the dishwasher area
• Unusual noises coming from the motor area due to water infiltration
• Visible wear or cracks on the seal

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This kit fits both D style and T style shafts.

Fix a dishwasher that won't drain or keeps draining during fill. This solenoid armature controls the drain valve. DIY repair in about 45 minutes.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

Secures dishwasher sump to tub, maintaining seal compression to prevent leaks. Replace if corroded or weak. Confirm fit with your model number.

This has male threads. For female threads use WD18X214

A replacement clamp that secures hoses or wiring to keep lines routed and stable, helping prevent rubbing, leaks and noise. Restores a reliable hold for tubing and harnesses so the appliance runs quietly and safely. What it does:

• Holds hoses, tubing or wire harnesses in place to reduce movement and chafing.
• Helps prevent leaks and water line abrasion caused by loose fittings.
• Reduces rattling or vibration from unsecured lines or cables.
• Keeps routing organized so adjacent components aren't stressed or worn.

• Disconnect power before servicing the appliance; shut off water supply when working on water or drain lines.
• Remove the old clamp and position the replacement so it fully engages the hose or harness, avoiding twists.
• Use appropriate hand tools (pliers or screwdriver) and secure the clamp evenly; avoid overtightening.
• Inspect surrounding hoses and wiring for damage while installing; replace any components that show wear.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

Deflector guard for dishwasher spray arm assembly. Replaces cracked, broken, or missing deflector shields. Mounts to spray system to direct water flow.

Fix a dishwasher that won't drain or drains constantly during wash cycles. This drain solenoid valve controls water drainage timing. Moderate DIY repair.

Fix dishwasher leaks or poor cleaning with a new sump cap. Seals the sump opening to contain wash water and protect the pump. Quick DIY replacement.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This spring kit restores proper door tension so the appliance door opens and closes smoothly and stays in position. Use it to replace worn or broken springs that cause a sagging, loose, or hard-to-operate door. What it does:

• Replaces worn or damaged door tension springs to restore smooth opening and closing.
• Helps prevent the door from dropping, sagging, or not staying open.
• Reduces uneven or jerky door movement caused by lost spring tension.
• Matches OEM-design function for safe, reliable door operation when installed correctly.

• Disconnect power (and water, if applicable) before beginning any repair.
• Springs are under tension—use caution and proper tools to avoid injury.
• Follow the appliance's service manual or OEM instructions.

White dishwasher lower spray arm assembly with collapsible tower. Replaces cracked, broken, or damaged spray arms. Installs at bottom of tub.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.

Metal contact leaf for dishwasher switch assemblies. Replace if the original contact is bent, corroded, worn, or missing to restore proper circuit closure.

This is a small protective shield that covers and insulates an electrical switch inside the dishwasher. It prevents moisture, heat, and debris from reaching the switch contacts, helping to ensure safe and reliable operation. Replace this shield if it is cracked, warped, or missing, which could expose the switch to water damage and lead to electrical issues or erratic dishwasher behavior.

Size: 10-12 x 1/2 inch.

Detergent cup not opening during wash cycle? This actuator lever connects the timer to the dispenser lid. Moderate DIY repair, about 35 minutes.

This push button is the user-facing control button that completes a control circuit when pressed, restoring responsiveness to a worn or broken selector interface. It provides a direct, replaceable way to fix unresponsive or stuck control input. What it does

• Acts as the external control button that engages the appliance's internal switch when pressed
• Restores tactile feedback and reliable control input if the original button is cracked, loose, or missing
• Common symptom fix: buttons that stick, don't depress fully, or fail to activate functions
• Works with the matched internal switch assembly to ensure consistent operation

• Disconnect power before any service
• Remove the control panel or bezel as needed to access the button; avoid prying on surrounding trim
• Replace the button by aligning and snapping it into the button housing; do not force or bend retaining tabs
• If the button does not restore function, inspect the underlying switch/mechanism for damage before ordering additional parts

Includes 12 screws.
