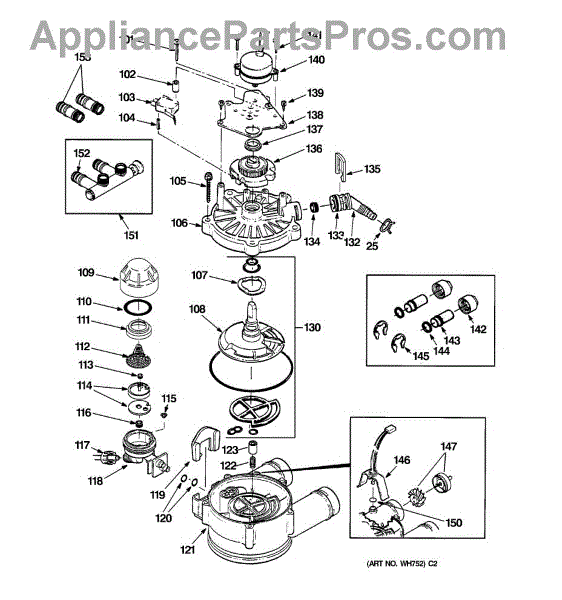

Parts for Ge GXSF39B01: 02 - Pump Parts

This overflow adapter kit helps route excess water away from the appliance to reduce the chance of spills and surface damage. It replaces a worn or missing adapter to restore correct overflow drainage. What it does:

• Connects the overflow outlet to the drain path so excess water is carried away safely.
• Helps stop water from pooling inside or beneath the appliance, reducing leak symptoms.
• Restores a proper seal and fit where a damaged adapter allowed unwanted discharge.
• Works as a direct-fit replacement for the OEM overflow connection to ensure reliable flow.

• Turn off power and shut off the water supply before beginning any work.
• Basic hand tools may be needed; inspect gaskets and hoses for wear and replace if necessary.
• Verify proper fit and secure connections to prevent leaks; test with a short water cycle.

This electrical switch opens and closes a circuit to signal the control when a mechanism is engaged or returns to position, helping restore reliable start/stop and proper cycle sequencing in your appliance. What it does:

• Sends an on/off signal to the control when actuated by a lever or cam
• Helps start, stop, or confirm the position of internal mechanisms
• Common symptoms of a failed switch: selected function won't start, cycles won't advance or stop as expected, or intermittent operation
• A good switch shows proper continuity when actuated during a multimeter test

• 1 electrical switch

• Disconnect power before servicing; shut off water supply if applicable
• Access the switch and note/photograph wire positions
• Transfer wires one at a time; mount the new switch in the same orientation
• Verify operation or continuity before reassembly and full testing

This valve cover assembly replaces the plastic cover that protects and secures the washer's water inlet/valve area, helping prevent leaks and keeping internal components clear of debris. It restores the valve's proper sealing and alignment. What it does:

• Protects and secures the water inlet/valve area to help prevent water leaks and contamination
• Helps maintain correct valve alignment for reliable water flow into the washer
• Replaces cracked, warped, or damaged covers that can cause dripping or improper sealing
• Works with the inlet/valve group to keep internal components free of lint and debris

• Turn off and unplug the appliance, and shut off the water supply before starting work.
• This part typically installs with basic hand tools; inspect surrounding hoses and seals for wear while access is available.
• Tighten fasteners to a snug fit—do not overtighten plastic components.
• Replace corroded or damaged valve parts when removing the cover to ensure a reliable repair.

This replacement screw, sized #10-14 x 2 in, secures appliance panels, brackets, and hardware. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded, helping prevent looseness, vibration, and misalignment.

• Fastens covers, brackets, or panels to the appliance frame at locations that specify this size
• Replaces missing, rusted, or stripped screws that cause loose or rattling parts
• Helps maintain alignment and reduce vibration by keeping components securely attached
• Sized to OEM spec: #10-14 thread, 2 in length

• Disconnect power and, if applicable, shut off water before service
• Start threading by hand to avoid cross-threading; use the correct driver
• Tighten until snug—do not overtighten to prevent stripping
• If the mounting hole or clip is damaged, repair/replace it before installing

This valve cover assembly replaces the plastic cover that protects and secures the washer's water inlet/valve area, helping prevent leaks and keeping internal components clear of debris. It restores the valve's proper sealing and alignment. What it does:

• Protects and secures the water inlet/valve area to help prevent water leaks and contamination
• Helps maintain correct valve alignment for reliable water flow into the washer
• Replaces cracked, warped, or damaged covers that can cause dripping or improper sealing
• Works with the inlet/valve group to keep internal components free of lint and debris

• Turn off and unplug the appliance, and shut off the water supply before starting work.
• This part typically installs with basic hand tools; inspect surrounding hoses and seals for wear while access is available.
• Tighten fasteners to a snug fit—do not overtighten plastic components.
• Replace corroded or damaged valve parts when removing the cover to ensure a reliable repair.

This O-ring creates a tight, leak-resistant seal between mating water system components. Replacing a worn seal helps stop drips and maintain correct pressure and flow in your GE water treatment system.

• Forms the compression seal between housings, manifolds, or valve fittings
• Helps prevent water leaks and seepage at the connection
• Maintains system pressure by reducing bypass at the joint
• Typical failure signs: flattening, cracks, nicks, swelling, or persistent drips even after tightening

• Shut off the water supply and relieve system pressure before service
• Clean the groove and mating surfaces; remove debris, scale, or old residue
• Lightly lubricate with food-grade silicone grease; do not use petroleum-based products
• Seat the O-ring evenly without twisting and tighten fittings to manufacturer guidance—do not overtighten

This replacement door mesh screen restores the protective metal mesh in a microwave door so you can safely view food while it cooks. It fits into the inner door assembly and helps maintain the microwave's shielding and visibility. What it does:

• Replaces a worn, dented, or damaged door mesh that can compromise viewing or protection
• Helps retain microwave energy inside the cooking cavity while allowing visibility of food
• Prevents larger food particles and splatter from entering the door cavity
• Can reduce glare and improve visibility through the door window

• One replacement microwave door mesh screen

• Unplug the microwave or disconnect power before attempting any disassembly
• Replace using the door panel fasteners and clips specified by your model; follow the service manual
• If the door or latch is bent, cracked, or otherwise damaged, replace the entire door assembly rather than only the mesh

This gasket seals the nozzle/vent connection to prevent air or moisture leaks and help maintain proper venting. It fits into the appliance's vent/nozzle opening to restore a tight seal and reduce escaping airflow. What it does

• Creates a seal at the nozzle/vent connection to prevent leaks of air, moisture, or lint.
• Helps maintain proper venting performance and airflow direction.
• Can reduce symptoms such as visible air or moisture escaping around the vent opening or decreased venting efficiency.
• Serves as a replacement for a torn, hardened, or missing vent gasket.

• One nozzle/vent gasket.

• Disconnect power to the appliance before beginning any service.
• Inspect the mounting surface and nozzle for damage or debris; clean before installing the new gasket.
• Seat the gasket fully around the nozzle/vent opening so it lies flat and forms a continuous seal.

Screen cone is a replacement cone-shaped screen that helps keep lint and debris out of the appliance's drain and pump area, reducing clogs and helping protect pump components from wear. What it does:

• Traps lint and loose debris before it reaches the drain and pump assembly.
• Helps maintain proper draining and reduces the chance of recurring clogs.
• Reduces stress and potential damage to the pump impeller caused by foreign debris.
• When worn or missing, common symptoms include slowed draining, recurring clogs, or unusual pump noise.

• Disconnect power to the appliance (unplug or shut off breaker) before accessing the pump/drain area.
• Turn off water supply if required by your model and drain remaining water before removal.
• Replace the old screen cone with the new unit, ensuring it seats fully in the housing; no special tools are typically required.

This fill flow plug controls and limits water flow into the appliance to the specified 0.3 gpm rate, helping the unit fill correctly and preventing overfilling. It's a direct-replacement inlet flow restrictor used on compatible GE water systems. What it does

• Restricts incoming water flow to about 0.3 gallons per minute for proper fill volumes
• Helps maintain consistent water fill levels for ice makers and dispensers
• Can stop excessive flow that may cause slow fills, minor leaks at fittings, or improper ice/dispense operation
• Works as a simple inline replacement to restore correct inlet flow performance

• One fill flow plug (0.3 gpm)

• Replace only when water supply is shut off and the appliance is unplugged or power is disconnected
• Inspect nearby hoses and fittings for wear or leaks when replacing the plug

This nut ferrule is a small compression fitting that secures the refrigerator water line connection to prevent leaks and keep the dispenser/ice maker supplied. It's a direct-replacement hardware piece used where the water tubing meets the inlet fitting. What it does:

• Secures the water tubing to the inlet fitting using a compression seal
• Helps prevent leaks at the water-line connection
• Restores a loose or damaged compression fitting connection
• Commonly replaced when the water line leaks or won't seat properly

• One nut ferrule compression fitting

• Turn off the appliance water supply before replacing the fitting
• Remove the old nut/ferrule and slide the new ferrule onto the tubing, then thread the nut onto the inlet fitting
• Tighten by hand first, then snug with an appropriate wrench; avoid over-tightening to prevent damage
• After installation, turn the water back on and check the connection for leaks

A small rubber O-ring that seals a water or fluid connection to prevent leaks and keep appliance lines watertight. Simple replacement restores a reliable seal at the mating fitting. What it does

• Creates a watertight seal at pipe, hose, or valve connections to stop drips and leaks
• Helps maintain proper pressure by preventing fluid bypass at the joint
• Commonly used where a compact ring seal is required between metal or plastic fittings
• Can resolve symptoms such as visible leaking, puddling under the appliance, or intermittent drips at a connection

• One O-ring seal (1/4 in. x 3/8 in.)

• Turn off and disconnect water supply and power to the appliance before servicing
• Remove the old O-ring, inspect mating surfaces for nicks or debris, and clean before seating the new ring
• Lightly lubricate with a water-safe (food-grade) silicone lubricant if needed for installation; avoid petroleum-based products
• Ensure the O-ring sits evenly in the groove and is not twisted or overstretched during installation

This body valve is the main valve body that directs and controls water flow in the appliance's water/ice system, restoring proper water delivery and dispenser or ice-maker operation. What it does

• Acts as the central valve body that channels water to the dispenser and ice-maker
• Works with solenoids and gaskets to open and close water passages
• Commonly used to address no-water or weak-water flow at the dispenser or ice-maker
• Helps stop leaks by providing a sealed pathway when paired with intact seals

• One body valve assembly

• Disconnect power and water supply before starting work
• Handle with care to avoid damaging valve ports and sealing surfaces
• Inspect and replace any worn seals, gaskets, or mounting hardware as needed
• Verify no leaks after reconnecting water and restoring power

This replacement door hinge spring restores proper counterbalance and smooth opening/closing for compatible appliance doors. It helps reduce sagging, slipping, or uneven movement so doors stay aligned and operate safely. What it does:

• Provides tension to the door hinge assembly so the door opens and closes smoothly
• Helps keep the door properly balanced and aligned during use
• Reduces sagging or dropping that can make the door hard to latch
• Supports normal door movement without adding force or resistance

• One replacement door hinge spring as shown

• Install only after unplugging the appliance or switching off power at the breaker
• Use proper tools and support the door during removal/installation to avoid injury or damage
• Release and apply tension carefully per the manufacturer's service instructions

This brine valve assembly is the replacement valve used in compatible GE integrated water/softener systems to control brine flow during regeneration cycles. Restores proper brine delivery so the system can clean and recharge resin for consistent water quality. What it does

• Directs brine solution flow during the softener regeneration cycle to flush and recharge the resin bed.
• Ensures correct timing and sealing of brine flow to prevent incomplete regeneration.
• Commonly replaces a failed or leaking valve to stop brine leaks or regeneration issues.
• May help address symptoms such as weak softening performance, visible leaks, or frequent/noisy regeneration cycles.

• One brine valve assembly

• Disconnect power and shut off water supply before servicing; follow all safety precautions.
• Replace only with the exact part number to ensure fit and function.
• Inspect nearby fittings and tubing for wear and replace if damaged; check for leaks after installation.

This tube installation is the factory replacement tube used to route or connect internal components in select GE appliances, restoring proper flow and fit for normal operation. It replaces a worn, damaged, or missing tube to help stop leaks and restore function. What it does:

• Routes fluids or air between components to maintain correct appliance operation
• Restores a secure connection where the original tube is cracked, split, or missing
• Helps stop visible leaks or irregular flow caused by a damaged tube
• Reduces noise and performance issues related to a loose or degraded tube

• Disconnect power and water supply before starting any repair; follow all safety precautions
• Inspect adjoining seals and fittings and replace if damaged to ensure a leak-free connection
• Use basic hand tools; avoid over-tightening clamps or fittings that could deform the tube

The GE clip is an OEM replacement part responsible for securely holding the water filter in place within the appliance. Its primary function is to ensure a tight and stable fit of the water filter, preventing any potential leaks or misalignments during the appliance's operation.

Common causes of a bad clip can include regular wear and tear, accidental impact, or corrosion.

This part fixes the following symptoms:

• The water filter not staying in place or coming loose
• Leaks or drips around the water filter area
• Difficulty in inserting or removing the water filter
• Reduced water flow or dispensing issues from the appliance
• Visible damage or wear to the clip

The GE clip can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This rubber O-ring seal creates a watertight connection at a pump or hose junction to help prevent leaks and keep the appliance running normally. Fits into a groove to compress and block water passages. What it does:

• Seals pump, hose or plumbing connections to prevent water leaks at joints
• Helps maintain correct pressure and flow at the sealed connection
• Commonly replaced when you see leaks, puddling under the appliance, or dripping near the pump area
• Small part that restores a secure seal after service or when the old ring is worn or damaged

• Disconnect power and shut off the water supply before servicing the appliance
• Drain remaining water from hoses or the pump housing to avoid spills
• Inspect mating surfaces for nicks or debris and replace if damaged for a proper seal
• Lubricate lightly with water or a manufacturer-recommended lubricant to aid installation

This bypass valve assembly installs on the water softener head and allows you to route household water around the softener for maintenance or emergencies. A worn valve may leak or bind; replacing it restores reliable switching between service and bypass.

• Directs water either through the softener or around it for service
• Lets you isolate the softener during maintenance or troubleshooting
• Common symptoms: leaks at the bypass, handle hard to turn or stripped, unit stuck in bypass, unexpected hard water
• Helps maintain proper flow and makes service/bypass selection consistent

• Unplug the softener and shut off the water supply; open a nearby faucet to relieve pressure
• Note port orientation; transfer any seals/clips from the old assembly if applicable
• Lightly lubricate O-rings with silicone-based grease during reassembly
• Restore water and power, then check for leaks and proper service/bypass operation

This drain hose adapter kit connects the appliance drain hose to the drain outlet, restoring a secure, leak-resistant connection so wastewater flows away reliably. Ideal when the existing connector is cracked, worn, or leaking. What it does:

• Replaces a damaged or missing drain hose connection to stop leaks at the hose outlet
• Provides a sealed transition between the drain hose and the appliance/drain line
• Helps restore normal draining and prevents water pooling under or around the appliance
• Works where worn fittings, broken tabs, or loose hose connections cause water loss

• Disconnect power and water supply before servicing the appliance
• Remove the old adapter and clean mating surfaces before installing the new adapter
• Use appropriate clamps or retainers and tighten securely—replace clamps if corroded or damaged
• After installation, run a short cycle and check the connection for leaks
