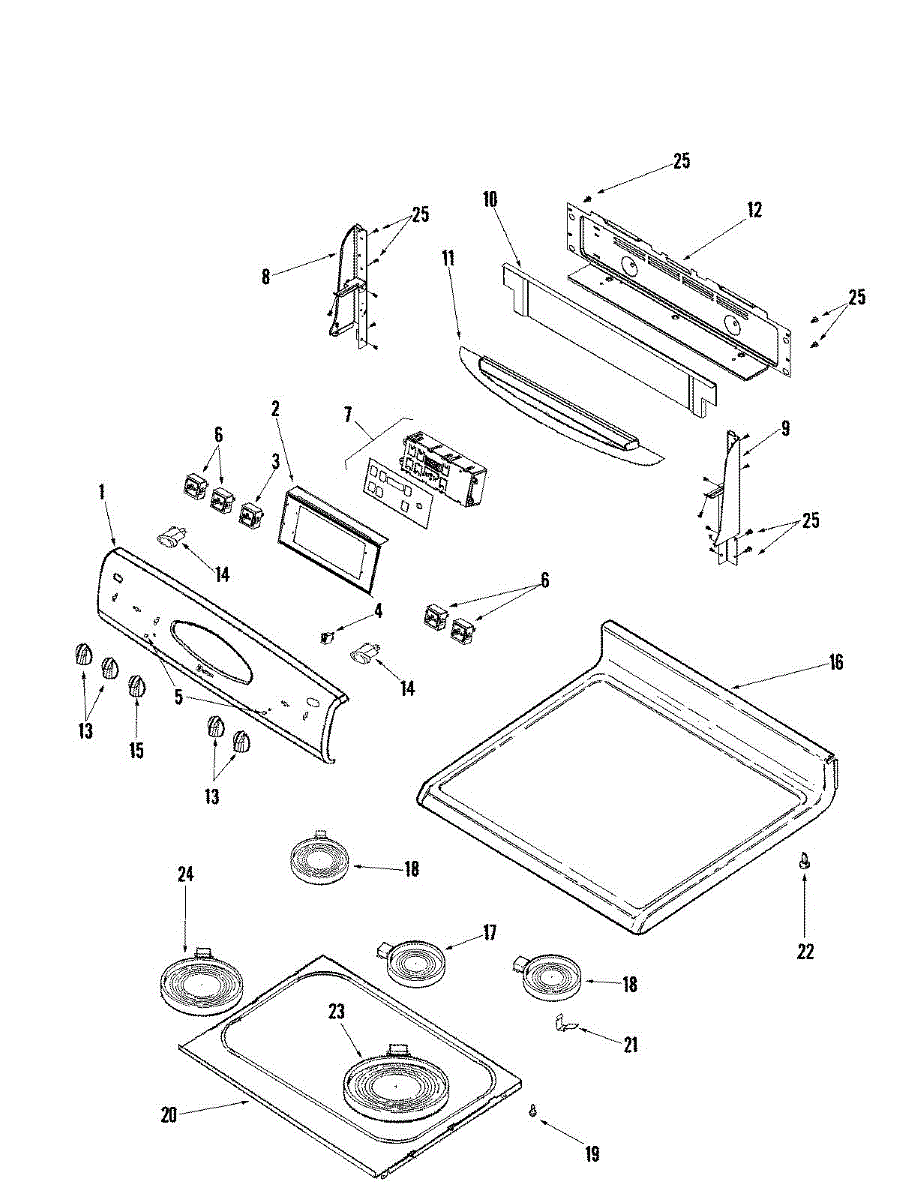

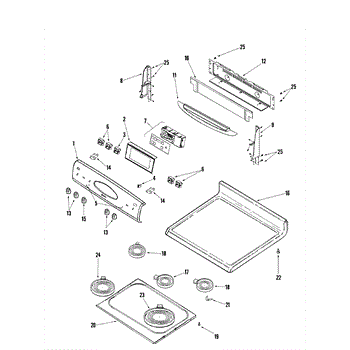

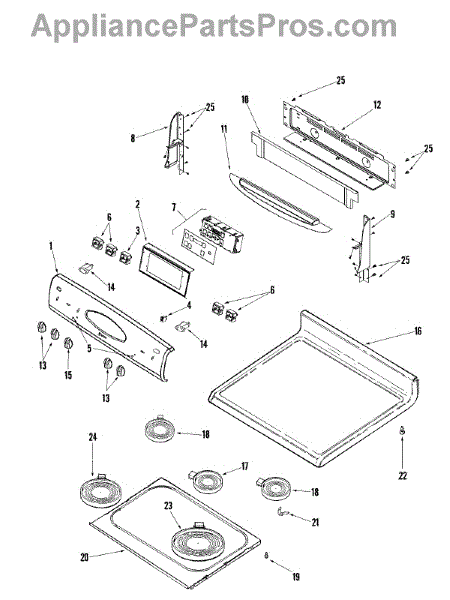

Parts for Maytag MER5875RAF: 03 - Control Panel / Top Assembly Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This indicator light lens covers the pilot/indicator lamp opening on the appliance's control panel. It protects the assembly and diffuses the light so operating status is easy to see, restoring a clean, finished appearance when the original lens is damaged or missing.

• Covers and protects the indicator/pilot light opening in the panel
• Diffuses light for clearer visibility of the status indicator
• Helps keep dust, grease, and moisture out of the indicator assembly
• Common symptoms: lens cracked, missing, loose, or discolored; indicator light difficult to see

• Disconnect power to the appliance before servicing.
• Access the rear of the control panel/backguard to reach the lens area.
• Release the old lens from the panel opening and press the new lens in until fully seated; do not force brittle plastics.
• Reassemble panels, restore power, and verify the indicator is clearly visible.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This infinite surface element switch controls the heat output of a cooktop/range element. Replacing a worn switch restores smooth, reliable temperature adjustment for the designated Flex element, preventing issues like stuck-on-high heat, no heat, or erratic cycling.

• Regulates power to the surface element by cycling on and off at the selected setting
• Dedicated control for the unit's Flex element circuit
• Common failure symptoms: element won't heat, only heats on high, won't shut off, or heats inconsistently

• Disconnect power at the breaker before servicing to avoid electrical shock
• Pull the control knob straight off; access the switch from the control panel and note its orientation
• Label and transfer wires one at a time to matching terminals on the new switch
• Reassemble, restore power, and test all heat settings for proper operation

The Switch, Infinite (RF) is an OEM replacement part for Whirlpool ranges. This switch controls the heat level of the right-front burner on the cooktop, providing the user with the ability to adjust the burner to the desired temperature setting. It works by regulating the electrical current sent to the burner.

Signs of a bad infinite switch include:

• The burner not heating or being stuck on high heat
• Difficulty adjusting the temperature setting
• The burner failing to turn on or off

Common causes of failure include wear from frequent use, electrical surges damaging the internal components, or physical damage from improper handling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Large Element Switch is an OEM part for Whirlpool ranges. It regulates the heat output of the large heating element on the cooktop, allowing users to adjust the cooking temperature as needed.

Causes of a bad switch can include wear and tear from regular use, electrical issues, or damage from high heat exposure over time.

Symptoms of a bad large element switch include:

• The large element not heating or staying on continuously
• Inconsistent or incorrect heat levels
• The switch not responding or feeling loose
• The element turning off unexpectedly during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

White. Right hand side

White. Left hand side

Used on the backgaurd

Color: White/chrome

Color: White

This replacement control knob restores a secure grip and clear pointer for smooth selection of settings on your appliance. It replaces a worn, cracked, or faded knob so controls are easier to read and turn. What it does

• Fits onto the control shaft to select heat or function settings.
• Provides a visible pointer for precise control position.
• Replaces knobs that spin, are loose, or have a broken mounting boss.
• Restores original look with a white body and chrome cap.

• Remove the old knob by firmly pulling straight off the control shaft; align and push the new knob onto the shaft until fully seated.
• Disconnect power to the appliance before working near live controls to avoid shock or injury.

This warming surface element keeps food warm on the cooktop until you're ready to serve. It replaces a failed or weak warming zone so leftover dishes and pans stay at serving temperature. What it does:

• Provides low, steady heat for the designated warming zone on the cooktop
• Replaces an element that no longer heats or maintains warm temperature
• Restores even, consistent warming when the zone is cool or only partially heating
• Works with the cooktop's control switch and wiring to deliver regulated warmth

• Disconnect power to the appliance before inspecting or replacing the element
• Allow the cooktop and element to fully cool before attempting removal
• Replacement typically requires lifting or removing the cooktop; follow your model's service instructions

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

A genuine replacement screw used to secure components on compatible Whirlpool appliances. This small fastener restores proper assembly and helps stop loose panels, trim, or internal parts from rattling or shifting during operation. What it does:

• Secures panels, brackets, or components to restore proper fit and reduce vibration noise
• Replaces missing or stripped fasteners that cause parts to sit unevenly or move during cycles
• Helps maintain safe, stable appliance operation by keeping components fastened

• Use the matching screwdriver or bit to avoid stripping the head; do not force a damaged screw
• Hand-start threads before using a driver to prevent cross-threading
• Replace any additional corroded or damaged screws with matching fasteners for best fit
• Disconnect power and follow appliance-specific safety steps before accessing internal parts

This spring element support secures and stabilizes a range or oven heating element to keep it properly positioned for consistent heating and safe operation. It replaces a worn or broken support that allows an element to sag or vibrate. What it does:

• Holds the bake/broil heating element in the correct position so it heats evenly
• Prevents the element from sagging, touching the oven cavity, or rattling during use
• Helps maintain correct element clearance to reduce arcing and uneven cooking
• Addresses symptoms like a loose or wobbly element, unusual noises, or intermittent heating

• One spring element support

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the heating element and support carefully to avoid bending or damaging the element
• Verify correct part orientation against the oven's wiring diagram during installation

Restore a reliable burner with this replacement surface element. It provides the heat your cookware needs so meals warm efficiently and evenly when the control is turned on, replacing a worn or failed top burner element. What it does:

• Heats the selected cooking zone when its control is engaged
• Replaces a failed, shorted, or physically damaged element
• Helps resolve issues like a burner not heating, heating only partially, or heating inconsistently
• Supports even cooking performance across the cooking surface

• 1 surface element

• Disconnect power at the breaker or unplug the appliance; allow all components to cool
• Access the element; support the cooktop surface if lifted
• Move wires to the new element one at a time to maintain correct connections; reuse existing brackets as needed
• Handle the element carefully; avoid touching heating surfaces and verify secure connections before reassembly and testing

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
