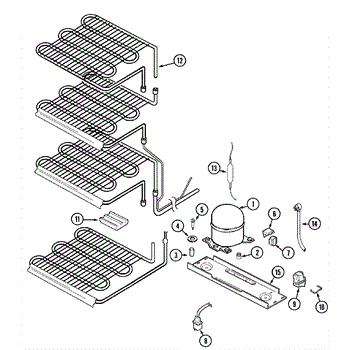

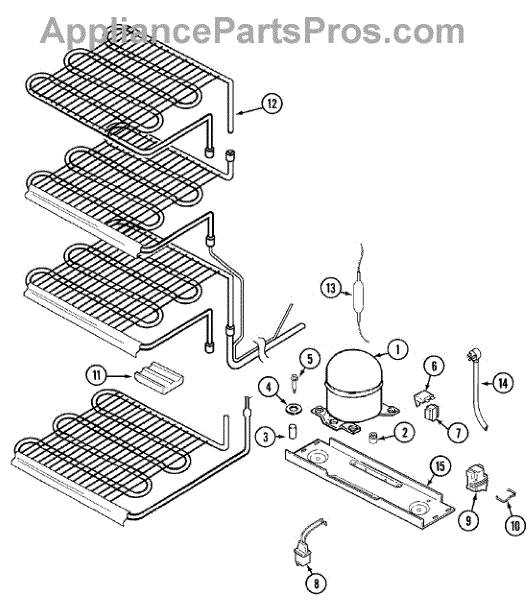

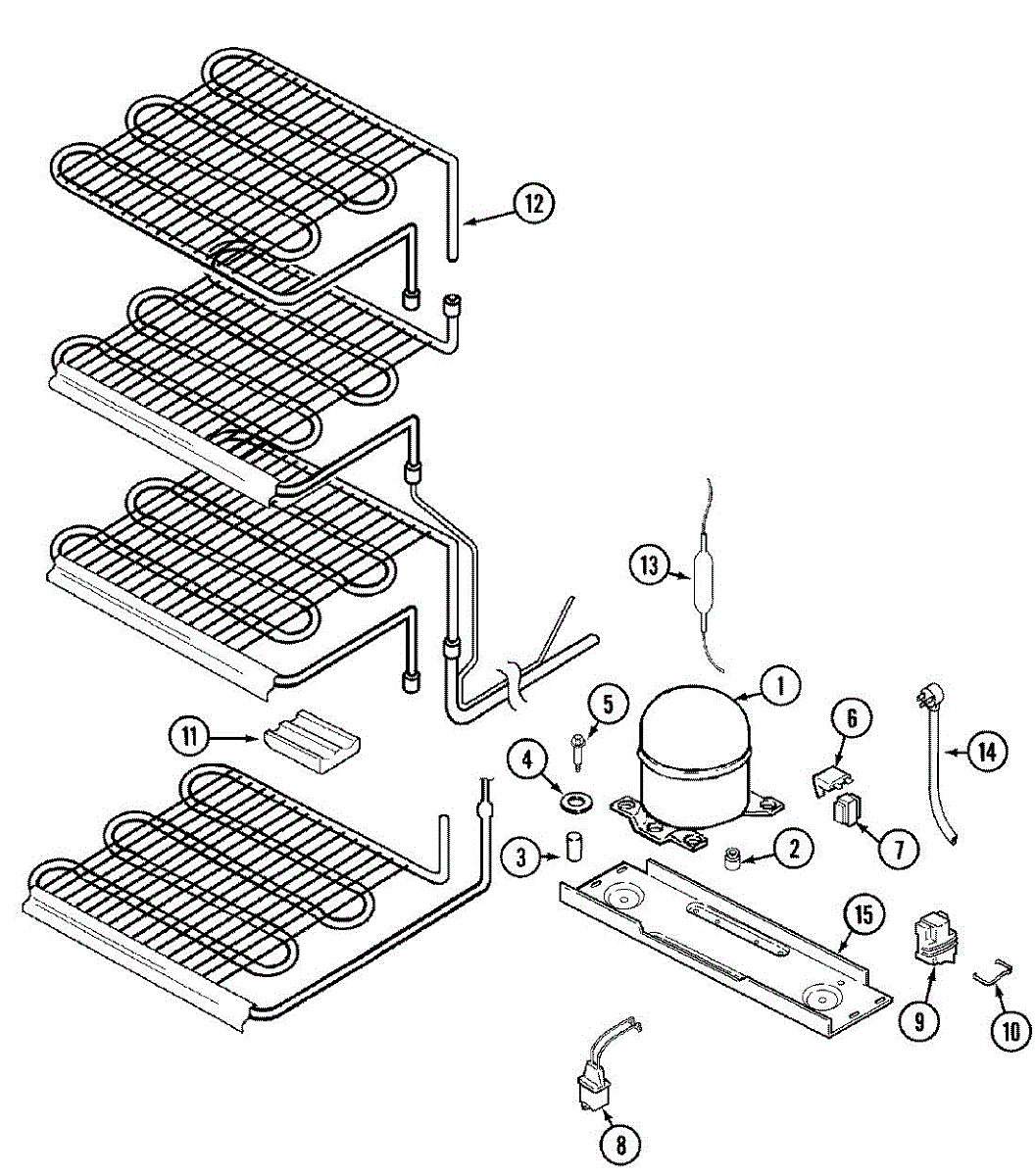

Parts for Maytag CFU1236ARW: 03 - Unit Compartment & System Parts

This start relay controls power to the compressor's start winding so the refrigerator can start and run. Replacing a weak or burned relay restores dependable compressor start-up and can stop repeated clicking with warming temperatures.

• Energizes the compressor's start winding to provide initial torque, then disengages from the circuit
• Common failure symptoms: refrigerator not cooling or intermittently warm; compressor hums/clicks and won't start; relay rattles, smells burnt, or shows heat damage; overload trips
• Helps prevent hard-start conditions that stress the compressor
• The relay contacts are open/shorted, the compressor may fail to start and cycle off on overload

• Disconnect power before servicing; wear appropriate PPE
• Access the rear machine compartment; remove the relay cover on the compressor. Note wire positions, pull the old relay straight off the compressor pins, transfer wires, and fully seat the new relay in the same orientation
• If equipped, safely discharge the run capacitor; inspect the overload, wiring, and terminals for heat damage and address as needed
• Reinstall the cover. If the compressor still won't start, further diagnosis of the start device, capacitor, or compressor is required

The Start Device Assembly is an OEM part for Whirlpool refrigerators. It is a kit that includes the start relay and overload, both of which are crucial components for the proper operation of the compressor. The start relay is responsible for initiating the compressor's operation by providing an electrical boost to start the motor.

Causes of a faulty start device kit can include electrical component failure, power surges, or damage due to wear and tear over time.

Symptoms of a bad start device kit may include:

• The compressor not running or cycling on and off frequently
• Inadequate cooling or fluctuations in temperature
• Unusual noises coming from the refrigerator

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This overload protector is a thermal motor protector that cuts power if the dryer motor overheats, helping prevent motor damage and unsafe operation. Replace a failed unit to restore the motor's built-in overheating protection. What it does:

• Senses excessive motor temperature and interrupts motor power to prevent damage.
• Common symptom: dryer may not start or the motor hums but won't turn when the overload has failed.
• Helps stop repeated motor overheating and can prevent associated electrical faults.
• Works as the motor's thermal safety device; must be replaced if open or damaged.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Transfer wiring and mounting exactly as removed; do not bypass the protector.
• Inspect motor and blower for obstructions or causes of overheating before reassembly.

This overload is a thermal protection device that mounts on the motor/compressor and opens the circuit when excessive heat or current is detected. Replacing a weak or failed overload helps restore safe startup and protects the windings from damage. What it does:

• Monitors motor/compressor temperature and current draw
• Interrupts power on overheat/overload to prevent damage
• Aids troubleshooting of start/run issues when paired with the start device
• Common symptoms: hums then clicks off, won't start, intermittent shutdown, frequent tripping

• 1 thermal overload protector

• Disconnect power before servicing; allow components to cool
• Access the terminal area on the motor/compressor; remove any cover
• Note/photograph wire positions; transfer wires and fully seat the new overload on the correct terminal
• Inspect the start relay, capacitor, and terminals for heat damage; replace any compromised parts

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.
