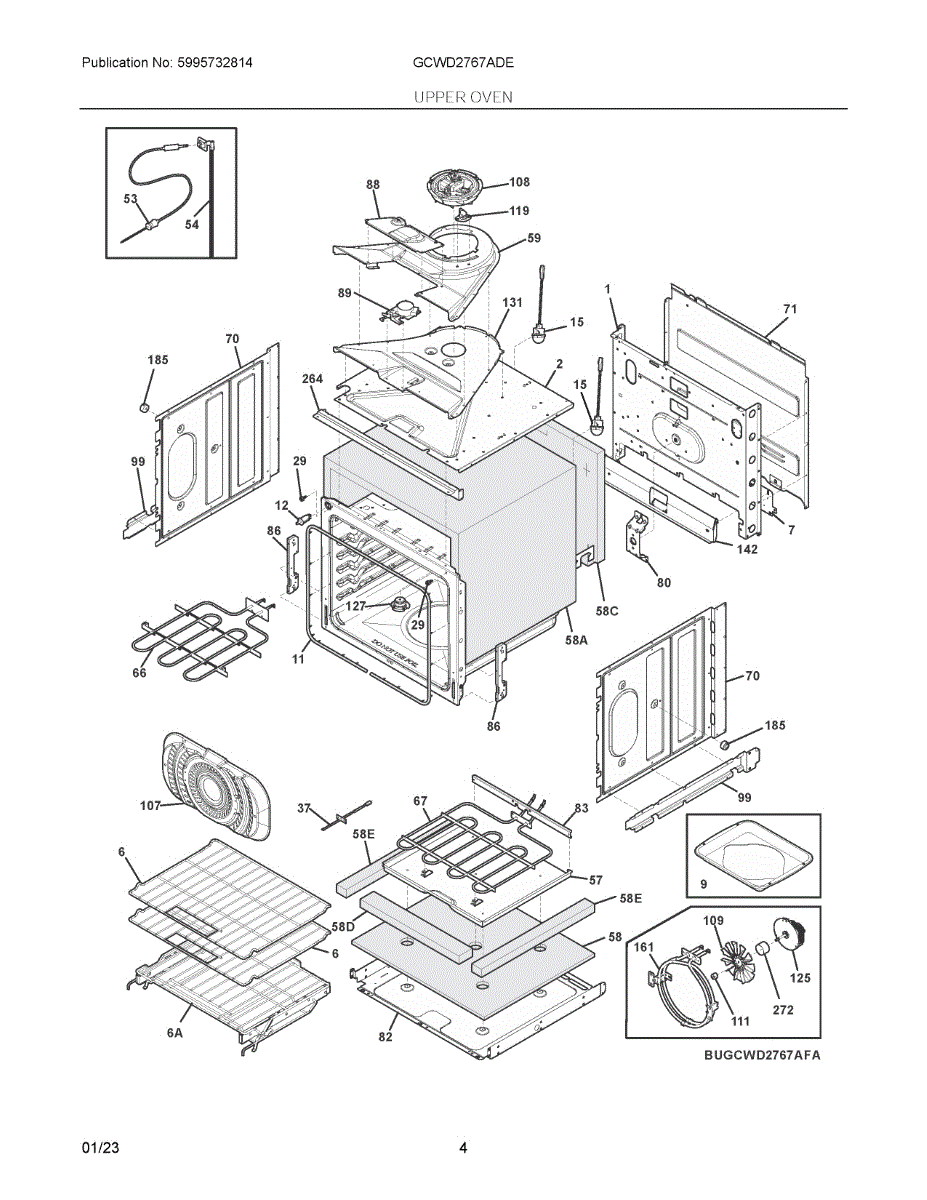

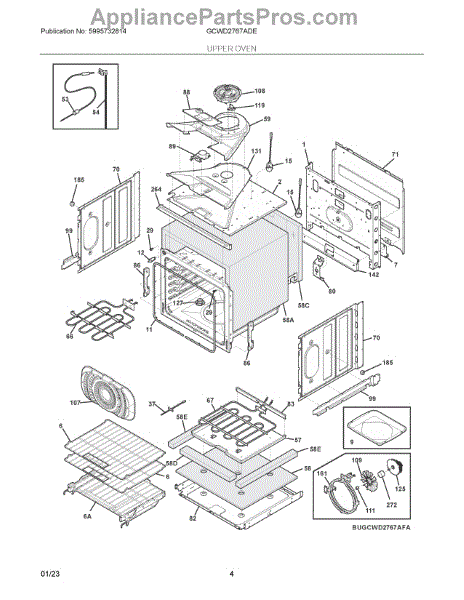

Parts for Electrolux GCWD2767ADE: 03 - Upper Oven Parts

This oven rack slides into wall oven side rails for holding cookware. Replace worn, bent, or missing racks to restore full oven capacity and functionality.

Flexible door seal creates an airtight barrier to maintain proper oven temperature and energy efficiency. Replace if worn, cracked, or loose. Verify fit.

This is a door-activated switch that detects whether the oven door is open or closed. It controls functions such as the oven light or signals the control board about door position. Replace this switch if the oven light stays on or off regardless of door position, or if the oven does not operate correctly due to a faulty door signal.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven not reaching set temperature or shutting off mid-cycle? This temperature sensor monitors cavity temp and signals the control board. 15-min fix.

Oven displaying probe error or reading temperature when unplugged? This meat probe monitors internal food temperature. Easy DIY replacement part.

Junction box for wall ovens. Installs at the rear electrical connection area. Replace if cracked, damaged, or missing to safely house wiring connections.

Oven not heating or baking unevenly? This hidden bake element restores proper bottom heat. Moderate DIY repair—requires removing oven racks and panels.

Heat shield for ranges and wall ovens. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to prevent overheating.

Protective shield that installs inside your oven cavity. Replace if cracked, damaged, or missing to restore proper interior protection and appearance.

This receptacle is the appliance's power terminal housing that secures the incoming wiring and provides a safe connection point for the power harness. It helps restore reliable electrical connection and prevents loose or damaged terminals. What it does:

• Holds and protects the power terminal connections for the appliance
• Provides the mounting point for the incoming power harness/plug
• Helps eliminate intermittent power or arcing caused by a cracked or melted housing
• Restores safe, stable electrical contacts when the original receptacle is damaged

• Disconnect power at the breaker or unplug the appliance before starting
• Remove access panel(s) to reach the existing terminal housing; keep fasteners for reassembly
• Transfer wires exactly as found; note or photograph wire positions before removal
• If terminals or wiring are damaged, replace or repair those components per local electrical codes

This assembly includes the motor and switch that control the automatic door lock mechanism on a wall oven. It engages the door lock during the self-cleaning cycle and releases it once the oven has cooled to a safe temperature. Replace this part if the oven door fails to lock or unlock during self-clean, or if the self-clean cycle will not start.

This is a cooling fan motor assembly used in ranges and ovens to circulate air and prevent overheating of electronic controls and surrounding cabinetry. It draws cool air through the oven housing to protect components during and after cooking cycles. Replace this motor if the cooling fan stops running, makes unusual noises, or if the oven control panel overheats and shuts off unexpectedly.

This replacement evaporator fan blade helps circulate cold air inside the freezer or refrigerator compartment to maintain even temperatures and proper cooling performance. A direct-fit replacement when the existing blade is cracked, warped, or missing. What it does:

• Moves air across the evaporator to promote even cooling and frost prevention
• Restores proper airflow when a damaged blade causes noise or reduced cooling
• Helps reduce hot or warm spots inside the compartment
• Quiet, balanced operation when installed correctly

• One replacement evaporator fan blade

• Disconnect power to the appliance before starting any repair
• Typically accessed by removing interior panels in the freezer/refrigerator compartment
• Inspect the fan motor shaft and mounting for damage before installing the new blade

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Oven not heating to the right temperature? This thermostat regulates heat by cycling the heating elements. Moderate DIY repair restores accurate baking.

This motor is the replacement drive motor used to power the appliance's mechanical operation, restoring movement and normal function when the original motor fails. It provides direct, reliable replacement performance for compatible units. What it does:

• Spins the drive mechanism so the appliance can run cycles normally.
• Replaces a failed or noisy motor to reduce humming, stalling, or lack-of-motion symptoms.
• Restores proper mechanical operation when the appliance won't start or stops mid-cycle.
• Helps eliminate intermittent operation caused by worn or damaged motor components.

• One motor assembly

• Disconnect power before starting any repair to avoid shock or injury.
• Remove access panels and disconnect wiring harness; note wire locations or take a photo for reassembly.
• Replace motor mounting hardware and ensure proper alignment before reconnecting power.

This Tube Assembly routes water inside the refrigerator to the dispenser and ice-maker, restoring proper water flow and preventing leaks when the original line is damaged. Reliable replacement for delivery and fill connections. What it does:

• Transports water from the inlet to the ice maker/dispenser assembly
• Replaces cracked, kinked, or leaking tubing that causes puddles or low water flow
• Helps restore normal ice production and dispenser operation when the tube is the fault
• Matches OEM routing and connector types for correct fit and seal

• One tube assembly as shown

• Disconnect power and shut off the water supply before starting
• Remove ice maker or access panel as needed to reach routing; follow OEM service instructions
• Inspect fittings and replace any damaged clamps or seals; avoid kinking the new tube
• After installation, turn on water, check for leaks, and run dispenser/ice cycles to confirm proper flow

Positions and supports range components to maintain proper alignment. Replace if cracked, broken, or missing to prevent rubbing and ensure panels fit correctly.

Replacement water-line tube that routes water inside the refrigerator to the ice maker or dispenser, helping restore proper water flow and reduce leaks. Designed to match factory routing so the line fits and seals correctly at the connections. What it does:

• Carries water from the cabinet valve to the ice maker or dispenser.
• Restores normal dispenser flow and ice production when the tube is cracked, pinched, or clogged.
• Helps stop visible leaks or pooling caused by damaged or misrouted tubing.
• Matches factory bends for correct routing and clearance behind panels.

• Disconnect power and shut off the water supply before starting any work.
• Remove shelves or panels as needed for access; watch for sharp edges.
• Check and replace any worn clamps or fittings; tighten connections and test for leaks with water on before reassembling.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
