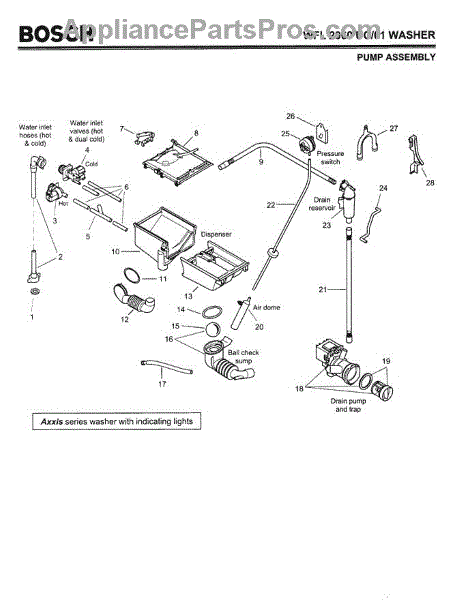

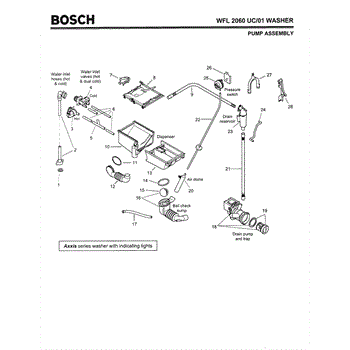

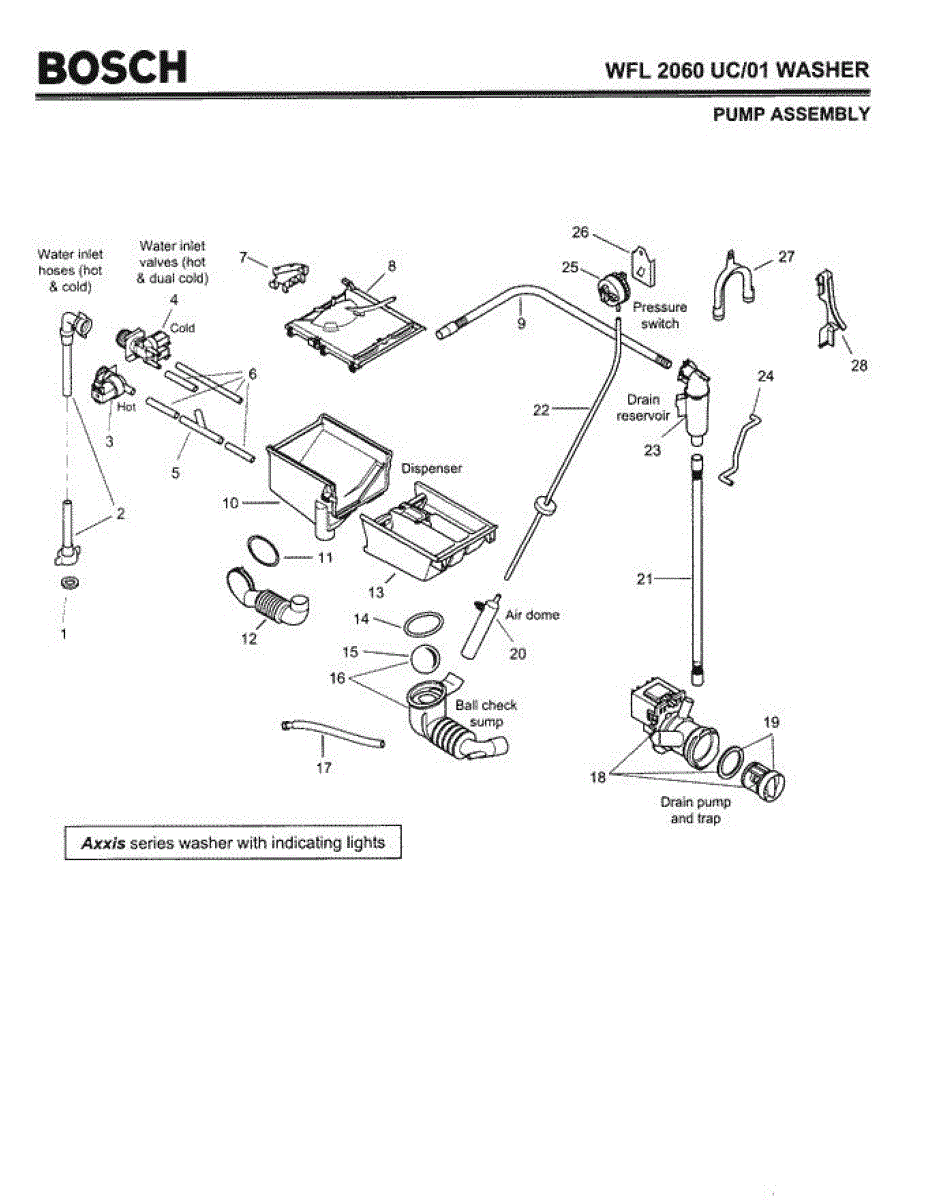

Parts for Bosch WFL2060 UC/01 (FD 8201-): 04 - Pump Assembly Parts

Parts for Bosch WFL2060 UC/01 (FD 8201-): 04 - Pump Assembly Parts

Location on Diagram
Part Description
Price & Availability
1
Product photo
By: Bosch
Part Number: 00027780

The washer water inlet filter is a small mesh screen that sits at the water inlet valve connection point and catches sediment, debris, and mineral particles from your home's water supply before they enter the machine. Keeping this filter clear ensures proper water flow into the washer. Replace this part if your washer is filling slowly, not filling at all, or if the existing filter is torn, corroded, or too clogged to be cleaned effectively.

More
$17.23

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
2
Product photo
By: Bosch
Part Number: 00363193
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
Product photo
By: Bosch
Part Number: 00363194
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Product photo
5.0 (2)
By: Bosch
Part Number: 00428212

Fix a washer that won't stop filling or overflows during cycles. This water valve magnet controls water flow during wash and rinse. Common DIY repair.

More
$86.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
4
Product photo
5.0 (4)
By: Bosch
Part Number: 10031360

This valve magnet is the solenoid actuator used to open and close a dishwasher water/control valve, restoring proper water flow for filling and cycle operation. It replaces a failed or weak magnet to help the valve respond correctly. What it does:

  • Converts electrical signal into linear motion to operate the dishwasher valve
  • Restores valve opening and closing when a worn or stuck magnet causes fill or circulation issues
  • Commonly used when dishwasher won't fill, stops mid-cycle, or shows related valve/fill errors
  • Works with the valve body; does not include seals or the full valve assembly
What's included: One valve magnet (solenoid) Install notes:
  • Disconnect power and shut off the water supply before beginning service
  • Replace with the matching OEM magnet and ensure proper seating on the valve body
  • Keep terminals dry and secure electrical connections; inspect gaskets and valve body for damage

More
$34.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
5
By: Bosch
Part Number: 00173254

Fix washer leaks or uneven water flow with this T-connector. Joins three water lines to restore proper distribution. Simple DIY repair.

More
$5.02

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6
Product photo
By: Bosch
Part Number: 00171262

Connects your washer to the household water supply. Replace if hose is cracked, leaking, worn, or damaged to prevent water damage and ensure proper fill.

More
$35.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
7
By: Bosch
Part Number: 00171267
$14.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8
By: Bosch
Part Number: 11035255

If detergent isn't dispensing properly or the drawer leaks, the dispenser case may be cracked or clogged. This replacement part restores function.

More
$55.30

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
9
Product photo
By: Bosch
Part Number: 00358306
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10
By: Bosch
Part Number: 00363186

The washer lower dispenser tray is the plastic housing at the bottom of the detergent dispenser drawer that holds and channels laundry products into the wash drum. It guides detergent, fabric softener, and bleach into the machine at the correct time during the wash cycle. Replace this part if the tray is cracked, warped, or detergent is leaking out of the dispenser instead of flowing into the drum.

More
$29.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
11
By: Bosch
Part Number: 00421488

This fastening ring secures mating appliance components by locking parts in place to prevent movement or separation during operation. It's a simple yet essential hardware piece that helps maintain proper alignment and reliable function. What it does

  • Holds mating parts together to prevent wobble, vibration, or dislocation
  • Keeps seals and assemblies properly seated to reduce noise and misalignment
  • Helps maintain correct component spacing for smooth operation
  • Commonly replaced when the original ring is bent, worn, or missing
What's included One fastening ring. Install notes
  • Designed for use with compatible OEM assemblies; follow for correct placement
  • Inspect mating surfaces and replace any damaged clips, seals, or gaskets before reassembly
  • Use proper tools to avoid deforming the ring during installation; do not force into place
  • Disconnect power and follow safety procedures before servicing the appliance

More
$5.84

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
12
By: Bosch
Part Number: 00265958
$27.23

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
By: Bosch
Part Number: 00703270

This dispenser tray is a removable insert that fits inside the detergent dispenser drawer of a washing machine. It separates compartments for detergent, bleach, and fabric softener so each is dispensed at the correct point in the wash cycle. Replace this tray if it is cracked, warped, or clogged with residue that cannot be cleaned, which can cause improper dispensing of laundry products.

More
$209.73

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
14
Product photo
By: Bosch
Part Number: 00603523

Secures rotating components in your washer to prevent movement and vibration. Replace if parts feel loose or noisy. Confirm fit with your model number.

More
$15.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
15
By: Bosch
Part Number: 00171263

Fix washer drainage issues with this sump check ball. Prevents water backflow in the pump system. Simple DIY repair for most home mechanics.

More
$16.65

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
Product photo
5.0 (1)
By: Bosch
Part Number: 00480436

This eco hose sump assembly manages water drainage and filtration in the dishwasher's lower section. Replace if water doesn't drain properly after cycles, you notice standing water in the bottom, or error codes related to drainage appear.

More
$30.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
5.0 (1)
By: Bsh
Part Number: 00173229
$20.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
18
Best Seller
Product photo
4.9 (7)
By: Bosch
Part Number: 00144486

Fix a washer that won't drain or hums during drain cycle. This drain pump removes water during wash cycles. DIY repair takes 20-90 minutes.

More
$129.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
19
By: Bosch
Part Number: 00151409
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20
Product photo
By: Bosch
Part Number: 00424981

Fix washer water level issues or won't fill correctly with a new pressure chamber. This part regulates water sensing for proper fill cycles.

More
$214.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
21
By: Bosch
Part Number: 00358305

Fix washer not draining or slow drainage with this drain pump tube. Connects pump to reservoir. Moderate DIY repair, typically 30-45 minutes.

More
$26.36

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
22
Product photo
By: Bosch
Part Number: 00491919

Fix washer overfilling or fill errors with this pressure chamber hose. Restores proper water level sensing by connecting the sump to the pressure chamber.

More
$12.16

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
23
Product photo
By: Bosch
Part Number: 00358304

Water pooling under your washer? A cracked or clogged drain reservoir housing disrupts wastewater flow. This repair restores proper drainage.

More
$69.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
24
By: Bosch
Part Number: 00175789

Vent hose for washer drain reservoir. Installs between the drain pump and reservoir to allow air circulation. Replace if cracked, split, or missing.

More
$27.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
25
Product photo
5.0 (1)
By: Bosch
Part Number: 00600925

Fix a washer that won't stop filling or overfills during cycles. This water level pressure switch senses and regulates fill levels to restore proper operation.

More
$108.40

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
26
By: Bosch
Part Number: 999084
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27
Product photo
By: Bosch
Part Number: 00655300

Replacement mounting bracket holder that secures internal components in place. Install when original is cracked, broken, or missing to restore proper alignment.

More
$19.21

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
28
By: Bosch
Part Number: 00267238
$11.22

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
