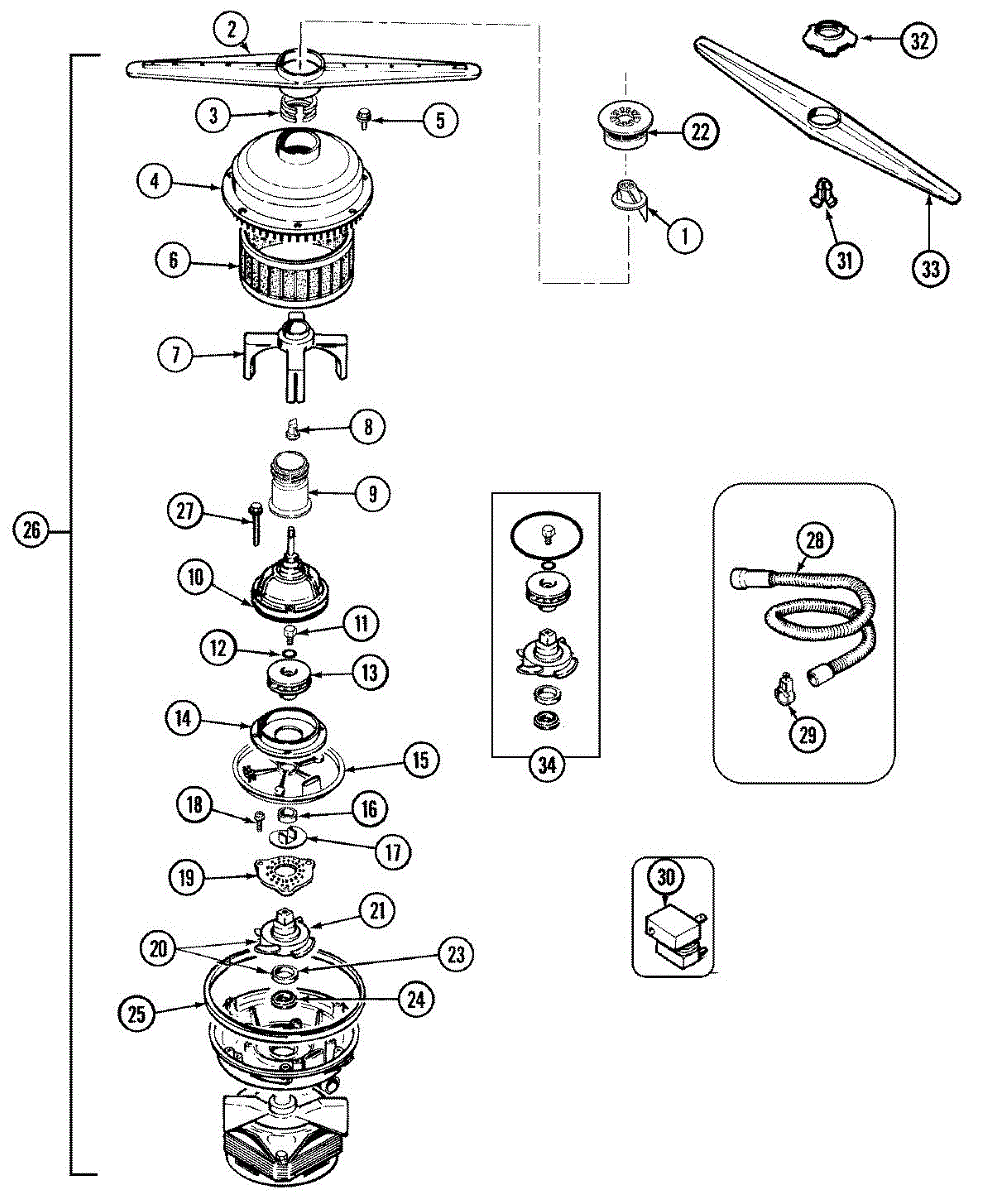

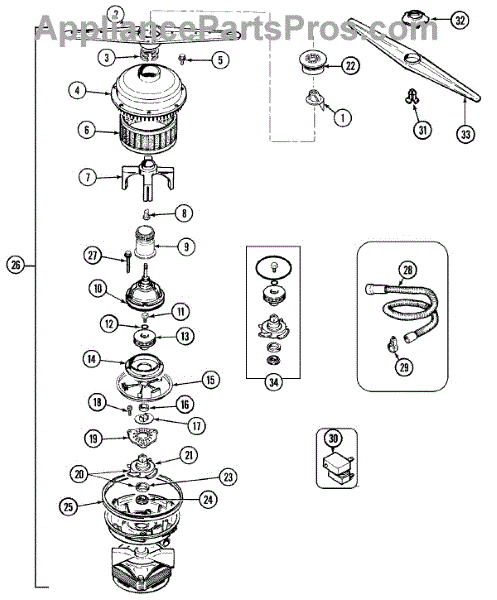

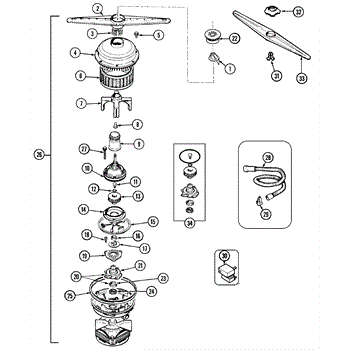

Parts for Maytag DWU6502AAE: 04 - Pump & Motor Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replacement lower spray arm for dishwashers. Installs at the bottom of the tub to distribute water during wash cycles. Replace if cracked, clogged, or broken.

Traps food debris before it enters the dishwasher pump. Replace when clogged or damaged to restore cleaning performance. Confirm fit by model number.

Creates a leak-resistant seal between pump components and connections. Replace when you notice water leaking during drain cycles or around fittings.

Fix weak spray or poor cleaning caused by a cracked impeller. Simple 15-minute repair with basic tools. Restores water circulation and pressure.

Replacement handle mounting screw for refrigerators. Secures the door handle to the appliance. Order if your original screw is stripped, missing, or lost.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Gray plastic cap that threads onto the center of your dishwasher's lower spray arm assembly. Replaces cracked, broken, or missing caps. Hand-tightens.

Note The manufacturer has changed the old spring design. If you have the old spring design replace with Pump module repair package part number 12001489

This drain hose routes and removes wastewater from the appliance so it can pump out normally and avoid standing water. It's a direct-fit service part used to restore proper draining. What it does

• Carries wastewater from the appliance pump to the household drain or air gap
• Restores normal draining when original hose is cracked, split, or leaking
• Helps prevent water backing up into the appliance when properly routed and secured
• Can stop intermittent leaks or reduced drain performance caused by hose damage

• One drain hose

• Disconnect power and turn off water supply before starting any repair
• Inspect hose routing and replace with the same path to avoid kinks or high loops that trap water
• Secure hose connections with appropriate clamps; tighten but avoid over-torquing
• After installation, run a short drain cycle and check all connections for leaks

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

Upper wash arm retaining clip.

Snap-in outlet connector that secures the upper spray arm assembly to the dishwasher. Replace if cracked, stripped, or won't hold the arm securely.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
