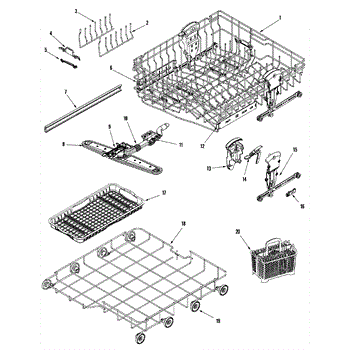

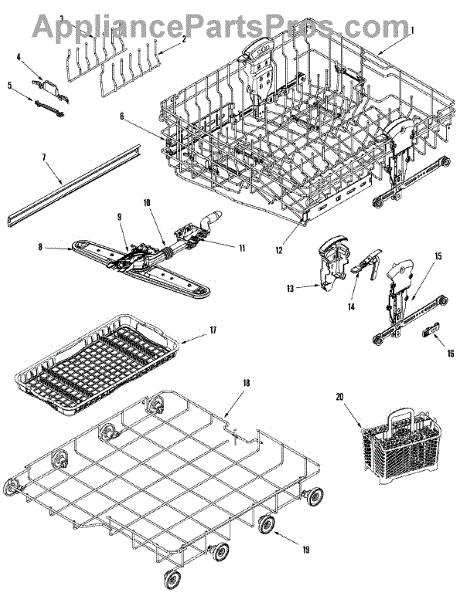

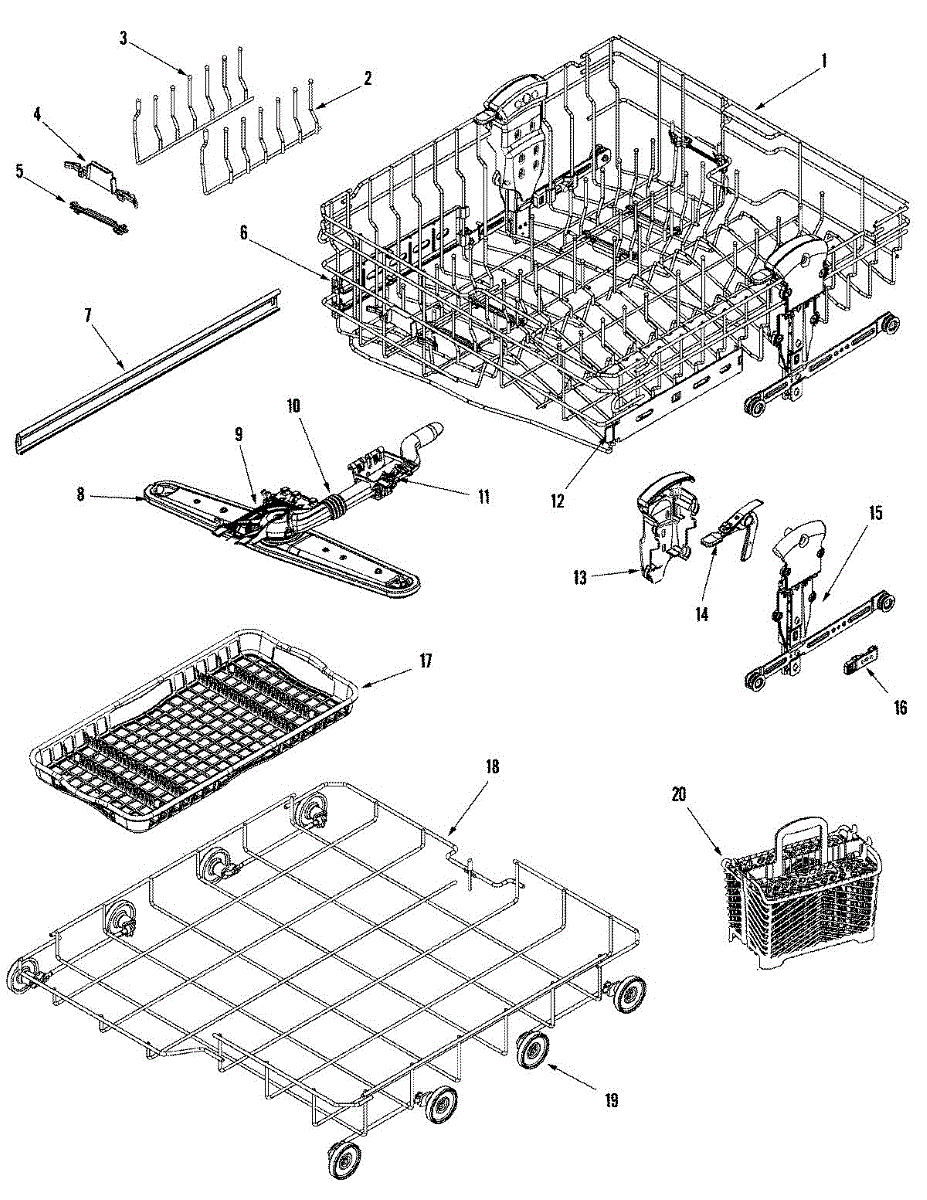

Parts for Maytag MDB9750AWQ: 04 - Rail & Rack Assembly (Mdl / Lwr) Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dark gray cap that covers the tip of dishwasher dishrack tines. Replace if your existing tine cap is cracked, broken, missing, or worn to protect dishes.

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

This latch mechanism secures the fold-down tines in your dishwasher's upper rack. It allows you to fold tines flat for loading large dishes and keeps them locked in position during wash cycles. Replace this part if tines won't stay folded down or pop up unexpectedly during washing.

Secures flip-down tines on your dishwasher rack in upright position. Replace if latch is cracked, broken, or missing to restore tine flexibility.

Secures folding tines in your dishwasher's upper rack. Replace if clip is cracked, broken, or missing to restore tine adjustment and stability.

Adjustable clip holds dishwasher rack tines in place. Replace if clip is broken, cracked, or missing. Slides over lower rack cross sections.

Ball bearing for dishwasher upper rack track. Replace when rack slides roughly or makes noise. Restores smooth gliding. Verify fit by model number.

This inner slide rail (track) supports a refrigerator/freezer drawer and restores smooth, stable gliding for the drawer. Replacing a worn or damaged rail helps stop sticking, misalignment, rattling or partial drawer drops. What it does:

• Provides the inner guide surface that the drawer rollers slide on for smooth operation
• Keeps the drawer aligned so it opens and closes evenly
• Reduces sticking, squeaks or rough movement caused by a worn track
• Helps prevent the drawer from coming off the glide or dropping unexpectedly

What's included: One inner slide rail (track) Install notes:

• Disconnect power to the appliance before starting and remove the drawer to access slides
• Retain and reuse any factory screws/fasteners unless replacements are provided
• Typical installation requires basic hand tools and aligning the rail into the outer slide; do not force parts

Color: Gray. Measures about a 1/2 inch wide by 1 inch high by 1 inch deep.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This wash manifold distributes water to the spray arms in your dishwasher's cleaning system. It ensures proper water pressure and flow for effective cleaning. Replace if dishes aren't getting clean, water pressure is weak, or you notice leaks in the wash system.

Color: Blue

Right hand side. For the left hand side order WPW10153533.

Left side dishrack adjuster assembly with integrated roller wheels. Replaces broken, cracked, or worn adjusters when wheels split or break off the track.

Dishrack wheel assembly for dishwashers. Replaces broken, cracked, or worn wheels that prevent smooth rack sliding. Includes wheel and axle bracket.

Replace your cracked, broken, or missing dishwasher silverware basket. Two-piece gray basket holds utensils securely during wash cycles. Easy install.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
