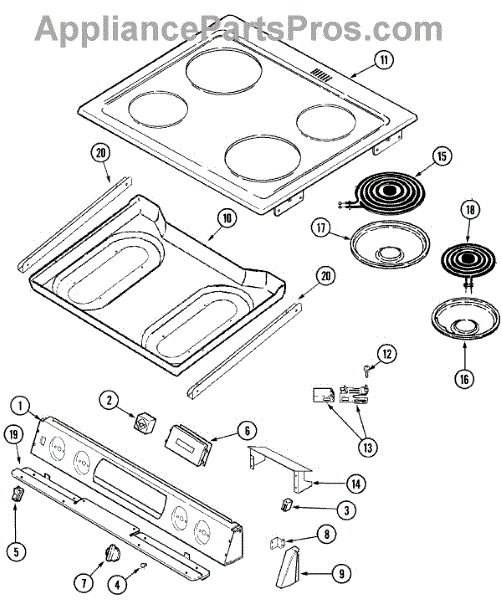

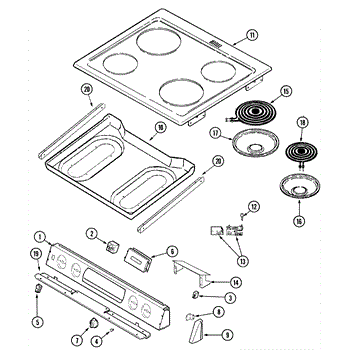

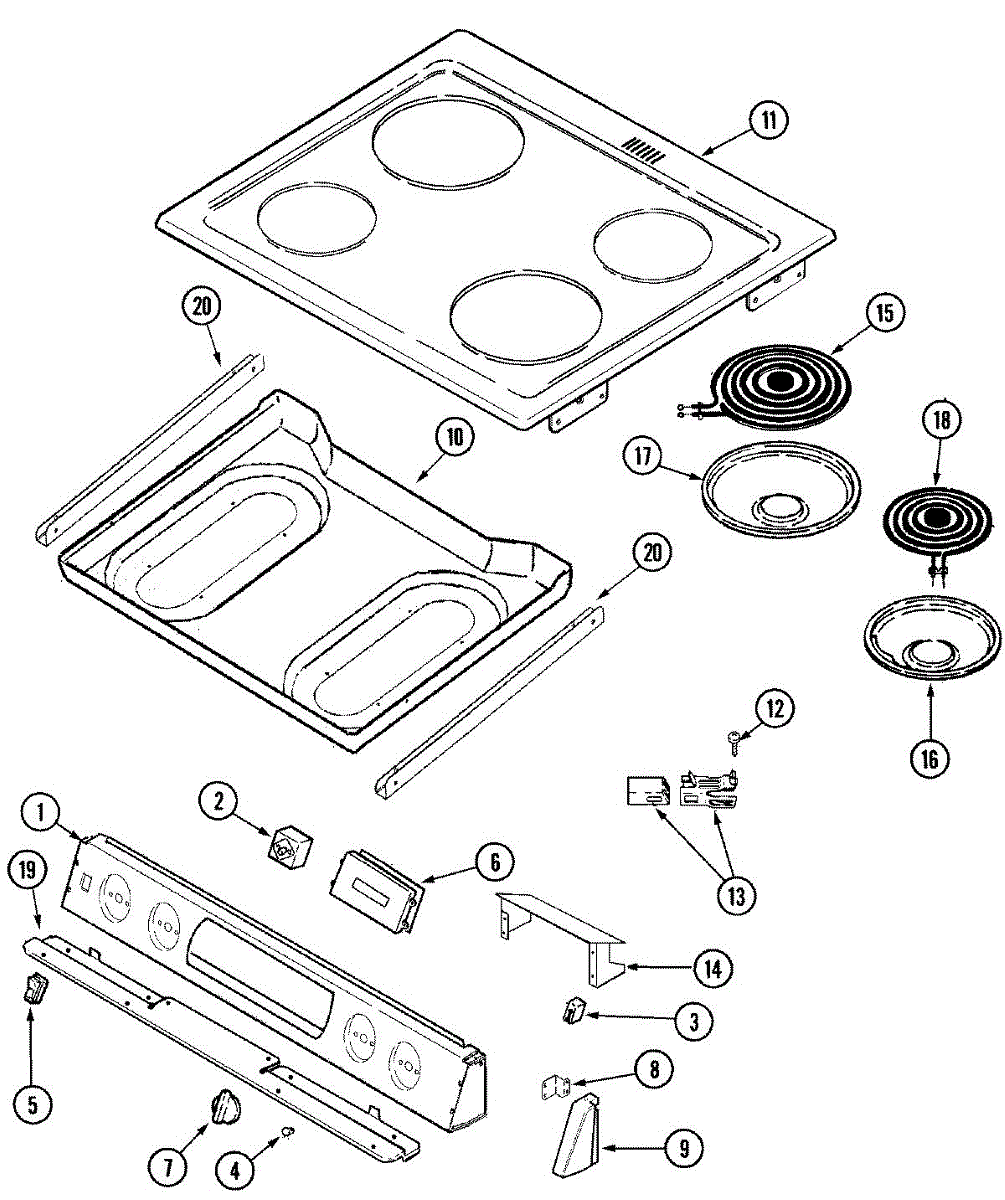

Parts for Maytag MES5570AAB: 04 - Top Assembly Parts

Burner won't turn off or only heats on high? This infinite switch controls heat settings for your electric range's surface element. DIY repair.

Fix a burner stuck on high or an indicator light that won't turn off. This infinite switch controls heat settings on electric range burners. DIY-friendly repair.

Indicator light that illuminates when functions are active on your range control panel. Replace if stuck on, dim, or fails to light. Verify fit by model number.

Indicator light lens covers the pilot lamp opening on your range control panel. Replace when cracked, discolored, or missing to restore visibility.

Color: Black

Color: Black. White is no longer made.

Replacement mounting screw for securing panels, brackets, and internal components. Needed when original fasteners are stripped, missing, or damaged.

Color: Black. For biscuit order 98008169. For white order WP98008544.

Replacement 6-32 x 3/8" screw secures panels, brackets, and trim pieces on appliances. Restores proper fastening when original screws are lost or stripped.

This electrical connection kit provides secure terminals where your range's surface heating elements plug into the cooktop. It ensures proper electrical contact and power delivery to the burners. Replace when burner elements don't heat properly, connections appear burned, or elements won't stay securely in place.

Burner not heating or heating unevenly? This 8-inch surface element kit restores even heating on your electric range. Simple plug-in install in 15 minutes.

Burner won't heat or heats unevenly? This 8-inch coil surface element restores reliable cooking power to your range. Simple plug-in installation.

Drip pan installs beneath burner elements to catch spills and crumbs. Replace if cracked, rusted, stained, or worn. Keeps your stovetop clean.

Replacement 8 inch drip pan for electric ranges and cooktops. Installs under burner element to catch spills. Replace when rusted, stained, or worn.

This heating element kit replaces a failed heating element to restore normal heating in compatible laundry or cooking appliances. It provides the core heating component needed to get your appliance producing heat again. What it does:

• Replaces a damaged or burned-out heating element that stops the appliance from heating
• Helps resolve symptoms like no heat, weak or inconsistent heating, or tripped thermal cutouts
• Restores the appliance's ability to reach and maintain operating temperatures for normal cycles
• Works as the direct replacement heating component shown in OEM parts listings

• One heating element kit as shown

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock risk
• Handle the element and terminals carefully to avoid bending or damaging mounting tabs
• Confirm correct terminal connections and secure mounting per the appliance wiring diagram

Burner not heating or heating unevenly? This 6-inch surface element restores heat to your cooktop. Simple plug-in replacement takes 5 minutes.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Fixes ovens that won't heat or show F8/F9 error codes. This relay switches power to heating elements and fans. Moderate DIY repair with multimeter.
