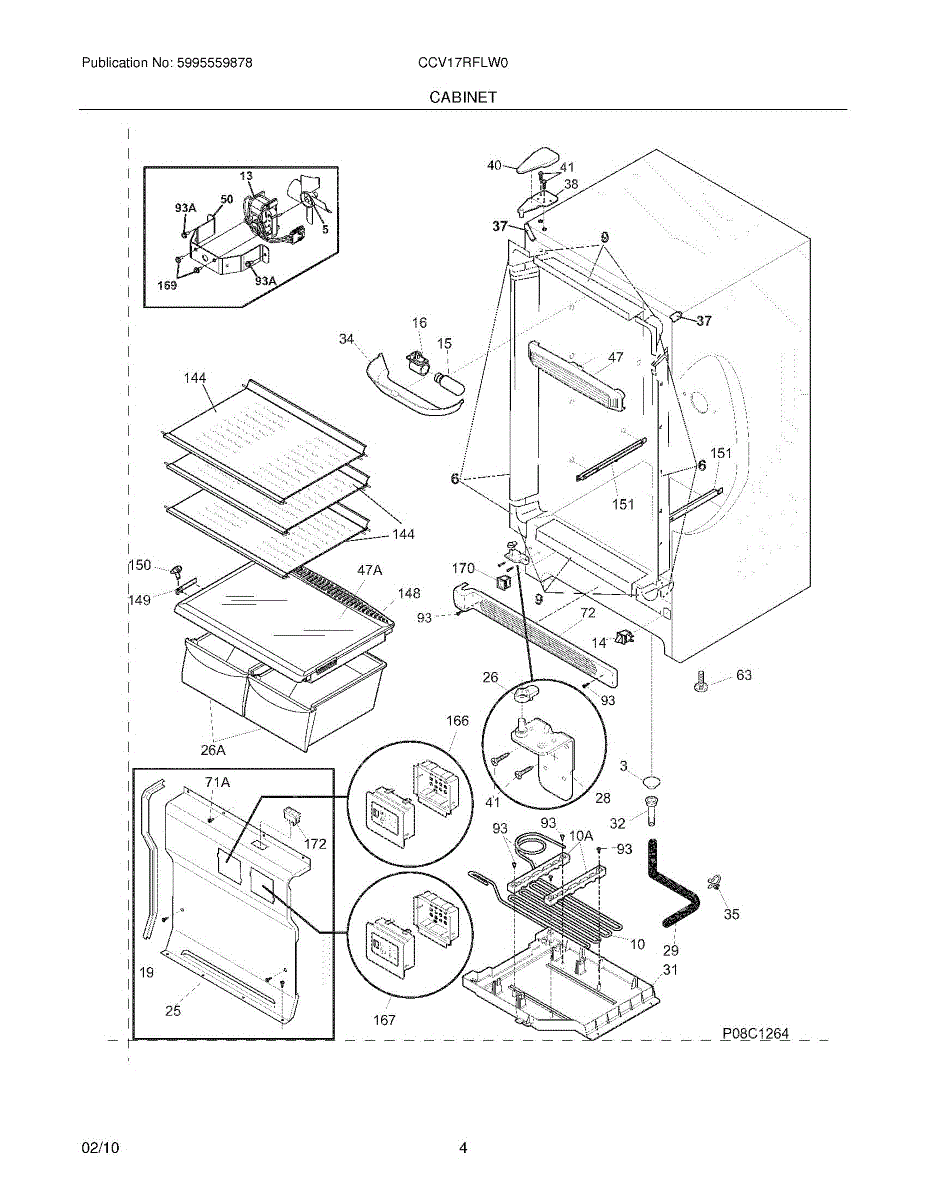

Parts for Electrolux CCV17RFLW0: 05 - Cabinet Parts

Water pooling in freezer? This drain screen traps debris before it clogs the drain tube. Quick snap-in replacement restores proper drainage flow.

Refrigerator making loud noises or not cooling? A worn evaporator fan blade often causes these issues. DIY-friendly repair typically takes 30 minutes.

This cabinet breaker kit forms the insulating trim around the appliance opening. It provides a proper surface for the door or lid gasket to seal against and helps minimize condensation along the edge for clean, reliable performance.

• Creates the thermal break and finished edge around the cabinet opening
• Supports correct seating of the door/lid gasket for a consistent seal
• Helps reduce sweating or moisture at the perimeter
• Replaces cracked, warped, or missing breaker trim components

• Disconnect power before servicing; wear cut-resistant gloves
• Remove the door/lid if required for access and retain all fasteners
• Carefully remove old breaker components and clean the mounting surfaces
• Install the new breaker and corners, align evenly, avoid overtightening, and verify the gasket seals all around

Freezer not cooling or running warm? A failed evaporator fan motor stops cold air circulation. DIY-friendly repair typically takes 30-45 minutes.

The Door switch is an OEM replacement part for Frigidaire refrigerators. This part turns the light on/off as the door opens and closes.

Causes of a faulty door switch include normal wear of electrical contacts from repetitive on/off cycles. Moisture exposure may potentially corrode internal connections.

Symptoms of a bad light/switch include:

• The interior light fails to turn on when the door is opened
• The light stays on when the door is closed, leading to potential overheating
• An impact on the refrigerator’s temperature regulation due to the switch not signaling the door's closure

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

LED light bulb illuminates your refrigerator interior. Replace when bulb burns out, flickers, or stops working. Verify fit with your model number.

This light socket holds the interior appliance bulb and connects it to the unit's wiring. Replace a damaged or loose socket to restore dependable cabinet lighting when the door is opened.

• Secures the interior light bulb and provides reliable electrical contact
• Supplies power to the lamp when the door switch closes
• Helps resolve flickering or intermittent lighting from a worn or heat-damaged socket
• Common symptoms: light won't turn on, bulb won't seat or stays loose, visible charring at the socket

• Disconnect power to the appliance before servicing
• Remove the lens/cover and bulb; release the socket from its mounting
• Transfer wires one at a time to the new socket and ensure snug connections
• Reinstall bulb and cover, restore power, and test; use the bulb type/wattage specified by the manufacturer

Replacement crisper pan for refrigerators. Installs at the bottom of the fridge to store vegetables and produce. Needed when original is cracked or broken.

Carries defrost water from your freezer drain outlet to the drip pan. Replace if cracked, kinked, or detached to prevent leaks onto floors and cabinets.

Collects defrost water from the evaporator and channels it to the drain system. Replace if cracked, broken, or missing to prevent leaks inside the cabinet.

This drain pipe connects the defrost drain outlet to the drain pan area, channeling condensation and defrost water away from the freezer compartment. It is a rigid or semi-rigid tube that slides into the drain opening and directs water downward. Replace this part if you notice water pooling inside the freezer, ice buildup near the bottom of the compartment, or water leaking onto the floor beneath the appliance.

Replacement light shield that covers and protects the interior bulb in your refrigerator. Install when the original lens is cracked, broken, or missing.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Cabinet corner trim piece for freezers. Covers and finishes the corner edge of the cabinet exterior. Replace if cracked, chipped, or missing.

Supports and pivots the freezer door at the top hinge point. Replace this hinge if cracked, broken, or worn to restore proper door alignment and swing.

Protective cover that snaps over your freezer's door hinge. Replace if cracked, broken, or missing to restore a finished look and shield the hinge.

Specs: Hex head ,1/4-20 x 5/8

Glass insert for refrigerator crisper pan cover. Replaces cracked, shattered, or broken glass that sits in the crisper frame above vegetable bins.

Secures internal components and panels in your freezer. Replace this support bracket if it's cracked, broken, or missing to restore proper alignment.

Adjustable leveling foot installs at the bottom of your appliance to ensure stability and proper leveling. Replace if broken, cracked, or missing.

Bottom front grille that covers the lower compartment while allowing airflow. Replace if cracked, broken, or missing to restore a finished appearance.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Replaces the adjustable humidity damper on your refrigerator's crisper drawer cover. Install when the original control is cracked, broken, or missing.

Replaces the adjustable humidity damper on your refrigerator's crisper drawer cover. Install when the original control is cracked, broken, or missing.

Supports the crisper cover glass in your refrigerator. Replace this side track or bracket if cracked, broken, or causing the cover to sag or drawers to misalign.

Replacement crisper cover support bracket for your refrigerator. Installs on the side of the crisper cover. Replace if cracked, broken, or missing.

Freezer won't turn on or control panel is unresponsive? This electronic control board manages all freezer systems. DIY install in 10-20 minutes.

This is a small air baffle breather valve that helps equalize air pressure between the interior compartment and the outside environment. It allows air to pass through while helping maintain proper temperature regulation. Replace this valve if you notice excessive frost buildup, difficulty opening the door shortly after closing it, or unusual air pressure issues inside the unit.

Retaining clip for freezer interior components. Secures shelves, bins, or trim pieces in place. Replace if cracked, broken, or missing to restore fit.

This bottom hinge replaces the lower door pivot on compatible Frigidaire refrigerators to restore proper door alignment and smooth opening. It provides a secure pivot point to help maintain an even close and consistent seal. What it does:

• Supports and pivots the lower edge of the refrigerator door for smooth opening and closing.
• Helps maintain correct door alignment so the gasket seals evenly.
• Common replacement for doors that sag, bind, or do not close evenly.
• Works with the factory mounting hardware and hinge locations on compatible models.

• Disconnect power and remove food and loose items from the door before starting.
• Always support the door while removing or installing the hinge to prevent injury or damage.
• Use appropriate hand tools and avoid overtightening fasteners; check door alignment after installation.
• Refer to your model's service manual or official parts diagram for model-specific steps and torque specs.

Color: White
