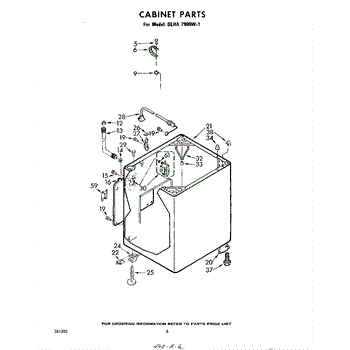

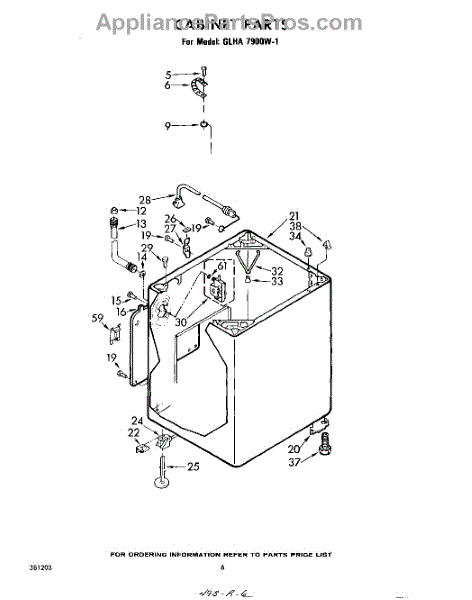

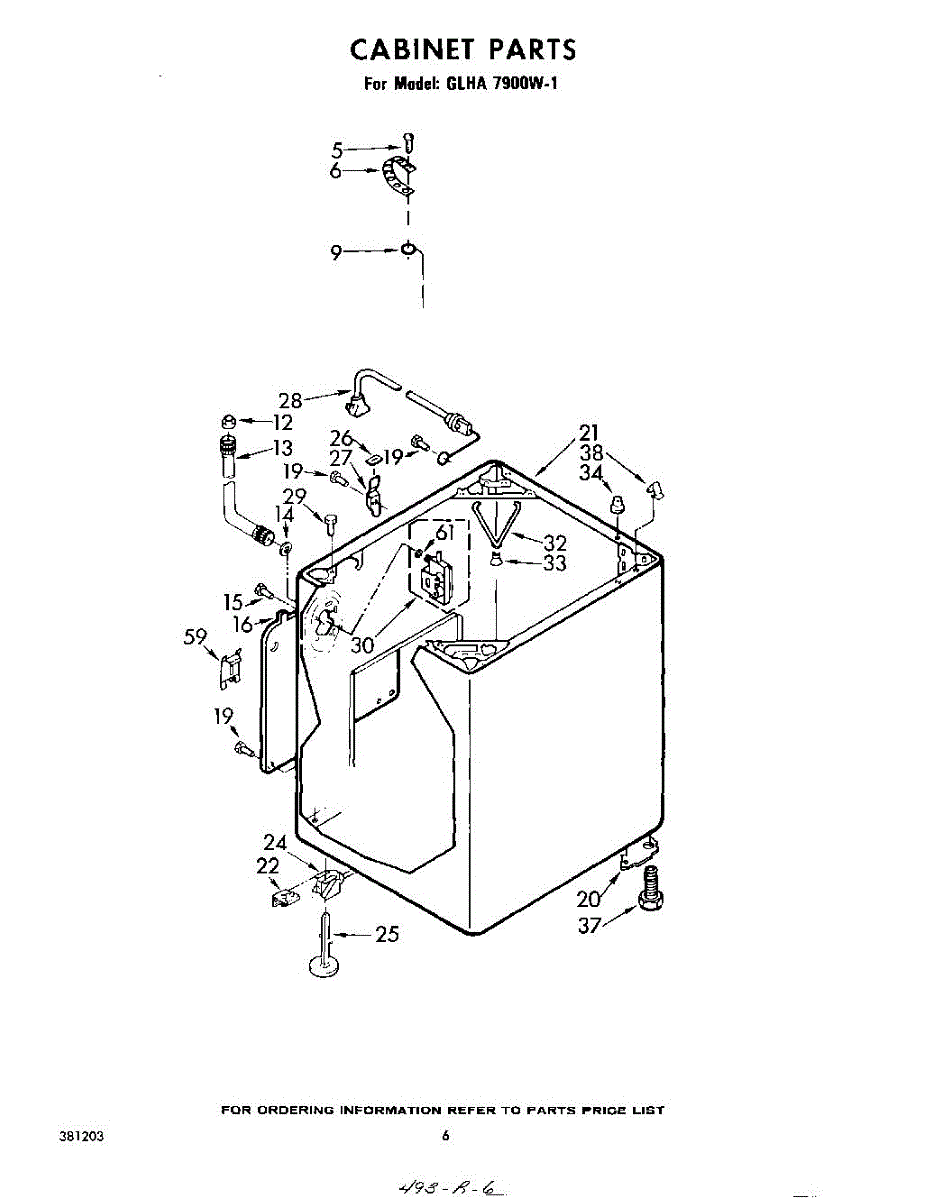

Parts for Whirlpool GLHA7900W1: 05 - Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Inlet Hose Screen and Gasket is an OEM part for Whirlpool washing machines. This component is designed to filter debris from the water entering the machine and ensure a tight seal between the hose and the water inlet valve. By preventing debris from entering the washing machine, it helps to maintain the appliance's performance and longevity.

Causes of a bad inlet hose screen and gasket can include clogging from mineral deposits or debris, wear and tear over time, or damage due to improper installation or removal. A compromised screen or gasket can lead to reduced water flow and potential leaks.

Symptoms of a bad inlet hose screen and gasket include:

• Reduced water flow into the washing machine
• Visible debris or buildup on the screen
• Water leaks at the hose connection
• The washing machine not filling properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

Size: 10-24 x 3/8 inch.

Specs: 10-16 x 1/2 inch.

This small retaining clip secures a lever mechanism inside the appliance, keeping the linkage aligned so the control operates smoothly. Replacing a bent or missing clip helps restore proper engagement and prevents the mechanism from popping loose. What it does:

• Locks the lever mechanism to its bracket or shaft
• Maintains alignment of moving linkage for consistent operation
• Replaces missing, bent, or broken retainer
• Common symptoms: loose/wobbly lever, mechanism slips out, control doesn't engage reliably

• Clip only

• Disconnect power before servicing
• Access the mechanism per your model's service information and relieve any spring/linkage tension
• Note the original orientation; use needle-nose pliers to seat the new clip fully in the groove
• Test the mechanism for smooth operation before reassembly

This rear foot assembly supports the back of the appliance and helps keep it level. Replacing a worn or missing foot restores stability, reduces vibration, and helps prevent the unit from rocking or "walking."

• Supports the rear of the cabinet and maintains proper height
• Provides a stable contact point with the floor for accurate leveling
• Helps reduce vibration, rattling, and movement during operation
• Common signs of failure: rocking/wobbling, excessive vibration, noise from the base, or a visibly worn/missing foot

• Disconnect power before servicing; if applicable, shut off water supply
• Protect the floor and carefully tilt or lay the appliance back with assistance
• Remove the old rear foot and install the new assembly per your model's instructions
• Set the unit back in place, level it, and verify stability

Specs: 10-16 x 1/2 inch.

Made by Whirlpool. Fits most Whirlpool, Kenmore, Estate and Roper belt driven washing machines.

This genuine OEM spring provides the tension needed for the appliance door to open and close smoothly and stay properly seated. It restores reliable door operation and reduces sagging or unlatched door issues. What it does:

• Applies tension to the door hinge/assembly so the door stays closed and aligns properly.
• Helps the door open and close smoothly without slamming or dragging.
• Reduces wandering, sagging, or a door that won't latch securely.
• Can eliminate popping or squeaking noises tied to a worn or stretched spring.

• One replacement door-tension spring.

• Disconnect power (and water if applicable) before starting any repair.
• Springs are under tension — use caution and appropriate tools/gloves to avoid injury.
• Inspect hinge/retainer hardware and replace any damaged clips or anchors during installation.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This front foot assembly is the adjustable leveling leg located at the front of the appliance. It supports and stabilizes the cabinet so it sits square and level, helping prevent rocking, vibration, and poor door alignment.

• Provides front support and height adjustment to level the unit
• Helps reduce rocking, vibration, and rattling during operation
• Replaces a worn, broken, missing, or stripped front foot
• Helps ensure doors or drawers align and close properly when leveled

• Disconnect power and, if applicable, shut off water/gas before servicing
• Protect flooring; carefully tip or brace the appliance to access the front foot
• Unthread the old foot; thread in the new foot and adjust until level side-to-side and front-to-back
• Verify stability, then restore utilities and recheck for level

The Top Lock is an OEM component for Whirlpool electric and gas dryers. It secures the outer metal cabinet door during drying cycles for safety and ventilation. This lock provides a method for releasing and latching the door tightly when shut.

Symptoms of a failing top lock may include:

• Inability to fully close or properly latch the dryer door
• Accidental opening from deficient locking during operation
• Difficulty manipulating the lock due to worn or broken parts

Causes related to normal wear of moving parts through frequent use over several years. Deformation from excessive exterior impacts could also damage locking mechanisms.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Spray paint. Color: Coffee. Size: 13 oz. can.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Bottle with brush. Color: Coffee. Size: 0.6 fl.oz.

Bottle with brush. Color: New avocado. Size: 0.6 fl.oz.

Bottle with brush. Color: Harvest Gold. It's 0.6 fluid ounces.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

This adapter tube assembly connects sections of the appliance's water line to create a secure, leak-resistant path for water flow. Replace it if the tube is cracked or the connection no longer seals properly to prevent leaks and restore flow.

• Connects water tubing between components within the appliance's water system
• Helps maintain a tight, leak-resistant seal at the joint
• Restores proper water flow when a tube or connector is damaged
• Typical symptoms: water leaking at the connection, reduced or no water flow, visible cracks/kinks, loose fit

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place a towel or pan to catch any residual water
• Note routing and orientation before removal to ensure correct reassembly
• After installation, restore water and check all connections for leaks

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
