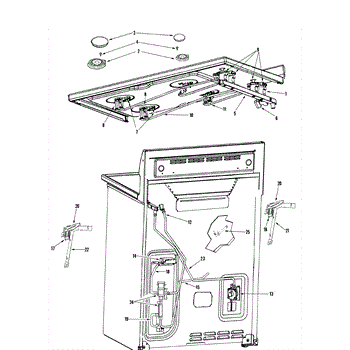

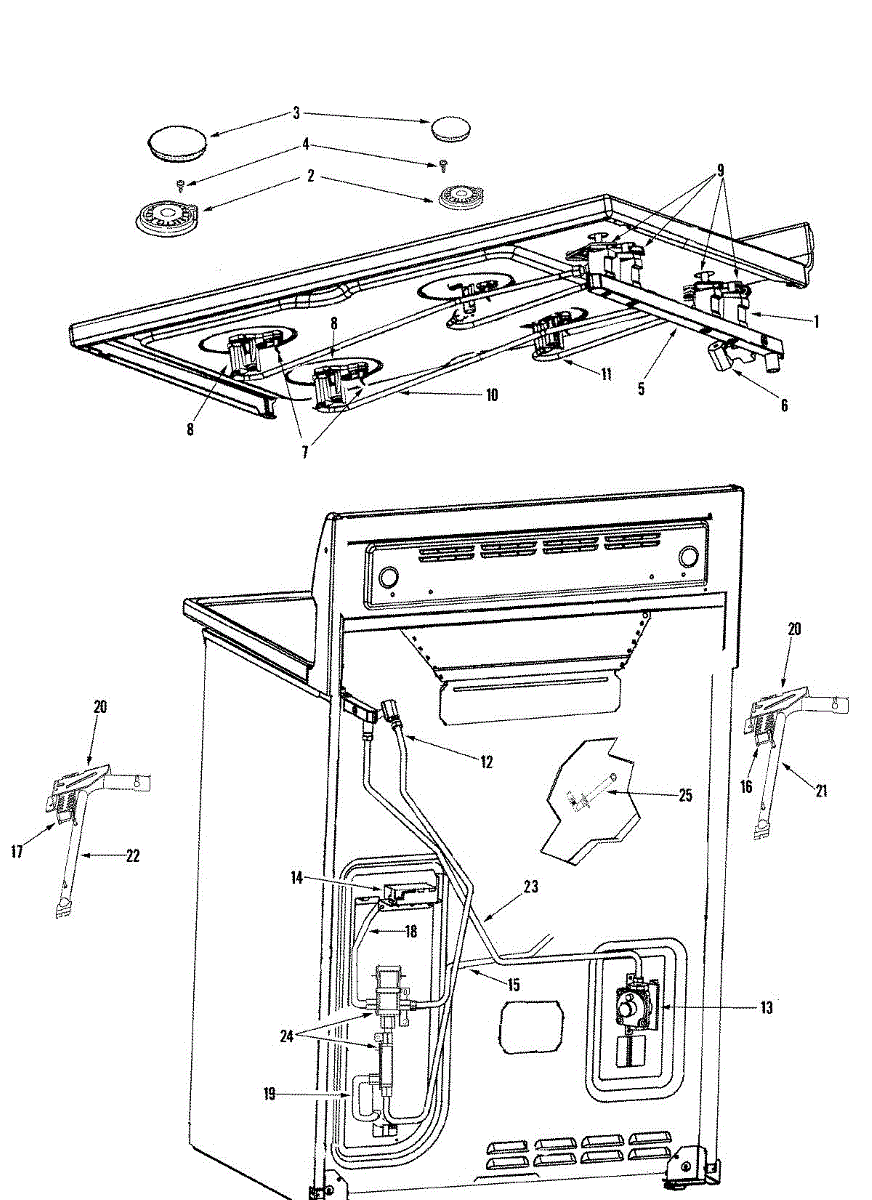

Parts for Maytag MGR6751BDB: 05 - Gas Controls Parts

9K. Mueller.

A set of four valve mounting screws used to secure the water/ice valve or valve bracket in place. These OEM-style screws restore proper valve alignment and fasten valve assemblies for reliable operation. What it does:

• Secures the valve or valve bracket to the appliance chassis to prevent movement during operation
• Helps maintain a tight seal at valve mounting points to reduce risk of leaks
• Replaces missing, stripped, or corroded valve mounting fasteners
• Restores stable valve positioning that can prevent rattling or vibration

• Disconnect power and shut off the water supply before beginning any work
• Use the correct screwdriver or bit to avoid stripping the screw heads
• Thread screws in by hand first, then tighten snugly—do not overtighten to avoid damaging the valve or mounting threads
• If existing threads are damaged, inspect the mounting boss and replace as needed

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Color: Black. Size: Medium.

Color: Black. Size: Large.

The Surface Burner Spark Electrode is an OEM part for Whirlpool gas ranges. This electrode is responsible for generating the spark that ignites the gas burner, allowing the burner to produce a flame for cooking.

Over time, the spark electrode can become faulty due to exposure to high temperatures, grease, and general wear and tear. This can lead to unreliable ignition or complete failure to ignite the burner.

Symptoms of a bad surface burner spark electrode include:

• The burner not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Burner flame going out soon after ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Orifice Holder is an OEM part for Whirlpool gas ranges. It includes the spark electrode and the 9.2k orifice, which are essential components for proper ignition and gas flow in the burner assembly.

Causes of a faulty orifice holder can include wear and tear over time, damage from corrosion or debris, or improper adjustment.

Symptoms of a bad orifice holder may include:

• Weak or no ignition spark
• An uneven or weak flame
• Difficulty in adjusting the burner flame
• Gas odor or leakage

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This orifice holder supports and aligns the 16K burner orifice, channeling gas from the valve to the burner for a steady flame and dependable ignition. It mounts under the cooktop and secures the high-output burner assembly.

• Aligns and supports the 16K burner's orifice and burner base beneath the cooktop
• Directs gas from the valve to the burner for correct flame pattern
• Can help restore consistent ignition and heat at the designated 16K burner location
• Typical signs to check: burner won't ignite, weak or uneven flame, or stripped/damaged mounting threads

• Shut off gas supply and disconnect power before servicing
• Remove grates and burner parts; lift the cooktop as required to access the holder
• Transfer the existing orifice to the new holder and ensure proper alignment before tightening
• After reassembly, leak-check gas connections per manufacturer instructions and verify flame performance

This valve switch cover protects the appliance's valve switch assembly and wiring, keeping components secure and shielding them from moisture, dust, and accidental contact. Replacing a damaged cover helps restore proper fit and reduces the risk of electrical or valve issues. What it does:

• Shields the valve switch and connector from moisture, dirt, and physical damage
• Secures the electrical connector and switch in the correct position
• Helps prevent intermittent valve operation caused by loose or exposed connections
• Reduces the chance of wiring abrasion or shorting near the valve area

• Disconnect power to the appliance before starting any work
• Turn off the water supply if working near water valves
• Handle electrical connectors and wiring gently; avoid pulling on wires
• Use basic hand tools and follow OEM diagram for correct reassembly

This igniter switch assembly replaces a worn or failed switch that controls ignition to a gas burner or oven igniter, restoring reliable spark/ignition and consistent burner operation. What it does

• Acts as the electrical switch that signals the igniter or spark module to light a burner or oven
• Helps resolve intermittent or no-spark ignition symptoms and burners that fail to light
• Restores proper on/off switching for the ignition circuit when the original switch is damaged or worn
• Works as the direct replacement switch component in the ignition system

• One igniter switch assembly

• Disconnect power and shut off gas supply before starting any repair
• Use basic hand tools; handle wiring connectors carefully to avoid damage
• Verify part compatibility with your model before installation

This replacement right-side top burner tubing routes gas to the burner assembly and restores proper fuel flow for even ignition. Designed to match OEM fit, it helps resolve burner fuel delivery issues safely and reliably. What it does

• Replaces damaged or corroded right-side top burner tubing that can cause weak flame or failed ignition
• Restores a sealed gas path to prevent leaks and maintain consistent burner performance
• Helps eliminate clicking or delayed ignition caused by interrupted fuel flow
• Matches OEM routing and connection points for a direct replacement

• Two right-side top burner tubing pieces

• Install only if this tubing is specified for your model; verify orientation before starting
• Work with the gas supply turned off and follow local codes
• Check all fittings for tightness and test for leaks with a soap solution after installation
• Do not rig or modify tubing; use only approved replacement parts for gas connections

A replacement spark module that controls timed ignition sparks to burner electrodes so gas burners light reliably. Restores proper ignition when the cooktop clicks continuously or burners fail to light. What it does:

• Sends high-voltage sparks to the burner ignitors so gas burners ignite
• Stops continuous or rapid clicking when the module is faulty or intermittent
• Helps diagnose ignition issues when used with known-good ignitor electrodes and harnesses
• Works as the electronic control for the cooktop/range ignition system

• Disconnect electrical power and shut off gas supply before beginning service
• Handle the board and connectors carefully to avoid static damage; do not touch exposed contacts
• After installation, test all burners for correct ignition and check for gas leaks before normal use

This broil burner ignitor lights the broil flame in your oven for fast, even broiling. Replacing a weak or failed ignitor restores reliable ignition and consistent high-heat performance when starting broil. What it does

• Provides the ignition source for the oven's broil burner
• Works with the range's ignition system to light the broil flame
• Typical symptoms include the broiler not igniting or heating, intermittent lighting, or repeated ignition attempts without flame
• Visual clues of failure can include a cracked ceramic insulator, damaged tip, or burnt/frayed lead

• 1 broil burner ignitor assembly

• Disconnect power and shut off gas; allow the appliance to cool completely before service
• Access the broil burner at the top of the oven; remove any shields/panels and note the ignitor's original position and bracket orientation
• Handle the ceramic/tip carefully; avoid impact, route the lead away from hot surfaces, and make secure electrical connections
• Restore gas and power, then test broil to verify prompt ignition and a steady flame

Size: 10-24X5/16-NI

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas to start the oven heating process. This igniter is crucial for ensuring that the oven reaches and maintains the desired temperature for baking and cooking.

Over time, the igniter can suffer from wear and tear, leading to inefficient ignition or complete failure. Causes of a bad igniter can include repeated heating cycles, electrical issues, or physical damage to the igniter element.

Symptoms of a bad igniter include:

• The oven not heating up or taking too long to preheat
• A noticeable gas smell due to incomplete ignition
•  The igniter glowing without igniting the gas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mounting nut secures the gas orifice to the burner valve assembly, keeping the orifice properly positioned for consistent burner operation. Replacing a worn or damaged mounting nut restores secure fit and reliable gas flow. What it does:

• Threads onto the orifice to hold the gas orifice in place on the valve assembly
• Keeps the orifice aligned to help maintain steady burner flame and ignition
• Prevents orifice movement that can cause inconsistent flame height or ignition issues
• Small metal fastener used where the orifice and valve meet on gas ranges and cooktops

• Turn off the appliance and shut off the gas supply before starting work
• Use the correct-size wrench and gentle force to avoid stripping threads
• Inspect mating parts for damage; replace if worn or cross-threaded

This mounting nut secures the gas orifice to the burner valve assembly, keeping the orifice properly positioned for consistent burner operation. Replacing a worn or damaged mounting nut restores secure fit and reliable gas flow. What it does:

• Threads onto the orifice to hold the gas orifice in place on the valve assembly
• Keeps the orifice aligned to help maintain steady burner flame and ignition
• Prevents orifice movement that can cause inconsistent flame height or ignition issues
• Small metal fastener used where the orifice and valve meet on gas ranges and cooktops

• Turn off the appliance and shut off the gas supply before starting work
• Use the correct-size wrench and gentle force to avoid stripping threads
• Inspect mating parts for damage; replace if worn or cross-threaded

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This bake and broil valve controls gas flow to the oven's bake and broil burners so the oven heats when a temperature or function is selected. Replaces a failing valve to restore reliable oven heating. What it does:

• Directs gas to the bake and broil burners when the oven calls for heat
• Helps the oven reach and maintain set cooking temperatures
• Commonly replaced for no-heat, weak heat, or burner not igniting during bake/broil cycles
• Works as the primary safety/control valve for oven burner operation

• Turn off gas supply and power at the household shutoffs before servicing
• Minor disassembly of the oven front or manifold may be required; follow OEM service instructions
• Replace only with correct part number and check all gas line fittings for leaks after installation

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
