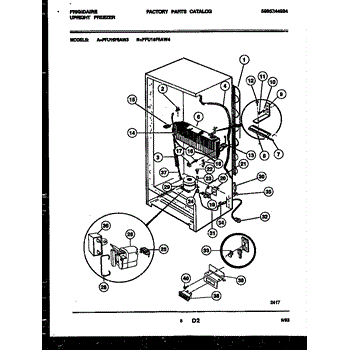

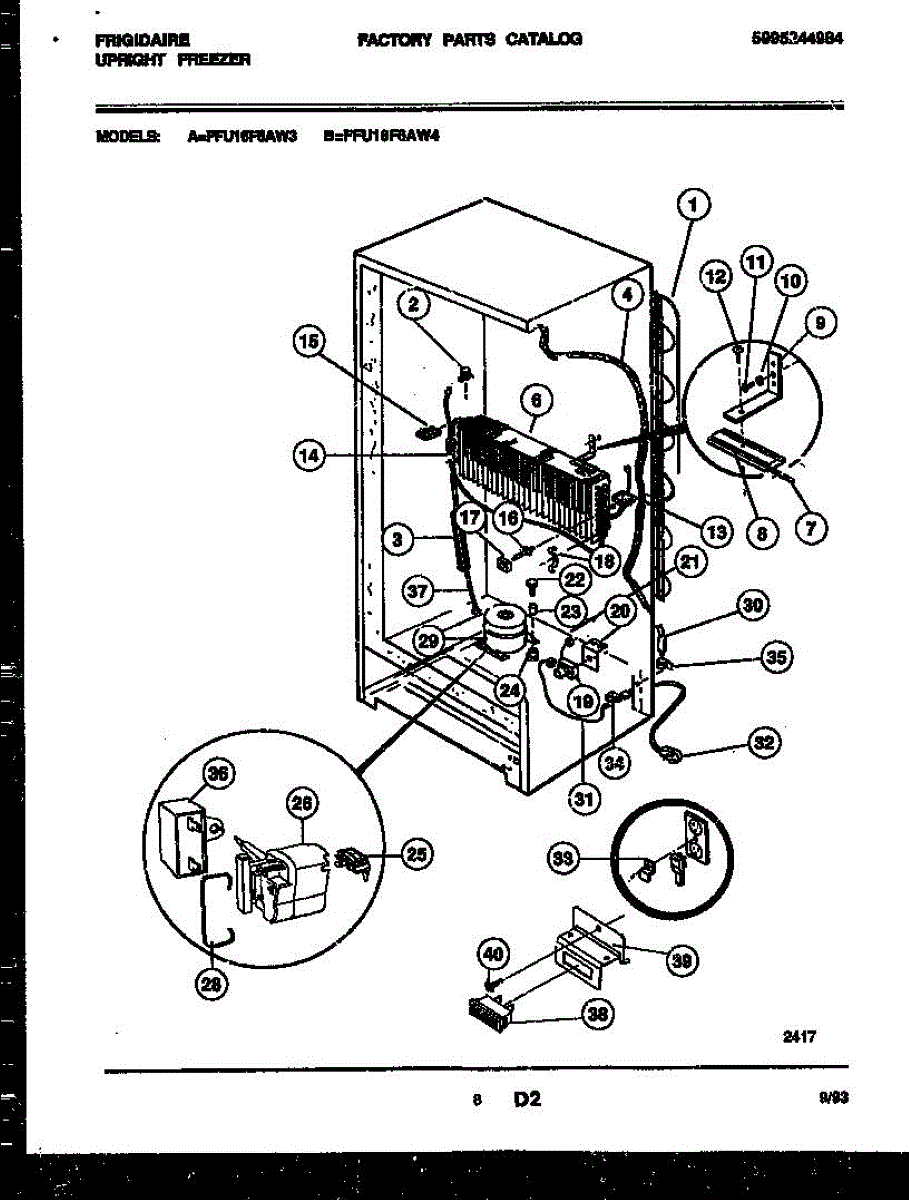

Parts for Frigidaire FFU16F6AL3: 05 - System And Automatic Defrost Parts

Foam insulation sleeve that wraps around the defrost drain tube. Replace if worn, missing, or damaged to prevent condensation and maintain proper insulation.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

Secures the temperature sensing tube to the thermostat for accurate temperature control. Replace if loose, missing, or damaged to prevent erratic cooling.

This defrost heater melts frost and ice buildup on the evaporator so your freezer can run efficiently and maintain proper cooling. It's a direct replacement heater element used in frost control during automatic defrost cycles. What it does

• Heats the evaporator coil during the defrost cycle to remove frost and ice buildup.
• Helps restore normal airflow and cooling when frost is blocking the evaporator.
• Common symptom: visible ice buildup on evaporator or frost accumulation inside the freezer.
• Common symptom: reduced cooling performance or long run times due to iced coils.

• Disconnect power to the appliance before starting any repair.
• Access the evaporator by removing the back panel inside the freezer; follow the OEM repair diagram.
• Handle the heating element carefully to avoid bending or damaging the coil; ensure proper routing and clip placement.
• After installation, restore power and test continuity of the heater with a multimeter if needed.

Plastic spacer support bushing that mounts between refrigerator components to reduce vibration and noise. Replace if cracked, worn, or missing.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Compressor vibrating or loose? This mounting screw secures the compressor in freezers and refrigerators. Simple fix, basic tools required.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Fix a freezer that won't run or trips the breaker with this compressor overload protector. Attaches to compressor terminals. DIY repair in 30 minutes.

Freezer not cooling or running constantly? This compressor kit circulates refrigerant through the system. Advanced repair requires refrigerant handling.

Includes service line.

Power cord retainer secures the electrical cord to your refrigerator's back panel. Replace if the original clip is cracked, broken, or missing.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.
