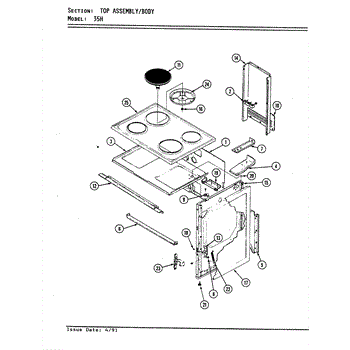

Parts for Magic Chef 35HK-3ELX-BO: 05 - Top Assy. / Body Parts

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10-24X5/16-NI

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This surface element supplies heat to an electric range or cooktop burner. When it fails, the burner may not heat or may heat inconsistently. Replacing the element restores steady, reliable cooking performance.

• Converts electrical energy into heat for the cooking zone
• Works with the surface control (infinite switch) to regulate temperature
• Common symptoms: burner won't heat, intermittent or uneven heating, visible breaks/blistering, burnt/melted terminals
• A failed element will not glow or reach set temperature when energized

• Disconnect power at the breaker before servicing and allow the cooktop to cool completely
• If your model uses a plug-in coil style: remove the drip pan, pull the element straight out of the receptacle, and inspect/replace a heat-damaged receptacle as needed
• If your model uses an under-glass radiant style: lift the cooktop, transfer any clips/limiters from the old element, and route wires exactly as original
• After reassembly, test the burner at a low setting to ensure proper operation

Size: 10-24X5/16-NI

This part is no longer available.

This genuine pin hinge secures and guides the appliance door, restoring smooth pivoting and proper alignment for reliable opening and closing. It's a direct-fit replacement designed to help stop door sag, binding, or uneven gaps. What it does:

• Provides the pivot point that lets the door swing open and closed
• Keeps the door aligned to the cabinet for a proper seal and even gap
• Replaces worn or bent pins that cause door sag, scraping, or noisy operation
• Helps restore smooth, wobble-free door motion

• Disconnect power (and water for dishwashers) before starting work
• Support the door during removal to prevent dropping or damage
• Simple hand tools typically required; reuse original screws unless damaged
• If the door has glass or heavy panels, get a helper to hold weight during installation

This oven door spring restores the door's counterbalance so it opens smoothly and closes firmly. Replacing a fatigued spring helps prevent heat loss and supports consistent baking by ensuring the door seals properly. What it does:

• Provides tension to counterbalance the oven door through the hinge mechanism
• Helps the door close fully against the gasket to retain heat
• Restores smooth, controlled opening and closing action
• Common symptoms of a worn spring: door drops or feels heavy, won't stay closed, heat escaping/uneven temperatures

• One oven door spring

• Disconnect electrical power; turn off gas supply to the range if applicable
• Springs and hinges are under tension—support the door/hinge and use caution
• Note spring hook positions/orientation before removal; reinstall in the same locations
• After replacement, verify the door closes fully and the seal is even

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.

Razor blade scraper.
