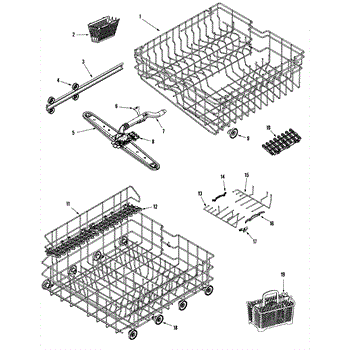

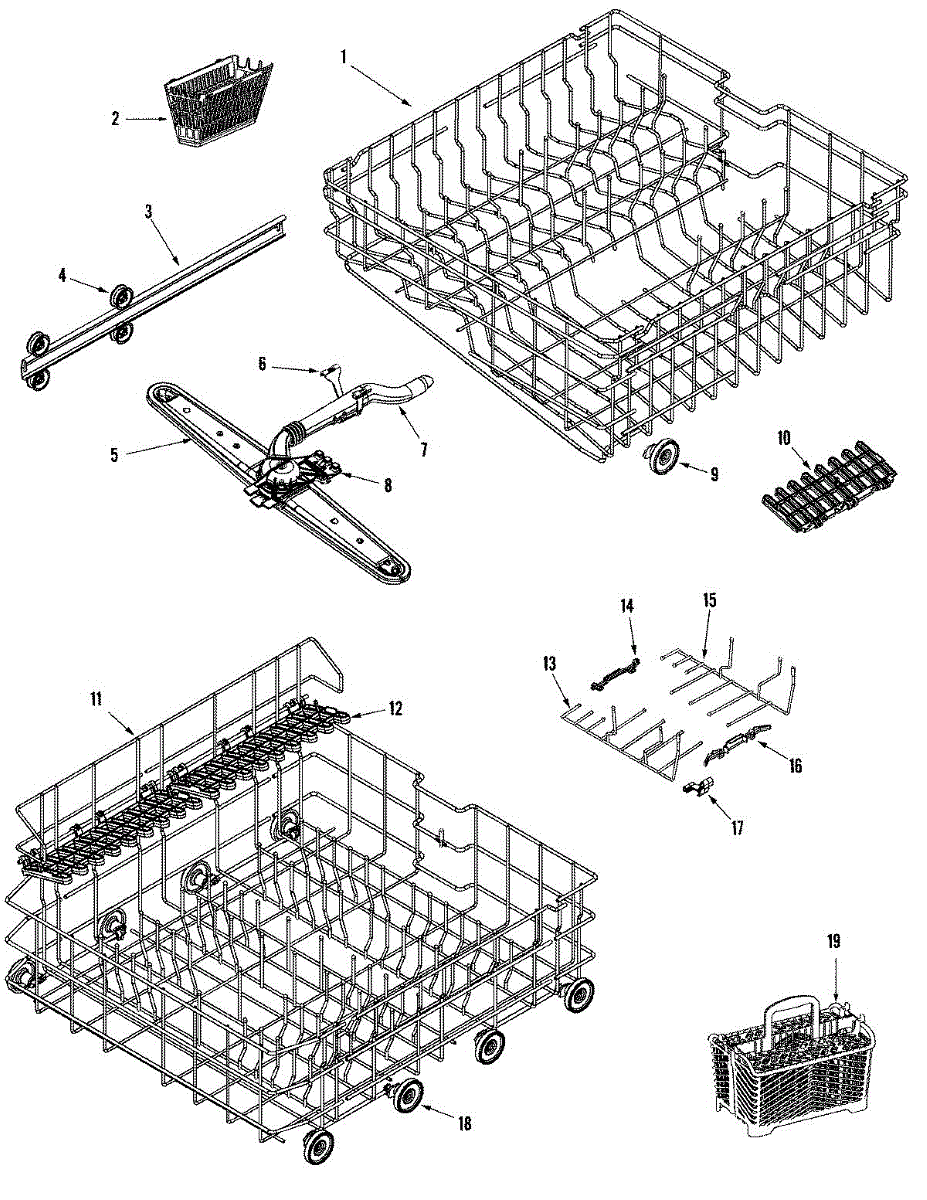

Parts for Maytag MDBM601AWS: 05 - Track & Rack Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Color: light gray. Measures about 20 inches wide by 8 inches high by 20 inches deep.

Replacement silverware basket for dishwasher lower rack. Holds utensils upright and separated during wash cycles. Order if yours is cracked or missing.

The Tub Wheel supports and guides the washer's tub assembly on its base during wash and spin cycles. Replacing a worn wheel restores smoother, quieter operation and helps reduce vibration and rubbing as the machine operates.

• Provides rolling support so the tub can move and self-balance during cycles
• Reduces friction between the tub and the base/frame
• Helps keep the tub centered to minimize noise and vibration
• Failure symptoms include squeaking or grinding, scraping noises, dragging movement, or visible flat spots/cracks on the wheel

• Disconnect power and water supply before servicing; wear appropriate gloves and eye protection
• Access the base/suspension per the service information and support the tub to remove load from the wheel
• Remove the retainer/axle, install the new wheel, and free rotation and correct orientation
• Reassemble, level the appliance, and run a spin test to check for noise and balance

Replacement tub wheel assembly for dishwasher upper rack track. Installs on inner tub to support rack gliding. Needed when wheel is cracked or broken.

Replacement tub wheel assembly for dishwasher upper rack track. Installs on inner tub to support rack gliding. Needed when wheel is cracked or broken.

Secures the upper wash manifold in your dishwasher. Replace this clip if it's cracked, broken, or missing to properly mount the spray arm assembly.

Upper

Front

Replace cracked, broken, or missing upper rack wheels that cause the top rack to slide poorly or fall off the rail. Includes roller and axle assembly.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Upper

Note: New rack no longer includes removable tines or cup shelf. This part is a lower dishrack. The lower dishrack is the lower shelf of a dishwasher that holds plates, bowls, and utensils. To remove the old dishrack, simply pull it out and lift the wheels up from its track. Set it off the side, and lift the new dishrack. Slide it into its track and make sure it is locked in. If it is gliding in and out in a smooth way, it has been installed properly.This genuine replacement OEM part is sold individually and is compatible with Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand appliances.

Lower

Lower rack fold-away tine row for dishwasher. Replace when tines rust, break, or no longer fold properly. Verify fit with your model number listed.

Blue pivoting hinge tine clip for dishwasher upper rack. Replaces broken, cracked, or missing clips that secure folding tines. Clips into rack slots.

These convertible rear rack tines replace bent or broken prongs on the dishwasher's rear rack to help keep plates and bowls upright and prevent shifting during cycles. Durable molded tines restore rack function without replacing the entire rack. What it does:

• Holds dishes, plates and bowls upright in the rear section of the lower rack
• Replaces missing, bent or broken tines that allow items to tip or tumble
• Restores the rack's convertible configuration for different dish loads
• Fits into existing rack sockets for a secure hold during wash cycles

• One set of convertible rear rack tines as shown

• Remove the lower rack to access and replace the rear tines; press into existing sockets until fully seated
• No electrical work required; follow OEM rack-removal instructions if needed
• Use caution for sharp edges and wear gloves if necessary
• Do not force parts—confirm correct orientation before installing

Replacement tine row pivot for dishwasher racks. Secures foldable tines in place. Order if your original pivot is cracked, chipped, or broken off the rack.

Dishrack wheel assembly for dishwashers. Replaces broken, cracked, or worn wheels that prevent smooth rack sliding. Includes wheel and axle bracket.

Replacement silverware basket for dishwashers. Holds and organizes utensils during wash cycles. Replace if cracked, broken, or falling apart.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
