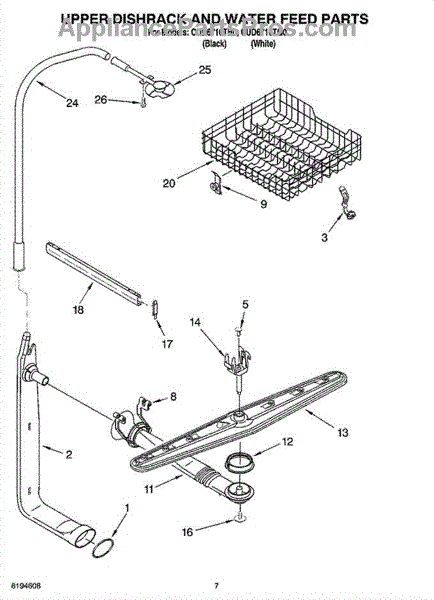

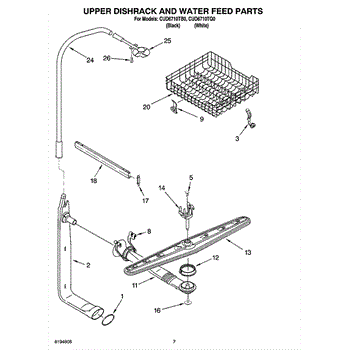

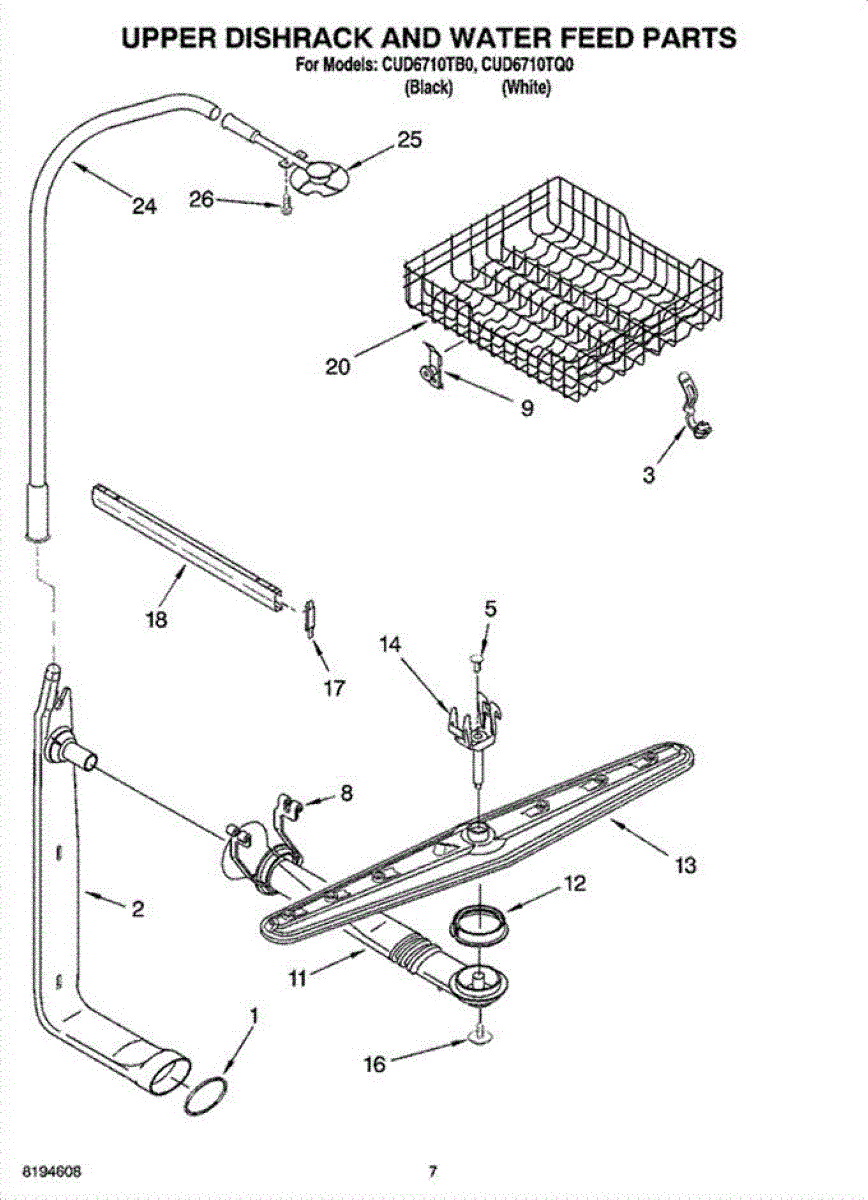

Parts for Whirlpool CUD6710TB0: 05 - Upper Dishrack And Water Feed Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Water supply tube for dishwashers. Connects water inlet to spray system. Replace if tube is cracked, leaking, kinked, or damaged during service.

Secures lightweight cups, lids, and small containers in your dishwasher rack. Replace when clips crack or lose grip. Confirm fit with your model number.

Decorative cap that conceals exposed screw heads on dishwasher panels, console, or cabinet. Replace missing, cracked, or damaged covers for a clean finish.

Secures the dishwasher's water inlet tube in position, preventing movement and strain on fittings. Replace if cracked, broken, or missing to restore support.

Replace cracked or broken dishwasher rack roller axle assemblies. Installs on upper or lower dish racks to restore smooth gliding. Includes clips.

Supplies water to the spray arm in your dishwasher. Replace if cracked, damaged, melted, or leaking. Installs between the manifold and upper spray arm.

Ring bearing supports spray arm rotation in dishwashers. Mounts at spray arm base to allow free spinning. Replace if cracked, worn, or missing.

Upper spray arm with heatseal for dishwashers. Mounts to the upper rack manifold to distribute water during the wash cycle. Replace if cracked or worn.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Secures the spray arm to the dishwasher rack, allowing proper rotation during wash cycles. Replace if cracked, broken, or missing to restore spray arm.

The Screw is an OEM part for Whirlpool dishwashers. It secures the spray arm to the dishwasher, ensuring it rotates properly to distribute water evenly throughout the dishwasher during cleaning cycles.

Common causes of a faulty spray arm screw include wear and tear from regular use, corrosion from exposure to water and detergents, or damage from improper installation or removal.

Symptoms of a bad spray arm screw include:

• The spray arm not rotating or functioning correctly
• Loose or wobbly spray arm
• Unusual noises coming from the spray arm during operation
• Poor cleaning performance due to inadequate water distribution

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replaces cracked, broken, or missing dishwasher rack stop clips. Secures upper or lower dishrack to track rail, preventing rack from sliding out too far.

The Upper Dishrack Rail is an OEM replacement part for Whirlpool dishwashers. It guides upper racks in and out for easy access to dishes.

Causes of faulty rails can include worn rollers, broken clips, or stress cracks in modules after repeated cycles.

Symptoms of a bad upper dishrack rail include:

• Difficulty inserting or removing the upper rack smoothly
• Off-track movement that impacts washing coverage
• Detached ends or segments that compromise stability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement dishrack restores secure loading and proper spacing so wash water reaches every item. Replacing a bent or rusty rack helps prevent tipped dishes and marks from flaking rust, and keeps loading/unloading smooth when the rack rollers are intact.

• Holds plates, bowls, and cups in place during wash and rinse cycles
• Maintains spacing for spray coverage and drying airflow
• Rolls in and out along the rails when paired with functional rack rollers
• Common symptoms include broken or bent tines, flaking coating or rust, items tipping, or difficulty sliding the rack

• Disconnect power to the dishwasher before servicing
• Open the door, pull the rack forward, release rack stops/end caps if present, and slide the old rack off the rails
• Transfer any reusable accessories from the old rack to the new rack as required by your model
• Slide the new rack onto the rails, reinstall rack stops, and verify smooth travel before running a cycle

Third level wash arm assembly for dishwashers. Installs on upper feed tube in top rack area. Replace if disc is cracked, washer is missing, or assembly won't stay on shaft.

8-16 thread screw secures panels, brackets, and trim inside refrigerators, dishwashers, and ice makers. Replace if missing, stripped, or damaged.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
