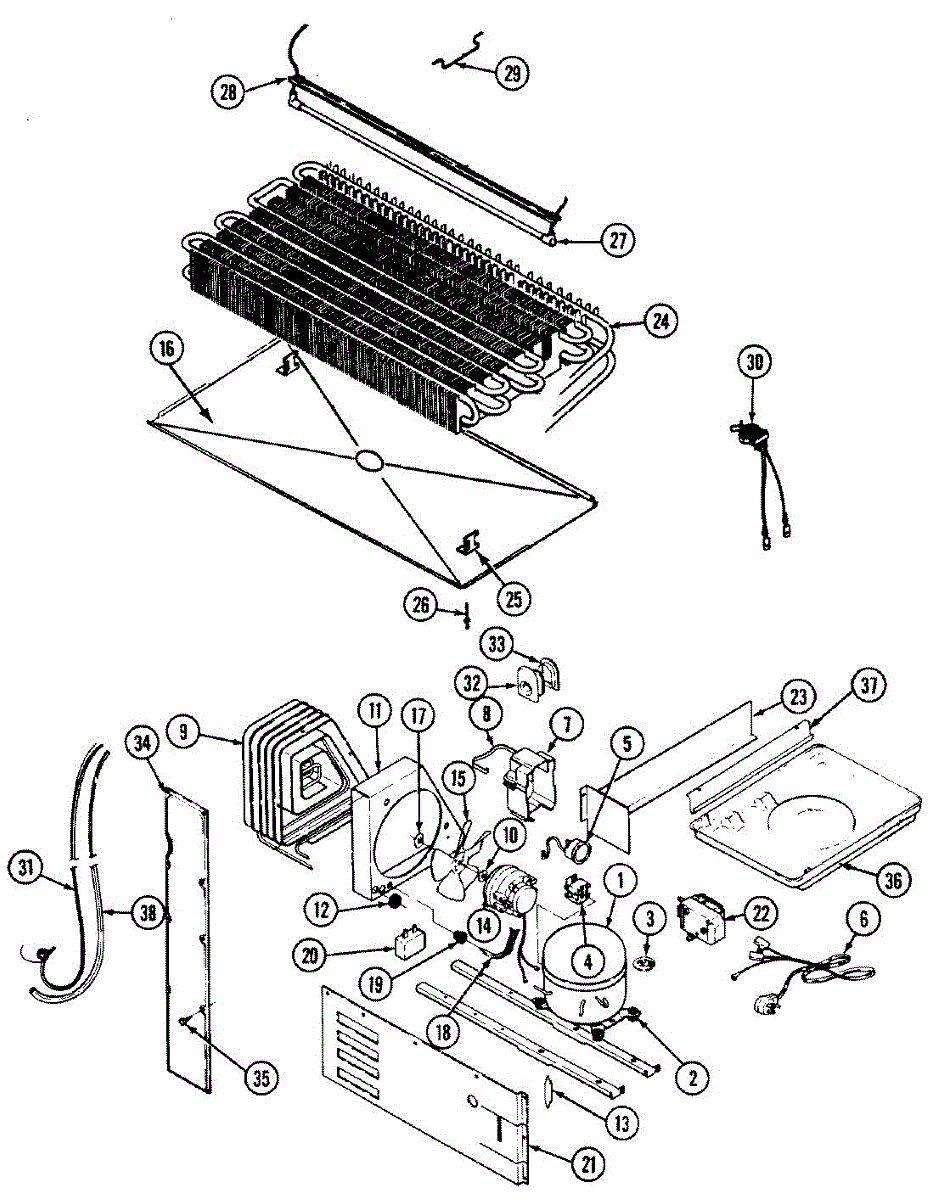

Parts for Maytag RTS1700CAE: 07 - Unit Compartment & System Parts

This start relay controls power to the compressor's start winding so the refrigerator can start and run. Replacing a weak or burned relay restores dependable compressor start-up and can stop repeated clicking with warming temperatures.

• Energizes the compressor's start winding to provide initial torque, then disengages from the circuit
• Common failure symptoms: refrigerator not cooling or intermittently warm; compressor hums/clicks and won't start; relay rattles, smells burnt, or shows heat damage; overload trips
• Helps prevent hard-start conditions that stress the compressor
• The relay contacts are open/shorted, the compressor may fail to start and cycle off on overload

• Disconnect power before servicing; wear appropriate PPE
• Access the rear machine compartment; remove the relay cover on the compressor. Note wire positions, pull the old relay straight off the compressor pins, transfer wires, and fully seat the new relay in the same orientation
• If equipped, safely discharge the run capacitor; inspect the overload, wiring, and terminals for heat damage and address as needed
• Reinstall the cover. If the compressor still won't start, further diagnosis of the start device, capacitor, or compressor is required

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.

This condenser fan blade is the rotating plastic blade that moves air across the condenser coils to help remove heat from the refrigerator. Replacing a damaged blade restores proper airflow for more consistent cooling. What it does:

• Spins on the condenser fan motor to circulate air over condenser coils
• Helps dissipate heat so the compressor and fridge run efficiently
• Can cause reduced cooling or higher temperatures if broken or missing

• Disconnect power to the appliance before starting any service
• Inspect the fan motor shaft and mounting for wear; replace motor if shaft is damaged
• Handle the blade carefully to avoid cracking; ensure blade is seated and secured before testing

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This bracket grommet cushions a component where it mounts to a bracket in your refrigerator. It isolates metal-to-metal contact to reduce vibration and rattling and helps keep parts aligned for quieter, reliable operation.

• Fits into a mounting bracket to provide a cushioned seat for a component
• Isolates vibration and reduces noise by preventing metal-to-metal contact
• Helps maintain secure mounting and proper alignment
• Common signs of wear: cracking, flattening, missing grommet, increased vibration or rattling

• Disconnect power before servicing; shut off water supply if working near water lines
• Access the bracket and support the mounted component to relieve weight
• Remove the worn grommet and press the new grommet fully into the bracket opening
• Reassemble and snug fasteners—do not overtighten, so the grommet can isolate vibration

This run capacitor helps the dryer motor run smoothly by providing the motor with steady phase-shifted voltage during operation, improving start reliability and consistent spinning performance. What it does:

• Provides the motor with the necessary run-phase capacitance to maintain steady motor operation
• Can stop symptoms like a motor that hums, runs weakly, or struggles to keep the drum turning
• Helps prevent motor overheating and repeated start attempts caused by a failing capacitor
• Used wherever the motor's run capacitor is required for continuous operation

• Disconnect power to the appliance before servicing to prevent shock
• Discharge the capacitor before touching terminals to avoid stored-charge shock
• Replace with the same part number/specifications; ensure terminals are secure and insulated

Size: 8 x 1/2 ab.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This is a replacement mounting screw for securing appliance components and panels. It restores proper fastening where a missing or stripped screw causes loose parts or rattling. What it does:

• Fastens panels, brackets, or small components to restore secure attachment
• Prevents vibration and rattling caused by loose or missing fasteners
• Replaces stripped or lost factory screws to maintain original fit
• Matches OEM fit for the specific mounting location when the part number is specified

• Use the matching screw location and size specified by the parts diagram
• Hand-start threads to avoid cross-threading; tighten securely but do not overtighten
• Disconnect power to the appliance before removing panels or components
• If threads are damaged, replace with correct OEM screw—do not force a mismatched fastener

Size: 8 x 1/2 ab.

A single pop rivet used to secure sheet-metal parts and small brackets on appliances for a permanent, vibration-resistant hold. Replaces missing or damaged rivets to restore proper attachment without welding. What it does:

• Provides a permanent blind-rivet fastening point for panels, brackets and trim.
• Replaces rivets that are sheared, loose or missing and prevents rattling or misalignment.
• Ideal where a solid, tamper-resistant join is required and screws aren't suitable.
• Works with a compatible pop-rivet tool for quick installation.

• Drill out the old rivet carefully; use the proper size hole for the replacement rivet.
• Use a dedicated pop-rivet tool and wear eye protection during installation.

Radiant Glass (Quartz), Length (Approx) - 17-3/4, 400 watts

Open(F) 47, close(F) 15, clip style - snap-on

Size: 8 x 1/2 ab.

Plastic defrost pan. Evaporator pan hangs from side rails and rests on compressor.

Size: 8 x 1/2 ab.
