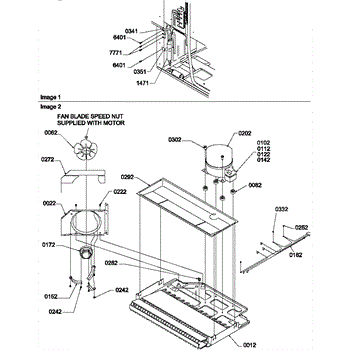

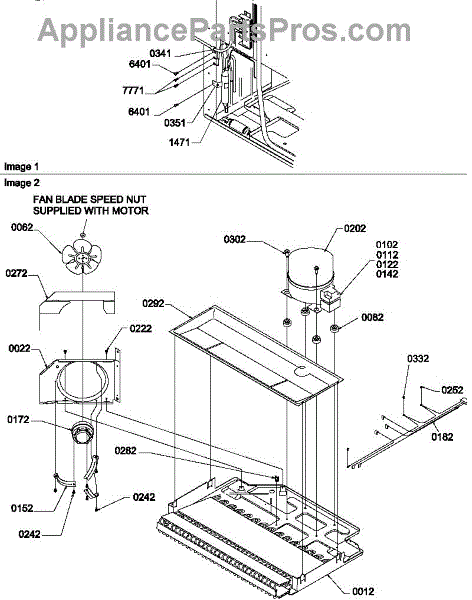

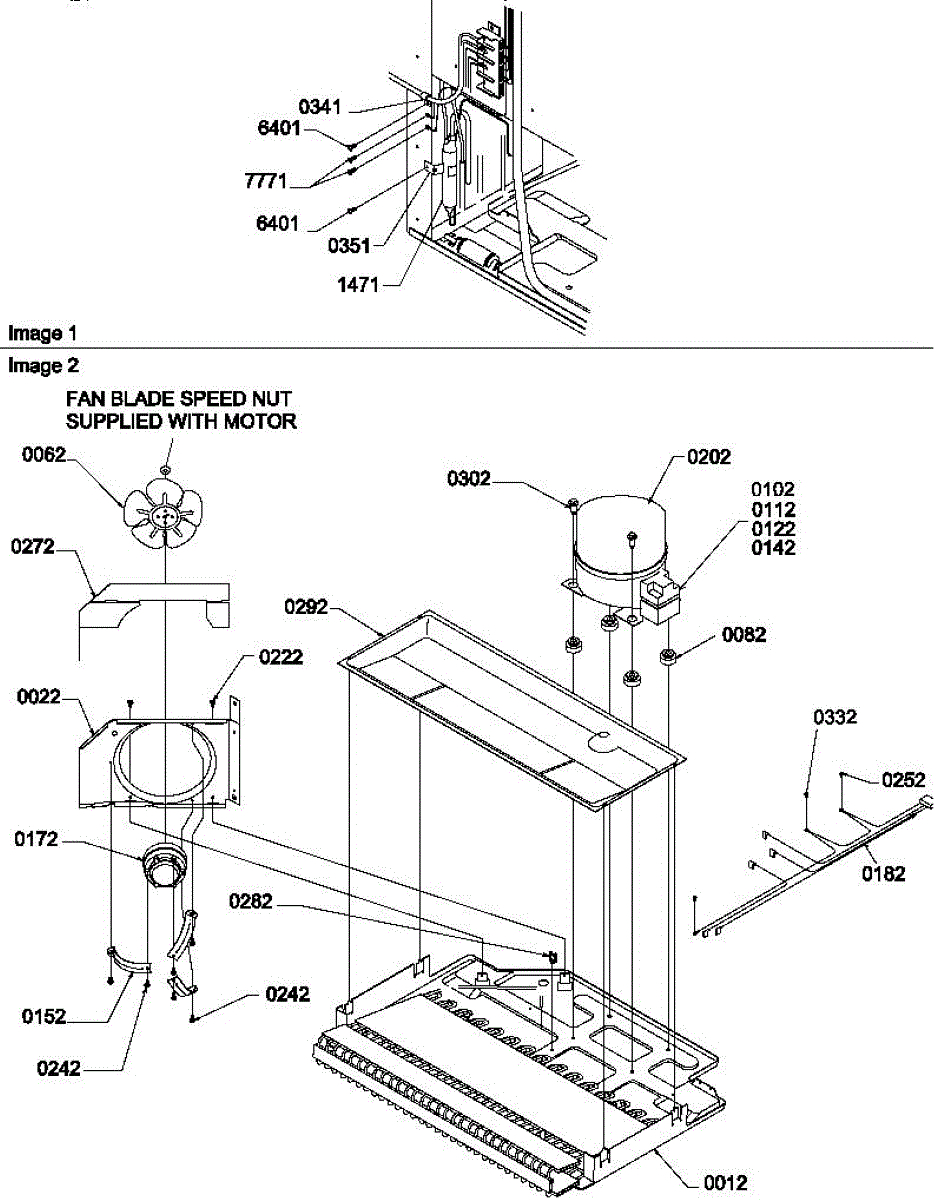

Parts for Amana TZI18V2E / P1319001W E: 08 - Machine Compartment Parts

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

This overload is a thermal protection device that mounts on the motor/compressor and opens the circuit when excessive heat or current is detected. Replacing a weak or failed overload helps restore safe startup and protects the windings from damage. What it does:

• Monitors motor/compressor temperature and current draw
• Interrupts power on overheat/overload to prevent damage
• Aids troubleshooting of start/run issues when paired with the start device
• Common symptoms: hums then clicks off, won't start, intermittent shutdown, frequent tripping

• 1 thermal overload protector

• Disconnect power before servicing; allow components to cool
• Access the terminal area on the motor/compressor; remove any cover
• Note/photograph wire positions; transfer wires and fully seat the new overload on the correct terminal
• Inspect the start relay, capacitor, and terminals for heat damage; replace any compromised parts

Fix a refrigerator that won't cool or clicks repeatedly. This compressor start relay powers the start winding to help your compressor run. DIY repair.

Refrigerator runs warm or freezer not cooling properly? The condenser fan motor circulates air over the coils. DIY repair takes 15-60 minutes with basic tools.

This wiring harness routes power and signal connections inside the machine compartment to link controls, switches and motors, restoring reliable electrical connectivity for normal operation. What it does:

• Provides factory-style electrical routing between control boards, switches and motors in the machine compartment
• Carries power and control signals to enable motor, pump and control functions
• Failsafe symptom linkage: may be needed when the washer won't start, has intermittent operation, or shows control-related errors
• Helps replace damaged, frayed or corroded wiring that can cause shorts or unreliable performance

• Disconnect power (unplug or switch off breaker) before accessing internal wiring
• Access typically requires removing cabinet or service panels—follow your model's service manual
• Inspect connectors and wire routing; replace only if matching the original harness

Refrigerator not cooling or humming without starting? The compressor pumps refrigerant to cool your fridge. Requires EPA certification for install.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 8-32 x .312 inch.

This is a filter drier installed in the sealed refrigeration system that removes moisture and contaminants from the refrigerant as it circulates. It protects the compressor and other components from damage caused by moisture or debris in the refrigerant lines. Replace this filter drier if the refrigerator or ice machine is not cooling properly, the compressor is struggling, or during any sealed system repair where the refrigerant lines have been opened.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Size: 8-32 x .312 inch.
