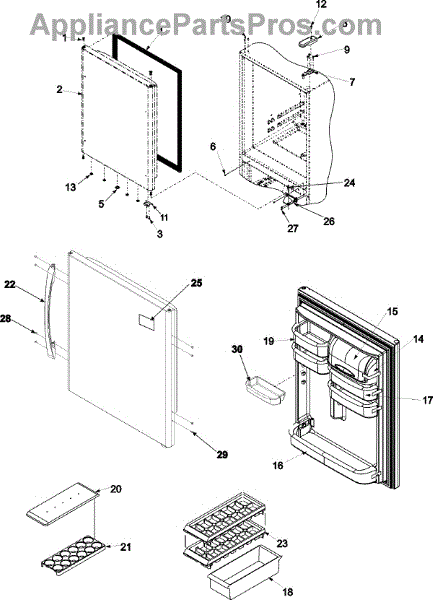

Parts for Amana ABB2223DEQ: 08 - Refrigerator Door Parts

This door hinge bushing restores smooth, stable movement at the refrigerator door pivot. It sleeves the hinge pin to reduce friction and wear, helping the door stay aligned so it closes cleanly and maintains a proper seal.

• Seats in the door hinge to guide the hinge pin and reduce friction
• Helps maintain door alignment and consistent gasket contact
• Replaces a worn, cracked, or missing bushing that can cause noise or binding
• Typical symptoms: squeaking or grinding at the hinge, door sagging/misalignment, door hard to open or close, or not closing flush

• Disconnect power; clear and support the door to prevent strain
• Remove hinge cover and fasteners; lift the door off the hinge pin as needed
• Remove the old bushing from the hinge area and press the new bushing fully into place, matching original orientation
• Reinstall hardware; adjust hinges/level as needed

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

The Fresh Food Door Gasket is an OEM replacement part for Whirlpool refrigerators. This gasket is responsible for providing an air-tight seal around the fresh food compartment door. It helps maintain proper temperatures inside the fridge and prevents leaks or humidity damage.

Causes of a bad gasket can include wear and tear over time from regular opening and closing of the fridge door. Improper usage such as slamming the door or overfilling shelves can also potentially damage the gasket.

Symptoms of a bad gasket include:

• Inability to maintain consistent temperatures inside the fridge
• Increased humidity levels or condensation
• Leaks or moisture around the fridge door
• Visible cracks or tears in the gasket material

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This top hinge assembly mounts at the upper corner of the cabinet to support the refrigerator door and allow smooth pivoting. Replacing a worn hinge restores proper door alignment and helps the gasket seal reliably.

• Supports the door's weight at the top and provides the pivot point
• Helps maintain correct door alignment and closing action
• Aids in consistent gasket contact to minimize warm-air leaks
• Common symptoms of a failing hinge: door sagging or rubbing, uneven gaps, poor sealing, squeaks or popping noises

• Unplug the refrigerator and, if applicable, turn off the water supply
• Have a helper support the door; remove the hinge cover, then the hinge screws
• Note/mark hinge position and transfer any shims or spacers from the original hinge
• Reinstall and adjust for even gaps; verify the door swings freely and the gasket seals all around

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This door stop replaces the small bumper that cushions and limits the door's travel so the door closes smoothly and avoids hard impacts. It restores normal door movement and reduces noise from slamming or catching. What it does

• Acts as a bumper/stop to limit how far the door opens or closes
• Cushions the door to prevent hard impacts and reduce noise
• Helps keep the door aligned and prevents catching or uneven closing
• Commonly replaced when the stop is worn, cracked, missing, or deformed

• One door stop

• Disconnect power (unplug or switch off breaker) before starting any repair
• Removal/installation typically requires basic hand tools and access to the door hinge/stop area
• Align the new stop in the same position as the old one and secure per the appliance's hinge/trim layout
• Reuse the original fasteners unless replacements are specified

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

This replacement dairy door restores the flip-up cover for the small butter/dairy bin on your refrigerator door. Replace a cracked or missing cover to keep contents contained and your door storage tidy.

• Covers the butter/dairy compartment on the fresh food door
• Flips up for access and down to help secure items
• Helps prevent small items from sliding out of the bin
• Replaces a cracked, broken, loose, or missing cover

• Remove the dairy bin for easier access and alignment
• Align hinge tabs with the bin pivots and press gently until it snaps in
• Avoid forcing cold plastic; let parts warm to room temperature
• If working near electrical components, disconnect power and wear cut-resistant gloves

The Door Shelf Retainer Bar is an OEM replacement part for Whirlpool French door refrigerators. Positioned inside the door panels, this plastic retainer bar securely holds shelves in place allowing for flexible storage options.

Causes of a bad retainer bar include normal wear and tear over extended use, excessive weight loads weakening the plastic material, or damage from impact.

Symptoms of a bad retainer bar include:

• Shelves that no longer stay firmly in position and slide around inside the door
• Gaps between shelves causing an unorganized or crammed interior space
• Annoying rattling or clicking noises coming from the door storage area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This medium refrigerator door bin replaces a cracked or missing shelf on the fresh-food door, restoring secure, organized storage for bottles, jars, and condiments. It snaps into the door rails for a stable, factory fit.

• Holds and organizes items on the refrigerator door to maximize usable space
• Restores proper fit when the original bin is cracked, warped, or missing
• Helps prevent tipping and spills when opening/closing the door
• Common symptoms: broken or chipped plastic, loose fit, falls off door, missing bin

• Empty the old bin before removal
• Lift the front and pull up to release it from the door rails/tabs
• Align the new bin with the mounting tabs and press down until fully seated
• Ensure it sits level and avoid overloading; place in the position intended for the medium bin on your model

This is the small refrigerator door bin that mounts on the inner door panel. It provides organized, accessible storage for smaller items and restores usable space when the original bin is cracked, loose, or missing.

• Holds and organizes items on the fresh food door
• Replaces bins that are cracked, broken, or won't stay seated
• Helps prevent items from tipping or falling when opening/closing the door
• Sized for the "small" position, not the full-width/gallon bin

• Unplug the appliance before servicing
• Remove contents, lift the old bin up and out of the door rails
• Align the new bin with the door slots and press down until fully seated
• Verify a snug fit before reloading items

Used to remove door handles.

This replacement ice cube tray is a direct-fit plastic tray designed to hold and release ice cubes in compatible top- or bottom-freezer refrigerators. Restores convenient ice storage and simple manual ice removal. What it does:

• Holds water in separate cavities so ice cubes form evenly.
• Flexes slightly for easier ice release to reduce twisting or chipping.
• Replaces cracked, warped, or missing trays that cause leaking or uneven freezing.
• Helps prevent contamination from freezer debris when used as intended.

• Remove old tray and wipe area clean before installing the new tray.
• Fill tray with water on a level surface and place flat in the freezer to freeze.
• Handle carefully when removing ice to avoid spills; do not force with sharp tools.
• Clean tray before first use and as needed; follow refrigerator manufacturer's care guidance.

A replacement center hinge pin that secures the refrigerator door at the center hinge assembly to restore proper pivoting and alignment. Use this pin to correct door sag or uneven closing caused by a worn or bent hinge pin. What it does

• Secures the door to the center hinge so the door can pivot smoothly.
• Restores proper door alignment and helps the door seat evenly against the cabinet.
• Commonly used to address door sag, rubbing, uneven gaps, or difficulty closing.
• Works as a direct replacement for the center hinge pivot in the hinge assembly.

• Always disconnect power to the appliance before servicing to avoid electrical hazards.
• Support the door and follow the appliance manufacturer's hinge removal steps before removing or installing the pin.
• Inspect surrounding hinge components (bushings, brackets) for wear while replacing the pin; replace as needed.

This decorative identification nameplate replaces a worn, damaged, or missing Amana Plus front badge to restore appliance appearance and legibility of branding/details. It's a simple cosmetic replacement that keeps the exterior looking finished. What it does:

• Replaces a faded, scratched, or missing Amana Plus nameplate on the appliance exterior
• Restores readable product branding and identification on the front panel
• Improves overall appearance after cosmetic wear or accidental damage
• Helps owners quickly identify the model area without guessing

• Turn off and unplug the appliance before starting any work near electrical components.
• Clean and dry the mounting area so the nameplate adheres or seats properly.
• Remove any remaining adhesive or clips from the old plate before installing the new one.
• Align carefully and press firmly; if fasteners are present on your model, retain and reuse as needed.

This nonmetal shim spaces and cushions appliance components to improve alignment and reduce rubbing or vibration. Use it to replace a missing or worn shim and help restore quieter, smoother operation. What it does:

• Provides a thin, durable spacer to correct component alignment and clearances
• Cushions parts to reduce rubbing, squeaks, and vibration during operation
• Helps stabilize panels, housings, or assemblies that sit unevenly
• Can prevent premature wear where metal parts contact one another

• Disconnect power (and water, if applicable) before accessing internal components.
• Verify exact shim location against the appliance diagram; position shim between mating surfaces as shown.
• Use basic hand tools as needed; ensure parts are reassembled and fasteners are secure before testing.

This nonmetal shim acts as a precise spacer/isolator within an appliance assembly to set correct clearance and alignment between parts. Replacing a worn or missing shim can reduce vibration, prevent rubbing, and help maintain smooth operation.

• Maintains proper spacing between mating parts to ensure correct alignment
• Helps reduce vibration, rattling, and premature wear from parts contacting
• Nonmetal construction provides electrical isolation and resists corrosion
• Common signs of a bad/missing shim: scraping noises, visible misalignment, or excess play at the joint

• Disconnect power and shut off water/gas supplies as applicable before servicing
• Match the new shim to the original thickness/position; some assemblies use multiple shims—reinstall in the same locations and order
• Clean mating surfaces and inspect related fasteners/brackets; replace any distorted hardware
• Tighten fasteners evenly to manufacturer specifications and verify smooth, interference-free movement after reassembly

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

A hi-lo hex screw used to fasten panels and components on compatible appliances. Replaces missing or damaged fasteners to restore secure mounting, reduce rattles, and help maintain proper panel or trim alignment. What it does:

• Secures panels, brackets and trim where a hi-lo threaded hex screw is specified
• Replaces stripped, corroded or missing screws that can allow movement or vibration
• Helps stop rattling and keeps parts aligned for proper operation
• Matches hex-head drive style for use with the correct driver bit

• Disconnect power (and gas if applicable) before accessing service areas
• Use the correct hex driver bit and fit to avoid rounding the head
• Start threads carefully; do not overtighten to prevent stripping or cracking panels
• Keep small parts away from children and pets during repair
