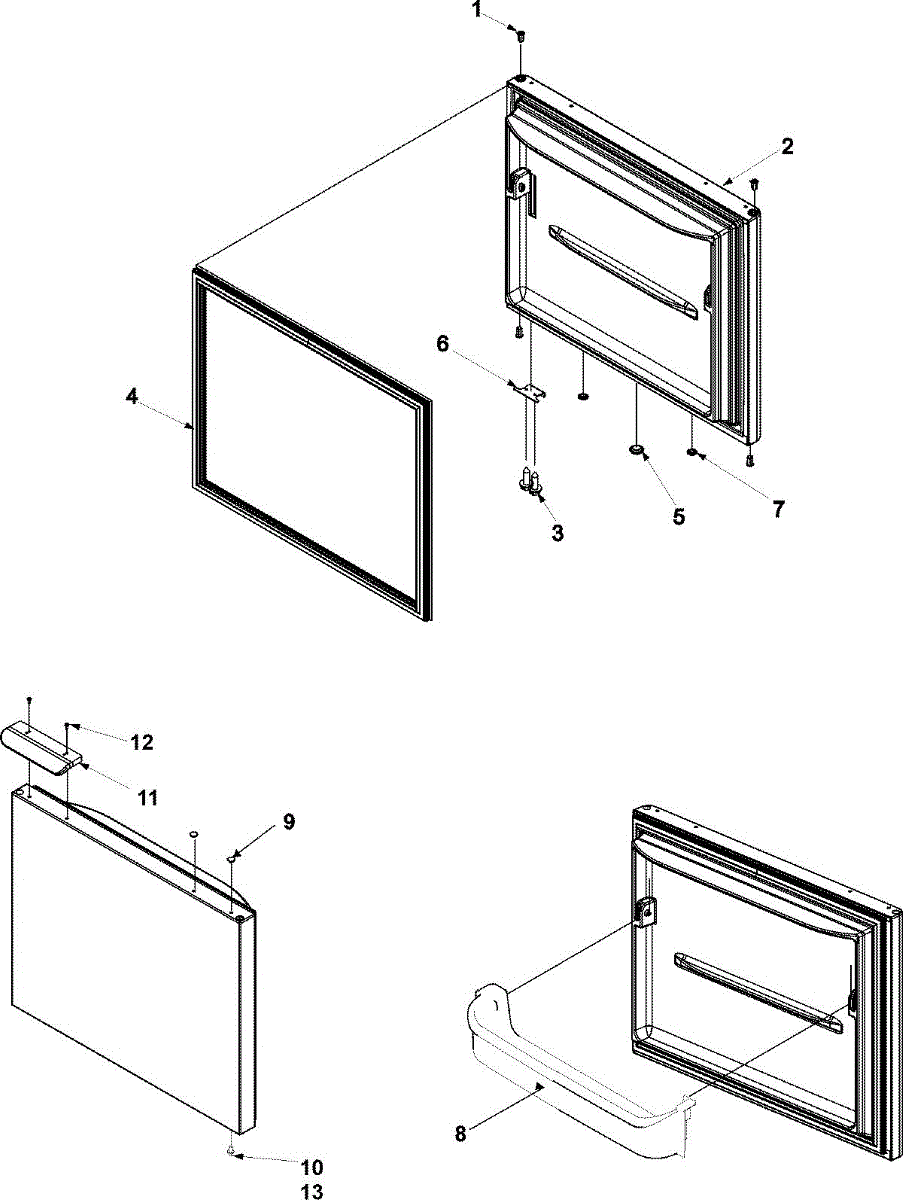

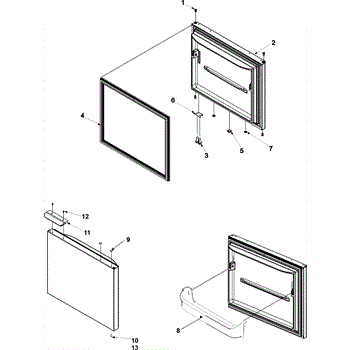

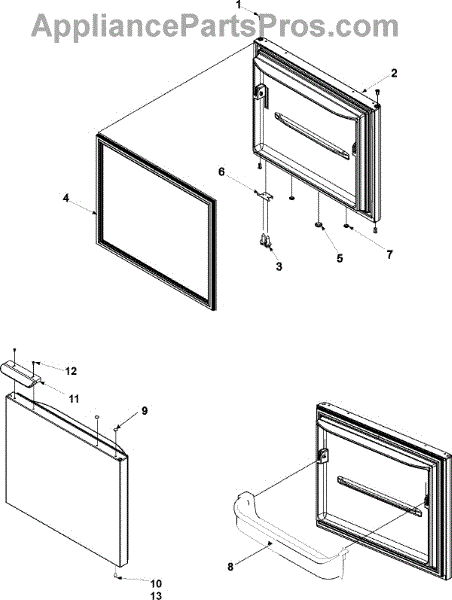

Parts for Amana ABB2223DEQ: 05 - Freezer Door Parts

This door hinge bushing restores smooth, stable movement at the refrigerator door pivot. It sleeves the hinge pin to reduce friction and wear, helping the door stay aligned so it closes cleanly and maintains a proper seal.

• Seats in the door hinge to guide the hinge pin and reduce friction
• Helps maintain door alignment and consistent gasket contact
• Replaces a worn, cracked, or missing bushing that can cause noise or binding
• Typical symptoms: squeaking or grinding at the hinge, door sagging/misalignment, door hard to open or close, or not closing flush

• Disconnect power; clear and support the door to prevent strain
• Remove hinge cover and fasteners; lift the door off the hinge pin as needed
• Remove the old bushing from the hinge area and press the new bushing fully into place, matching original orientation
• Reinstall hardware; adjust hinges/level as needed

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

The Gasket-FIP  is an OEM part for Whirlpool refrigerators, ensures an airtight seal around the door, preventing cold air from escaping and warm air from entering. This component contributes to the refrigerator's energy efficiency and cooling effectiveness, maintaining the optimal internal temperature to keep your food fresh longer.

Causes of a bad Gasket-FIP can range from normal wear and tear, accidental damage, or deformation due to improper cleaning methods or exposure to extreme temperatures.

Symptoms of a bad Gasket-FIP include:

• Noticeable gaps between the gasket and the refrigerator door or frame
• Condensation or frost buildup near the door edges
• The refrigerator working harder to maintain its internal temperature, potentially leading to increased energy bills
• The door not closing as smoothly or firmly as it should

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door stop replaces the small bumper that cushions and limits the door's travel so the door closes smoothly and avoids hard impacts. It restores normal door movement and reduces noise from slamming or catching. What it does

• Acts as a bumper/stop to limit how far the door opens or closes
• Cushions the door to prevent hard impacts and reduce noise
• Helps keep the door aligned and prevents catching or uneven closing
• Commonly replaced when the stop is worn, cracked, missing, or deformed

• One door stop

• Disconnect power (unplug or switch off breaker) before starting any repair
• Removal/installation typically requires basic hand tools and access to the door hinge/stop area
• Align the new stop in the same position as the old one and secure per the appliance's hinge/trim layout
• Reuse the original fasteners unless replacements are specified

This freezer door retainer is a small mounting clip that secures the freezer door/inner panel and helps keep the door aligned for a proper seal. Replaces a broken or worn retainer to restore reliable door positioning and reduce air leaks. What it does:

• Secures the freezer door or inner door panel to the cabinet or hinge assembly
• Helps maintain proper door alignment for an effective freezer seal
• Common fix when the door drops, pulls away, or creates a visible gap
• Prevents unnecessary cold air loss from a misaligned or loose door

• One freezer door retainer

• Disconnect power before beginning repairs and follow manufacturer safety instructions
• Access may require removing the freezer door or inner panel and existing fasteners
• Inspect surrounding hinge and mounting hardware for wear and replace if needed

This Bottom Hinge Pin supports the refrigerator door at the lower hinge, providing a smooth, stable pivot. Replace a worn or bent pin to restore proper door alignment, closing action, and gasket sealing.

• Serves as the pivot point for the door on the bottom hinge bracket
• Helps maintain alignment so the door gasket seals correctly
• Wear/failure symptoms can include door sagging, wobble at the hinge, squeaks or grinding, and poor self-closing
• Replacing a damaged pin can reduce hinge play and improve door operation

• Disconnect power; turn off water supply if working near a dispenser line
• Remove items from the door and support the door to prevent strain on hinges
• Detach bottom hinge fasteners, lift door off, replace the pin, and reassemble
• Adjust hinges as needed

This freezer door handle restores a secure, comfortable grip on your refrigerator's freezer door. Replace it when the original is cracked, loose, or missing to maintain safe operation, clean appearance, and easy everyday access.

• Provides the handhold used to open and close the freezer door
• Attaches to the door's existing mounting points/fasteners for a secure fit
• Helps resolve issues such as a broken, cracked, or wobbly handle
• Can improve ease of opening if the old handle has failed

• Disconnect power before servicing; wear cut-resistant gloves
• Support the old handle, then loosen/remove its fasteners; note their placement
• Position the new handle on the existing mounts and tighten fasteners evenly
• Do not overtighten; verify alignment and that the handle is secure

This nonmetal shim spaces and cushions appliance components to improve alignment and reduce rubbing or vibration. Use it to replace a missing or worn shim and help restore quieter, smoother operation. What it does:

• Provides a thin, durable spacer to correct component alignment and clearances
• Cushions parts to reduce rubbing, squeaks, and vibration during operation
• Helps stabilize panels, housings, or assemblies that sit unevenly
• Can prevent premature wear where metal parts contact one another

• Disconnect power (and water, if applicable) before accessing internal components.
• Verify exact shim location against the appliance diagram; position shim between mating surfaces as shown.
• Use basic hand tools as needed; ensure parts are reassembled and fasteners are secure before testing.
