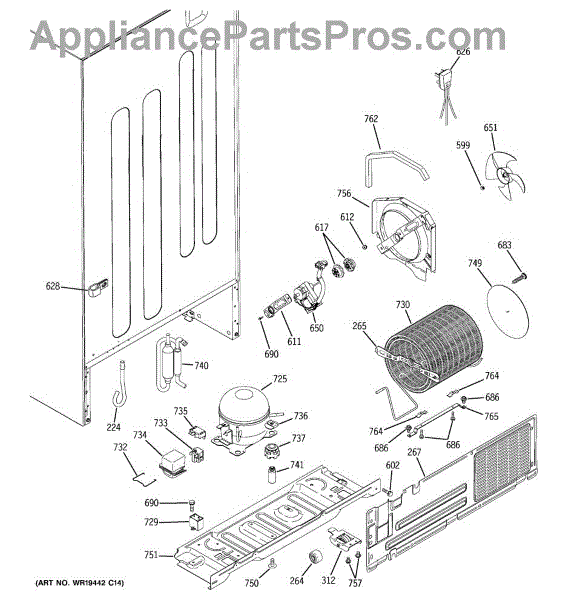

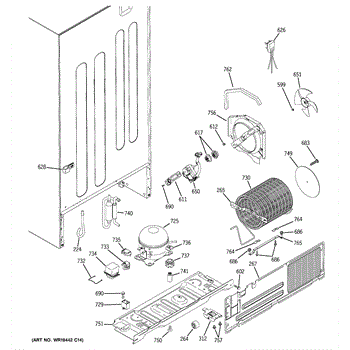

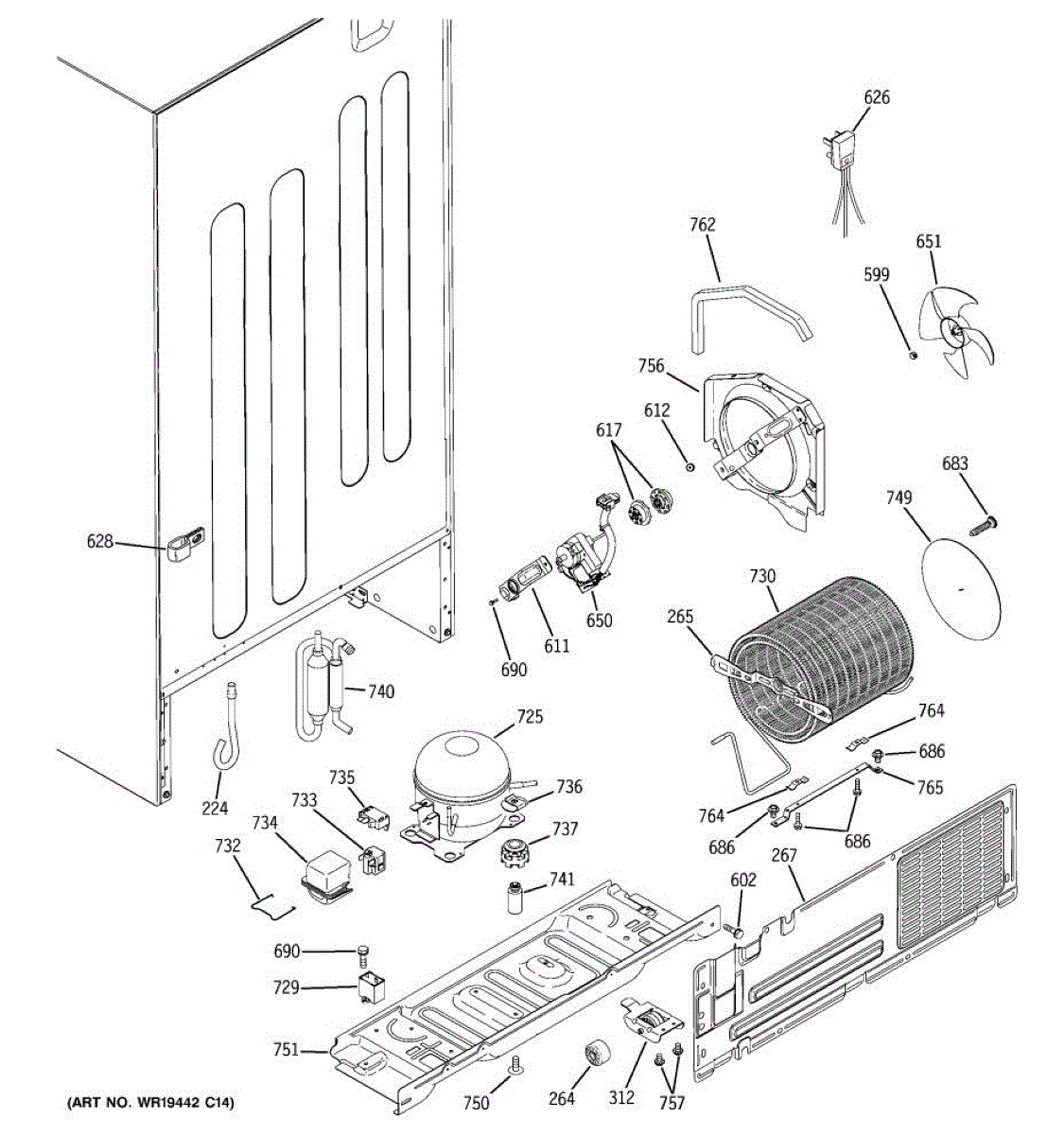

Parts for Ge HTS22GBMARCC: 08 - Unit Parts

Directs defrost water from the evaporator to the drain pan below your refrigerator. Replace if cracked, damaged, or clogged to prevent water pooling.

Replacement rear wheel for refrigerators. Mounts to the bottom rear frame to enable smooth rolling for cleaning and repositioning. Order if cracked or missing.

Cardboard or metal cover that closes the machine compartment opening on your refrigerator back panel. Replace if cracked, missing, or water-damaged.

Rear caster wheel assembly for refrigerators. Mounts under the back of the unit to provide smooth rolling mobility. Replace if cracked, broken, or worn.

Secures and seals water line connections in your refrigerator's dispensing system. Replace if leaking or loose to prevent water damage. Confirm fit.

Mounting screw for refrigerator interior components and panels. Replace if lost, stripped, or damaged during maintenance. Essential hardware for secure assembly.

Secures the condenser fan motor in position. Replace this bracket if cracked, bent, or causing excessive vibration to restore stable mounting.

Rubber grommet that seals and cushions where the evaporator fan motor shaft mounts. Replace if cracked, worn, or missing to eliminate noise and vibration.

Replace a damaged or disconnected refrigerator wire harness. Restores electrical connections between components. Needed when wiring is frayed or broken.

Supplies electrical power from wall outlet to refrigerator. Replace this cord if cut, frayed, overheated, or damaged to restore safe electrical connection.

Secures refrigerator wiring to prevent chafing and vibration noise. Replace when damaged or missing to keep harnesses organized. Confirm fit by model.

Fix a refrigerator that's not cooling or has an overheated compressor. This condenser fan motor circulates air over the compressor and coils. DIY-friendly.

Refrigerator running hot or making loud noises? A worn condenser fan blade prevents proper airflow across coils. DIY repair in 30 minutes or less.

10-32 x 5/16 machine-thread screw secures refrigerator panels, trim, and internal brackets. Replaces missing or damaged fasteners to prevent rattles.

Size: 8-32 t. Includes 12 screws.

Refrigerator not cooling or compressor clicking on and off? This compressor kit restores cooling. Requires certified technician with specialty tools.

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Refrigerator not cooling or running constantly? A damaged condenser coil prevents proper heat release. This assembly restores cooling efficiency.

Compressor clicks on and off or won't start? This PTC start relay energizes the compressor start winding to restore consistent cooling. DIY-friendly repair.

Refrigerator clicking but not cooling? A failed overload protector can prevent compressor startup. This part interrupts power during overheating.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A threaded mounting bolt that secures the compressor to the refrigerator's frame, providing vibration dampening and structural support. Replace when you hear excessive compressor noise, vibration, or notice the compressor appears loose or misaligned.

Condenser air baffle for refrigerators. Directs airflow over the condenser coils. Replace if cracked, broken, or missing to maintain proper air circulation.

Replacement mounting screw for securing panels, trim, and internal components in appliances. Needed when original screws are stripped, lost, or damaged.

Guides airflow across the condenser and secures the fan motor in place. Replace if cracked, broken, or missing to restore proper cooling airflow.

Hex washer head screw for refrigerator assembly and panels. Replace this fastener if lost, stripped, or corroded during repairs or maintenance work.

This self-adhesive foam strip provides a flexible seal and buffer for appliance gaps, helping reduce drafts, rattling, and moisture intrusion. Designed for easy stick-on replacement where foam padding or sealing is needed. What it does

• Seals small gaps between components to help reduce air leaks and temperature loss
• Cushions panels and doors to minimize noise and vibration
• Helps block moisture and dust from entering sensitive areas
• Self-adhesive backing allows for quick placement without extra glue

• One self-adhesive foam strip

• Surface must be clean and dry; wipe with isopropyl alcohol for best adhesion
• Measure and trim the foam strip to fit—use scissors or a utility knife
• Press firmly along the length to ensure full contact; allow adhesive to set before closing doors or panels
• For safety, disconnect power to the appliance before working in internal areas

Secures the condenser unit in your refrigerator. Replace if loose, broken, or causing vibration noise. Verify fit with your model number before ordering.
