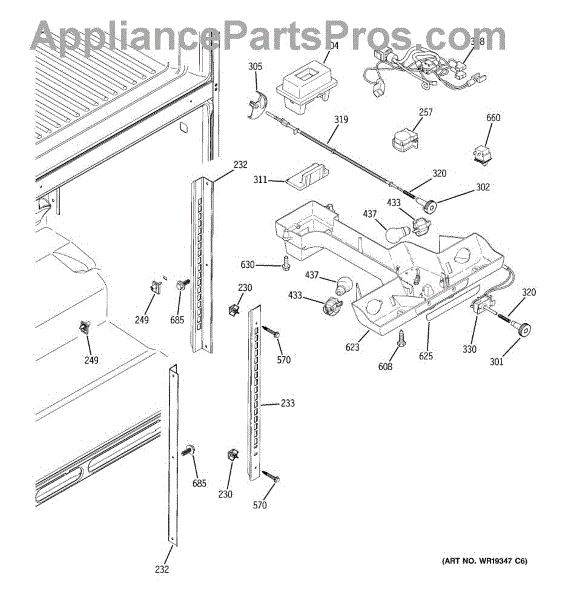

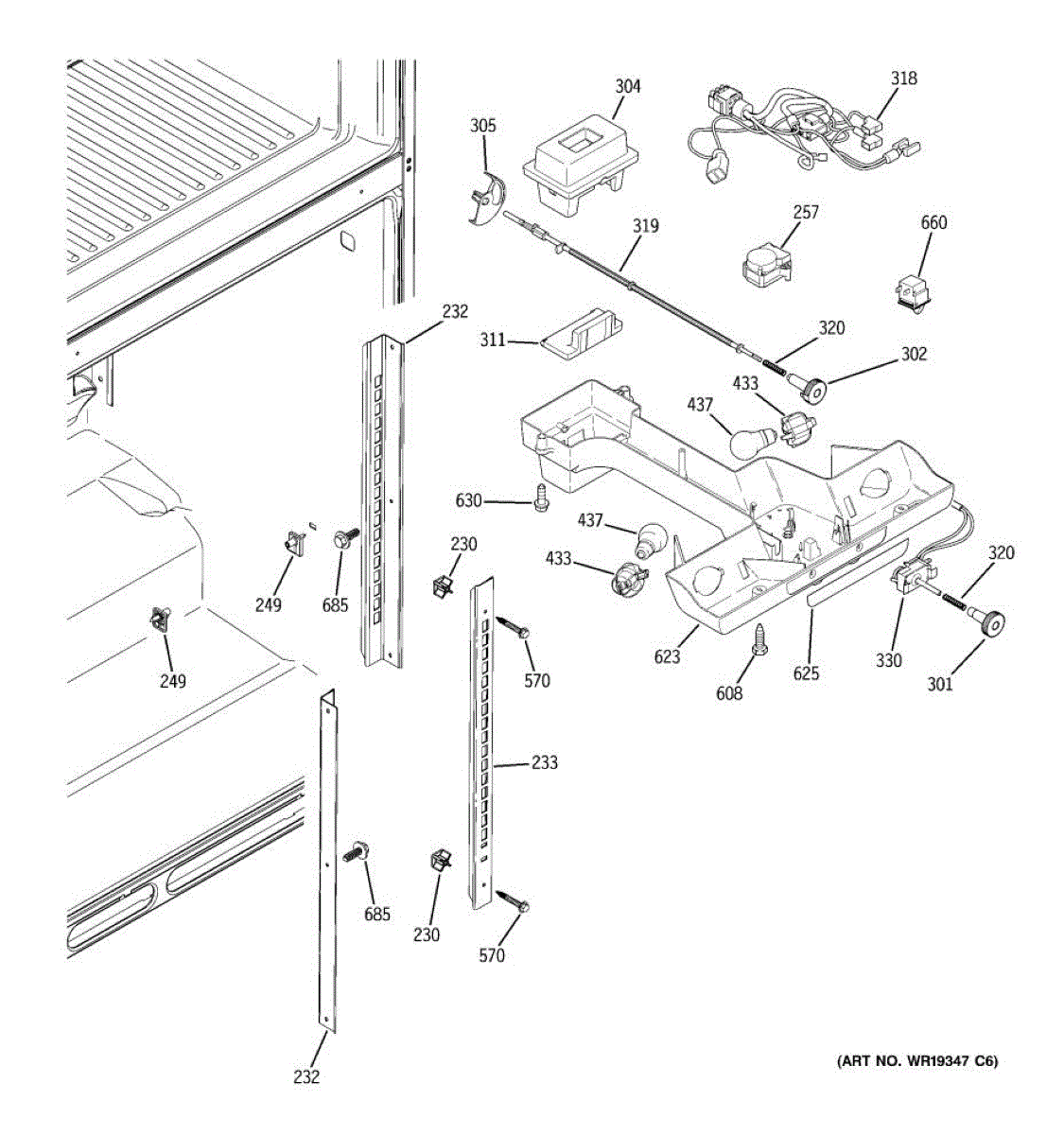

Parts for Ge HTS22GBMARCC: 05 - Fresh Food Section Parts

The defrost timer governs the automatic defrost cycle, periodically switching the refrigerator from cooling to defrost. Replacing a failed timer restores reliable defrosting to limit frost buildup and help maintain steady, consistent temperatures. What it does:

• Advances the system through run and defrost periods at set intervals
• Sends power to the defrost heater during defrost, then returns the unit to cooling
• A failed timer may cause heavy frost on the evaporator, poor cooling, or continuous running
• A timer that does not advance or is stuck can leave the refrigerator in defrost or prevent defrost entirely

• 1 defrost timer

• Disconnect power before servicing
• Access location varies by model
• Photograph wire positions; move wires one at a time to the matching terminals on the new timer
• Transfer any mounting bracket, secure the timer, and restore power to verify operation

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

This silicon controlled rectifier (SCR) is an electrical control component used to regulate power in appliance circuits, helping control heating and motor circuits for reliable operation. What it does:

• Acts as a semiconductor switch to control current flow in a circuit
• Enables precise switching of power to heating elements or motors
• Can prevent uncontrolled power delivery when functioning correctly
• Faulty SCRs may cause intermittent operation, no power to a circuit, or erratic heating/motor behavior

• Disconnect all power before servicing; risk of shock or damage
• Handle as an electrostatic-sensitive device; avoid touching leads or terminals directly
• Verify mounting orientation and secure all connections per appliance wiring diagrams

8-18 CA HX 1/2 S
