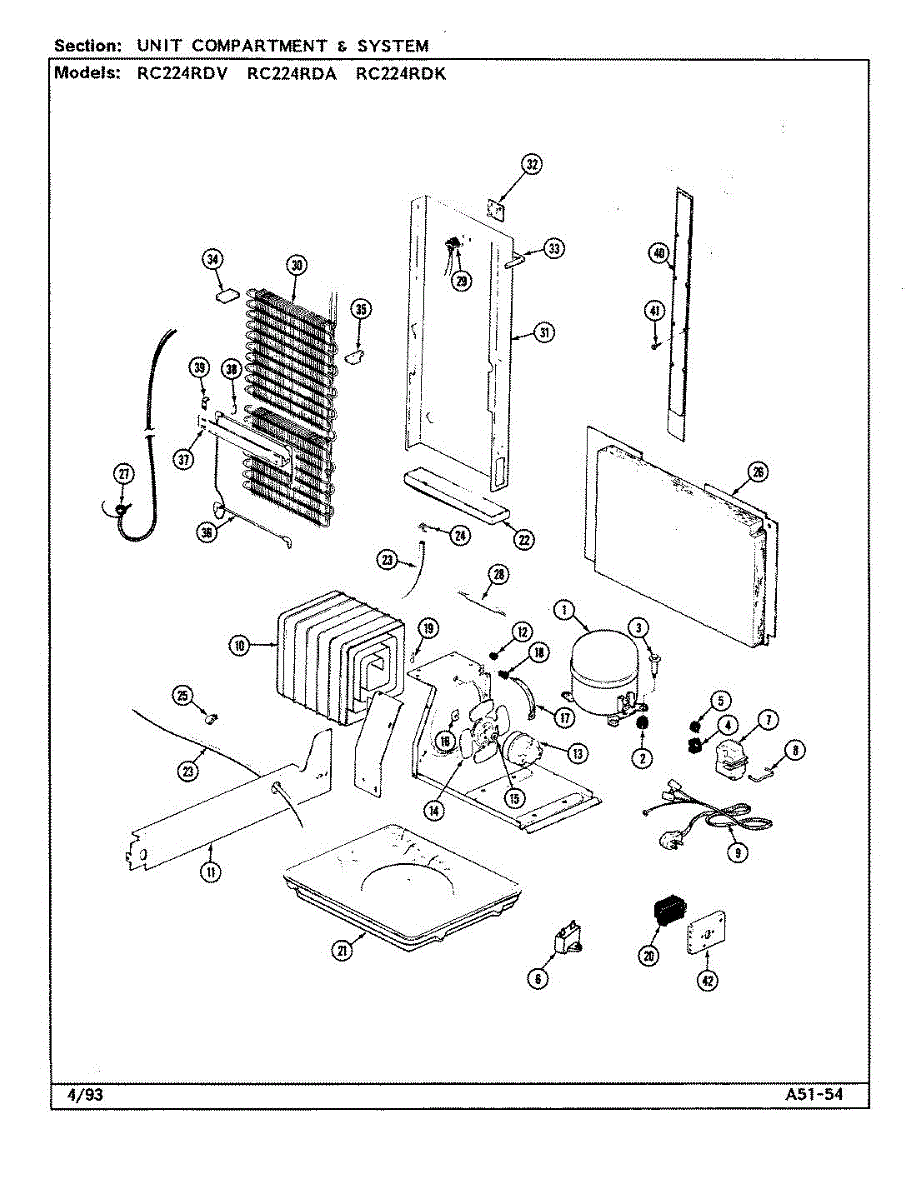

Parts for Magic Chef RC224RDA / DS37B: 08 - Unit Compartment & System Parts

Size: 8 x 1/2 ab.

This part has been discontinued by the manufacturer and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.

This condenser fan blade is the rotating plastic blade that moves air across the condenser coils to help remove heat from the refrigerator. Replacing a damaged blade restores proper airflow for more consistent cooling. What it does:

• Spins on the condenser fan motor to circulate air over condenser coils
• Helps dissipate heat so the compressor and fridge run efficiently
• Can cause reduced cooling or higher temperatures if broken or missing

• Disconnect power to the appliance before starting any service
• Inspect the fan motor shaft and mounting for wear; replace motor if shaft is damaged
• Handle the blade carefully to avoid cracking; ensure blade is seated and secured before testing

This part has been discontinued by the manufacturer and is no longer available.

This bracket grommet cushions a component where it mounts to a bracket in your refrigerator. It isolates metal-to-metal contact to reduce vibration and rattling and helps keep parts aligned for quieter, reliable operation.

• Fits into a mounting bracket to provide a cushioned seat for a component
• Isolates vibration and reduces noise by preventing metal-to-metal contact
• Helps maintain secure mounting and proper alignment
• Common signs of wear: cracking, flattening, missing grommet, increased vibration or rattling

• Disconnect power before servicing; shut off water supply if working near water lines
• Access the bracket and support the mounted component to relieve weight
• Remove the worn grommet and press the new grommet fully into the bracket opening
• Reassemble and snug fasteners—do not overtighten, so the grommet can isolate vibration

This is a replacement mounting screw for securing appliance components and panels. It restores proper fastening where a missing or stripped screw causes loose parts or rattling. What it does:

• Fastens panels, brackets, or small components to restore secure attachment
• Prevents vibration and rattling caused by loose or missing fasteners
• Replaces stripped or lost factory screws to maintain original fit
• Matches OEM fit for the specific mounting location when the part number is specified

• Use the matching screw location and size specified by the parts diagram
• Hand-start threads to avoid cross-threading; tighten securely but do not overtighten
• Disconnect power to the appliance before removing panels or components
• If threads are damaged, replace with correct OEM screw—do not force a mismatched fastener

This defrost timer controls the automatic defrost cycle in select refrigerators and freezers, switching between cooling and defrost to clear frost on the evaporator. It helps maintain stable temperatures and prevents heavy ice buildup and long run times. What it does:

• Alternates the system between cooling and defrost on a timed schedule
• Sends power to the defrost heater during defrost, then returns power to the compressor and fans
• Failure can cause heavy frost on the evaporator/back freezer wall
• May lead to warmer temperatures, constant running, short cycling, or no-cool if stuck in defrost

• 1 defrost timer

• Disconnect power before servicing
• Access location varies by model
• Note wire positions and transfer them one at a time to the new timer
• Mount securely in the same orientation as the original and verify normal cycling after power is restored

Plastic defrost pan. Evaporator pan hangs from side rails and rests on compressor.

This part has been discontinued by the manufacturer and is no longer available.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Radiant Heater is an OEM replacement part for Whirlpool refrigerators. It is the defrost heater that provides a gentle warmth to prevent freezing and freezing within selected drawers and compartments.  Radiant Glass (Quartz), Length (Approx) - 9-1/4, 500 watts

Causes of a faulty heater can include operational wear from prolonged power on cycles. Exposure to condensation or spills may also impact insulation over time.

Symptoms include:

• Inadequate or ineffective temperature control in heater zones
• Short cycling or failure to maintain set temperatures
• Loose connections or damage to heating coils

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper refrigerator models.

Size: 8 x 1/2 ab.

Size: 8 x 1/2 ab.

This part has been discontinued by the manufacturer and is no longer available.

Size: 8 x 1/2 ab.
