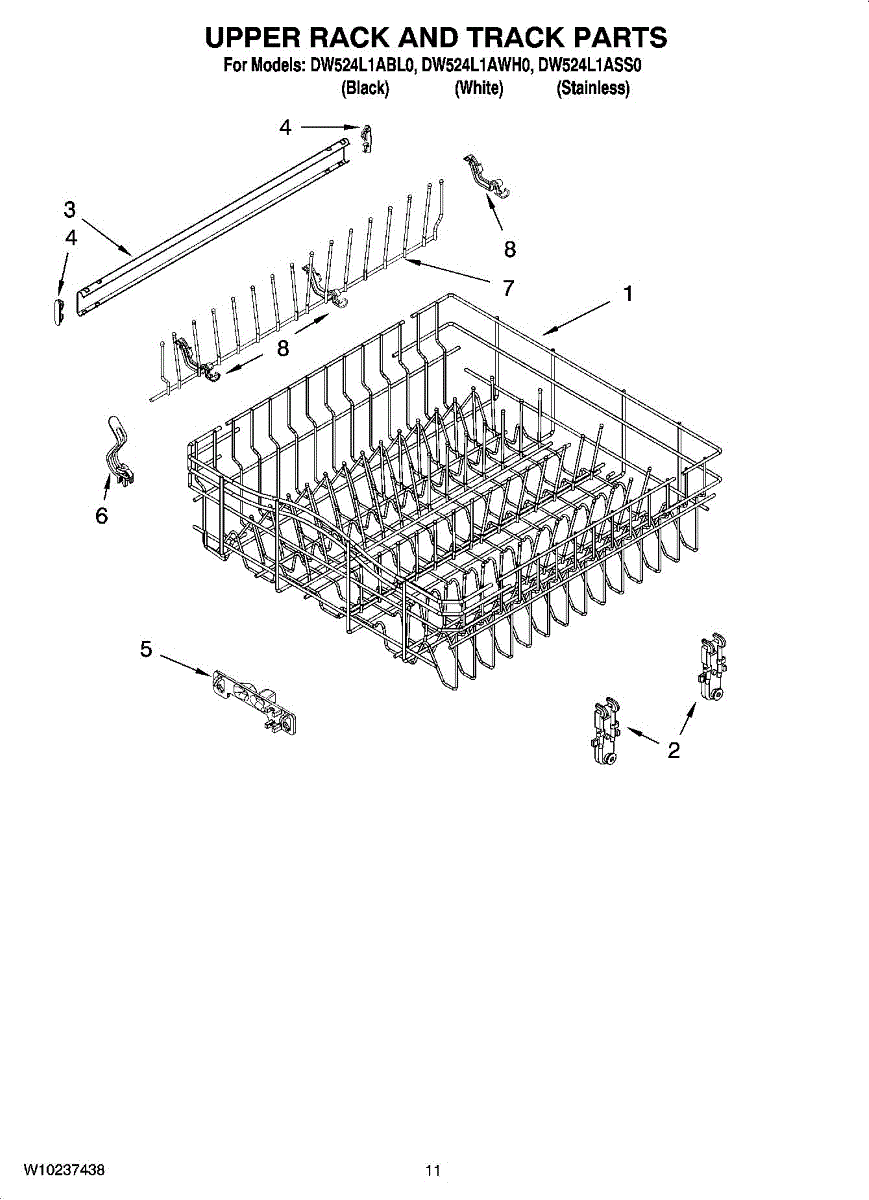

Parts for Whirlpool DW524L1ABL0: 09 - Upper Rack And Track Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Upper dish rack assembly for dishwashers. Holds glasses, cups, and small items on the top level. Replace if cracked, warped, rusted, or deteriorating.

Replace broken or worn upper dishrack wheels that prevent smooth rack sliding. Snaps into place on the upper rack roller assembly for easy gliding movement.

The Upper Dishrack Rail is an OEM replacement part for Whirlpool dishwashers. It guides upper racks in and out for easy access to dishes.

Causes of faulty rails can include worn rollers, broken clips, or stress cracks in modules after repeated cycles.

Symptoms of a bad upper dishrack rail include:

• Difficulty inserting or removing the upper rack smoothly
• Off-track movement that impacts washing coverage
• Detached ends or segments that compromise stability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replaces cracked, broken, or missing dishwasher rack stop clips. Secures upper or lower dishrack to track rail, preventing rack from sliding out too far.

Secures tines in your dishwasher rack to hold dishes and utensils in place. Replace if cracked, broken, or missing to restore proper rack function.

This light clip secures the interior lamp assembly in place so the refrigerator light stays positioned and protected. It's a small plastic retainer designed to hold the lamp or lens securely behind the housing. What it does:

• Holds the interior lamp or lens assembly in position to prevent movement or rattling
• Keeps the lamp properly aligned so the light bulb and cover stay seated
• Helps prevent contact between the bulb and other components that could cause noise or damage
• Commonly replaced when the lamp cover is loose, rattles, or won't stay clipped in place

• One light clip

• Disconnect power to the appliance before beginning any work
• Access the lamp area by removing the lamp cover or housing per your model's instructions
• The clip typically snaps into place; no special tools are usually required
• Test lamp fit and switch operation before restoring normal use

Replace your cracked, rusted, or broken dishwasher tine row. This adjustable row installs in the upper or lower rack for flexible dish loading.

The Tine Row Pivot is an OEM replacement part for Whirlpool dishwashers. This component is an integral part of the upper rack assembly, allowing the tine rows to fold down or pivot inward to accommodate taller items or create additional space within the rack.

Symptoms of a faulty tine row pivot may include:

• Tine rows not folding or pivoting smoothly
• Difficulty adjusting the tine rows to the desired position
• Tine rows becoming stuck or jammed in an open or closed position

Causes of needing to replace the tine row pivot can include normal wear and tear over time, physical damage from mishandling or impact, or issues with the pivot mechanism becoming corroded or obstructed.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.
