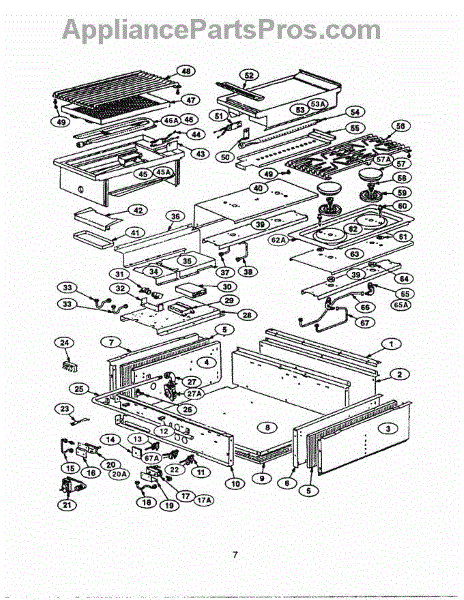

Parts for Thermador PCS366: 10 - Burner Box Parts

This part is a genuine OEM gas valve made for use with gas-powered ranges. The gas valve ensures that gas can enter the appliance so that the burners can light. If the gas valve is faulty in any way, such as being bent, dented, detached, or otherwise rendered ineffective, it could prevent the burners from lighting or may weaken the strength of the flame. Before replacing the gas valve, put on work gloves to prevent injuries to the hands and disconnect the range from the power and gas sources.This part is manufactured by Bosch and has been sourced directly from the manufacturer. It is sold individually. This gas valve is manufactured from high-quality, durable, non-corrosive metal and other materials. It is an authentic replacement part and thus is compatible with ranges manufactured by Bosch, Thermador, and Gaggenau.

The Spark Ignition Switch is an OEM part for Bosch ranges and cooktops. It controls the ignition of surface burner flames by emitting an electrical spark when activated.

Causes of a bad switch can be general wear and fatigue over thousands of start cycles. Exposure to moisture, dust or metal debris could also damage electrical components internally.

Symptoms of a bad spark ignition switch include:

• Burners failing to light even when valves are turned on
• Intermittent or irregular lighting of some burners
• No electrical sparks emitted from the ignition electrode

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This gas pressure regulator controls and stabilizes incoming supply pressure to the appliance manifold, helping ensure consistent burner flames and reliable ignition. Replace if the original regulator is sticking or no longer maintaining correct pressure.

• Regulates incoming gas to the appliance's rated manifold pressure
• Helps maintain even flame height and proper combustion
• Supports reliable burner ignition and reduces flame-out from pressure swings
• Common symptoms include weak or uneven flames, yellow tipping, burners not lighting or not staying lit, or flames that are too high

• Disconnect electrical power and shut off the gas supply before servicing
• Observe the flow-direction arrow; install with outlet toward the appliance manifold
• Use approved gas-rated thread sealant on male threads only and leak-test all joints with a non-corrosive solution after installation

The Spark Module is an OEM part Bosch ranges and cooktops. This electronic part generates the high-voltage spark needed to reliably ignite the gas burners with the push of a button.

Causes can be issues like component failure over the thousands of ignitions it facilitates. Water ingress could also potentially cause problems.

Symptoms of a bad spark module include:

• Unreliable or intermittent burner ignition requiring multiple ignition button presses
• One or more burners that will not ignite at all
• Occasionally flashing or error codes relating to ignition issues

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Gas Valve Cooktop is an OEM part for Bosch cooktops. This valve is responsible for controlling the flow of gas to the burners on the cooktop. It opens and closes to allow gas to pass through when a burner is turned on and stops the flow of gas when the burner is turned off.

Causes of a bad gas valve can include wear and tear over time, issues with the valve mechanism such as stuck or blocked components, or damage from exposure to moisture or impact.

Symptoms of a bad gas valve include:

• Burners not lighting or sparking repeatedly without igniting
• Uneven or unpredictable burner flame heights
• Burners not getting hot enough for cooking
• Burners that cannot be turned on or off
• Gas leaks around the valve area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore cooktop models.


This 1/4" gas supply tubing connects the appliance's gas line to the valve, providing a secure path for fuel so the unit can ignite and operate safely. Use when tubing is damaged, leaking, or replaced during valve service. What it does:

• Channels natural gas/LP from the household supply to the appliance valve
• Replaces cracked, corroded, or bent tubing that can cause leaks
• Helps stop symptoms like a persistent gas smell, failure to ignite, or intermittent burner operation
• Works with the appliance's inlet and control valve fittings to maintain proper gas flow

• Turn off the gas supply and electrical power before starting work
• Use approved fittings, thread sealant rated for gas, and test all connections for leaks after installation
• Do not modify or reuse damaged tubing; replace with exact-fit parts

TheTubing, 1/4 Gas Supply SV/RB, is an OEM part for Bosch gas ranges. This tubing delivers gas safely and efficiently from the supply to the range. The tubing is made from durable materials capable of withstanding the high pressures and temperatures associated with gas fuel, ensuring longevity and safety in your kitchen environment.

Causes for replacement can range from natural wear and tear over time, which may lead to cracks or leaks, to accidental damage during cleaning or kitchen renovations.

Symptoms of a malfunctioning gas supply tubing include:

• A noticeable gas odor near the appliance, indicating a potential leak.
• Inconsistent flame size or color on the range burners, which can signal an irregular gas supply.
• Difficulty igniting the range burners or an inability to maintain a consistent flame.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This channel burner mounting secures a cooktop burner assembly in place so the burner stays aligned for proper operation. It replaces a damaged or bent mounting channel to restore stable burner positioning and safe function. What it does

• Holds the burner assembly in the correct position under the cooktop surface
• Prevents burner movement that can cause misalignment or uneven heating
• Helps maintain proper spacing for reliable ignition and flame stability
• Replaces bent, cracked, or corroded mounting channels that no longer secure the burner

• One channel burner mounting bracket (single mounting channel)

• Turn off gas and electrical power to the appliance before beginning work
• Remove cooktop components as required to access the burner mounting
• Handle edges carefully; part and surrounding sheet metal can be sharp
• Verify burner alignment and safe operation after installation

This grease catch tray collects drips and overflow from the grill/broiler area to help keep the oven or grill cavity cleaner and reduce grease buildup. It fits into the grill assembly to channel grease away from heating elements. What it does:

• Catches grease and drippings from the grill or broiler surface to protect the cavity floor
• Helps reduce smoke and flare-ups caused by grease contacting hot surfaces
• Keeps grease contained for easier cleanup and routine maintenance
• Restores proper grease control when the original tray is damaged, warped, or missing

• One grease catch tray

• Allow the appliance to cool and disconnect power before servicing
• Remove oven racks or grill components as needed to access the tray slot
• Slide the tray into place until it seats securely; no special tools typically required
• Dispose of heavy grease safely and clean the tray regularly per owner manual guidance

This is a replacement grease tray cover that restores the oven/cooktop drip area to help contain grease and protect the tray below. It improves grease containment and keeps the cooking area looking finished. What it does:

• Covers the grease collection area to help contain drips and splatters
• Helps prevent grease from pooling on the tray and reduces cleanup
• Restores a damaged or missing cover so the appliance looks and functions correctly
• Can reduce smoke and odors caused by exposed grease buildup

• One grease tray cover

• Ensure the appliance is completely cool and power/gas is turned off before starting
• Remove the old cover and clean the tray area; use gloves to handle greasy parts
• Align the new cover with the tray opening and seat it in place per the appliance instructions

This lava rock basket holds and secures lava rocks used with compatible gas burner assemblies to support even heat distribution and protect the burner area. It replaces a worn, broken, or missing basket for safe operation. What it does:

• Holds lava rocks in place so they heat evenly for consistent burner performance
• Protects the burner tray from direct contact with lava rock and debris
• Helps prevent lava rocks from shifting or falling into the burner area
• Addresses symptoms such as loose or missing rock support, shifting lava rock, or unstable burner arrangement

• One lava rock basket assembly

• Turn off the gas supply and power to the appliance before servicing
• Use basic hand tools; verify correct fit and orientation before finalizing installation
• Dispose of damaged lava rocks and worn parts responsibly

This grill grate provides a stable, even cooking surface for compatible Bosch grills, restoring proper support and heat contact for pans and food. It replaces worn, bent, or missing grates to improve cooking consistency. What it does:

• Serves as the primary cooking surface, supporting cookware and food above the burner or heat source.
• Restores proper clearance and airflow for even heating when original grate is warped or damaged.
• Keeps food elevated and stable to prevent tipping or contact with burners.
• Foot provides extra stability and corrects alignment within the grill frame.

• One grill grate with attached foot

• Ensure the appliance is completely cool and gas/electric supply is turned off before handling.
• Typically installs as a drop-in replacement; align grate and foot with existing supports and seating points.
• Inspect surrounding seals and supports; replace any damaged mounting hardware for secure fit.
• Clean with non-abrasive cleaners; avoid harsh scrubbing that could remove coatings or finish.

The Grate Foot Kit is an OEM part for Bosch ranges. This kit includes the small rubber feet that attach to the bottom of the range grates, providing stability and preventing the grates from scratching the range surface.

Over time, the grate feet can wear out or become damaged due to exposure to high temperatures, regular cleaning, or accidental impact. Missing or worn-out feet can cause the grates to sit unevenly or scratch the range surface.

Symptoms of a bad grate foot kit include:

• The range grates sitting unevenly or wobbling
• Scratches or damage on the range surface
• Grates sliding or shifting during cooking
• Missing or visibly worn-out rubber feet

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement bracket secures the griddle igniter/electrode so the igniter stays positioned for reliable spark near the griddle burner. Restores correct igniter alignment to help the griddle light properly. What it does:

• Holds the igniter electrode in the correct position next to the griddle burner for consistent ignition.
• Keeps the igniter stable to prevent misfires, intermittent lighting, or weak sparks.
• Prevents igniter movement or contact with other components that can cause damage.
• Helps restore normal griddle lighting when the original bracket is broken, bent, or missing.

• Disconnect power and shut off the gas supply before beginning any service.
• Handle the igniter electrode and ceramic insulator carefully; avoid touching the ceramic surface with bare hands.
• Secure mounting hardware; do not overtighten screws.
• After installation, reconnect power/gas and test for proper ignition; check for gas leaks using a soap solution if gas connections were disturbed.

The Oven Burner Igniter is an OEM part for Bosch ranges. This part ignites the gas burner to provide the necessary heat for cooking. The igniter works by heating up and creating a spark that ignites the gas, ensuring efficient and reliable operation of the oven.

Causes of a bad igniter can include regular wear and tear, damage from repeated heating cycles, or issues with the electrical connections.

Symptoms of a bad igniter include:

• The oven not heating up
• Difficulty igniting the burner
• The burner not staying lit
• Unusual clicking or sparking noises during ignition

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement griddle can is the stamped inner pan that supports the griddle surface and collects/drains cooking grease. It restores a secure, properly shaped cooking surface so the griddle heats and drains as designed. What it does

• Replaces a dented, warped or corroded griddle pan that can interfere with even cooking
• Provides the molded surface and drainage channels that direct grease away from heating elements
• Helps reduce grease pooling that can cause excess smoke or flare-ups
• Restores proper fit and alignment of the griddle assembly in the cooktop cavity

• One griddle can (inner griddle pan)

• Disconnect power to the appliance and allow all surfaces to fully cool before beginning work
• Use gloves to avoid sharp edges on the metal pan and protect hands from grease
• Remove the griddle surface and any fasteners per the appliance service instructions; reinstall using OEM hardware
• Follow the appliance manufacturer's service manual for torque, alignment and testing procedures

This replacement griddle can is the stamped inner pan that supports the griddle surface and collects/drains cooking grease. It restores a secure, properly shaped cooking surface so the griddle heats and drains as designed. What it does

• Replaces a dented, warped or corroded griddle pan that can interfere with even cooking
• Provides the molded surface and drainage channels that direct grease away from heating elements
• Helps reduce grease pooling that can cause excess smoke or flare-ups
• Restores proper fit and alignment of the griddle assembly in the cooktop cavity

• One griddle can (inner griddle pan)

• Disconnect power to the appliance and allow all surfaces to fully cool before beginning work
• Use gloves to avoid sharp edges on the metal pan and protect hands from grease
• Remove the griddle surface and any fasteners per the appliance service instructions; reinstall using OEM hardware
• Follow the appliance manufacturer's service manual for torque, alignment and testing procedures

The Burner Head and Cap Assembly is an OEM part for Bosch ranges and cooktops. It contains the burner itself along with its protective cover.

Cracks or misshapen portions disrupt flame stability leading to inconsistent results.

Symptoms of a failed assembly include:

• Irregular or overly high flames from damage exposing gas jets
• Difficulty igniting or flames extinguishing prematurely
• Singed pans lacking the protection of an intact cap

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Burner Head and Cap Assembly is an OEM part for Bosch ranges and cooktops. It contains the burner itself along with its protective cover.

Cracks or misshapen portions disrupt flame stability leading to inconsistent results.

Symptoms of a failed assembly include:

• Irregular or overly high flames from damage exposing gas jets
• Difficulty igniting or flames extinguishing prematurely
• Singed pans lacking the protection of an intact cap

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Venturi Gas Tube is an OEM replacement part for Bosch gas cooktop ranges. Its primary function is to ensure an optimal gas/air mixture for consistent and efficient burner combustion, thereby enhancing the overall performance of the cooktop.

Causes involve normal wear of internal components from continuous heating and cooling cycles. Corrosion damage may also disrupt the venturi tube over time.

Symptoms of a faulty venturi gas tube include:

• Unstable or hard-to-control flame levels
• Potential issues shifting burner flames out of their intended position
• Safety risks including carbon monoxide from improper fuel/air balance

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

This is a cooktop burner igniter OEM replacement part for Bosch cooktops and ranges and is sold as an individual part. This part creates a spark that ignites the burner within your cooktop or stovetop and is made of a combination of metal and ceramic.

Causes of a bad ignition plug can include issues with the electronic module, worn electrodes that no longer spark reliably, or damaged wiring.

Symptoms of a bad ignition plug include:

• Gas burners that will not light or remain lit
• Delayed ignition of one or more burners
• Intermittent or no sparking from the ignition plug

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

The Igniter Mounting Clip is an OEM part for Bosch ranges. It secures the igniter to the range top, ensuring it is properly aligned and stable for optimal ignition performance. The surface igniter is crucial for the ignition of gas burners, facilitating an immediate and safe flame to cook with.

Over time, the Igniter Mounting Clip can succumb to various forms of wear and tear, including corrosion from exposure to moisture, degradation from frequent heating cycles, or physical damage during cleaning or maintenance activities.

Symptoms of a compromised Igniter Mounting Clip include:

• The surface igniter becoming loose or dislodged
• Difficulty in igniting the burner or uneven flames
• Noisy or irregular ignition sounds
• Visible signs of damage or corrosion on the clip

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This heat shield protects the area beneath the cooktop/oven from heat and accumulated spills, helping prevent damage to nearby components and simplifying cleanup. Designed to fit in the original mounting location. What it does:

• Deflects and dissipates heat away from sensitive components and cabinetry
• Catches and channels spills or drips away from burners and electrical parts
• Helps reduce risk of scorched surfaces and heat-related discoloration
• Restores proper clearance and protection after removal or damage

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely before starting
• Handle carefully; edges may be sharp and mounting tabs can be fragile
• Verify correct orientation and secure mounting per manufacturer instructions

Used to hold down the jet holder assembly.

The Jet Holder is an OEM part for Bosch ranges. It is responsible for securely housing components that generate flames and distribute heat across the cooktop surface. The jet holder ensures proper airflow and fuel ignition during operation.

Symptoms of a bad jet holder include:

• Unsteady or unstable flames during cooking
• Flames that cross-ignite between burners
• Inefficient heat transfer causing slow cooking times
• Loose, damaged, or missing jet holder components

Causes of a bad jet holder can include cracks developing from excessive heat cycling or debris buildup restricting gas/airflow. Mineral deposits may also cause fittings to warp and lead to improper alignment.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


This 1/4-inch gas supply tube routes fuel between internal components of the appliance, such as the regulator/manifold and valve or burner assembly. Replacing a damaged line helps restore safe, consistent gas flow and dependable burner operation.

• Carries gas from the regulator/manifold to downstream valve/burner components
• Direct replacement for a kinked, cracked, or corroded tube
• Maintains proper routing and secure, sealed connections inside the unit

• Shut off gas and power; allow the unit to cool and ventilate the area before service
• Support fittings with two wrenches; avoid over-torquing and do not kink the tube
• After installation, check all joints with an approved leak-detection solution—never an open flame

The Surface Burner Valve is an OEM part for Bosch gas cooktops and ranges. It regulates gas flow to each individual burner to control flame size and heat output levels precisely during cooking.

Causes of failure are typically wear from extended heating cycles. Exposure to moisture, debris or physical trauma may accelerate damage over time.

Symptoms of a bad surface burner valve include:

• Inability to adjust or maintain desired burner flame heights
• Flames that fluctuate excessively or flash/cycle inconsistently
• A burner that cannot be shut off entirely or is always on high

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This 1/4-inch gas supply tube routes fuel between internal gas components to deliver a stable, leak-resistant supply to the burner. Replacing a damaged tube helps restore safe operation and consistent burner performance.

• Carries gas between internal components (such as the valve/manifold and burner)
• Maintains a sealed pathway to prevent leaks
• Helps ensure proper ignition and flame size
• Common signs of failure: visible kinks, cracks, or corrosion; weak/no flame; gas odor near the tube

• Shut off gas supply and power before servicing; work in a well-ventilated area
• Match original routing and orientations; avoid kinks and sharp bends
• Tighten fittings to manufacturer guidance; do not overtighten
• Leak-test all joints with approved leak-detection solution and verify burner operation
