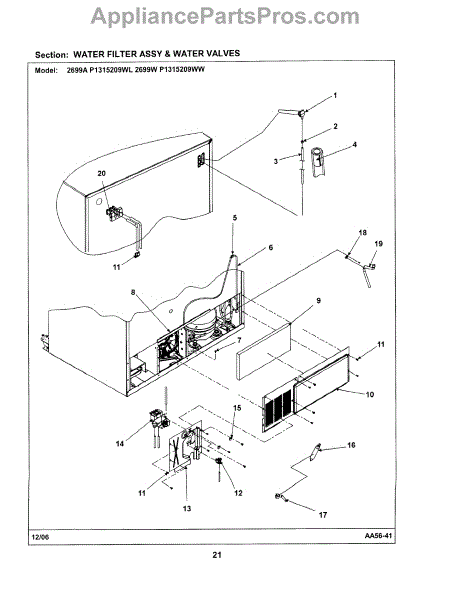

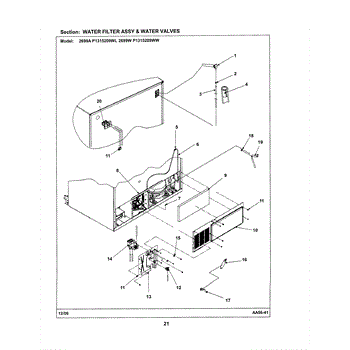

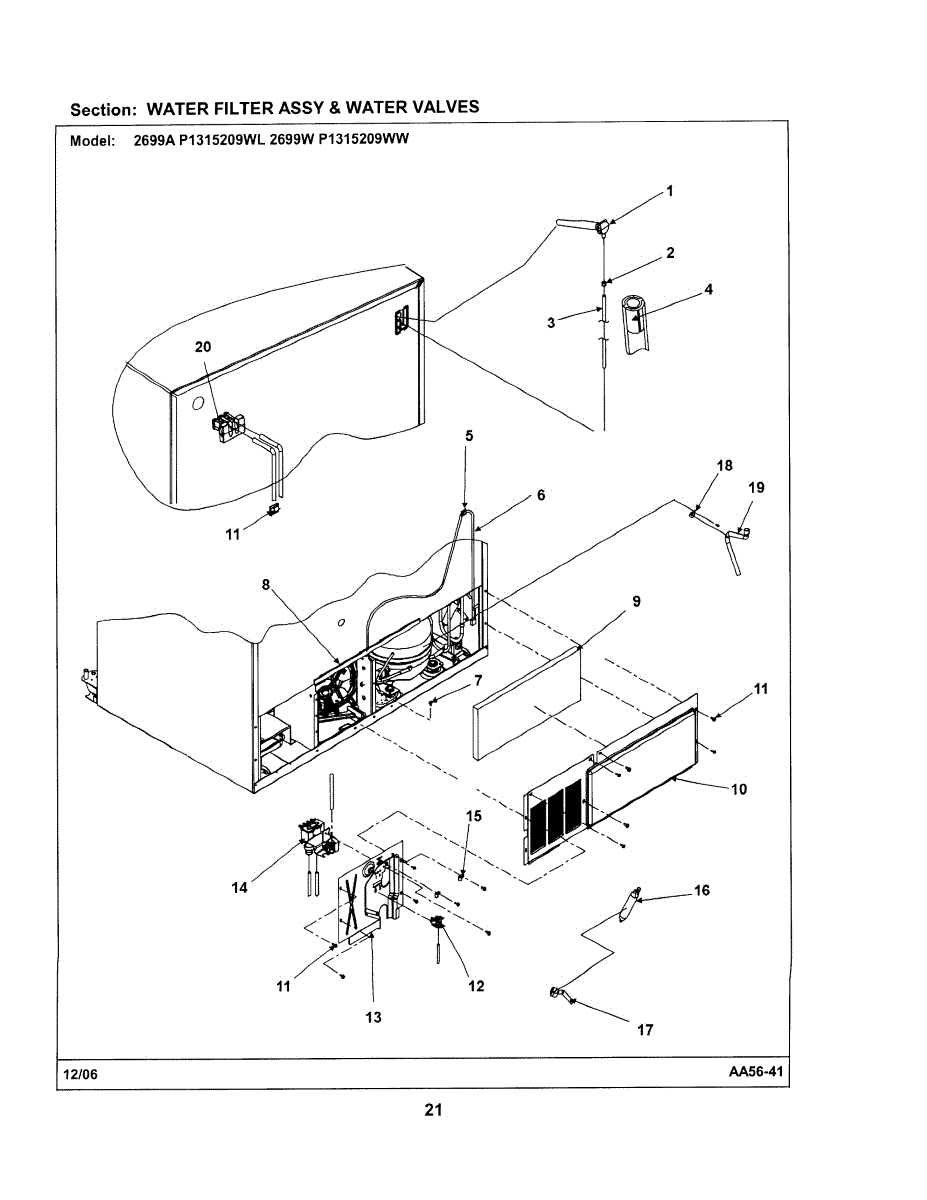

Parts for Maytag 2699A: 10 - Filter Assy / Water Valves Parts

this is not a filter. The water filter bypass attaches in the water filter head and allows the water to flow to the dispenser and ice maker when the filter has been removed. Approximate dimensions: 4.37" x 2.87" x 2.5"

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

"Y" Tube is being replaced. The old valve has a double water outlet, must change to this single outlet and eliminate the "Y" Tube.

This small insert slides into the end of plastic water tubing to reinforce it for a compression-style connection. It helps create a secure, leak-resistant seal at valves and couplings on appliance water lines.

• Supports the tubing wall so the ferrule and compression nut can tighten without collapsing the tube
• Helps prevent drips or seepage at the connection point
• Useful when the tubing end is cracked, deformed, or won't hold a tight seal
• Common symptoms include leaks at a fitting, a connection that won't stay tight, or restricted flow from a pinched tube end

• Shut off the water supply and disconnect power before servicing
• Cut the tubing square; remove any damaged section and deburr the edge
• Slide the compression nut and ferrule onto the tube, fully seat the insert, then assemble the fitting—do not overtighten
• Restore water and check all connections for leaks

Amana Clean 'n Clear. Single pack. Used in Amana refrigerators where filters can be accessed inside the refrigerator. Simply twist and turn to remove and replace, no tools necessary. While retaining beneficial fluoride, this filter reduces cysts, chlorine taste and odor, particulates (class I), and lead. Recommended replacement every 6 months or 300 gallons for optimal performance and efficiency. This filter is certified To Meet all of the NSF/ANSI 42 standards for Materials Safety, Structural Integrity, System performance and the reduction of Chlorine Tastes and odors By IAPMO. Color: white. Flow Rate: 0.5 gpm. Operating Pressure: 30-120 ps. Temperature: 38-100°F. It measures about 3-1/2 inches in diameter by 6 inches high.

Amana Clean and Clear. 2 pack. For a single pack order WF401S. Used in Amana refrigerators that can be accessed inside the refrigerator. Simply twist and turn to remove and replace. While retaining beneficial fluoride this filter reduces cysts, chlorine taste and odor, particulates (class I), and lead. Recommended replacement every 6 months

"Y" Tube is being replaced. The old valve has a double water outlet, must change to this single outlet and eliminate the "Y" Tube.

This secondary water valve assembly controls water flow to the appliance's secondary water circuit, restoring proper water delivery for dispensers or ice makers. Replacing a faulty valve helps stop leaks and restore reliable filling. What it does:

• Opens and closes the secondary water path to allow water to the dispenser or ice maker
• Stops water flow when the appliance signals shutoff, preventing overfilling
• Commonly used when no water reaches the dispenser or ice maker
• Can be replaced to resolve intermittent flow, continuous filling, or valve leaks

• Disconnect power and shut off the water supply before beginning work
• Turn off and relieve pressure in the water line, then disconnect supply and outlet fittings
• Inspect and replace any damaged inlet hoses or seals; tighten fittings to manufacturer torque specs
• After installation, restore water and power, check for leaks and verify proper operation

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

Size: 1/4 inch. Nut for plastic water line.
