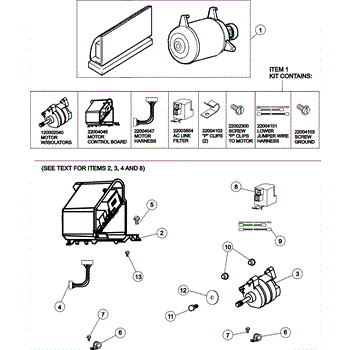

Parts for Maytag MLG19PDAEW: 16 - Motor & Motor Control Parts

This is a Whirlpool washer drive motor and control board. The drive motor and motor control board are responsible for the spin cycles of the washer. A faulty motor may show signs of malfunction through a slower than average spin cycle. When the control board shorts out, the washer typically will not spin at all.Begin installation by removing the body of the washer. There are two screws at the base of the console. Remove these screws and flip the console back. Two clips are holding the body in place. Remove them with a flat-head screwdriver. Push these clips and pull the body off the washer. Now that the motor is exposed, remove the screws holding the motor in place with a nut driver. Two more clips fasten the motor. Push these clips with the flat head, and the motor is free to remove. Unplug the control board's wire harness from the washer. The new component is ready for install after these steps.The part is sourced directly from the manufacturer as a genuine OEM product. This kit is sold separately from the washer. This product is compatible with Whirlpool, Maytag, and Admiral appliances.

This motor control assembly operates the washer's drive motor to manage spin and agitation cycles, restoring proper motor response and cycle operation when the original control fails. What it does:

• Regulates motor speed and direction for agitate and spin functions
• Enables motor start/stop commands from the main control board
• Works as the replacement electronic module that sends power and control signals to the motor

• Disconnect power before replacing; follow all safety precautions to avoid shock
• Handle the board and connectors carefully to avoid ESD or connector damage
• Compare new part to the old unit for correct connector layout and mounting

Specs: 10 - 16 x .375

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
