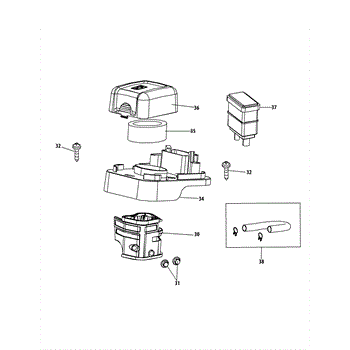

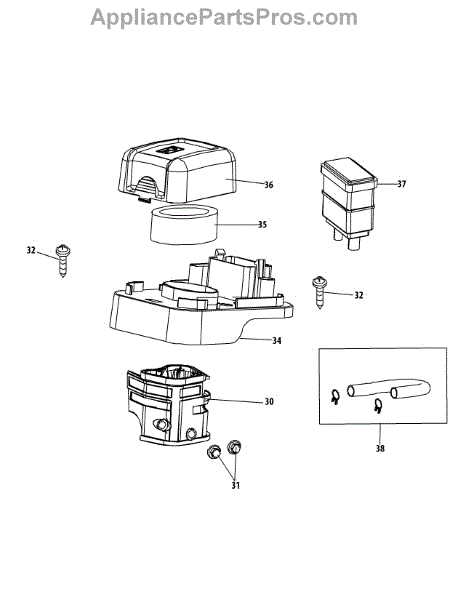

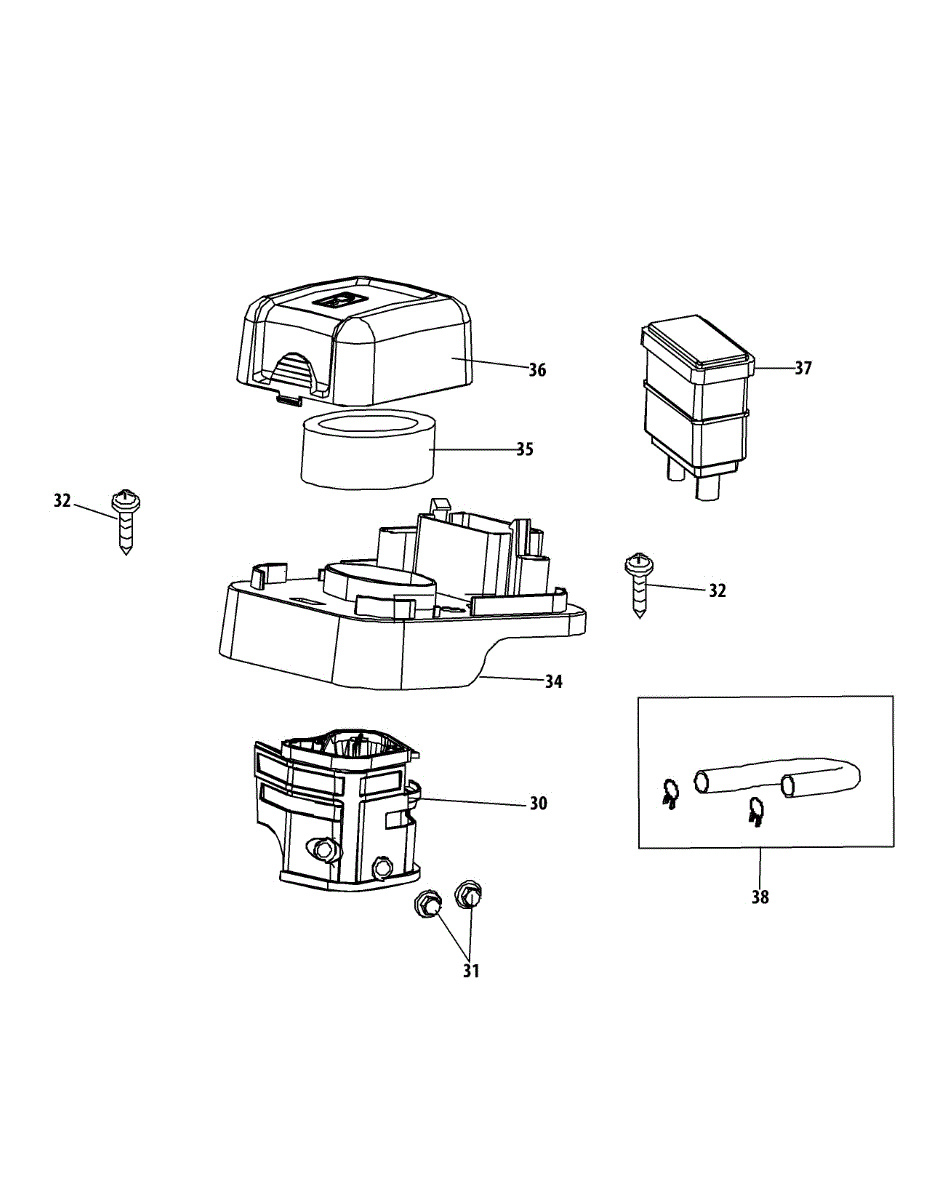

Parts for Mtd 170-LU: Lu Air Filter Parts

Replacement fastener nut for lawn and garden equipment. Threads onto bolts to secure parts together. Replace if stripped, corroded, or missing.

This self-tapping bolt is an OEM replacement part that is sourced directly from the manufacturer. This self-tapping bolt is used to secure the silencer plate to the carburetor. The bolt taps its own hole as it is screwed into place. Using these bolts prevents the holes from being over-drilled or warped due to heat during shipment. The hole is the perfect size due to being tapped by the fastener.Self-tapping bolts create a tight fit and are a good choice for securing multiple layers of material. The holes do not have to be aligned before installation. The bolt makes the hole it needs through each layer. This makes it easier to disassemble and reassemble if necessary. Over time, exposure to the elements may cause the bolt to rust or corrode. If this happens, remove the damaged bolt and install a new one. This self-tapping bolt is made of heavy-duty metal and is sold individually. It is compatible with chippers, shredders, tillers, and other small engines manufactured by Cub Cadet, MTD, and Yard Machines.

This silencer plate is used on a variety of outdoor lawn and garden machines to reduce the noise from the air intake. This molded plastic part sits on top of the carburetor and houses the air filter. It provides an added layer of noise muffling. Exposure to wind, rain, and heat can cause the plastic to become brittle and cracked. The silence plate should be replaced if damage is discovered during routine maintenance. A screwdriver is needed to replace the silence plate. Before working on the machine, make sure the engine is cool and remove the spark plug. Remove the air filter cover and the air filter to access the silencer plate. Remove the screws holding the plate in place. Install the new silencer plate. Tighten the screws. Install the air filter and housing cover. This silencer plate is made of durable molded plastic and is sold individually. It is a genuine OEM replacement part sourced directly from the manufacturer. This part is compatible with tillers, chippers, shredders, and small engines manufactured by Cub Cadet, MTD, and Yard Machines.

Cleans incoming air for optimal engine performance. Replace when clogged or debris-filled to maintain proper airflow. Verify fit with your model number.

Plastic cover that snaps over the air filter assembly on lawn and garden engines. Replace if cracked, broken, or missing to protect the filter from dirt.

Controls gas emissions from small engines on lawn equipment. Replace if cracked, saturated, or engine fails emissions. Confirm fit with your model number.

This is a genuine OEM clamp sourced directly from the manufacturer. It is used in various lawn and garden machines to connect hoses to fittings. It is used to connect piping to water pumps, exhaust pipes to exhaust manifolds, and other similar applications. This connection prevents fluids or air from leaking from the hose. Clamps may be spring or screw/band clamps. Spring clamps require no tools to install and remove; however, the size must be more accurate than when using screw/band clamps. Screw/band clamps are adjustable and can be tightened or loosened. Screw clamps should be inspected periodically to ensure tightness and that the clamps have not rusted.Hose clamps are installed approximately 1/4 inch below the end of the hose. If two clamps are used, there should be 1/4 inch between the two bands. When using a screw clamp, loosen the screw with a screwdriver just enough to fit the clamp over the hose. If using a spring clamp, squeeze the clamp and hold it open. Slide the clamp over the hose and then attach the hose and clamp to the fitting. Slide the clamp into place at the joint and tighten. Do not overtighten. This brass-colored clamp is a spring clamp made of metal; it is sold as an individual unit. This clamp is compatible with many different types of pipes made by various manufacturers.

This is a genuine OEM primer hose replacement part sourced directly from the manufacturer. It is used on tillers and other outdoor power equipment with a primer bulb assembly. The hose is the part of the assembly that runs from the fuel tank to the carburetor. When the primer bulb is pressed, fuel is collected from the tank and pushed into the carburetor to start the engine. Any unused fuel is released back into the fuel tank. If the primer hose has cracks or holes in it, the vacuum inside the hose will be lost and the primer bulb will not force the fuel to the carburetor. These cracks or holes can occur over time due to fuel eroding the hose material. If the primer bulb is not working and fuel cannot be seen in the tube, the primer hose should be inspected and replaced if necessary.Before replacing a primer hose, empty the fuel from the fuel tank and fuel lines into a clean container. Remove the spark plug. Remove and replace the primer hose. After refueling, check the primer bulb to ensure the primer hose is pulling fuel. This primer hose is clear plastic material; it is sold as an individual unit. This hose is compatible with tillers, chippers, shredders, and other small engines manufactured by Cub Cadet, MTD, and Yard Machines.
