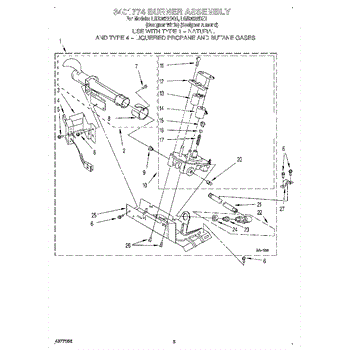

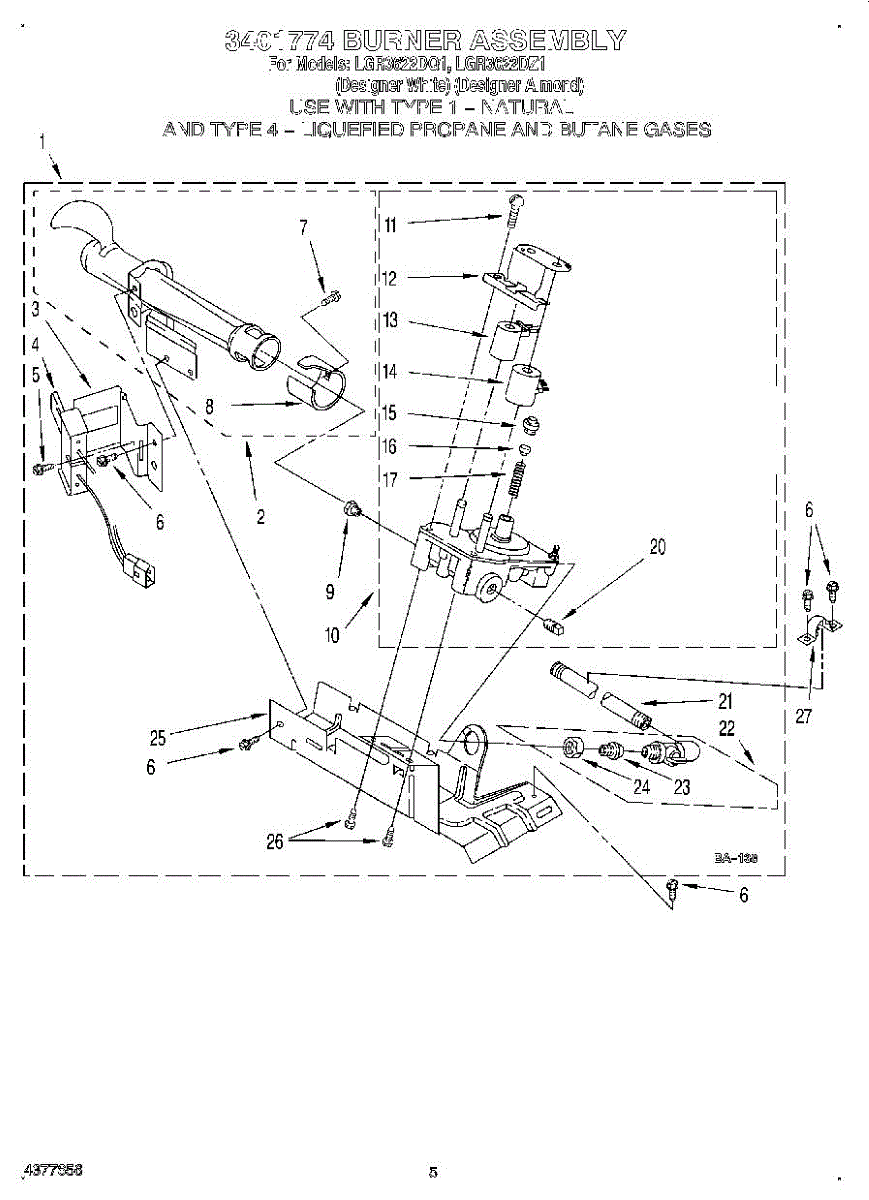

Parts for Whirlpool LGR3622DZ1: 03 - 3401774 Burner Parts

If your dryer won't heat or flame won't stay lit, a corroded burner tube may be the cause. This assembly includes an adjustable air shutter for proper combustion.

This bracket is used to attach and is included in the igniter kit. Save money by ordering the igniter kit 279311.

Dryer not heating or won't dry clothes? This igniter kit lights the gas burner. Moderately easy DIY repair with video guide—replaces failed igniters.

Replacement mounting screw for securing panels, brackets, and interior assemblies. Needed when original screw is stripped, missing, or damaged.

Specs: 10-16 x 1/2 inch.

Gas burner orifice for dryers. Installs in the burner assembly to regulate gas flow. Replace if damaged, corroded, or missing for proper operation.

Dryer won't heat or pilot lights but shuts off? This gas valve assembly controls burner ignition and flame. Typical DIY repair in 45-60 minutes.

8-32 mounting screw for dryer assemblies. Replaces lost, stripped, or damaged screws during repairs or panel reinstallation. Essential hardware part.

Mounting bracket for dryer shunt assembly. Secures electrical shunt component to cabinet frame. Replace if cracked, bent, or missing hardware slots.

Dryer won't heat or flame shuts off after 15 seconds? Gas valve coils control gas flow to the burner. Takes about 30 minutes to replace both coils.

Dryer won't heat or flame shuts off after 15 seconds? Gas valve coils control gas flow to the burner. Takes about 30 minutes to replace both coils.

If your dryer won't stay lit or shuts off after a few minutes, the gas limiter may be faulty. This regulator controls safe gas flow to the burner.

Dryer making high-pitched sound when igniter turns on? This natural gas regulator maintains proper gas pressure to burners. DIY-friendly repair.

Spring installs inside the gas pressure regulator assembly on gas dryers. Replace if lost during conversion between natural gas and propane fuel types.

This pipe plug seals an unused or service opening in a household appliance's plumbing to stop leaks and prevent debris entry. It restores a watertight closure so the appliance can operate safely and without water loss. What it does:

• Plugs open pipe or hose fittings to prevent water leaks
• Helps maintain proper water flow by sealing unused ports
• Keeps debris and contaminants out of the plumbing system
• Can stop intermittent drips originating from service openings

• One pipe plug

• Turn off water supply and power to the appliance before starting work
• Hand-start threads to avoid cross-threading; tighten only to OEM torque or finger-tight plus a quarter-turn if unspecified
• If the original used sealant or gasket, replace with the same type per OEM instructions

Compression nut for dryer installation. Secures hoses and connections. Replace if stripped, corroded, or missing to ensure proper assembly and fit.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This LP gas conversion orifice adjusts gas flow for compatible gas ranges and cooktops when converting from natural gas to liquid propane, helping the appliance run safely and correctly after conversion. What it does:

• Replaces the burner orifice to reduce gas flow for LP fuel pressure and correct flame size
• Helps restore consistent, stable burner flames after an authorized LP conversion
• Addresses symptoms like unusually large or yellow flames, poor ignition, or unstable burner performance after conversion
• Works with the appliance's existing valve and burner components as part of a proper conversion

• Follow the appliance manufacturer's LP conversion instructions and parts list exactly
• Turn off gas supply and disconnect power before servicing
• Use correct torque and fittings; do not force or cross-thread the orifice
• Always perform an approved gas leak test and check burner flames after installation

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
