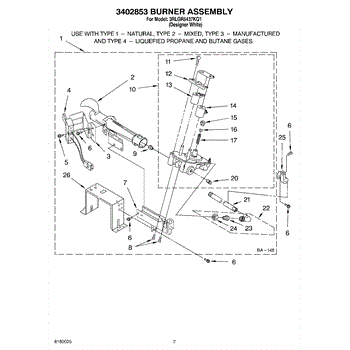

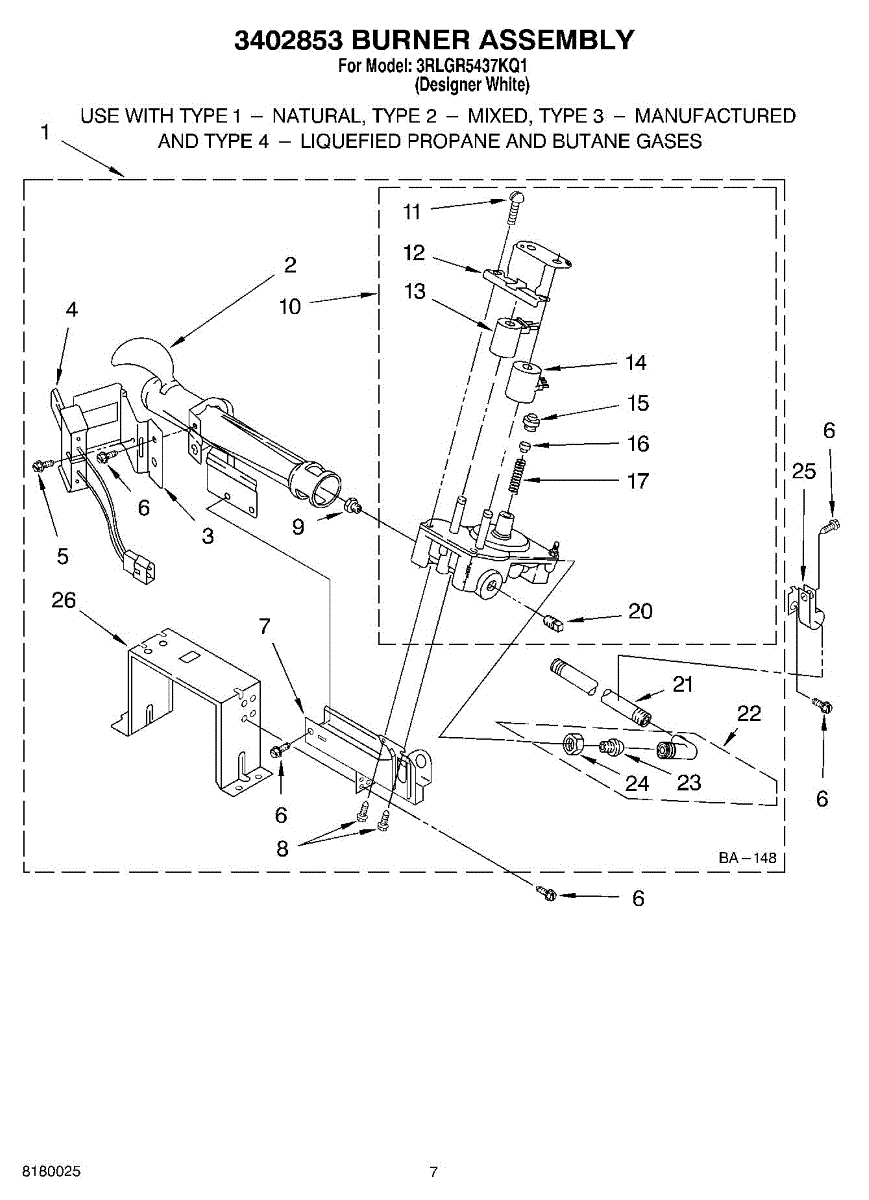

Parts for Whirlpool 3RLGR5437KQ1: 04 - 3402853 Burner Assembly Parts

If your dryer won't heat or flame won't stay lit, a corroded burner tube may be the cause. This assembly includes an adjustable air shutter for proper combustion.

This bracket is used to attach and is included in the igniter kit. Save money by ordering the igniter kit 279311.

Dryer not heating or won't dry clothes? This igniter kit lights the gas burner. Moderately easy DIY repair with video guide—replaces failed igniters.

Replacement mounting screw for securing panels, brackets, and interior assemblies. Needed when original screw is stripped, missing, or damaged.

Size: 10-24 x 3/8 inch.

Mounting bracket for dryer interior assembly. Secures components in place. Replace if bracket is bent, cracked, broken, or missing during repairs.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This part has been discontinued by the manufacturer and is no longer available.

Fix a dryer that won't heat with this gas valve. Controls gas flow to the burner assembly. Moderate DIY repair typically takes 30-45 minutes.

8-32 mounting screw for dryer assemblies. Replaces lost, stripped, or damaged screws during repairs or panel reinstallation. Essential hardware part.

Mounting bracket for dryer shunt assembly. Secures electrical shunt component to cabinet frame. Replace if cracked, bent, or missing hardware slots.

This is a secondary solenoid coil that attaches to the gas valve assembly on a gas dryer. It works with the primary coil to open the gas valve and allow gas to flow to the burner for heating. If your gas dryer starts a cycle but fails to heat, heats intermittently, or stops heating after a few minutes, one or both gas valve solenoid coils may need replacement.

This is a holding/booster solenoid coil that attaches to the gas valve assembly on a gas dryer. It controls the flow of gas to the burner by opening the valve when energized during the heating cycle. Replace this coil if your gas dryer runs but does not produce heat, or if the burner ignites intermittently and shuts off prematurely.

If your dryer won't stay lit or shuts off after a few minutes, the gas limiter may be faulty. This regulator controls safe gas flow to the burner.

Dryer making high-pitched sound when igniter turns on? This natural gas regulator maintains proper gas pressure to burners. DIY-friendly repair.

Spring installs inside the gas pressure regulator assembly on gas dryers. Replace if lost during conversion between natural gas and propane fuel types.

This pipe plug seals an unused or service opening in a household appliance's plumbing to stop leaks and prevent debris entry. It restores a watertight closure so the appliance can operate safely and without water loss. What it does:

• Plugs open pipe or hose fittings to prevent water leaks
• Helps maintain proper water flow by sealing unused ports
• Keeps debris and contaminants out of the plumbing system
• Can stop intermittent drips originating from service openings

• One pipe plug

• Turn off water supply and power to the appliance before starting work
• Hand-start threads to avoid cross-threading; tighten only to OEM torque or finger-tight plus a quarter-turn if unspecified
• If the original used sealant or gasket, replace with the same type per OEM instructions

Compression nut for dryer installation. Secures hoses and connections. Replace if stripped, corroded, or missing to ensure proper assembly and fit.

Structural mounting bracket for dryer assemblies. Secures internal components in place. Replace if bent, cracked, or broken to restore proper fit.

Converts your natural gas dryer to operate on LP/propane fuel. Includes orifices and fittings needed for safe conversion. Order replacement kit today.

Converts your natural gas dryer to operate on LP/propane fuel. Includes orifices and fittings needed for safe conversion. Order replacement kit today.
