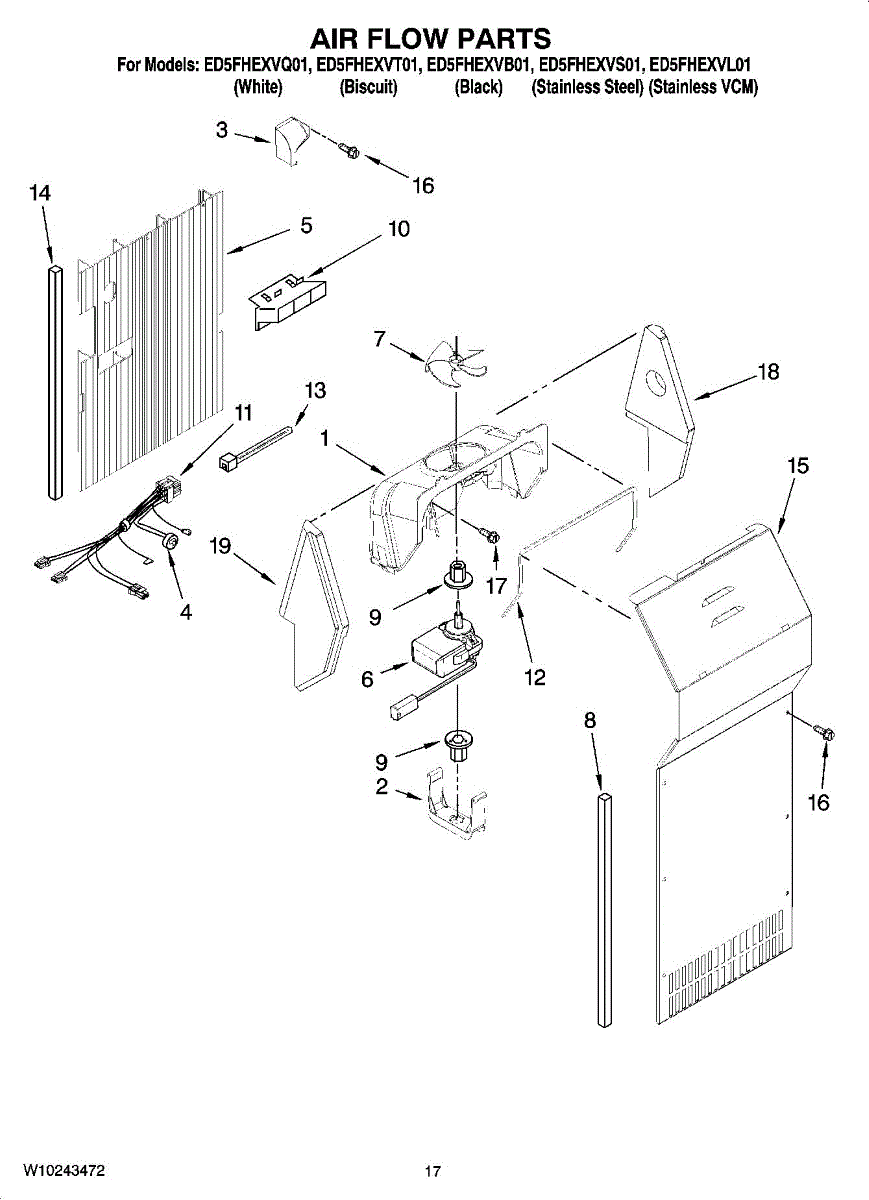

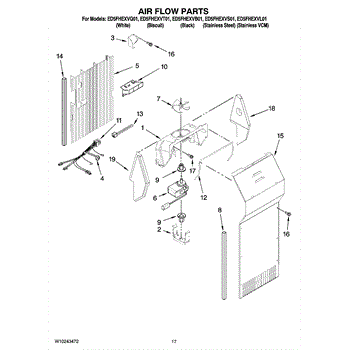

Parts for Whirlpool ED5FHEXVQ01: 10 - Air Flow Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

This is a metal mounting bracket that secures the evaporator fan motor in place inside the freezer compartment. It ensures the fan motor is properly positioned to circulate cold air throughout the refrigerator and freezer sections. Replace this bracket if the fan motor is loose, vibrating excessively, or if the original bracket is cracked or bent.

This fan motor retainer secures the refrigerator's fan motor to its mounting bracket or shroud, reducing vibration and keeping the fan aligned so air circulates properly for consistent cooling.

• Secures the fan motor to its bracket or shroud
• Maintains proper fan alignment and clearance for consistent airflow
• Helps reduce vibration, buzzing, or rattling from a loose motor
• A worn or missing retainer may present as scraping fan noises or uneven airflow

• Disconnect power to the refrigerator before servicing; allow moving parts to stop and wear cut-resistant gloves
• Access the fan area per your model
• Transfer the motor into the new retainer and reinstall using existing hardware as required
• Ensure the fan blade spins freely and clears the shroud before restoring power

Air scoop for side-by-side refrigerators. Directs airflow in the freezer compartment. Replace if cracked, broken, or missing for proper air circulation.

Freezer icing up or not defrosting? This refrigerator defrost thermostat monitors evaporator coil temperature. DIY repair in 15-30 minutes with video.

Fridge not cooling but freezer works? Squeaking or chirping noise? A failed evaporator fan motor stops cold air circulation. DIY repair with video guide.

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Excessive frost in your freezer? This evaporator cover gasket seals the cover to prevent frost buildup and maintain consistent cooling performance.

Refrigerator warm but freezer cold? Noisy evaporator fan? This mounting grommet reduces vibration and noise. Takes about 1 hour to replace with video guide.

Molded plastic deflector that directs cold air around the icemaker assembly. Replace if cracked, broken, or missing to restore proper airflow routing.

Wire harness assembly that connects electrical components in your refrigerator. Replace if wiring is damaged, frayed, melted, or causing connection issues.

This fan scroll gasket seals the evaporator/fan housing to prevent air bypass and maintain proper airflow through the evaporator. Replacing a worn gasket helps restore efficient cooling and reduces frost buildup. What it does:

• Seals the fan scroll/evaporator housing to direct cold air through the evaporator fins
• Prevents air leaks that can cause reduced cooling or temperature fluctuations
• Helps reduce frost or ice buildup by ensuring consistent airflow over the coil
• Can reduce abnormal fan noise caused by air turbulence around a damaged seal

• Disconnect power to the appliance before beginning any work.
• Remove the evaporator/fan housing cover and carefully pull out the old gasket.
• Clean mating surfaces of debris and residue for a flush seal before installing the new gasket.
• Seat the gasket fully around the scroll; reassemble panels and restore power to test operation.

Replacement door gasket seals your refrigerator to maintain temperature and prevent air leaks. Replace when worn or cracked to restore efficiency.

This is a single OEM replacement screw used to secure panels and components on compatible appliances. It restores proper fit and prevents loose or vibrating parts for a safer, more reliable repair. What it does

• Secures panels, brackets, and small components in appliance assemblies
• Restores proper alignment and fit when original screw is missing or damaged
• Prevents rattling, vibration noise, and parts shifting during operation
• Works where the OEM specifies this exact screw size and thread

• One replacement screw

• Unplug the appliance or shut off power before servicing
• Use the matching driver and avoid over-tightening to prevent stripping threads
• Verify correct screw length and thread engagement for the mounting point
• If other fasteners appear worn or damaged, inspect and replace as needed

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Support plate kit for refrigerators. Includes left and right side mounting plates. Replace if cracked, broken, or missing to restore proper support.

Support plate kit for refrigerators. Includes left and right side mounting plates. Replace if cracked, broken, or missing to restore proper support.
