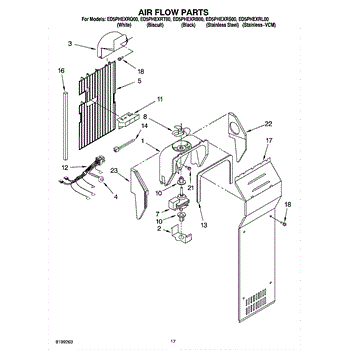

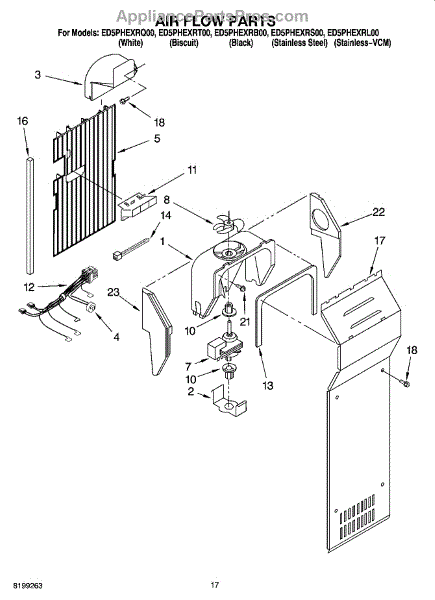

Parts for Whirlpool ED5PHEXRT00: 10 - Air Flow Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

This is a metal mounting bracket that secures the evaporator fan motor in place inside the freezer compartment. It ensures the fan motor is properly positioned to circulate cold air throughout the refrigerator and freezer sections. Replace this bracket if the fan motor is loose, vibrating excessively, or if the original bracket is cracked or bent.

This fan motor retainer secures the refrigerator's fan motor to its mounting bracket or shroud, reducing vibration and keeping the fan aligned so air circulates properly for consistent cooling.

• Secures the fan motor to its bracket or shroud
• Maintains proper fan alignment and clearance for consistent airflow
• Helps reduce vibration, buzzing, or rattling from a loose motor
• A worn or missing retainer may present as scraping fan noises or uneven airflow

• Disconnect power to the refrigerator before servicing; allow moving parts to stop and wear cut-resistant gloves
• Access the fan area per your model
• Transfer the motor into the new retainer and reinstall using existing hardware as required
• Ensure the fan blade spins freely and clears the shroud before restoring power

Freezer icing up or not defrosting? This refrigerator defrost thermostat monitors evaporator coil temperature. DIY repair in 15-30 minutes with video.

Refrigerator not cooling or freezer warming up? A failed evaporator fan motor stops cold air circulation. DIY repair takes about 1 hour with basic tools.

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Refrigerator warm but freezer cold? Noisy evaporator fan? This mounting grommet reduces vibration and noise. Takes about 1 hour to replace with video guide.

Molded plastic deflector that directs cold air around the icemaker assembly. Replace if cracked, broken, or missing to restore proper airflow routing.

Complete wire harness assembly that restores electrical connections in your refrigerator. Replace when wires are damaged, connectors are broken, or worn.

This fan scroll gasket seals the evaporator/fan housing to prevent air bypass and maintain proper airflow through the evaporator. Replacing a worn gasket helps restore efficient cooling and reduces frost buildup. What it does:

• Seals the fan scroll/evaporator housing to direct cold air through the evaporator fins
• Prevents air leaks that can cause reduced cooling or temperature fluctuations
• Helps reduce frost or ice buildup by ensuring consistent airflow over the coil
• Can reduce abnormal fan noise caused by air turbulence around a damaged seal

• Disconnect power to the appliance before beginning any work.
• Remove the evaporator/fan housing cover and carefully pull out the old gasket.
• Clean mating surfaces of debris and residue for a flush seal before installing the new gasket.
• Seat the gasket fully around the scroll; reassemble panels and restore power to test operation.

Replacement door gasket seals your refrigerator to maintain temperature and prevent air leaks. Replace when worn or cracked to restore efficiency.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Support plate kit for refrigerators. Includes left and right side mounting plates. Replace if cracked, broken, or missing to restore proper support.

Support plate kit for refrigerators. Includes left and right side mounting plates. Replace if cracked, broken, or missing to restore proper support.
