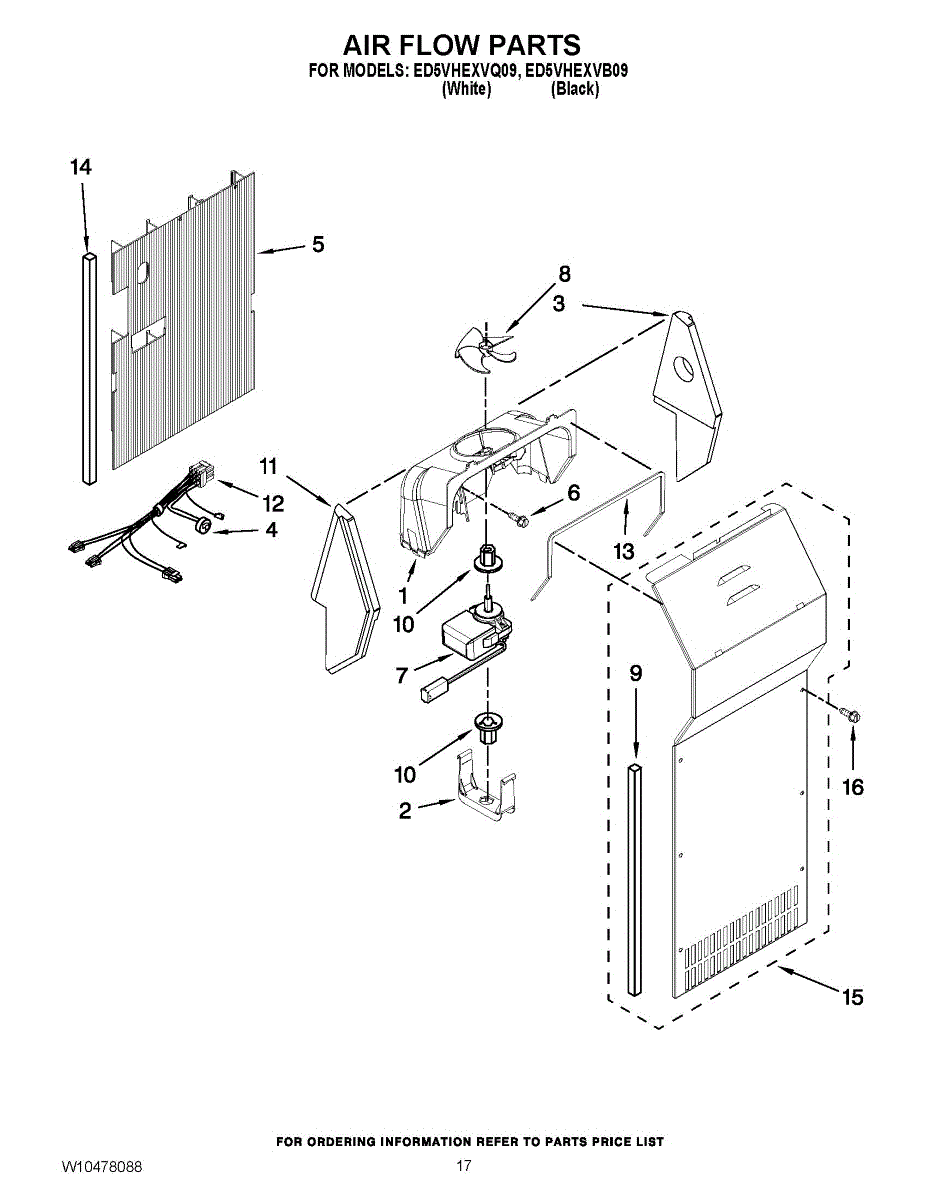

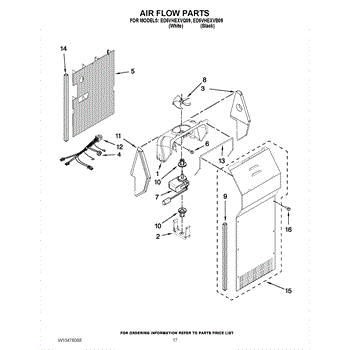

Parts for Whirlpool ED5VHEXVB09: 10 - Air Flow Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Fixes uneven cooling and warm refrigerator temperatures caused by poor airflow. This fan housing directs cold air from freezer to fridge. Easy 30-minute fix.

This fan motor retainer secures the refrigerator's fan motor to its mounting bracket or shroud, reducing vibration and keeping the fan aligned so air circulates properly for consistent cooling.

• Secures the fan motor to its bracket or shroud
• Maintains proper fan alignment and clearance for consistent airflow
• Helps reduce vibration, buzzing, or rattling from a loose motor
• A worn or missing retainer may present as scraping fan noises or uneven airflow

• Disconnect power to the refrigerator before servicing; allow moving parts to stop and wear cut-resistant gloves
• Access the fan area per your model
• Transfer the motor into the new retainer and reinstall using existing hardware as required
• Ensure the fan blade spins freely and clears the shroud before restoring power

Support plate kit for refrigerators. Includes left and right side mounting plates. Replace if cracked, broken, or missing to restore proper support.

Freezer icing up or not defrosting? This refrigerator defrost thermostat monitors evaporator coil temperature. DIY repair in 15-30 minutes with video.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Refrigerator not cooling or freezer warming up? A failed evaporator fan motor stops cold air circulation. DIY repair takes about 1 hour with basic tools.

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Excessive frost in your freezer? This evaporator cover gasket seals the cover to prevent frost buildup and maintain consistent cooling performance.

Refrigerator warm but freezer cold? Noisy evaporator fan? This mounting grommet reduces vibration and noise. Takes about 1 hour to replace with video guide.

Support plate kit for refrigerators. Includes left and right side mounting plates. Replace if cracked, broken, or missing to restore proper support.

This wire harness assembly connects key electrical components to restore proper power and signal flow in the appliance. Replacing a faulty harness helps stop intermittent operation and restores reliable control function. What it does:

• Provides the factory routing and connections between controls, switches, and motors.
• Re-establishes power and signal paths to prevent intermittent or no-power symptoms.
• Stops failures caused by broken, burnt, or loose wires and terminals.
• Ensures secure plug-to-plug connections using original-style terminals.

• Disconnect the appliance from power (and water if applicable) before starting.
• Inspect connectors and routing; replace only if matching the original harness.
• Reuse any mounting clips or grommets; secure wires away from heat and moving parts.

This fan scroll gasket seals the evaporator/fan housing to prevent air bypass and maintain proper airflow through the evaporator. Replacing a worn gasket helps restore efficient cooling and reduces frost buildup. What it does:

• Seals the fan scroll/evaporator housing to direct cold air through the evaporator fins
• Prevents air leaks that can cause reduced cooling or temperature fluctuations
• Helps reduce frost or ice buildup by ensuring consistent airflow over the coil
• Can reduce abnormal fan noise caused by air turbulence around a damaged seal

• Disconnect power to the appliance before beginning any work.
• Remove the evaporator/fan housing cover and carefully pull out the old gasket.
• Clean mating surfaces of debris and residue for a flush seal before installing the new gasket.
• Seat the gasket fully around the scroll; reassemble panels and restore power to test operation.

Replacement door gasket seals your refrigerator to maintain temperature and prevent air leaks. Replace when worn or cracked to restore efficiency.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.
