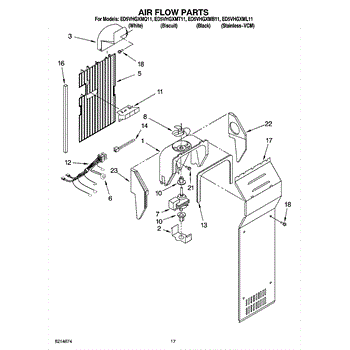

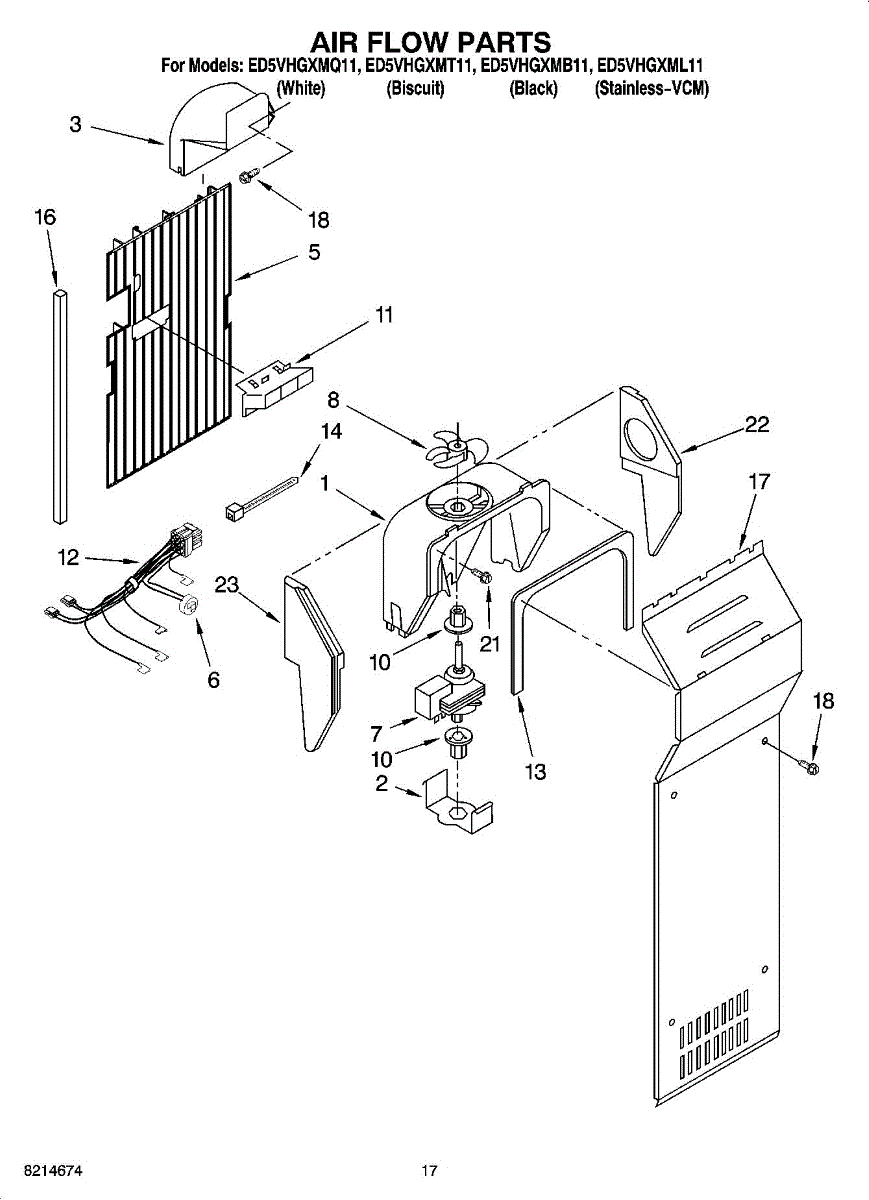

Parts for Whirlpool ED5VHGXML11: 10 - Air Flow Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This fan scroll is the plastic housing that surrounds the evaporator fan in the freezer section. It directs air across the evaporator coils and into the ducts, helping your refrigerator move cold air evenly and maintain stable temperatures.

• Channels airflow from the evaporator fan through the coils and into the air ducts
• Helps balance cooling between freezer and fresh food compartments
• Positions the fan motor and blade for proper clearance and reduced vibration
• If cracked, warped, or missing, you may notice weak airflow, temperature swings, rattling noises, or frost buildup on the evaporator cover

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan area
• Transfer the existing fan motor, blade, and hardware to the new scroll
• The fan spins freely and wiring is clear before reassembly and restoring power

This fan motor retainer secures the refrigerator's fan motor to its mounting bracket or shroud, reducing vibration and keeping the fan aligned so air circulates properly for consistent cooling.

• Secures the fan motor to its bracket or shroud
• Maintains proper fan alignment and clearance for consistent airflow
• Helps reduce vibration, buzzing, or rattling from a loose motor
• A worn or missing retainer may present as scraping fan noises or uneven airflow

• Disconnect power to the refrigerator before servicing; allow moving parts to stop and wear cut-resistant gloves
• Access the fan area per your model
• Transfer the motor into the new retainer and reinstall using existing hardware as required
• Ensure the fan blade spins freely and clears the shroud before restoring power

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. It is responsible for monitoring the temperature of the evaporator coils. When the coils reach a certain temperature, the thermostat signals the defrost heater to turn on and melt any ice or frost buildup. This ensures proper airflow and prevents excessive ice formation.

Causes of a bad defrost thermostat can be attributed to normal wear and tear over time or electrical malfunctions.

Symptoms of a bad defrost thermostat include:

• Excessive ice buildup in the freezer section.
• Inadequate cooling in the refrigerator compartment.
• Frost or ice accumulating on the evaporator coils.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Evaporator Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the refrigerator compartment, it powers the evaporator fan, which circulates air across the cooling coils. This is the motor only. For the blade order part number WP2169142.

Symptoms of a bad evaporator fan motor include:

• No air movement detected coming from vents inside the refrigerator
• Warmer internal temperatures due to inadequate air circulation
• Strange grinding or knocking noises emanating from the rear wall

Causes of failure can be normal wear over time, accumulation of dust obstructing fan blades, or damage to motor windings from moisture penetration.

This OEM part is also compatible with KitchenAid, Jenn-Air, Admiral, and Kenmore refrigerator models.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Motor Grommet is an OEM part for Whirlpool refrigerators. It is designed to provide a secure and vibration-free mounting for the evaporator fan motor, ensuring proper operation and reducing noise.

Causes of a faulty evaporator fan motor grommet can include wear and tear over time, damage from excessive vibrations or impact, or deterioration due to temperature changes.

Symptoms of a bad evaporator fan motor grommet may include:

• Excessive noise or rattling coming from the refrigerator
• Poor cooling performance or uneven temperatures inside the refrigerator
• Fan motor instability or misalignment

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This molded air deflector directs cold freezer airflow around the icemaker assembly to help maintain consistent ice production and reduce partial fills. It's a simple replacement that restores proper air routing inside the freezer compartment. What it does:

• Guides cold air to and around the icemaker so the unit can cool evenly
• Helps prevent warm-air pockets that can cause small or misshapen ice
• Restores intended airflow after a cracked or missing deflector
• Passive part with no electrical components or adjustments

• One icemaker air deflector

• Basic snap- or screw-in replacement; inspect mounting tabs for damage before installing
• Turn off power to the refrigerator before accessing the icemaker area
• Handle plastic parts carefully to avoid cracking mounting clips

Replacement wire harness that restores electrical connections between the appliance control, power and components for reliable operation and correct signaling. Use this complete wiring assembly when damaged wires or connectors cause power or control issues. What it does:

• Routes power and signal conductors between the control board, switches, motors and sensors.
• Replaces damaged, frayed or melted wiring and broken connectors that can cause intermittent operation, no-start or control failures.
• Restores factory-style plug connections and routing to help prevent miswiring and shorts.
• Matches the original connector shapes and wire colors for straightforward replacement.

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or injury.
• Remove and replace the harness by disconnecting connectors at the control and components; handle connectors by the plastic bodies, not the wires.
• Route the harness along the original path and secure with existing clips or fasteners to prevent rubbing or heat exposure.

This fan scroll gasket seals the evaporator/fan housing to prevent air bypass and maintain proper airflow through the evaporator. Replacing a worn gasket helps restore efficient cooling and reduces frost buildup. What it does:

• Seals the fan scroll/evaporator housing to direct cold air through the evaporator fins
• Prevents air leaks that can cause reduced cooling or temperature fluctuations
• Helps reduce frost or ice buildup by ensuring consistent airflow over the coil
• Can reduce abnormal fan noise caused by air turbulence around a damaged seal

• Disconnect power to the appliance before beginning any work.
• Remove the evaporator/fan housing cover and carefully pull out the old gasket.
• Clean mating surfaces of debris and residue for a flush seal before installing the new gasket.
• Seat the gasket fully around the scroll; reassemble panels and restore power to test operation.

This replacement gasket seals the appliance door to help maintain proper temperature and prevent leaks, keeping the interior efficient and protected. Use it to restore a tight door seal and reduce energy loss from gaps. What it does:

• Forms a secure seal around the door to keep heat or cold inside the appliance
• Prevents water, steam, and air leaks that can cause poor performance or messes
• Helps maintain consistent internal temperature for efficient operation
• Reduces cycling and energy waste caused by a damaged or worn seal

• One replacement gasket

• Disconnect power and empty the appliance before starting any repair
• Inspect the door frame and mounting channel for damage or debris before installing
• Install by seating gasket evenly into the channel or following the OEM mounting clips/adhesive method

This is a single OEM replacement screw used to secure panels and components on compatible appliances. It restores proper fit and prevents loose or vibrating parts for a safer, more reliable repair. What it does

• Secures panels, brackets, and small components in appliance assemblies
• Restores proper alignment and fit when original screw is missing or damaged
• Prevents rattling, vibration noise, and parts shifting during operation
• Works where the OEM specifies this exact screw size and thread

• One replacement screw

• Unplug the appliance or shut off power before servicing
• Use the matching driver and avoid over-tightening to prevent stripping threads
• Verify correct screw length and thread engagement for the mounting point
• If other fasteners appear worn or damaged, inspect and replace as needed

Size: 8 x 1/2 ab.

Includes both right and left hand sides.

Includes both right and left hand sides.
