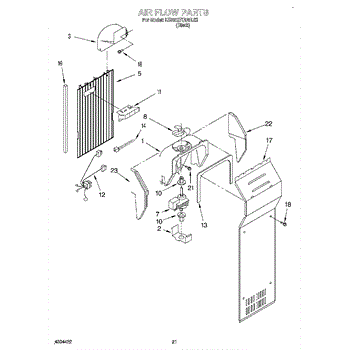

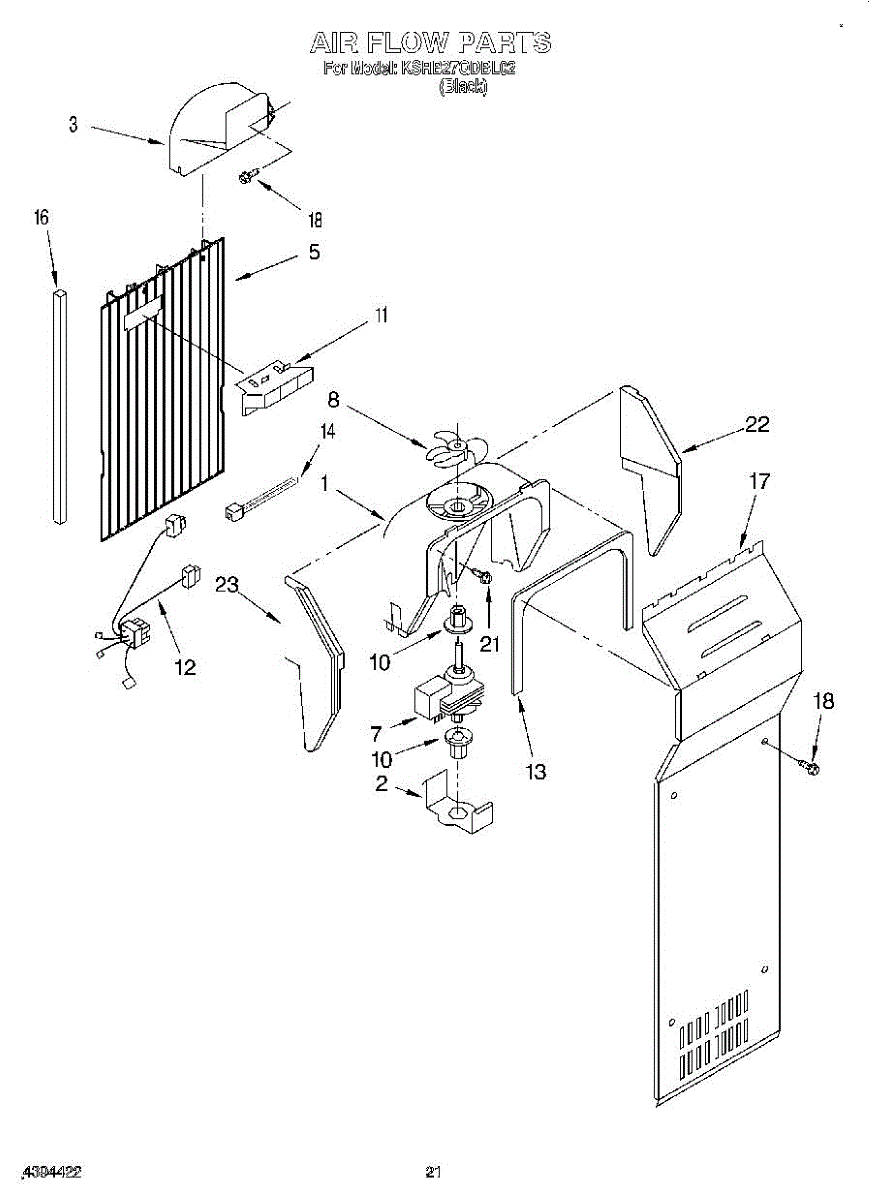

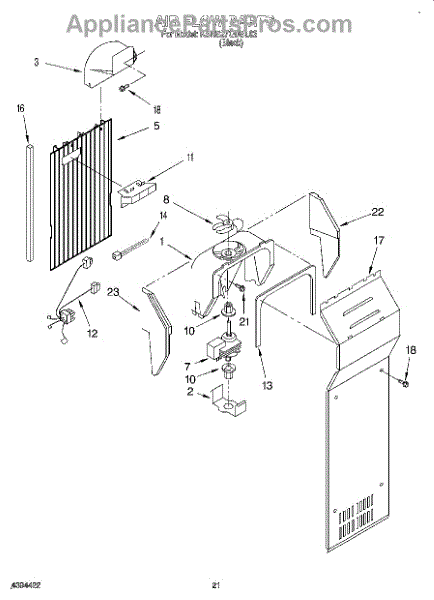

Parts for Kitchenaid KSRB27QDBL02: 12 - Airflow, Lit / Optional Parts

This fan scroll is the plastic housing that surrounds the evaporator fan in the freezer section. It directs air across the evaporator coils and into the ducts, helping your refrigerator move cold air evenly and maintain stable temperatures.

• Channels airflow from the evaporator fan through the coils and into the air ducts
• Helps balance cooling between freezer and fresh food compartments
• Positions the fan motor and blade for proper clearance and reduced vibration
• If cracked, warped, or missing, you may notice weak airflow, temperature swings, rattling noises, or frost buildup on the evaporator cover

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan area
• Transfer the existing fan motor, blade, and hardware to the new scroll
• The fan spins freely and wiring is clear before reassembly and restoring power

This fan motor retainer secures the refrigerator's fan motor to its mounting bracket or shroud, reducing vibration and keeping the fan aligned so air circulates properly for consistent cooling.

• Secures the fan motor to its bracket or shroud
• Maintains proper fan alignment and clearance for consistent airflow
• Helps reduce vibration, buzzing, or rattling from a loose motor
• A worn or missing retainer may present as scraping fan noises or uneven airflow

• Disconnect power to the refrigerator before servicing; allow moving parts to stop and wear cut-resistant gloves
• Access the fan area per your model
• Transfer the motor into the new retainer and reinstall using existing hardware as required
• Ensure the fan blade spins freely and clears the shroud before restoring power

The Evaporator Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the refrigerator compartment, it powers the evaporator fan, which circulates air across the cooling coils. This is the motor only. For the blade order part number WP2169142.

Symptoms of a bad evaporator fan motor include:

• No air movement detected coming from vents inside the refrigerator
• Warmer internal temperatures due to inadequate air circulation
• Strange grinding or knocking noises emanating from the rear wall

Causes of failure can be normal wear over time, accumulation of dust obstructing fan blades, or damage to motor windings from moisture penetration.

This OEM part is also compatible with KitchenAid, Jenn-Air, Admiral, and Kenmore refrigerator models.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Motor Grommet is an OEM part for Whirlpool refrigerators. It is designed to provide a secure and vibration-free mounting for the evaporator fan motor, ensuring proper operation and reducing noise.

Causes of a faulty evaporator fan motor grommet can include wear and tear over time, damage from excessive vibrations or impact, or deterioration due to temperature changes.

Symptoms of a bad evaporator fan motor grommet may include:

• Excessive noise or rattling coming from the refrigerator
• Poor cooling performance or uneven temperatures inside the refrigerator
• Fan motor instability or misalignment

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This molded air deflector directs cold freezer airflow around the icemaker assembly to help maintain consistent ice production and reduce partial fills. It's a simple replacement that restores proper air routing inside the freezer compartment. What it does:

• Guides cold air to and around the icemaker so the unit can cool evenly
• Helps prevent warm-air pockets that can cause small or misshapen ice
• Restores intended airflow after a cracked or missing deflector
• Passive part with no electrical components or adjustments

• One icemaker air deflector

• Basic snap- or screw-in replacement; inspect mounting tabs for damage before installing
• Turn off power to the refrigerator before accessing the icemaker area
• Handle plastic parts carefully to avoid cracking mounting clips

This fan scroll gasket seals the evaporator/fan housing to prevent air bypass and maintain proper airflow through the evaporator. Replacing a worn gasket helps restore efficient cooling and reduces frost buildup. What it does:

• Seals the fan scroll/evaporator housing to direct cold air through the evaporator fins
• Prevents air leaks that can cause reduced cooling or temperature fluctuations
• Helps reduce frost or ice buildup by ensuring consistent airflow over the coil
• Can reduce abnormal fan noise caused by air turbulence around a damaged seal

• Disconnect power to the appliance before beginning any work.
• Remove the evaporator/fan housing cover and carefully pull out the old gasket.
• Clean mating surfaces of debris and residue for a flush seal before installing the new gasket.
• Seat the gasket fully around the scroll; reassemble panels and restore power to test operation.

This evaporator cover gasket seals the evaporator cover to help maintain proper airflow and reduce moisture intrusion in the freezer compartment. It restores the evaporator cover seal to help prevent frost buildup and maintain consistent cooling. What it does:

• Seals the evaporator cover to limit air/moisture exchange that can cause frost and ice buildup.
• Helps maintain designed airflow over the evaporator for more consistent temperature control.
• Reduces the chance of excessive frost on evaporator fins and associated freezer performance issues.
• Commonly used when you see frost accumulation, frequent defrosting, or reduced freezer efficiency.

• Disconnect power to the appliance before beginning any work to avoid electrical shock.
• Allow the evaporator area to fully defrost and dry before installing the new gasket.
• Remove the evaporator cover carefully; take note of fastener locations and any clips for correct reassembly.
• Inspect surrounding components and replace any damaged parts to ensure a proper seal.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 8 x 1/2 ab.

Includes both right and left hand sides.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Epoxy repair kit - aluminum tubing.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Includes both right and left hand sides.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 13 oz. Spray paint primer. can.

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Container Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the ice bin, where ice is collected, and often features integrated mechanisms or augers for dispensing ice through the refrigerator's door.

Causes of a bad Ice Container Assembly can include cracks or damage to the bin, which can lead to ice leaks or accumulation in the freezer; wear or malfunction of the dispensing mechanism, affecting its ability to deliver ice.

Symptoms of a bad Ice Container Assembly include:

• Difficulty in dispensing ice or complete failure to dispense
• Ice accumulation outside of the bin, indicating a potential crack or gap
• Excessive frost or ice buildup restricting the assembly's movement
• Noticeable cracks or damage to the ice container itself

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Note: This is the complete horizontal ice dispenser bucket assembly with a crusher. It fits 25 and 27-cubic-foot refrigerator models. For 20 cubic foot models order WP2209778. For 22 cubic foot models order WPW10312301.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
