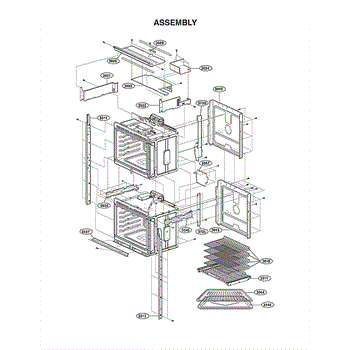

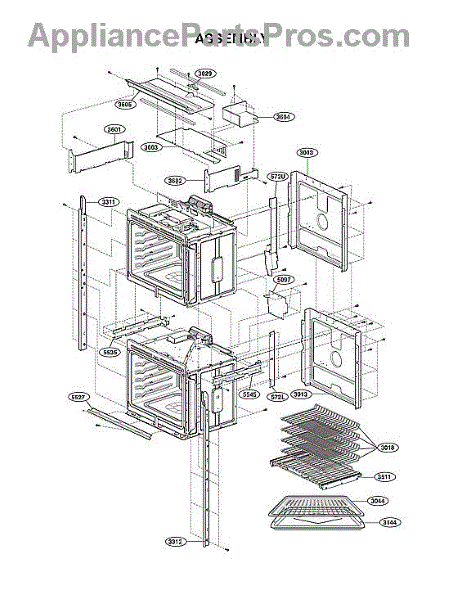

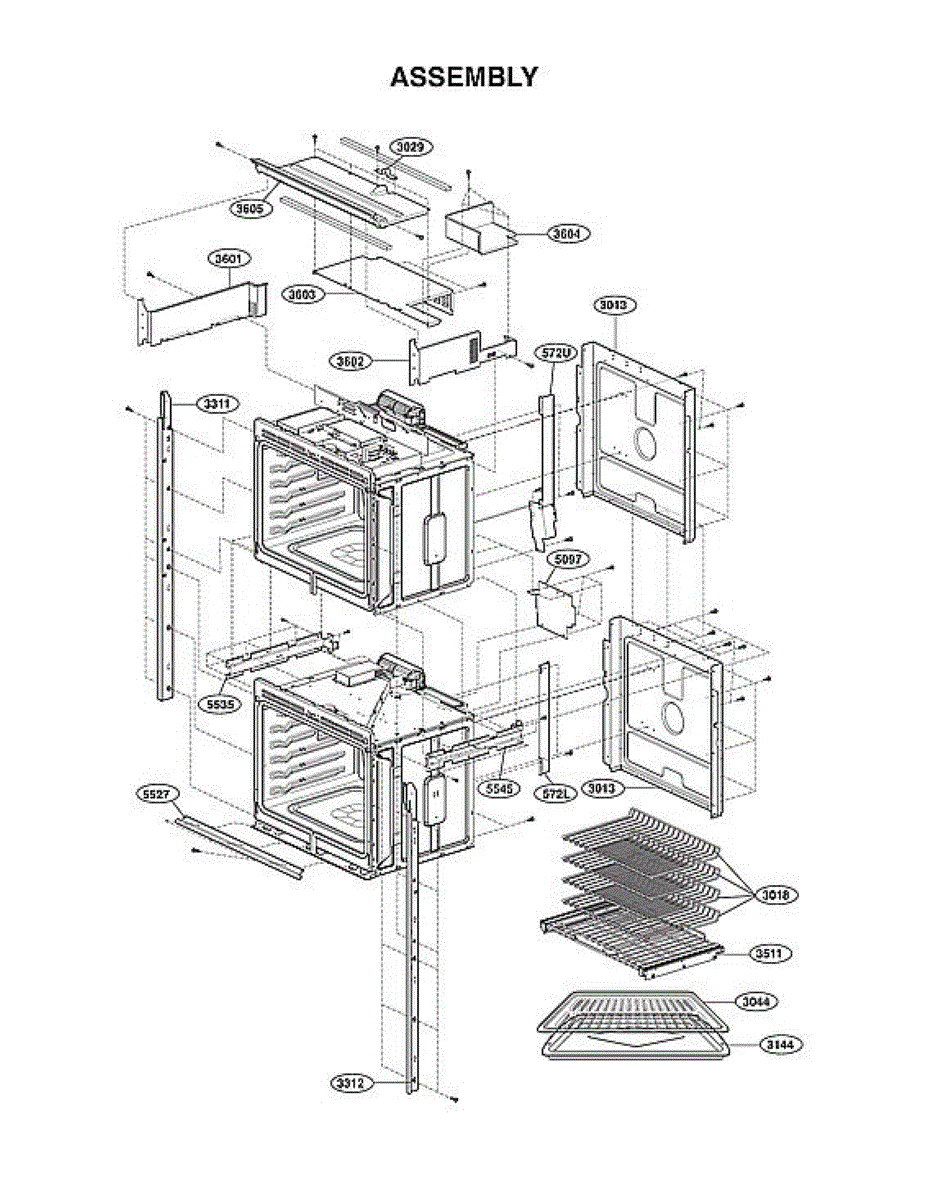

Parts for Lg LSWD300BD/00: Assembly Parts

This is a replacement screw used to secure appliance components and panels. It restores proper fastening where a stripped, missing, or damaged screw causes loose parts or rattling. What it does:

• Fastens panels, trim, or internal components to maintain structural fit
• Helps stop vibration-related noise from loose assemblies
• Replaces missing or corroded screws that prevent proper closures
• Restores secure mounting after repairs or disassembly

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not over-torque to prevent thread damage
• Keep small parts away from children and pets
• Disconnect power or water before accessing internal parts

This customized washer is a small hardware piece that secures fasteners and helps distribute load where screws or bolts attach to appliance components. It restores proper fit and reduces movement at the connection point. What it does:

• Provides a stable bearing surface for screws or bolts to prevent pull-through and material damage
• Helps keep fasteners tight and reduces vibration-related loosening or rattling
• Maintains correct spacing and alignment of panels or internal parts
• Can help form a seal on fasteners in locations prone to vibration or minor movement

• Disconnect power and water (if applicable) before servicing the appliance
• Retain or replace the associated fastener; small parts can be easily lost—work on a clean surface

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

The Screw is an OEM component specifically designed for LG ranges. It plays an important mounting and fastening role by securely attaching internal components together.

The screws utilized within the range cabinet ensure sturdy construction and reliable mechanical cohesion. They allow for simple assembly and proper alignment of inner parts.

Causes of bad screws can include wear and tear over time, or damage from overtightening leading to stripped threads or heads.

Symptoms of bad screws include:

• Loose, detached, or misaligned inner parts
• Hardware that does not fit or interface as designed
• Unintended noises or movement during the operation

This OEM LG replacement part is also compatible with Sears/Kenmore and some GE ranges utilizing similar fasteners. Replacement ensures the range remains mechanically sound.


This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

The Module Display PCB Assembly is an OEM component specifically designed for LG dishwashers. Housed within the electronic control panel, this printed circuit board routes signals between control buttons and the dishwasher module. Integrated circuits process commands to start cycles and display settings through LED indicators.

Causes of a bad module display PCB can include water damage into circuit paths, voltage fluctuations over time, or loose connections. Without a functioning interface, users are unable to select wash cycles or check cycle status.

Symptoms of a bad module display PCB include:

• Blank or unresponsive control panel
• Inoperable buttons and dials
• Erratic lights and buzzers during cycles
• Diagnostic error codes shown

This LG OEM replacement restores dependable controls. Compatible also with Kenmore Elite dishwasher models, it provides a direct fit and easy restoration of washing functions. Proper installation protects future operations while maintaining convenience.

This control board assembly directs power and communication to key components, interpreting inputs and sensor signals so the appliance runs the correct functions and cycles. Replaces a failed electronics module to restore reliable operation.

• Distributes power and control signals to major components per the unit's programmed logic
• Interfaces with sensors and the user controls to execute selected functions
• Coordinates cycle timing and safety monitoring
• Common signs of failure: no power or won't start, unresponsive controls/display, intermittent operation, error codes, or unexpected shutdowns

• Disconnect power to the appliance before servicing
• Handle the board by the edges; use ESD protection to avoid static damage
• Photograph and label connectors, then transfer them one at a time to the new board
• Secure wiring to avoid pinching; follow the unit's tech sheet or service manual

The Encoder Board is an OEM part for LG ovens. This board is responsible for interpreting the inputs from the control knobs and buttons on the oven's control panel. It sends these signals to the main control board, which then adjusts the oven settings accordingly, such as temperature and cooking mode.

Causes of a bad encoder board can include electrical surges, wear and tear from frequent use, or physical damage to the board's components. A malfunctioning encoder board can disrupt the communication between the user interface and the oven's control system.

Symptoms of a bad encoder board include:

• Unresponsive control knobs or buttons
• Incorrect oven temperature settings
• Oven not starting or turning off unexpectedly
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore.

This power control board manages incoming power and coordinates your appliance's key functions. Replacing a failed board can restore power and responsiveness when the unit is dead, erratic, or will not start.

• Distributes and regulates power to key components according to programmed control logic
• Interfaces with sensors and the user interface to execute operations
• Visual signs can include heat damage or burned spots on the original board, or repeated relay clicking from the control area

• Disconnect power to the appliance before servicing; verify no voltage is present
• Use ESD protection and handle the board by the edges to avoid static damage
• Photograph/label harnesses, then move each connector one at a time to the matching location on the new board; transfer any brackets or jumpers from the old board if present
• Ensure all connectors are fully seated and wiring is routed clear of sharp edges before restoring power

This single wiring harness connects electrical components to restore power and signal paths in your appliance. It replaces a damaged or worn harness to help appliances operate reliably and safely. What it does:

• Routes power and signal between controls, sensors, and motors
• Replaces frayed, burned, or broken wiring that causes intermittent power or failures
• Helps stop shorts, erratic behavior, or components that won't receive power
• Matches OEM connector ends and wire colors for a direct replacement when the OEM part is specified

• Disconnect power and unplug the appliance before starting any repair
• Compare the harness to the original before installing
• Secure routing to avoid pinching, chafing, or contact with hot surfaces

Replacement window glass that restores a clear viewing area in the appliance door and helps maintain a clean, sealed surface. Ideal for replacing cracked, chipped, or cloudy glass to improve visibility and safety. What it does:

• Provides a transparent viewing window so you can monitor cycles without opening the door.
• Replaces cracked, chipped, or fogged glass to restore appearance and function.
• Serves as the door's viewing surface and works with the door assembly and trim.
• Inspect surrounding gaskets, trim, and fasteners when replacing the glass to ensure a proper fit.

• Disconnect power (and water, if applicable) before attempting any repair.
• Wear cut-resistant gloves and eye protection when handling or removing glass.
• Door disassembly and removal of trim or retaining clips is commonly required.
• If the glass is shattered, remove broken pieces carefully and dispose of them per local regulations.

This inner cover is the OEM replacement panel that protects internal components and wiring inside the appliance while restoring the unit's finished interior appearance. It helps block debris, moisture, and accidental contact with internal parts. What it does:

• Shields internal components and wiring from debris and accidental contact
• Restores the appliance's interior finish and fit where an inner panel was cracked or missing
• Helps reduce rattling or noise caused by loose or damaged interior panels
• Prevents moisture or small objects from reaching control areas or openings

• Disconnect power (and water, if applicable) before starting any repair.
• Removing the outer cabinet or adjacent trim may be required; retain all fasteners.
• Use appropriate hand tools and avoid over-tightening to prevent damage to clips or mounting points.

The Supporter is an OEM part for LG wall ovens. This part offers stability and support to the temperature control knob. This shaft is a pivotal component that connects the control knob to the internal temperature control mechanisms, ensuring precise adjustments to the oven's heating settings.

Over time, the Supporter can wear out or become damaged due to frequent use, accidental impacts, or general wear and tear.

Symptoms of a bad Supporter include:

• Loose or wobbly temperature control knob
• Difficulty in adjusting the oven temperature
• The control knob failing to engage with the temperature settings
• The knob coming off due to a lack of support

This OEM LG part is also compatible with some Kenmore models.

The Supporter Rail is an OEM component specifically designed for LG ranges. Located inside the oven cavity, the durable steel rail steadies and spaces baking racks during heating. Its precisely drilled ventilation holes allow air circulation around cookware.

Symptoms of a bad supporter rail include:

• Rack instability causes pans to shift or bake unevenly
• Permanent stains or burning beneath rack position
• Warped or misshapen rail inhibiting proper rack fit

Causes involve prolonged exposure to maximum oven temperatures deforming metal over time. Residual spills may corrode protective seasoning.

This authentic LG part restores reliable rack guidance and optimized air circulation for mess-free cooking. Customized for maximized usable space, it facilitates multiple rack baking with confidence. Replace to enjoy stable performance satisfying brand quality and safety expectations for years of cooking enjoyment.

This OEM LG rail also fits select Kenmore and Frigidaire ranges.

This single wiring harness routes electrical power and signals between components to restore proper connections and reliable operation. It replaces a damaged or worn harness to help eliminate intermittent power or control issues. What it does:

• Transfers power and control signals between appliance components to maintain proper function
• Replaces frayed, burnt, or damaged wiring that can cause intermittent operation or component failure
• Helps resolve symptoms like loss of power to a module, erratic behavior, or failure to respond
• Provides a direct plug-and-play connection when matching the correct factory harness

• Disconnect all power (unplug or switch off circuit breaker) before starting any work
• Handle connectors gently and seat firmly until they click into place

This is a single wiring harness that routes power and signals between appliance components to restore reliable electrical connections. It replaces a damaged or worn harness so controls and features can communicate properly. What it does:

• Carries power and control signals between specific components
• Restores interrupted circuits that can cause intermittent operation or component failures
• Helps resolve symptoms like no power to a component, inconsistent function, or error codes tied to open/shorted wiring
• Provides factory-style connectors for a direct fit and reliable connections

• Disconnect power (unplug or turn off breaker) before installing to avoid shock or damage
• Inspect connectors and routing, match connector types and wire colors before connecting
• Avoid pinching or sharply bending wires; secure harness using existing clips or ties

The PCB Supporter is an OEM part for LG ranges and cooktops. It securely mounts and positions the printed circuit board controlling cooking functions.

Causes of a bad PCB Supporter can include cracking or breaking of mounting clips over time due to normal range vibrations and use.

Symptoms of a bad PCB Supporter include:

• The control board detaching during use
• Intermittent power to heating elements or displays
• Error messages regarding electrical component issues

This OEM LG part is also compatible with some Kenmore models.

This vacuum fluorescent display (VFD) module provides the front-panel readout for the appliance, restoring clear cycle, time and status information so you can read settings and alerts at a glance. What it does:

• Illuminates and displays timer, cycle status and basic messages on the control panel
• Restores missing or dim characters when the original display is blank or partially faded
• Shows error codes and indicators that help diagnose control or sensor issues
• Interfaces with the control board to present user feedback and settings

• One VFD display module (single unit)

• Disconnect power to the appliance before beginning any work to avoid shock or damage
• Handle the display and connectors carefully; avoid touching pins and exposed circuitry
• Installation typically requires removing the control console or front panel; save and reuse original fasteners and connectors when possible

The Spring is an OEM replacement part for LG ranges. Located within the oven door mechanism, this coiled metal spring helps counterbalance the weight of the door for smooth opening and closing.

Causes of a bad spring can include fatigue from repeated compression cycles over several years, as well as stretching or damage from forced closure of an overloaded door.

Symptoms of a bad spring include:

• Difficulty lifting or closing the oven door
• Sagging or misaligned door that doesn't stay shut
• Loud squeaking or rubbing noises during use
• Broken, loose, or stretched coils losing tension

This OEM LG part is also compatible with Sears Kenmore ranges and select GE models.

A direct-replacement coil spring that restores tension and supports proper movement of the associated mechanism. Replaces a worn or broken spring to help the part it attaches to operate smoothly and reliably. What it does

• Provides restoring tension for the related linkage, hinge, or actuator.
• Helps maintain correct alignment and controlled movement of the assembly.
• Commonly replaced if the appliance part feels loose, droops, or does not return to position.
• Can reduce noise or binding caused by a weakened or broken spring.

• One coil spring.

• Disconnect power before beginning any repair and follow the appliance manufacturer's safety instructions.
• Handle the spring carefully; springs under tension can release suddenly—wear eye protection.
• Installation may require basic hand tools and access to the affected assembly.
• Only replace the spring with the exact part number specified for your model.

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.

This replacement shelf assembly restores a sturdy, level storage surface inside your refrigerator, helping you organize items and regain lost space when a shelf is cracked, missing, or no longer sits properly in its supports.

• Supports food containers and keeps items level within the compartment
• Slides into the side supports/rails for stable placement
• Replace if cracked, bowed, or unable to lock into position
• Common symptoms: broken or missing shelf, uneven seating, reduced storage capacity

• Remove items from the shelf area; lift out the damaged shelf
• Insert the new shelf into the side slots/rails and slide back until fully seated
• Ensure the shelf is level and locked into place before reloading items
• Handle edges carefully; avoid impact to prevent damage

The Heating Element is an OEM part for LG electric ranges. It serves a critical cooking function by using electric current to generate heat energy that cooks food inside the oven cavity. The heating element is constructed from flame-resistant and durable materials precisely designed to withstand high temperatures in a clean efficient manner.

Causes of a bad heating element can include mineral deposits on coils, cracks from overheating, or general wear over extended use.

Replacing a faulty element restores dependable oven performance.

Symptoms of a bad element include:

• Inefficient or uneven cooking temperatures
• Longer baking and cooking times
• Cracking or sagging coils affecting heat output
• Potential safety issues if damage exposes live wires

This element also fits the heating designs used in Jenn-Air and Frigidaire electric ovens.

This metal tray is a direct-replacement interior tray that supports cookware and catches drips to keep the appliance cavity clean and protect internal components. It restores a flat, stable surface for consistent cooking and storage. What it does:

• Provides a sturdy, heat-resistant surface for pans, dishes, or food items
• Catches spills and drips to help keep the appliance interior cleaner
• Replaces bent, dented, or corroded trays that no longer sit flat
• Helps maintain even airflow and stable placement of cookware during use

• One replacement metal tray

• Unplug the appliance or switch off power before inspecting or replacing parts
• Allow the appliance and tray to cool completely to avoid burns
• Handle edges carefully; metal parts can have sharp edges
• Install per the appliance's service manual or parts diagram; do not operate if the tray is damaged

This AC synchronous motor assembly drives the appliance's mechanical system for reliable, low-speed rotation where precise timing is required. Replaces a worn or failed motor to restore normal operation and reduce intermittent cycling or stopped movement. What it does

• Converts electrical input into consistent, timed rotational motion for dampers, valves, or other small-drive mechanisms.
• Helps resolve symptoms such as no movement, irregular or intermittent motion, or buzzing from the motor area.
• Designed for applications requiring accurate speed control and quiet operation.
• Matches OEM fit and function for direct replacement when the original synchronous motor has failed.

• 1 motor assembly

• Disconnect power before attempting service to avoid shock or injury.
• Inspect mounting, connectors, and wiring harness for damage; replace any worn fasteners or harness clips.
• Handle the motor and encoder carefully to avoid contamination or damage.

This metal tray replaces a damaged or missing oven drip tray so you can catch spills and roast or bake without mess. It restores a stable cooking surface and helps protect the oven floor from food and grease. What it does

• Catches drips, crumbs and grease to make cleanup faster and prevent baked-on messes
• Provides a flat, stable surface for pans and bakeware
• Helps maintain even airflow around foods for consistent cooking results
• Replaces trays that are bent, corroded, pierced or missing

• One metal oven/drip tray

• Allow the appliance to cool completely and unplug or disconnect power before installing
• Slide the tray into the oven's lower rack supports until it rests securely
• Handle with care—edges may be sharp; use gloves if needed
• Clean before first use per the appliance owner's cleaning instructions

This replacement part is a slide rack that has been manufactured by LG and is compatible with wall ovens. The slide rack is an internal component of the oven that provides a stable, heat-safe surface on which to balance cookware and place food inside the oven. Over time, this part could become bent, dented, warped, corroded, lost, or broken, requiring replacement. No tools are required to replace this part. Simply slide out the old rack and slide the new one into place. Ensure that oven is completely cooled down before attempting this to prevent serious burn injuries. This is a genuine OEM part that has been sourced directly from the manufacturer. This is an authentic part made of high-quality, durable, non-corrosive metal and is compatible with different wall ovens manufactured by LG and other brands. This part is only sold individually.

This small, board-mounted tactile push-button switch is used on the control panel. It registers a momentary press so the control board can accept your selection. Replacing a worn switch restores reliable button response and consistent operation.

• Mounts to the user interface board and provides momentary contact when a button is pressed
• Sends a low-voltage signal to the control, enabling cycle or option selection
• Typical failure symptoms: unresponsive or intermittent buttons, needing extra force to register, stuck/always-on input, or unintended beeps/changes
• Helps restore consistent user-interface input when an individual button switch has failed

• Disconnect power to the appliance before servicing; shut off gas/water if applicable
• Access the control panel to reach the user interface board
• This is a board-level repair; note switch orientation. Replacement may require desoldering/soldering per OEM procedure
• Use ESD precautions and avoid overheating PCB pads; test button function before reassembly

This single wire harness routes power and signals between components to restore proper electrical connections and enable normal operation. It replaces a damaged or frayed harness to fix intermittent power, failed controls, or non-starting issues. What it does:

• Transfers electrical power and control signals between modules and components
• Replaces broken, burned, or corroded wiring that can cause intermittent operation
• Helps address symptoms such as control errors, unresponsive buttons, or units that won't start
• Restores secure connector fit to prevent voltage drops and arcing

• Disconnect all power (unplug or shut off breaker) before service to avoid shock
• Compare connector count and pin layout to the original before installing
• Route harness away from heat sources and moving parts; secure with existing clips

The Thermostat is an OEM part for LG wall ovens. It is a temperature-sensitive cut-off switch located near the oven's heating elements that monitors interior temperatures and prevents overheating within the appliance.

Causes of a bad safety thermostat can be related to prolonged exposure to excessive heat inside the oven cavity, defects in the thermostat's microchip or coil components, or damage from corrosion or physical impact over time.

Symptoms of a failed hi-limit thermostat include:

• The oven's main thermostat clicking repeatedly but no temperature rise inside the cavity
• Unexpected shutdowns of the oven during heating cycles
• Smoking or burning smells coming from the oven area
• Tripped circuit breakers obstructing normal oven operation

This OEM LG part is also compatible with some Kenmore models.

The Thermistor is an OEM replacement part for LG gas ranges. It serves as a highly sensitive temperature sensor mounted inside the oven cavity.

Symptoms of a bad thermistor include:

• Inability to select certain cooking modes like bake or convection that involve temperature control
• Fluctuating or inaccurate temperature readouts on oven displays
• Irregular cooking outcomes like hot/cold spots inside the oven
• Repeated error codes regarding temperature sensing issues

Causes can be attributed to prolonged exposures to heat and intermittent combustion byproducts inside the oven. Over a decade of use, these conditions may degrade the thermal and electrical properties of sensor components.

This genuine LG replacement thermistor installs effortlessly. Installing a new thermistor restores temperature monitoring required for reliable gas oven performance.

This temperature sensor monitors internal appliance temperature and relays it to the electronic control so cycles run correctly. Replacing a faulty sensor restores accurate temperature feedback, helping the unit reach and maintain the set temperature.

• Detects temperature changes and sends a signal to the control board for proper operation
• Supports accurate heating/cooling and cycle timing based on real-time readings
• Direct replacement when the original reads open/short or out of range
• Common symptoms: incorrect temperatures, unusually long/short cycles, failure to reach set temperature, or sensor-related error codes

• Disconnect power before servicing and allow any hot components to cool
• Access the sensor, noting wire routing and connector orientation before removal
• Transfer any mounting clip/holder from the original if needed; seat the new sensor fully
• Route wiring away from moving or hot parts; restore power and run a test or cycle check

This thermostat is a temperature-sensitive safety switch used in LG microwaves. It monitors internal temperature and opens the circuit when overheating is detected to help protect components from heat damage.

• Monitors temperature at its mounting location inside the microwave
• Opens on overtemperature to interrupt power for safety
• Depending on model/location, a failed or open thermostat can cause no heat, the unit shutting off mid-cycle, or no power until it cools
• Helps prevent damage to the magnetron, cavity, and wiring due to overheating

• Unplug the microwave before service; the high-voltage capacitor can retain a dangerous charge
• Note wire positions, remove mounting screws, and install the new thermostat flat against the surface for proper heat sensing
• Reassemble and test; ensure vents and filters are clear to maintain proper airflow and prevent future overheating

This fan assembly replaces a worn or failed fan motor and blade to restore normal airflow and cooling performance. Fits units that use the listed part number to move air where needed for efficient operation. What it does:

• Spins to circulate air across coils or through the appliance for proper temperature control
• Helps remove heat from condenser or circulate cold air from evaporator depending on application
• Commonly needed when the fan is noisy, intermittently stops, or airflow is weak
• Supports overall system efficiency by maintaining designed airflow pathways

• Disconnect power before beginning any repair to avoid shock or injury
• Handle the blade and motor carefully; avoid bending the blade or damaging electrical connectors
• Use basic hand tools; mounting hardware may be reused if in good condition
• After installation, verify the fan runs smoothly and does not contact surrounding components

This replacement ring secures or positions a nearby appliance component to restore proper alignment and stable operation. It's a small but important part that helps reduce excess movement and related wear. What it does:

• Holds or locates a mating component to prevent unwanted movement or misalignment
• Helps reduce vibration and knocking noises caused by loose parts
• Restores correct spacing that maintains smooth mechanical operation
• Can prevent accelerated wear on adjacent parts when functioning properly

• Disconnect power (and water supply if applicable) before beginning any repair
• Access location may require removing panels or trim; keep fasteners organized
• Inspect surrounding parts for wear or damage and replace if needed

Replacement fan motor assembly that restores airflow and ventilation inside the appliance. Swapping a worn or failed fan reduces noise and helps maintain proper temperature and component cooling by restoring consistent air movement. What it does:

• Circulates air to maintain proper internal airflow and ventilation.
• Reduces or eliminates abnormal noises such as grinding, rattling, or squealing from a failing fan.
• Helps prevent component overheating by moving air across electronics or cooling surfaces.
• Can resolve symptoms like weak or no airflow and inconsistent cooling/venting performance.

• Disconnect power (unplug or shut off breaker) before accessing the appliance.
• Installation typically requires removing access panels; keep track of screws and mounting hardware.
• Handle electrical connectors carefully and reconnect wires to the original terminals; inspect harnesses for damage.
• After installation, restore power and verify the fan runs smoothly and quietly before reassembling all panels.

This blower motor housing mounts and aligns the microwave's cooling/vent fan motor and wheel to keep airflow moving through the oven and vent path. Replacing a damaged housing can restore proper airflow and reduce vibration and noise. What it does:

• Holds the blower motor and fan wheel in the correct position
• Directs cooling and exhaust air across components and out the vent path
• Maintains alignment to prevent fan wheel rubbing and vibration
• Typical symptoms: loud rattling/scraping near the vent area, weak venting, unit running hot or shutting off during use, visible cracks/warping of the housing

• 1 motor housing

• Disconnect power; for over-the-range units, remove the microwave from the wall to access the blower compartment
• Discharge the high-voltage capacitor before servicing internal components
• Transfer the blower motor and fan wheel to the new housing; match the original vent orientation
• Use care around sharp metal edges; retain and reuse the original mounting hardware

This insulator cushions and isolates appliance components to reduce vibration, prevent metal-to-metal contact, and protect parts from wear. It helps stop rattling and keeps mounted components seated properly. What it does:

• Cushions mounted components to reduce vibration and noise
• Provides a non-conductive barrier to help prevent unwanted contact
• Helps maintain proper alignment of panels or assemblies
• Can prevent wear where parts would otherwise rub or chafe

• Disconnect power to the appliance before starting any repair
• Typically installs with simple push-fit or screw mounting; keep existing fasteners if re-using

This terminal block connects the appliance power cord to the internal wiring, providing a secure, insulated point for line voltage. Replacing a worn or damaged terminal block restores a stable electrical connection and reduces arcing risk. What it does

• Secures incoming power leads and routes line voltage to the appliance wiring
• Prevents loose or intermittent power caused by cracked or burned terminals
• Helps stop visible sparking or overheating at the cord connection
• Supports strain relief so the power cord stays positioned correctly

• Disconnect power at the breaker or unplug the appliance before starting work
• Verify power is off with a meter; handle live wiring only
• Note wire placement and orientation before removal; transfer wires to the new block in the same order
• Tighten terminal screws securely and restore any strain-relief hardware

The Heating Element is an OEM part for LG ranges. It is responsible for providing heat to the oven cavity, allowing for proper cooking and baking.

The heating element is exposed to high temperatures with each use and over time can become brittle or defective. Causes of a bad heating element can include cracks in the coils, burn marks, or faulty electrical connections.

Symptoms of a bad heating element include:

• The oven not heating up or heating unevenly
• Diminished cooking power
• Burning or burning smell from the oven
• Tripped circuit breaker or blown fuse

Replace yours today with this genuine LG heating element and restore your oven's full cooking capabilities. This OEM LG part is also compatible with Sears/Kenmore.

This heater sheath is the protective cover that surrounds the dryer's heating element, helping protect wiring and other components from direct heat. It lets the heater run safely and reduces the chance of element contact with other parts. What it does:

• Covers and shields the heating element from contact with the dryer drum and internal components
• Helps maintain proper airflow around the heater assembly
• Can prevent arcing or shorting caused by a damaged or mispositioned element
• Commonly replaced when the sheath is cracked, deformed, or shows heat damage

• One heater sheath

• Disconnect power before starting — this part is part of the dryer's high-temperature electrical system
• Access usually requires removing the dryer front panel or drum per the model's service instructions
• Inspect the heating element, thermostats and wiring while the unit is open; replace any damaged components
• Use proper fasteners and routing to keep the sheath positioned so it does not contact the drum

This packing gasket creates a secure seal to help prevent leaks and air loss, protecting internal components and restoring proper appliance function. Use it to replace worn, cracked, or damaged seals. What it does:

• Forms a tight seal at a joint or door to stop water or air from escaping
• Helps maintain proper operating conditions and prevents moisture damage
• Stops common symptoms like visible leaks, drafts, or loss of cooling/heating
• Replaces torn, warped, flattened, or otherwise degraded gasket material

• Disconnect power and water before beginning any repair
• Remove the old gasket fully and clean the mating surface prior to installation
• Seat the new gasket evenly around the opening; trim only if explicitly specified by OEM instructions
• Test for leaks and proper operation after installation

This vent directs and channels airflow for proper ventilation in the appliance, restoring reliable exhaust or intake flow and helping prevent overheating or airflow-related performance issues. What it does:

• Channels exhaust or intake air where the appliance design requires
• Restores proper airflow to reduce overheating and improve performance
• Replaces cracked, deformed, or clogged vents that cause restricted airflow
• Can reduce unusual air-related noises caused by damaged venting

• One vent assembly

• Disconnect power (and water if applicable) before beginning any service
• Inspect surrounding ducting and seals; replace damaged gaskets or clamps for best results
• Secure the vent with the original fasteners; do not force or overtighten plastic tabs

Replace a burned-out microwave cooktop light with this halogen bulb. It restores bright, reliable illumination under your over-the-range microwave so you can see your cookware and workspace while cooking or as a night-light.

• Provides lighting for the cooktop/work area beneath the microwave
• Restores illumination when the original bulb is burned out, dim, or flickering
• Operates with the microwave's light switch/settings
• Common symptoms: no light or intermittent/flickering light

• Disconnect power at the breaker and allow the old bulb to cool before servicing
• Access the lamp from the bottom of the microwave; remove the lens/cover as designed
• Avoid touching the glass with bare hands—use gloves or a clean tissue
• Test the light before reinstalling the cover; inspect the socket or switch; do not access internal components due to stored high voltage

This halogen oven lamp replaces the interior light so you can see food clearly while cooking. It restores illumination inside the oven for monitoring and checking doneness without opening the door. What it does:

• Provides bright halogen lighting for oven interiors so you can check food without losing heat
• Common fix for an oven light that flickers, is dim, or no longer turns on
• Fits into the oven's lamp socket and works with the factory light enclosure
• Designed for use in high-temperature oven environments

• Allow the oven to cool and disconnect power before replacing the lamp
• Use a cloth or gloves when handling the lamp to avoid skin oils on the bulb
• Unscrew the old bulb from the socket and screw in the replacement until snug; do not overtighten
• If the light still does not work after replacing the bulb, check the socket and oven wiring

This halogen oven lamp replaces the interior light so you can see food clearly while cooking. It restores illumination inside the oven for monitoring and checking doneness without opening the door. What it does:

• Provides bright halogen lighting for oven interiors so you can check food without losing heat
• Common fix for an oven light that flickers, is dim, or no longer turns on
• Fits into the oven's lamp socket and works with the factory light enclosure
• Designed for use in high-temperature oven environments

• Allow the oven to cool and disconnect power before replacing the lamp
• Use a cloth or gloves when handling the lamp to avoid skin oils on the bulb
• Unscrew the old bulb from the socket and screw in the replacement until snug; do not overtighten
• If the light still does not work after replacing the bulb, check the socket and oven wiring

This power transformer converts household AC to the correct output for the appliance's control circuitry. Replacing a failed unit restores power to the display and controls so the appliance can start and run reliably. What it does:

• Steps and isolates line voltage to the specified output for control and user-interface circuits
• Supplies low-voltage power to the control board, relays, and sensors
• Typical failure symptoms: no power or blank display, won't start, intermittent power loss, repeatedly blown fuse, or signs of overheating/burnt odor near the transformer

• 1 power transformer

• Disconnect power before servicing; capacitors can retain a charge
• Photograph and label wiring, then move each lead to the matching terminals; secure the transformer with original hardware
• Keep wiring clear of sharp edges and hot components; insulate any splices as originally designed
• Verify input/output with a multimeter using model-specific service information
