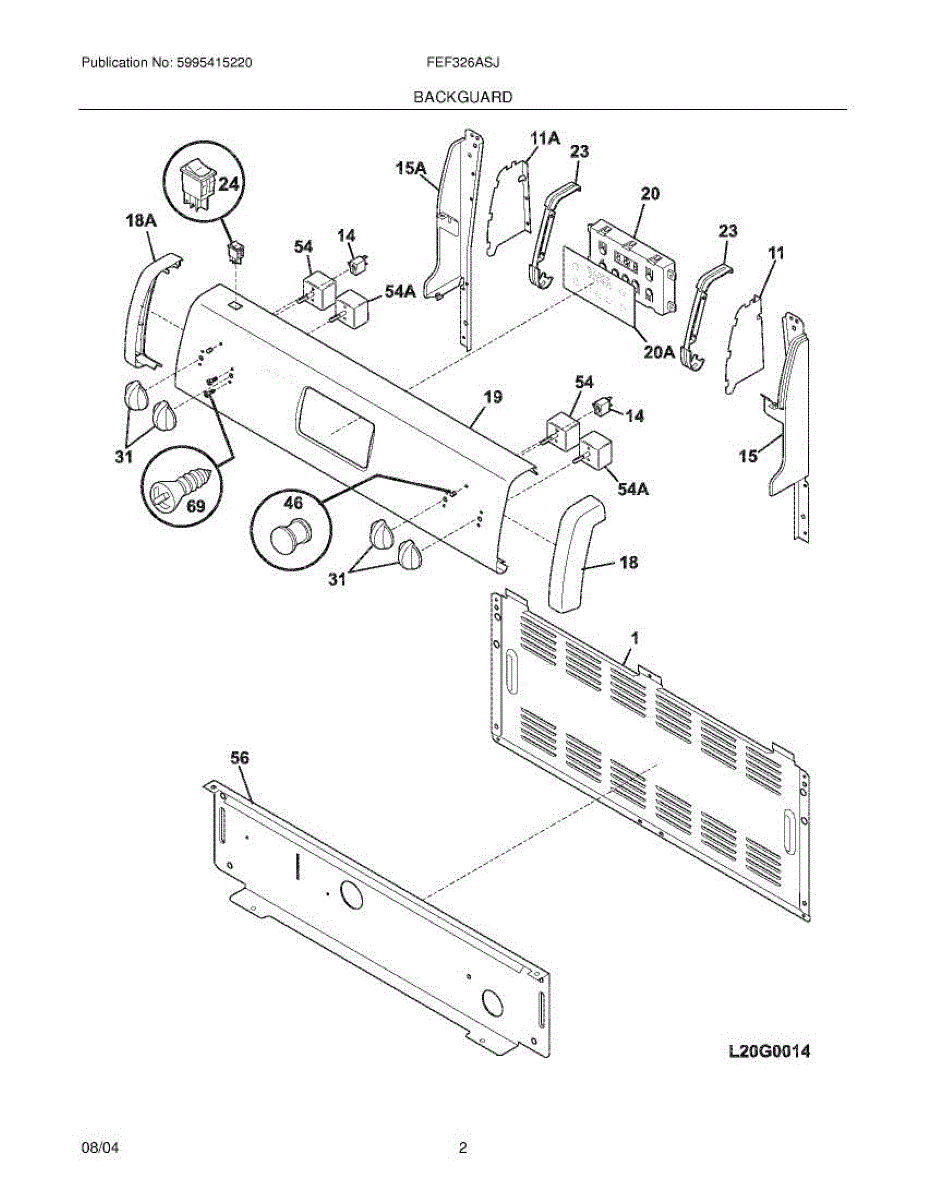

Parts for Frigidaire FEF326ASJ: 03 - Backguard Parts

The Indicator Light is an OEM part for Frigidaire ranges. This light is designed to signal when the range or oven is in operation, providing a visual cue for safety and usability. It typically illuminates when the burners or oven are on, ensuring users are aware of active heating elements.

Causes of a bad indicator light can include electrical malfunctions, wear and tear over time, or damage from power surges or excessive heat.

Symptoms of a bad indicator light include:

• Light not illuminating when the range or oven is in use
• Flickering or inconsistent illumination
• Light staying on constantly, even when the range or oven is off
• Visible damage or discoloration of the light

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: White. This is the right side backguard support. For left side use 316220215.

Color: White. This is the left side backguard support. For right side use 316220214.

The Overlay is an OEM part for Frigidaire ranges. This component is the interface layer that sits over the control panel, providing labels and markings for the various buttons and controls. It ensures that users can easily identify and operate the range settings.

You should replace the overlay if it becomes damaged or worn out. Causes of a bad overlay can include exposure to high temperatures, frequent cleaning, or general wear and tear, which can cause the labels to fade or peel off.

Symptoms of a bad overlay include:

• Fading or illegible labels
• Peeling or bubbling of the overlay surface
• Difficulty in reading and using the controls accurately
• Physical damage such as cracks or tears

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Clock is an OEM part for Frigidaire ovens and ranges. It is the central electronic component that regulates and monitors oven functions such as bake, broil, convection, temperature controls, and timers.

Causes can be failures in the integrated circuitry, damaged connectors or traces on the board, or water or other environmental damage over time.

Symptoms of a clock include:

• Failure of oven elements to heat properly
• Unresponsive or inaccurate temperature displays
• Irregular timed baking or errors flashing
• Problems with convection or baking modes
• Power issues such as the oven not turning on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: White.

The Indicator Light Lens is an OEM part for Frigidaire ranges and cooktops. It is designed to cover and protect the indicator light bulb, which signals when a burner is turned on or if the cooktop is still hot after use. This small component ensures that the light is visible and diffused properly, helping to prevent accidental burns or other safety issues.

Symptoms of a failing Indicator Light Lens include:

• Cracking or damage to the lens that impairs visibility
• Discoloration that makes it hard to tell if the light is on
• The lens becoming loose or falling off
• The light appearing overly bright or unfiltered

Causes of a bad indicator light lens typically involve high heat exposure, which can lead to cracking or warping, or accidental impacts during cleaning or use.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Small Surface Element Switch is an OEM replacement part for Frigidaire electric ranges. It serves as the control knob and circuitry to safely power one of the smaller cooking elements.

Symptoms of a bad surface element switch include:

• Inability to ignite or regulate heating for its assigned zone
• Switch knob that feels loose, won't click smoothly, or won't stay set
• Intermittent or unreliable power to the smaller element coils
• Tripped circuit breakers upon use that don't reset

Causes relate to thousands of rotations wearing micro-switches and wiring terminals within the control assembly. Regular cleaning around knobs can prevent accelerated deterioration from baked-on debris conducting excess heat.

This genuine OEM replacement part is compatible with other brands including Electrolux and Kenmore as well.

The Large Surface Element Switch is an OEM replacement part for Frigidaire ranges and cooktops. It is a component that controls the power and temperature settings for one of the larger surface heating elements on the appliance.

Symptoms of a faulty Large Surface Element Switch include:

• Difficulty in adjusting or maintaining consistent heat settings
• The surface element not heating up or cycling on and off unexpectedly
• Flickering or erratic behavior of the surface element
• Burning smell or visible signs of overheating

Causes of a bad large surface element switch can include normal wear and tear, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore range and cooktop models.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
